8N1015D 16" 6 Hole Front Wheel Rim Fits Ford Tractor 8N NAA Jubilee 600 800

Name: 8N1015D 16" 6 Hole Front Wheel Rim Fits Ford Tractor 8N NAA Jubilee 600 800
SKU: 8N1015D
Price: 86.74 USD
Availability: InStock

8N1015D 16" 6 Hole Front Wheel Rim Fits Ford Tractor 8N NAA Jubilee 600 800

$86.74 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

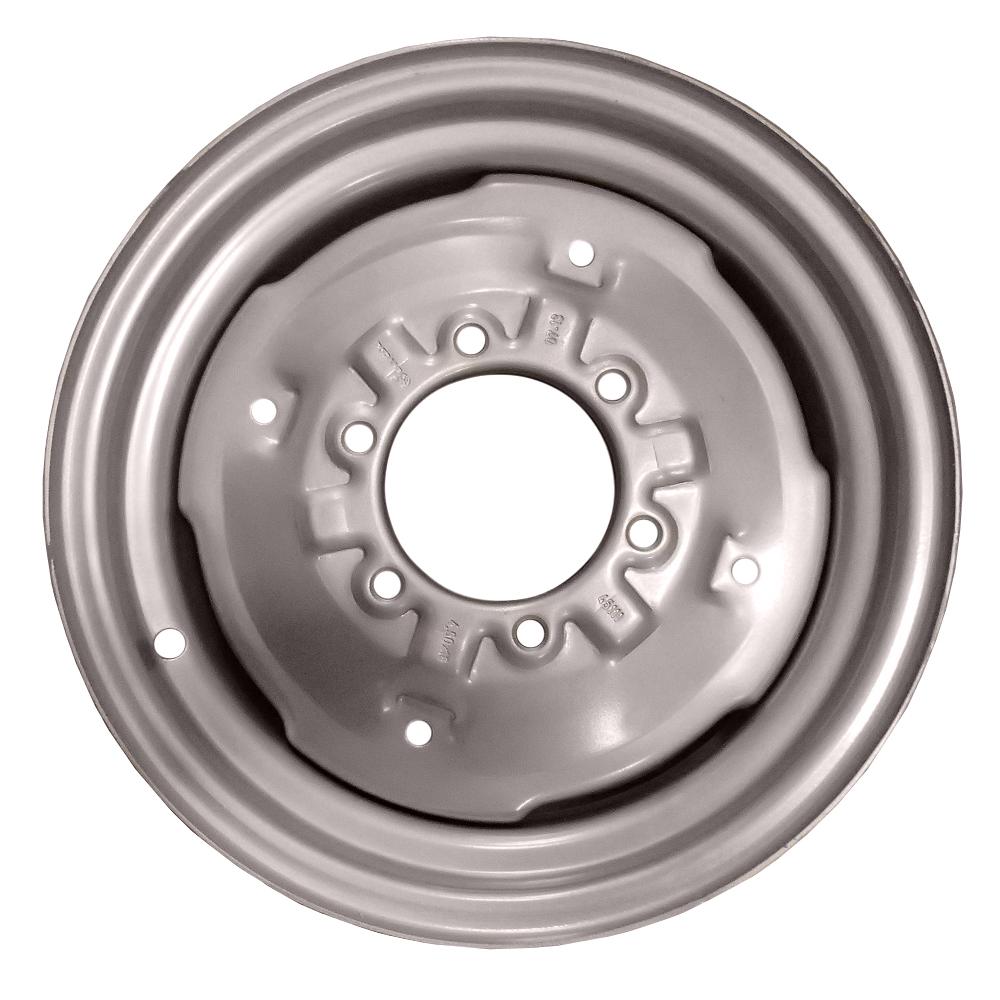

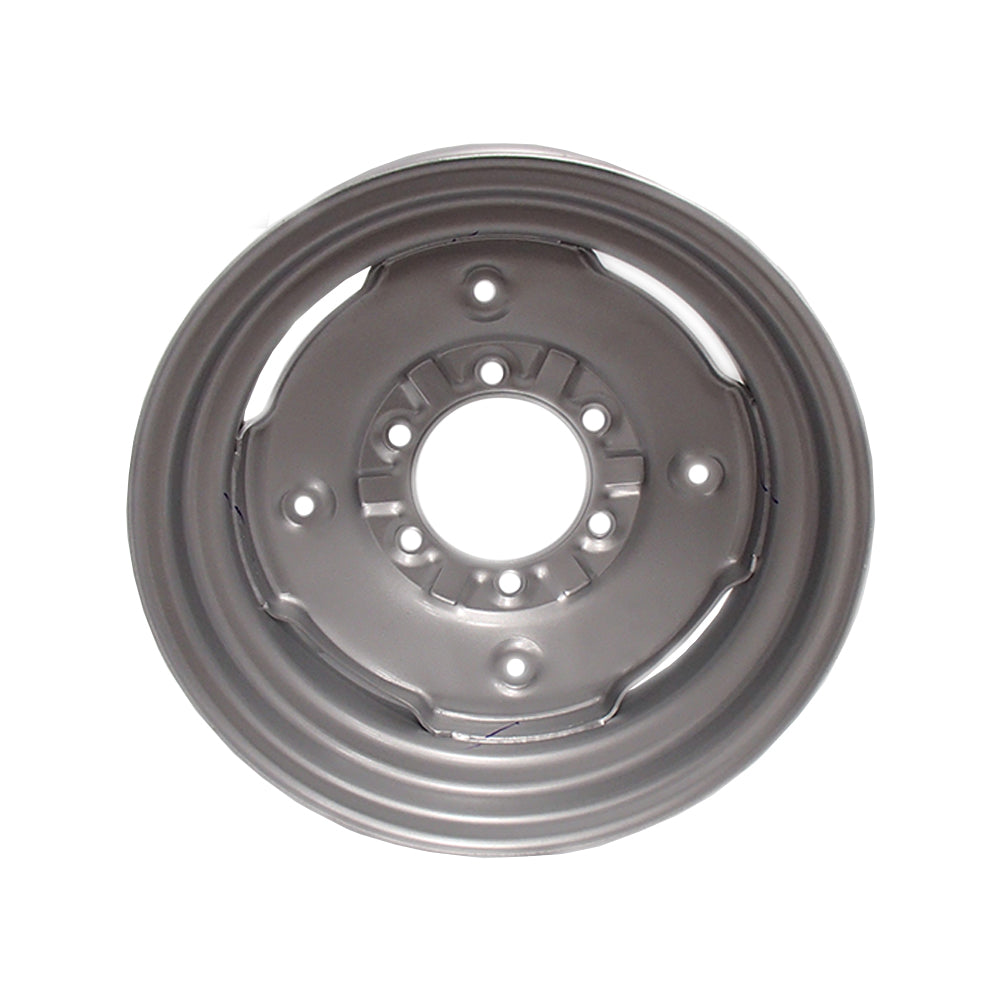

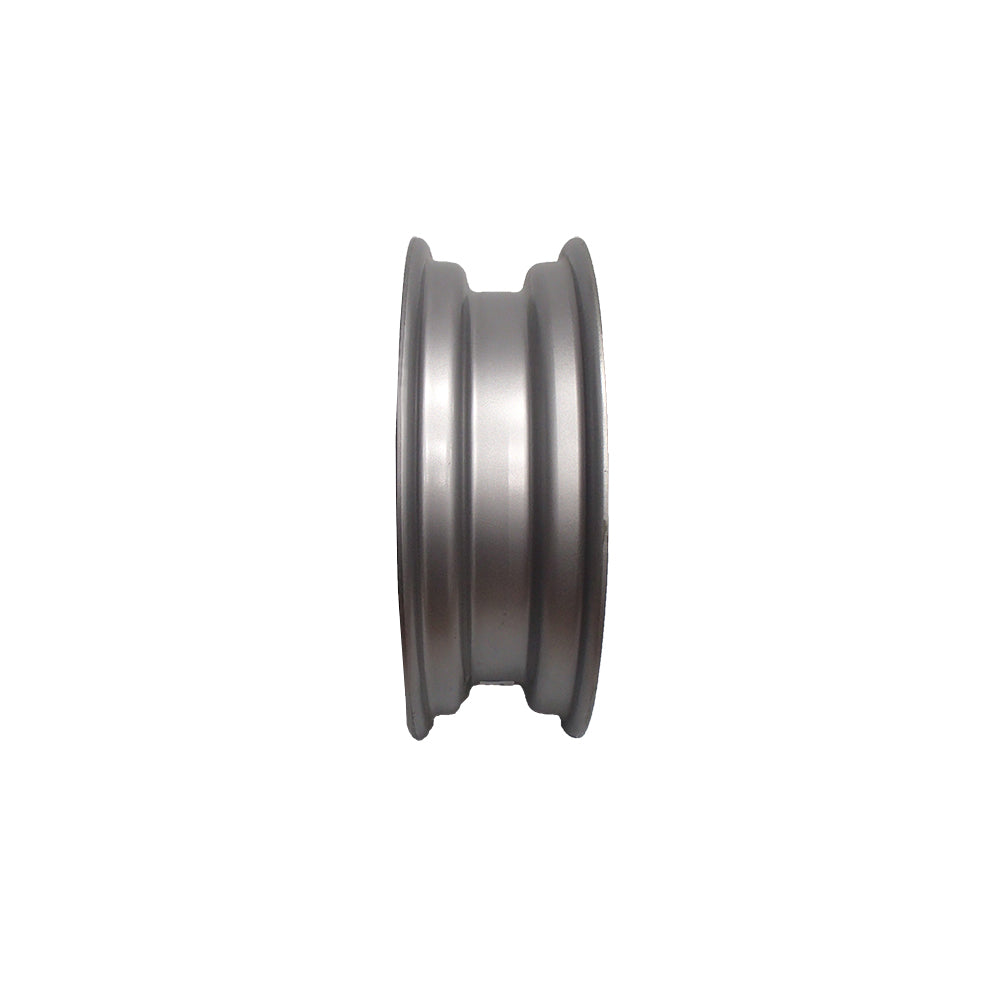

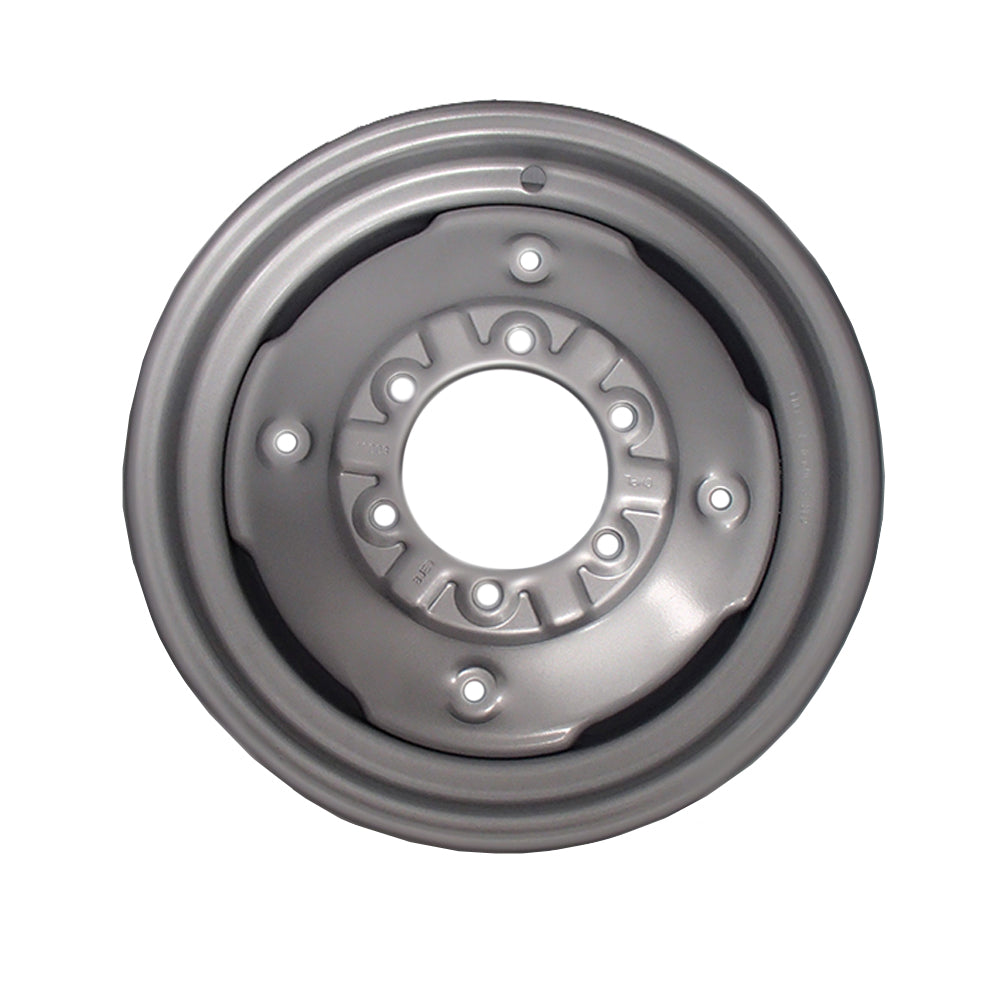

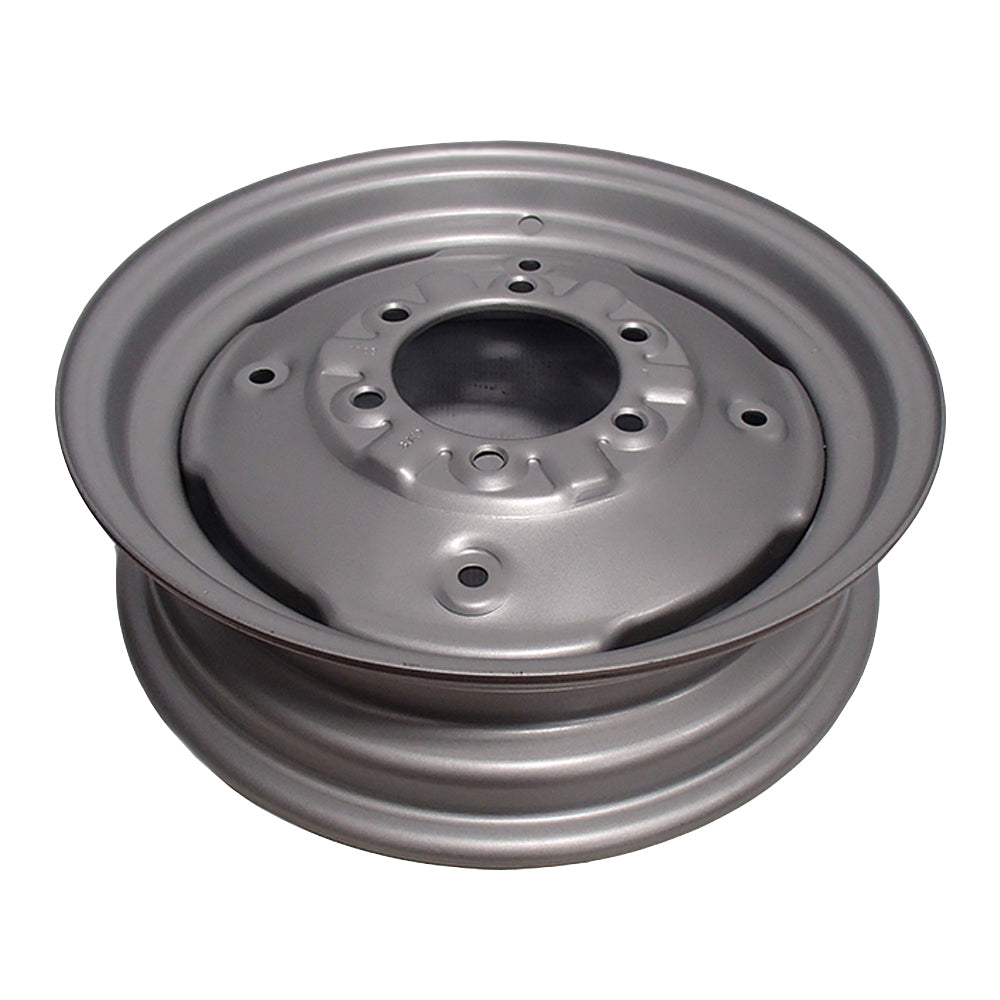

One New Aftermarket Replacement Rim, Front Wheel 4.5" x 16"

Fits Various Makes and Models

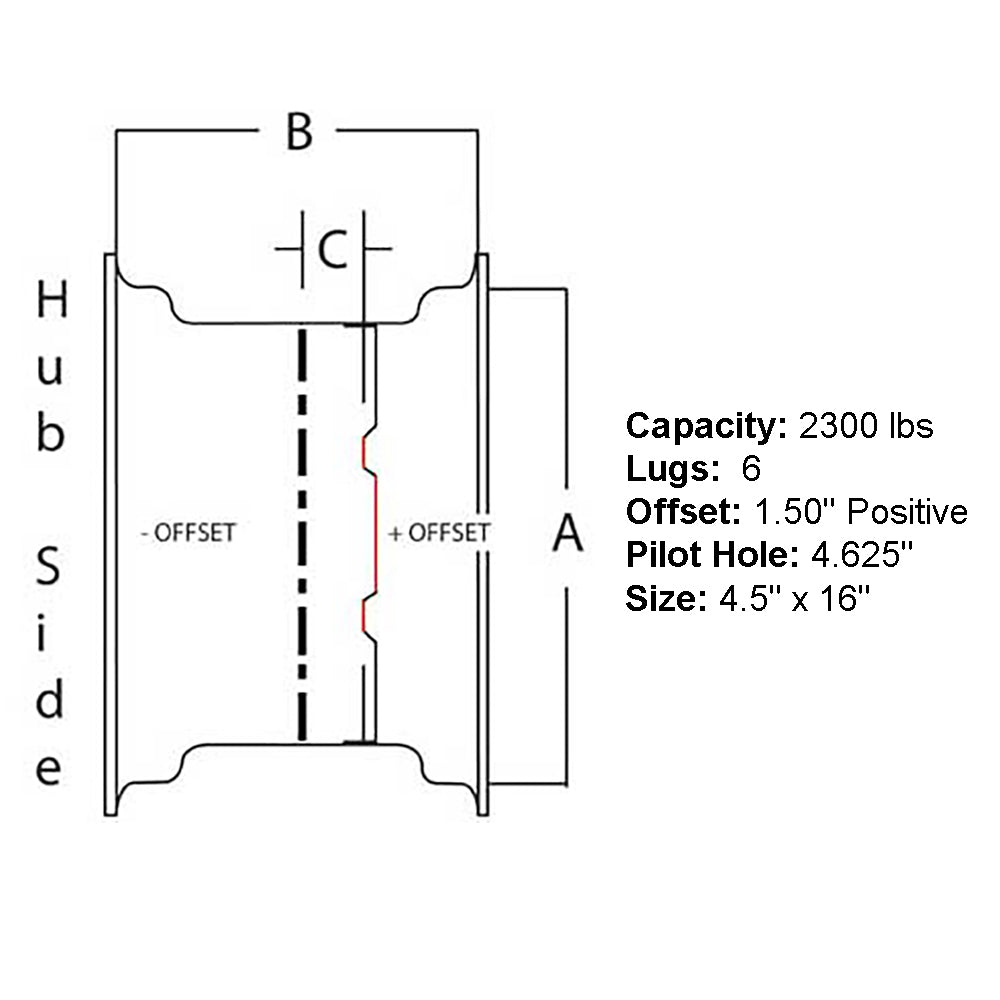

Tech Info:
Size: 4.5" x 16"
Offset: 1.50" Positive
Pilot Hole: 4.625"
Lugs: 6
Capacity: 2300 lbs
Valve Stem hole: 5/8"

Fits 5.50" and 6.00" wide tires (16" diameter)
Rim width is measured between the bead points (1" less than outside to outside measurement)
2500 lb. capacity
6" center to center bolt pattern
(4) round wheel weight hole

Capacity based on 20 MPH max speed.

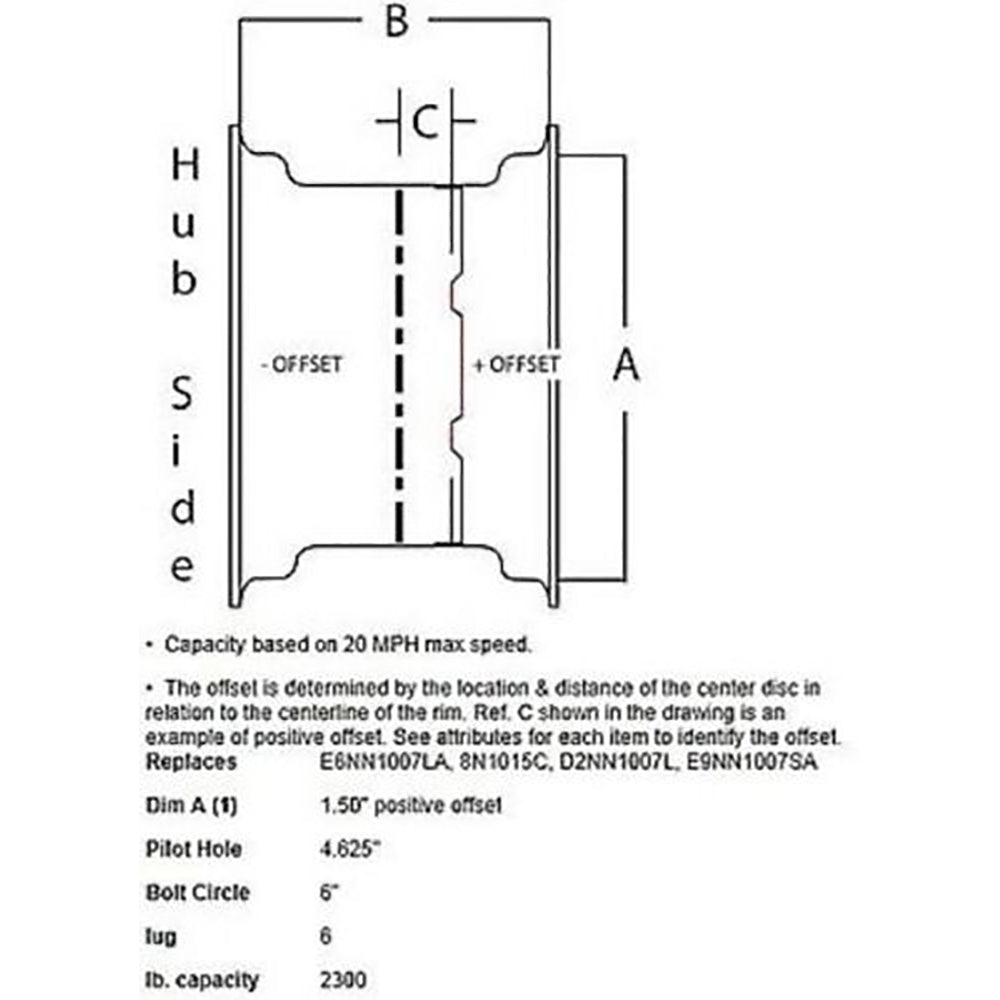

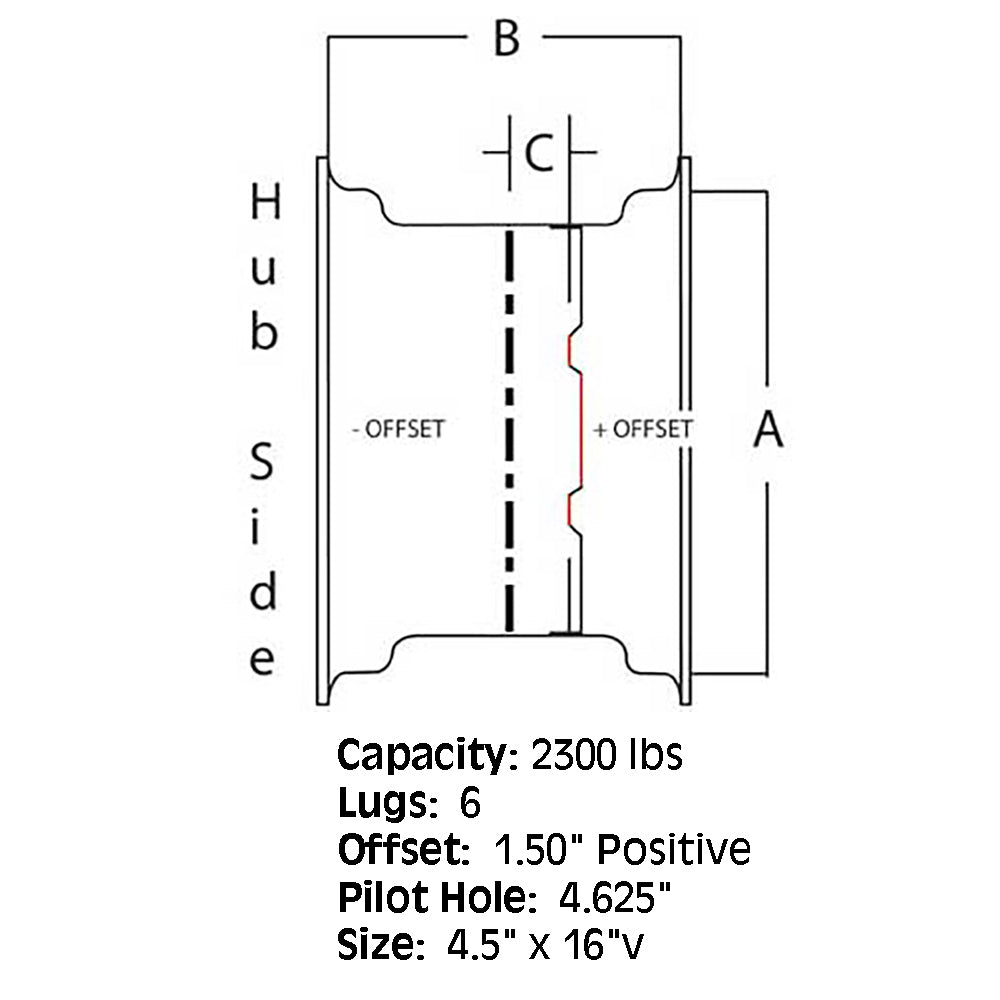

The offset is determined by the location & distance of the center disc in relation to the centerline of the rim.

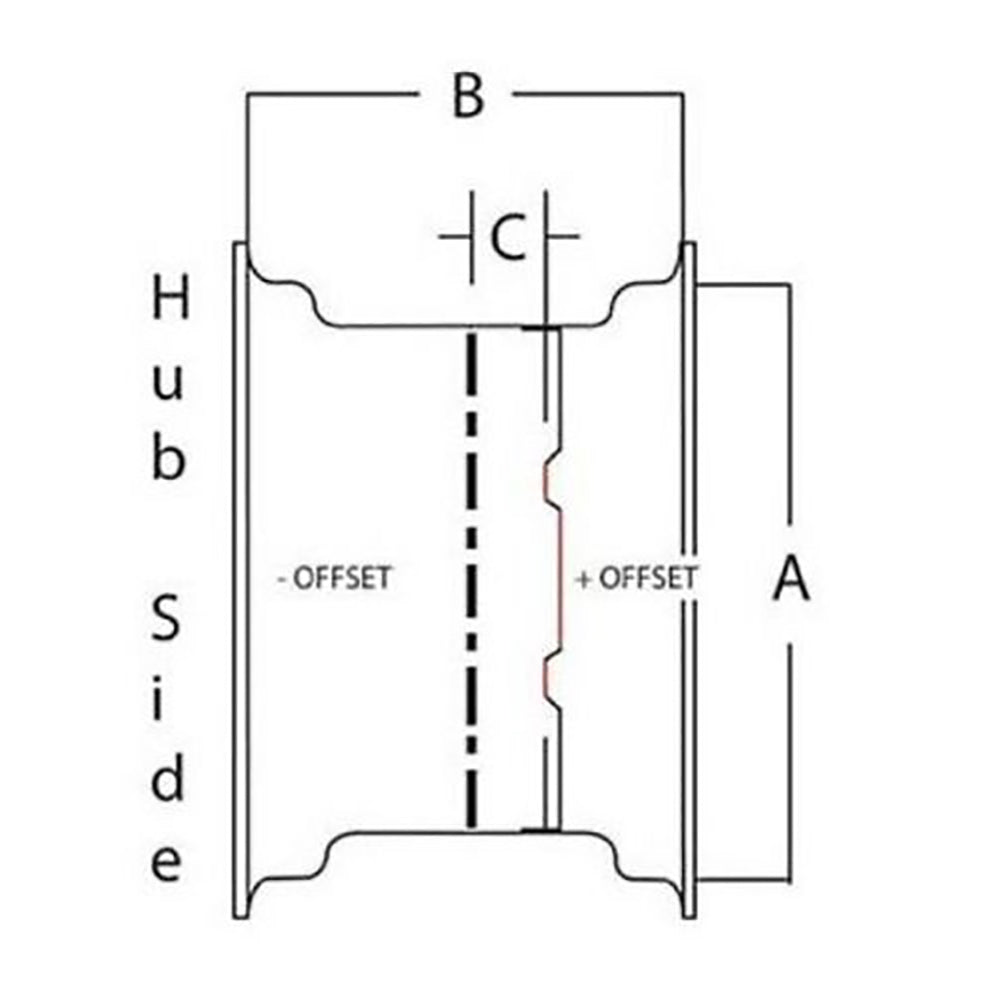

Ref. C shown in the drawing is an example of positive offset.
See attributes for each item to identify the offset.

Replaces Part Numbers:
Fits Allis Chalmers: 235086, 248460, 70235086, 70248460
Fits Case: G10660, G57005, V13830, VTA1303
Fits Cockshutt: Z524
Fits Ford: 82006575, 87389515
Fits International: 380065R91, 704675R91
Fits John Deere: AN241675, JD3002
Fits Massey Ferguson: 195638M91, 506020M91, 535448M91
Fits Oliver: 1KS-729A

Models This Part Fits:

1026, 1206, 1256, 140, 1456, 1470TK, 1520, 1530, 1550, 1555, 160, 1600, 1650, 1655, 170, 175, 180, 1801, 1811, 1821, 1841, 185, 190, 190XT, 2-44, 2-62, 2-70, 20, 200, 200B, 2030, 2031, 2040, 20B, 2100, 210B, 2110, 2111, 211B, 2120, 2130, 2131, 2150, 2200, 2240, 2300, 230A, 231, 233, 234, 240, 2400A, 2424, 2444, 2504, 255, 2606, 2630, 2640, 2656, 2706, 2756, 2806, 285, 2856, 300, 300B, 301, 302B, 3055, 3100, 311, 3110, 311B, 312, 3120, 312B, 3150, 3165, 3190, 320B, 330, 3300, 3310, 333, 3330, 334, 335, 340, 3400, 340B, 3414, 35, 350, 3500, 351, 3514, 3550, 3616, 364, 3830, 3900, 4 STAR, 4 STAR SUPER, 40, 400B, 404, 410B, 411B, 4140, 4190, 4200, 420B, 420BD, 424, 430, 431, 4330, 4340, 435, 4400, 441, 4410, 445, 4500, 454, 460, 4600SU, 464, 470, 480, 50 MASSEY HARRIS, 500 SERIES, 500B, 504, 5100, 510B, 511B, 515, 5190, 5200, 530, 531, 5340, 535, 540, 541, 544, 545, 550, 5530, 560, 570, 5700, 574, 5900, 600 SERIES, 6000, 600B, 601, 606, 6060, 6070, 610B, 611B, 630, 631, 632, 634, 640, 641, 644, 656, 6610S, 664, 666, 6710, 686, 700, 700 SERIES, 7010, 706, 7100, 7200, 730, 732, 733, 734, 740, 741, 7410, 742, 743, 744, 756, 766, 77, 770, 7710, 800 SERIES, 806, 826, 830, 830(3 Cyl.), 831, 832, 840, 841, 842, 843, 856, 88, 880, 8N, 900 SERIES, 966, B250, B250 Diesel, B275, B275 Gas, B276, B414, D15, D17, D19, ED40, FE35, JET STAR, JET STAR 3, JET STAR 3 SUPER, MAJOR, NAA(JUBILEE), NAB, POWER MAJOR, SUPER 55, SUPER 77, SUPER 88, SUPER MAJOR, VA, VAC, VAH, VAI, VAO, VAS

Reference Numbers:

1077283M91, 1077283M91-A, 1208-1019, 1208-1019-A, 1408-1019, 1408-1019-A, 1882225M3, 1883335M1, 1883335M1-A, 1883335M2, 1883335M2-A, 1883335M3, 1883335M3-A, 195638M91, 195638M92, 195638M92-A, 3008-1019, 3008-1019-A, 3048866R91, 3048866R91-A, 3251239, 3251239-A, 380065R91, 4.5 x 16, 506020M91, 535448M1, 535448M1-A, 535448M91, 535448M91-A, 7011526M91, 7011526M91-A, 704675R91, 704675R92, 81802273, 82006575, 82006575-A, 83900158, 83958545, 83958545-A, 83960326, 83960326-A, 83988088, 84190192, 84190192-A, 87389515, 87389515-A, 885741M3, 885741M3-A, 885741R3, 8N1015C, 8N1015C-A, 8N1015D, 8N1015D-A, 957E1015D, A-A38938, A-AR52506, A-AR52506-A, A38938, A38938-A, AN241675, AR52506, AR52506-A, C5NN1007B, C5NN1N015A, C9NN1007B, D2NN100, D2NN100-A, D2NN1007L, D2NN1007L-A, E6NN1007LA, E6NN1007LA-A, E9NN1007SA, E9NN1007SA-A, FW45166, FW45166-A, K907803, K914053, K947937, K947938, Red111, Red111-A, VPH6002
