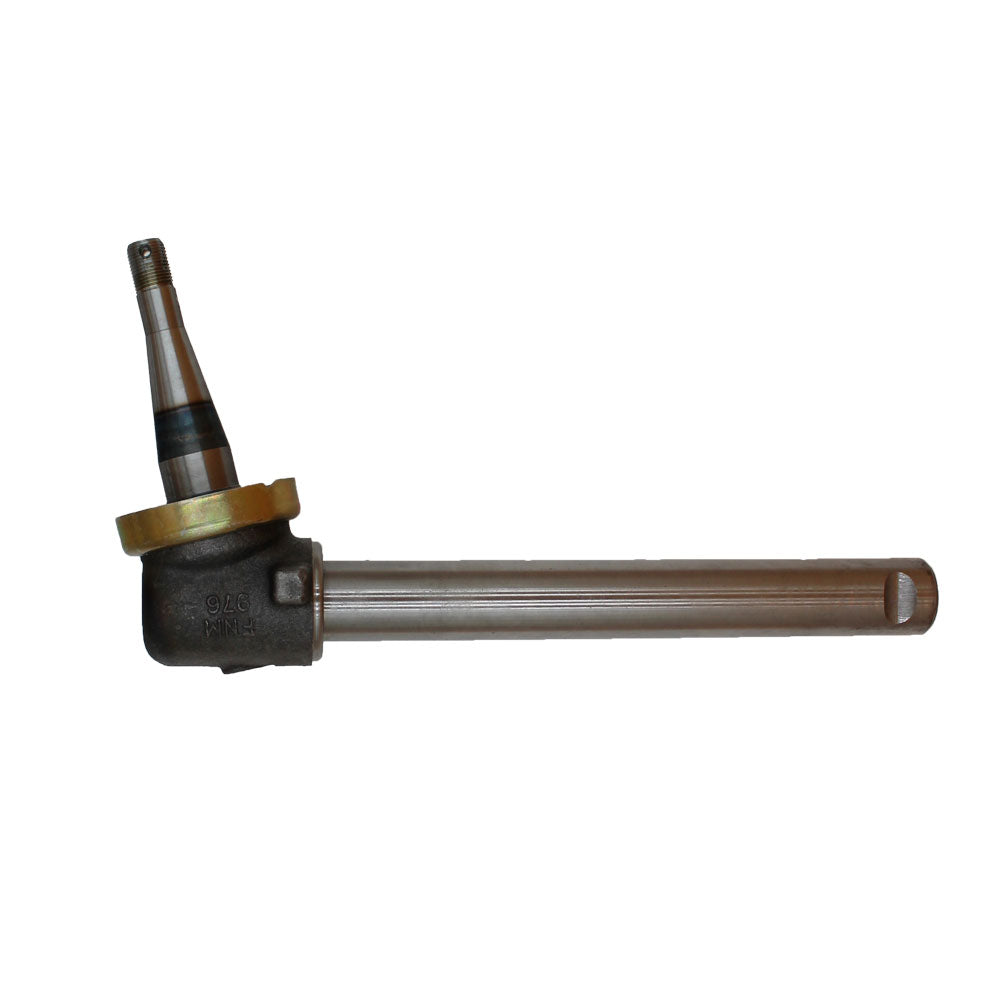

Spindle (Rh) Fits Massey Ferguson 165 U.K.; 20D; 20E; 240; 250;
Spindle (Rh) Fits Massey Ferguson 165 U.K.; 20D; 20E; 240; 250;
Couldn't load pickup availability

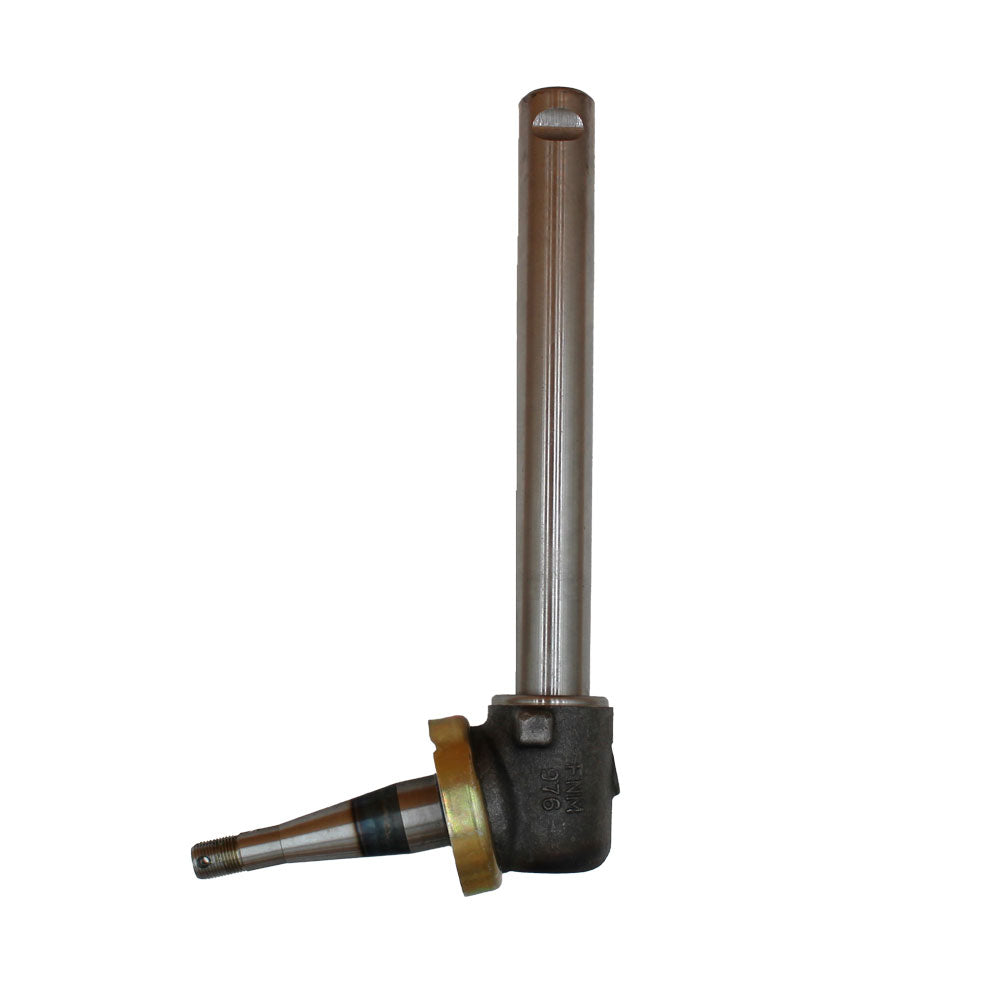

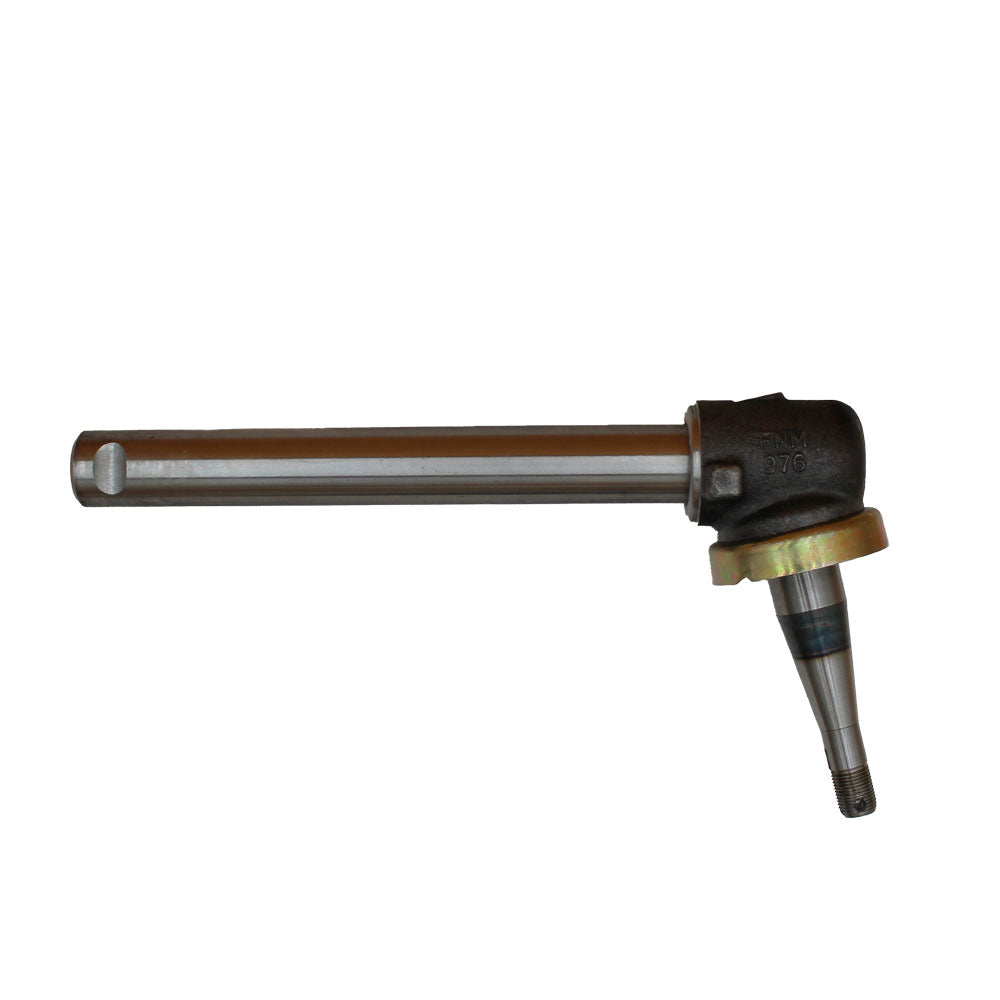

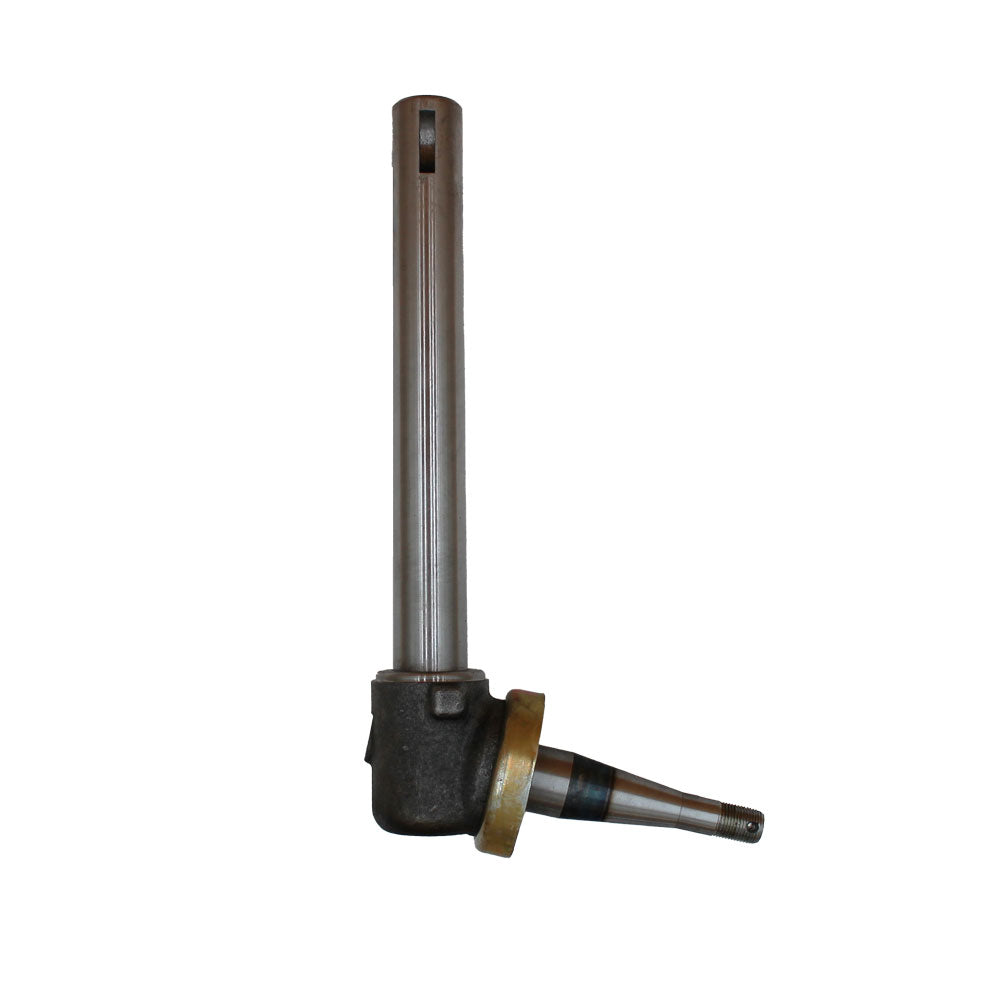

One New Aftermarket Replacement Right Hand Front Spindle Fits Massey Ferguson Tractors
This right hand (RH) front axle spindle is a direct replacement for the 2WD front axle assembly on Fits Massey Ferguson tractors and industrial machines. The spindle mounts in the front axle kingpin bore and carries the front wheel hub, providing the steering pivot point for the right-hand front wheel. Compatible with both agricultural tractors and industrial/construction variants.
Specifications
- Side: Right Hand (RH)
- Application: Front Axle Spindle
- Shaft Length: 11.61 in (295 mm)
- Shaft Diameter: 1-1/2 in (38 mm)
- Thread: 3/4 in UNF
- Duty: Standard / Normal Duty
- Fitting: Keyway
Compatible Models
Fits Massey Ferguson Agricultural Tractors: 165, 165 UK, 168, 230, 240, 243, 250, 253, 263, 265, 275, 340, 342, 350, 550, 550 UK, 560, 565
Fits Massey Ferguson Industrial / Construction: 20D, 20E, 20F
Replaces Part Number(s):
897230M94, 897096M95, 897230V94, VPJ1011, VPJ1061, 897230M92, 1694233M91, 897230M91
Aftermarket Interchange Numbers
AM897230M94 (Abilene Machine), A-897230M94, S.15995, A48540, 1694233V91
New aftermarket replacement part - not remanufactured, not used.
