8772111 Standard Piston 11503170 Fits Universal Tractors 1010 320 340 530 553

Name: 8772111 Standard Piston 11503170 Fits Universal Tractors 1010 320 340 530 553
SKU: ENO20-0290-IRT
Price: 78.99 USD
Availability: InStock

8772111 Standard Piston 11503170 Fits Universal Tractors 1010 320 340 530 553

$78.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

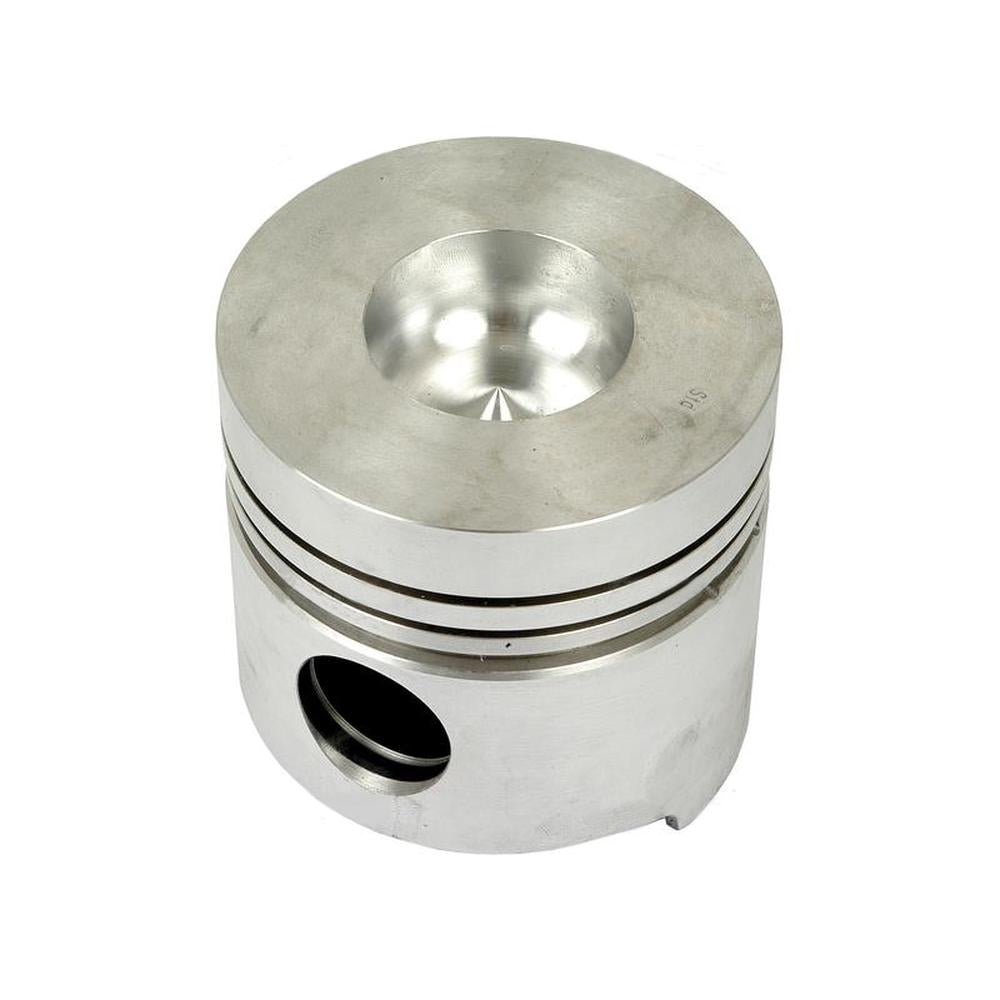

One (1) New Aftermarket Replacement Standard Piston

Fits Universal Tractor Models: 1010, 320, 340, 530, 553, 640, 643

Specs:
Piston Length mm: 101.40mm,
Compression Height: 59.44mm,
Bore: 101.96mm,
Bowl Depth: 24.40mm,
Chamber: 48.46mm,
Pin: 31.93mm,
No. of Rings: 3

Replaces Part Numbers: 115 03 170, 8772111, 11503170

Models This Part Fits:

2510SD, 2610SD-DTC, 610C, 310C, 510, 2510SD-DTE, 2510DTC, 2610SD, 2610DTC, 310DT, 610, 310, 2610, 2510, 610DTE, 510DT, 610DT

Additional Information:

Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3
