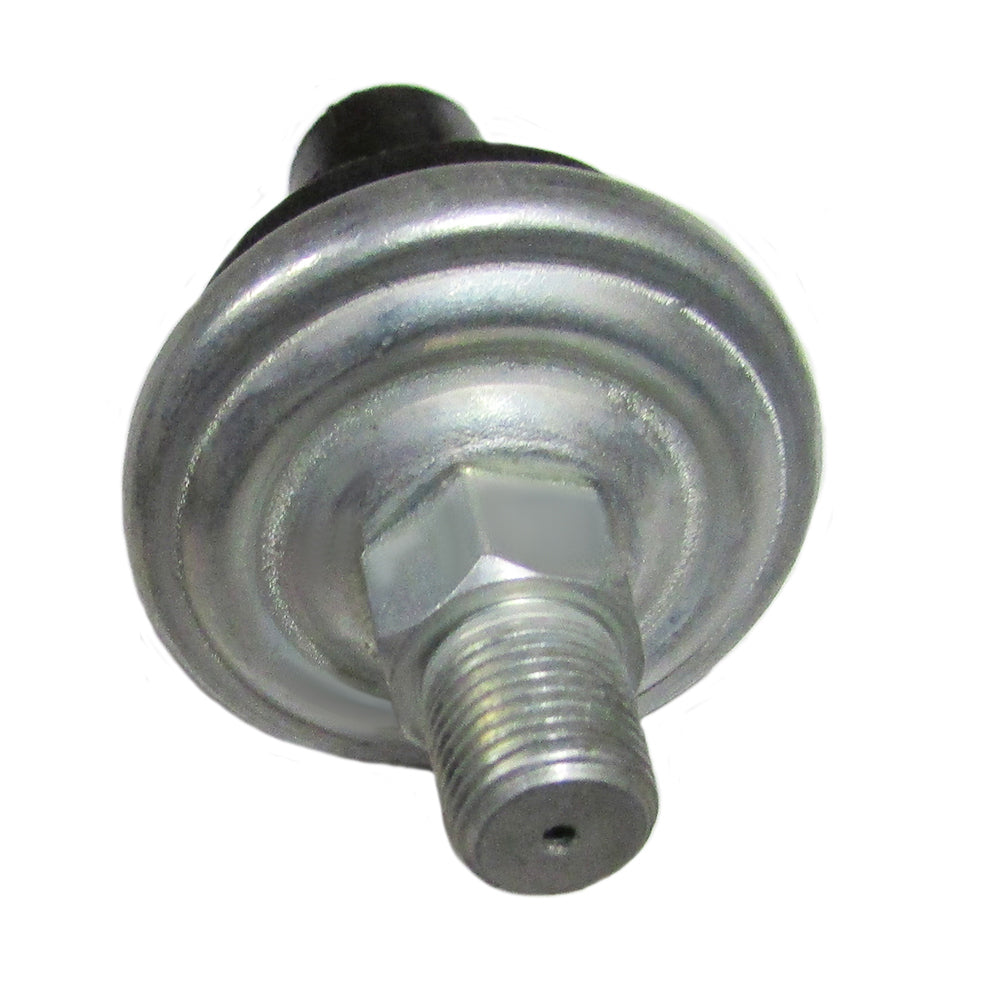

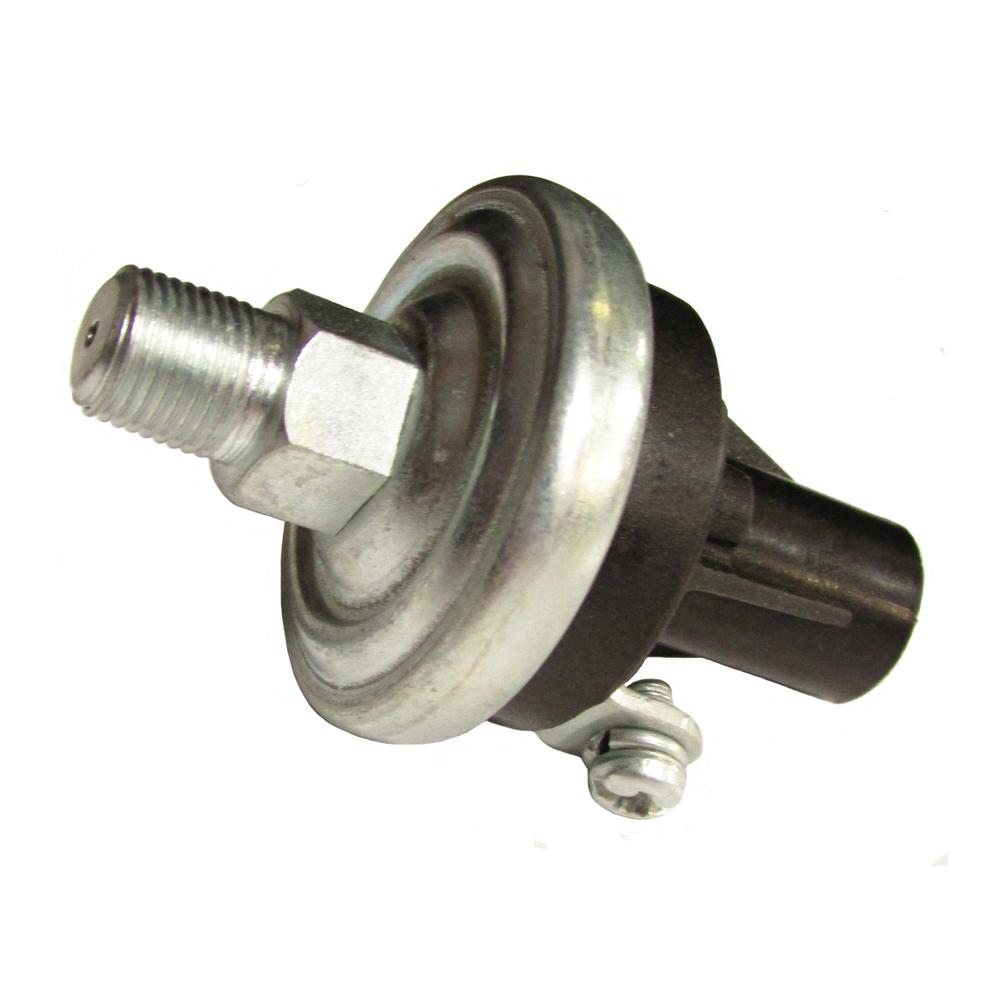

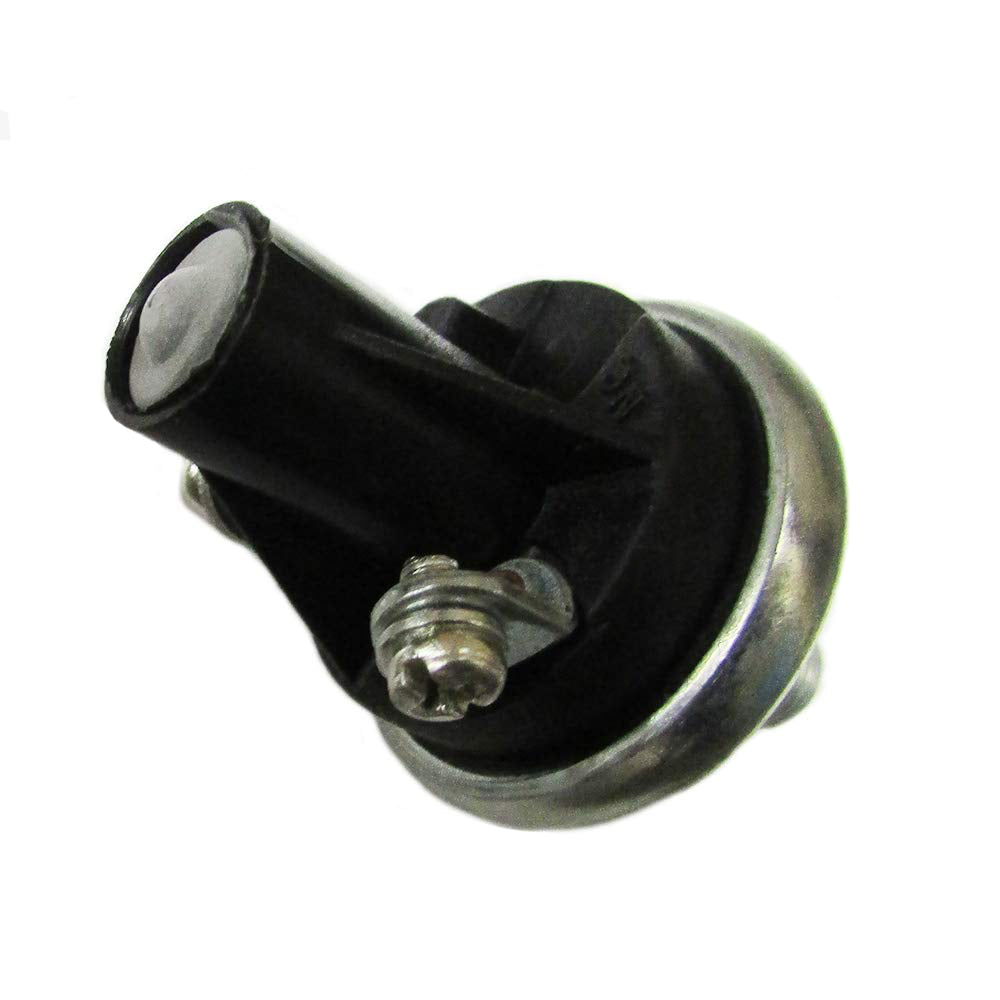

76575-4 One 1 Pressure Switch Adjustable For Honeywell Hobbs

$21.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One (1) New Aftermarket Replacement Adjustable Pressure Switch Fits several Hobbs or Honeywell models.

Extended Duty Switch
Single Pole, Single Throw
Normally Open
Terminal: # 8-32 Screw
Base: Plated Steel
Diaphragm: Polymide Film
Termination: Screw
Contact(s): Silver Alloy, Gold Plated
Circuit: Single Circuit, Two Terminals
Connector(s): 1/8-27 NPT Male Thread
Cover Type: Glass Reinforced Polyester

Specifications:

Contact Setting: 3.1 PSI to 7 PSI
Factory Setting: 4 PSI
Operating Pressure: 150 PSI
Proof Pressure: 500 PSI
Burst Pressure: 750 PSI
Resistive Rating: 15 Amps @ 6V DC
Resistive Rating: 8 Amps @ 12V DC
Resistive Rating: 4 Amps @

Additional Information:

Single Circuit With Two Insulated Terminals. This Is A 4 # N/O Pressure Switch Typically Used To Activate Hour Meters From The Engine Oil Pressure Contact Setting: 3.1 Psi To 7 Psi Factory Setting: 4 Psi Operating Pressure: 150 Psi Proof Pressure: 500 Psi Burst Pressure: 750 Psi Normally Open. Closes At 4 Psi. 1/8" Male Pipe Thread Connection Extended duty switch. Normally open. Single pole, single throw. #8-32 screw terminal. Plated steel base. Polyamide film diaphragm. Silver alloy, gold plated contacts. Glass reinforced polyester cover. 15 amps @6V DC resistive rating. 8 amps @ 12V DC resistive rating. 4 amps @ 24V DC resistive rating. 1 amps @ 120V AC inductive rating. 0.5 amps @ 240V AC inductive rating. 40°F to 250°F temperature.
