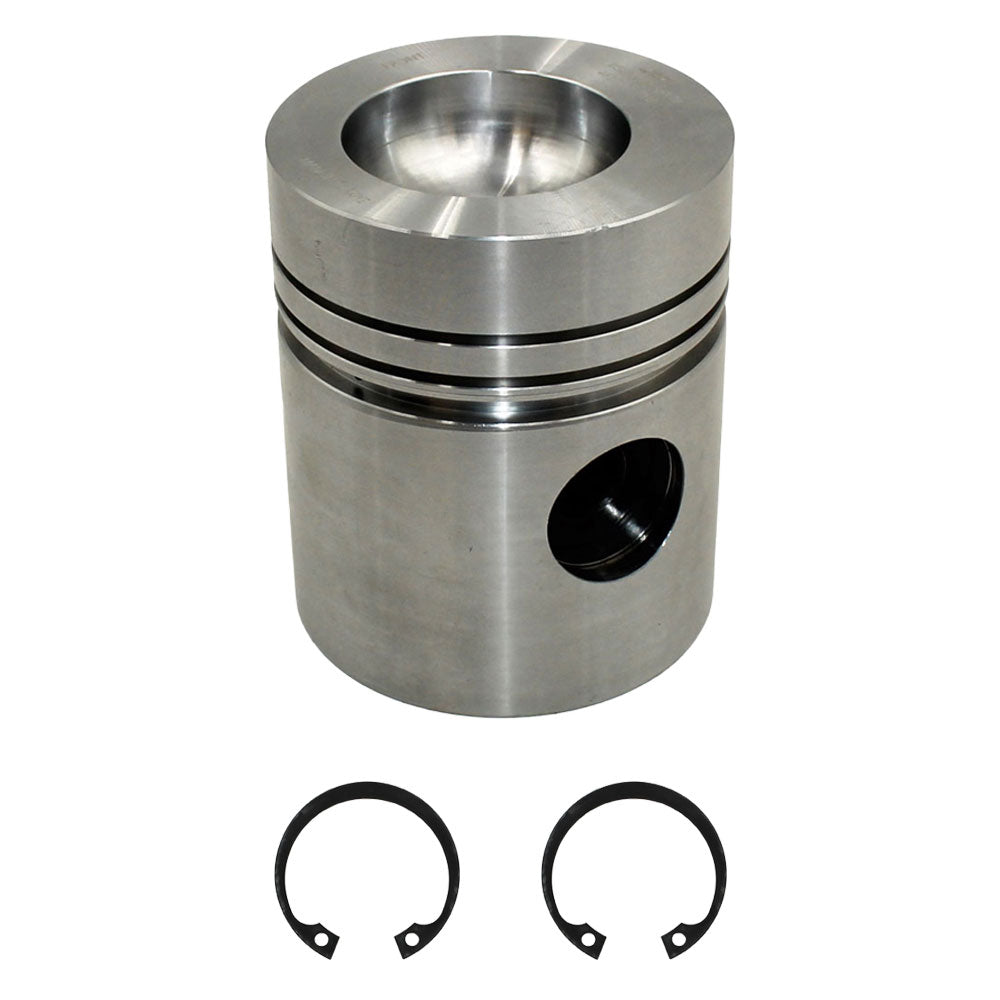

One New Aftermarket Replacement Standard 3-Ring Piston Fits Massey Ferguson Tractors with Perkins A4.248 Engine
This standard individual piston is a direct replacement Fits Massey Ferguson, Landini, and Perkins-engined tractors equipped with the Perkins A4.248 (and A4.236) four-cylinder diesel engine. Featuring a plain bowl, dish-top crown, and controlled-expansion design with three piston rings, it restores proper combustion and engine performance during overhaul or rebuild.
Specifications
- Piston Length: 121.00mm
- Compression Height: 70.50mm
- Bore Diameter: 101.6mm
- Bowl Depth: 20.92mm
- Chamber Diameter: 61.45mm
- Pin Diameter: 34.93mm
- Number of Rings: 3
- Size: Standard (STD)
- Crown Type: Dish Top / Plain Bowl
- Note: Controlled Expansion
Compatible Models
Fits Massey Ferguson (MF) Tractors: 20, 175, 178, 185, 188, 194, 275, 285 (FR), 285 US Built, 290, 290 US Built, 293, 294, 294-4, 294C, 382, 383, 387, 390, 390E Brazilian, 393, 393LX, 394, 394C, 396C, 396CF, 397, 430 UZEL, 50EX, 50H, 50HX, 590, 60H, 60HX, 690, 3060
Landini Tractors: 7860, 7870, 7880, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, Advantage 85, Fits Blizzard 85, C7800, C7830, C8860, Rex 85, Trekker 85
Perkins Engine: A4.248 (LF)
Replaces Part Number(s):
747050M91, 747 050M91, U5LP0009
Aftermarket Interchange Numbers
Perkins: U5LH0013, U5LL0031, 68811, 68813 | Sparex: S.41540
New aftermarket replacement part - not remanufactured, not used.
