743110M91 Piston Individual Fits Massey Ferguson Tractor 175 180 255 265

743110M91 Piston Individual Fits Massey Ferguson Tractor 175 180 255 265

$36.57 USD
$36.57 USD
Sale Sold out
Shipping calculated at checkout.

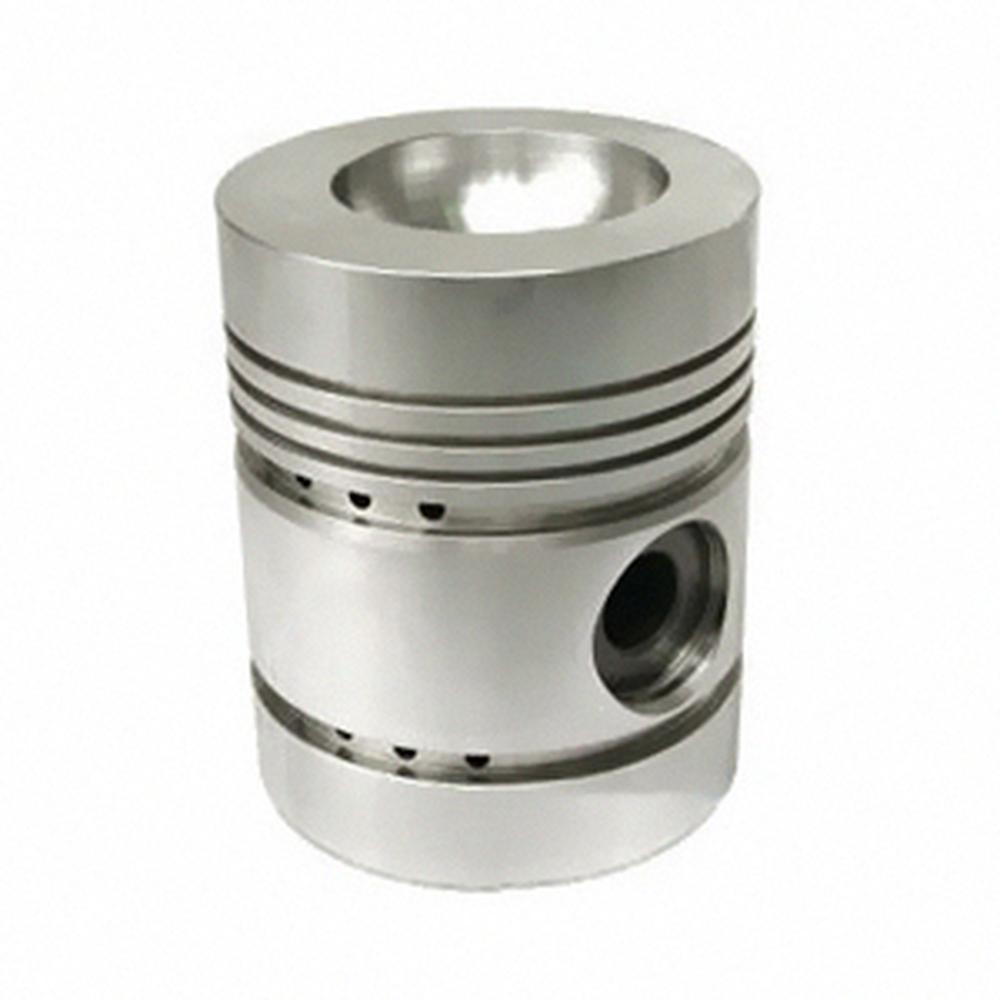

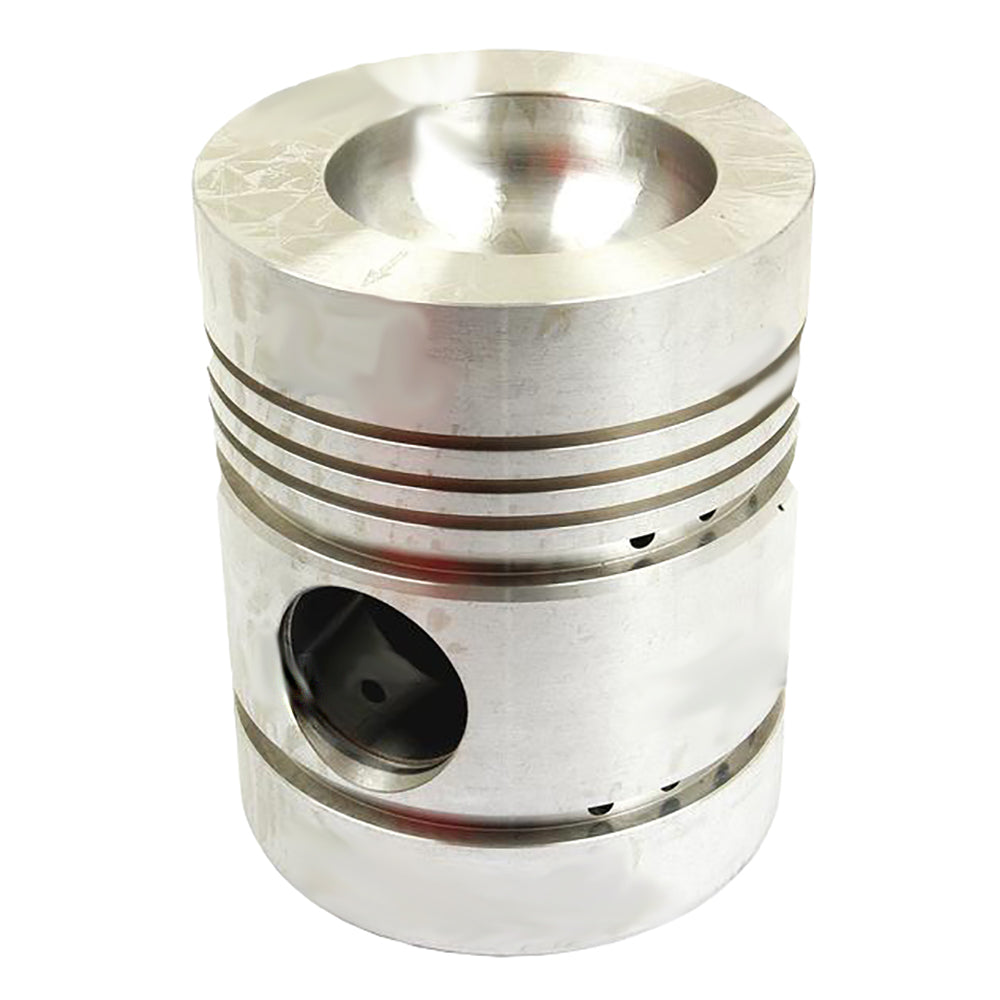

One New Aftermarket Replacement Piston Fits Massey Ferguson Tractors with Perkins 4.236 / A4.236 Engine

This aftermarket replacement piston is a direct Fits Massey Ferguson tractors and industrial/construction equipment powered by the Perkins 4.236 and A4.236 four-cylinder diesel engine. Sold individually, this is a 5-ring piston ground to standard bore specifications. Rings are not included.

Specifications

  • Bore: Standard 98.48mm
  • Piston Length: 121.01mm
  • Compression Height: 70.2mm
  • Chamber Depth: 20.47mm
  • Chamber Diameter: 61.1mm
  • Pin Diameter: 34.93mm
  • Ring Grooves: 5 Channel
  • Rings: Not included

Compatible Models

Fits Massey Ferguson Tractors: 10, 168, 174, 175, 178, 180, 184, 240, 255, 261, 265, 270, 273, 274, 274SK, 275, 283, 284, 307, 330, 362, 365, 372, 373, 373LX, 374, 375, 375E Brazillian, 377, 383, 384, 387, 565, 575, 675, 3050, 6000

Fits Massey Ferguson Industrial/Construction: 174C, 240, 255, 261, 270, 274, 30D, 31, 50, 50B, 50C, 50D, 50E, 50EX, 50F, 50H, 50HX, 60, 60H, 6500

Fits Massey Ferguson Combines/Other: 520, 2200, 2204, 2250, 2254, 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880

Compatible Engine: Perkins 4.236, A4.236

Also Used In: Fits JCB 3CX; Landini, Fits Volvo, and other equipment fitted with the Perkins 4.236 / A4.236 engine

Replaces Part Number(s):

743110M91, 743111M91, 743110V91, 743110Z91, 3637516M91, 3637516M9, 1082103M1, 02100007, 68301, 168301, PE68301, U5LP0035

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

60, 50E, 175, 180, 50EX, 387, 50, 373, 30D, 50HX, 50D, 2250, 3050, 174, C6500, 283, 6860, A4.236, 178, 2204, REX 65, 6530, 575, 7560, 60H, 240, 307, 6560, 50B, 565, 362, 7550, S60-100, 6000, 50H, TREKKER 65, 184, 7500, 375E Brazillian, 410, REX 75, 6550, H110-150, 377, 174C, 373LX, 372, 7880, 50C, 7870, 261, C300, 365, 255, TREKKER 75, 2200, 383, TREKKER 70, 3CX, 384, 265, 7860, 10, 273, 284, 6840, 270, CF6830, 7530, 31, 50F, T500, 2254, BLIZZARD 75, 715B, ADVANTAGE 75, 375, ADVANTAGE 65, BLIZZARD 65, 274SK, 4.236, 168, 6830, 374, C6830, 500 Amp Welder, 6880, 330, 520, 275, 274, CY60-70-80B, 7830, 675, 6500, 6870

Additional Information:

5 Channel Standard 98.48mm Bore

Reference Numbers:

168301, U5LP0035, 743110M91, 3637516M91, 68301, PE68301, 743110M91, 743111M91, 1082103M1, 743110V91, 68301, 743110Z91, U5LP0035, 3637516M9, 3637516M91, 1082103M1, 68301, U5LP0035, 02100007, 3637516M91, 743110M91, 743111M91, 1082103M1, 743110V91, 68301, 743110Z91, U5LP0035, 3637516M9, 68301, U5LP0035

Product Category:

Agriculture
