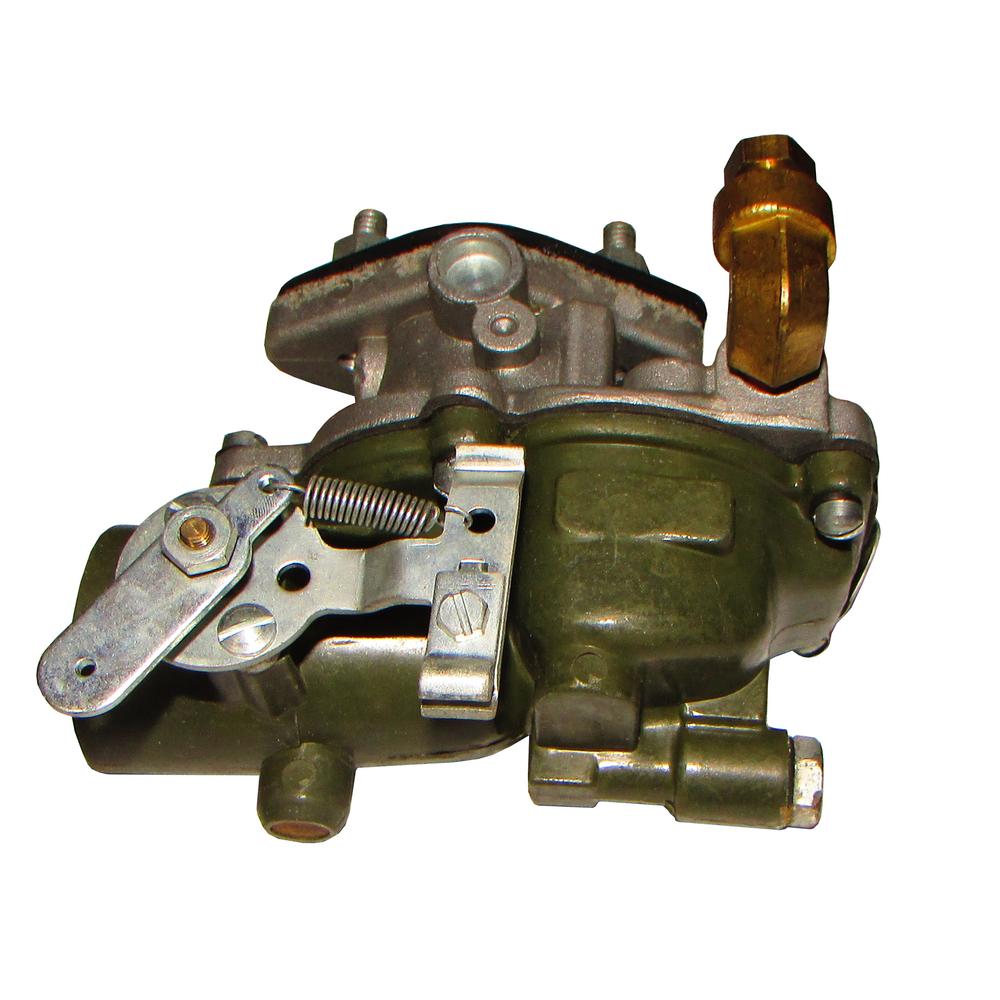

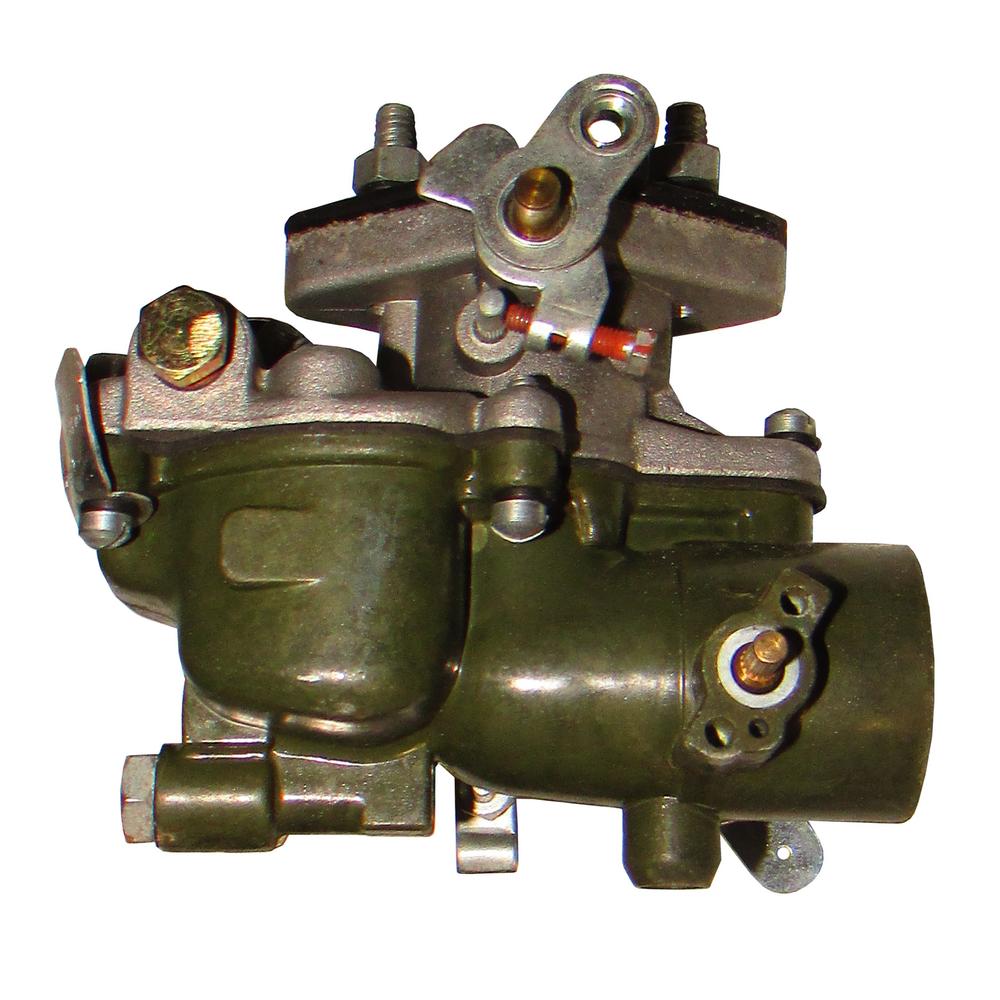

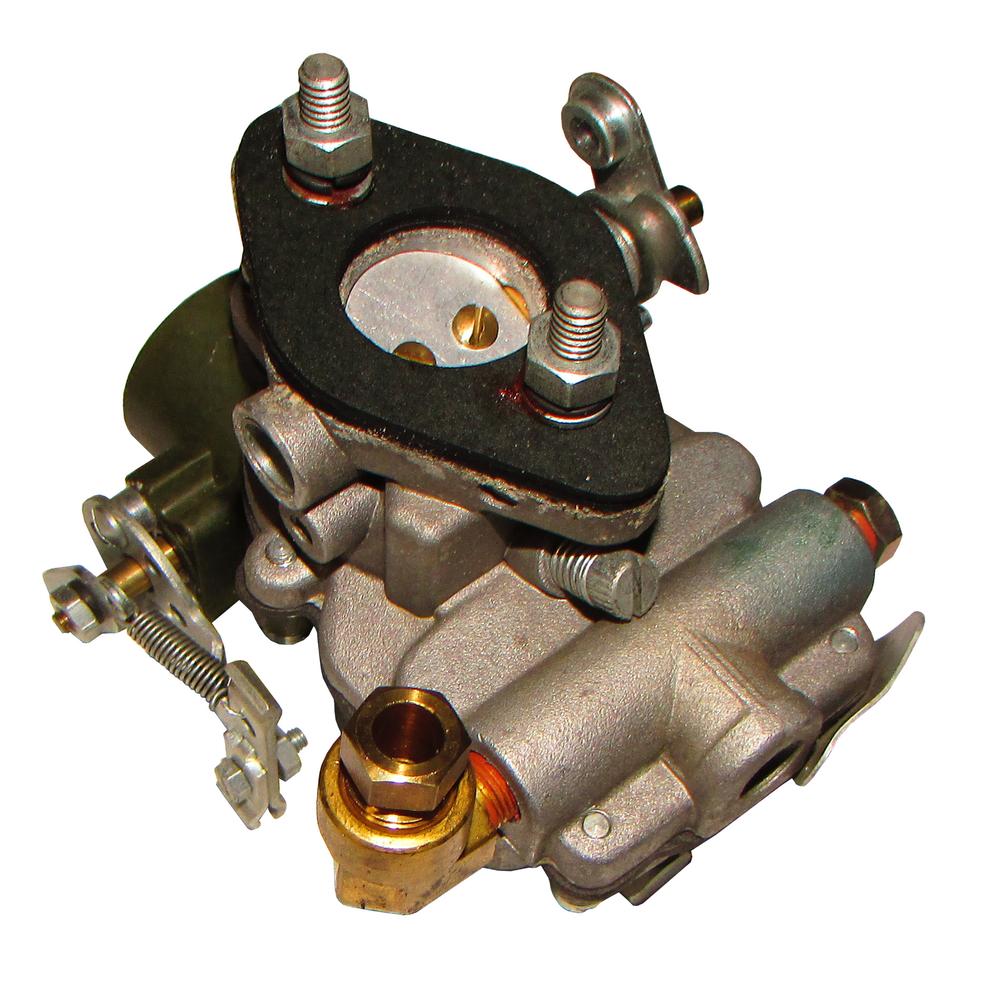

70949C92 New Zenith Carburetor Fits Case-IH Tractor Models Fits Cub 154 184
70949C92 New Zenith Carburetor Fits Case-IH Tractor Models Fits Cub 154 184
Regular price
$768.99 USD
Regular price
Sale price
$768.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Zenith-Style Carburetor Fits Several Models
Fits Case, Fits IH Fits FARMALL, Fits Cub Tractor: 154, 184, 185 With Engine Serial Number 312390 and up 13781, 13794, Fits Cub, Fits Cub 154 LO-BOY, Fits Cub 184 LO-BOY, Fits Cub LO-BOY
Fits The Listed Zenith Style Carb Only
Replaces Part Number(s):
Zenith style Carburetor: 70949C92 71523C93 70949C91
Tech Info:
The throttle bore measures 1-1/64".
The carb mounting studs measure 1-13/16" center to center.
The choke air horn (air inlet) measures 1-5/8" OD.
The fuel inlet measures 1/8" NPT.
The carb mounting flange gasket is included.
NOTE: On Older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly
