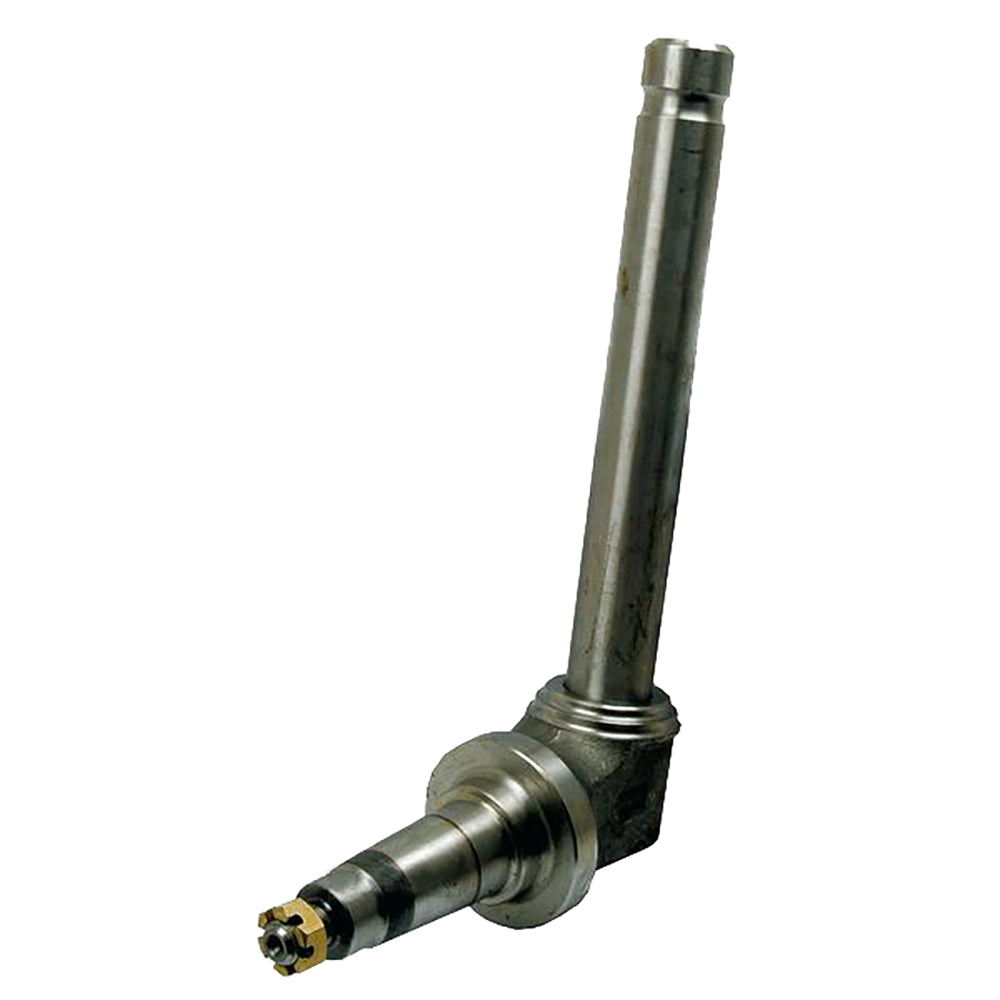

Left Hand Spindle Fits Case/International Harvester Replaces 4317312R91

Name: Left Hand Spindle Fits Case/International Harvester Replaces 4317312R91
SKU: 67535C91_01
Price: 174.49 USD
Availability: InStock

Left Hand Spindle Fits Case/International Harvester Replaces 4317312R91

$174.49 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Left Hand Spindle

Tech Info:
Spindle:Low (LH/RH) Heavy Duty
(Shaft Length - 12 1/8'' - 308mm)
Adjustable Front Axle - Straight (52-82 Tread Width)

A: Spindle Shaft (Vertical Spindle)
The long vertical shaft that goes up into the axle support
Allows the wheel hub to pivot for steering
B: Spindle Diameter / Bearing Surface
The machined area where bushings or bearings ride inside the axle
Critical for smooth steering rotation
C: Steering Arm / Spindle Arm Area
The section where the steering arm is integrated or attaches
Transfers motion from the tie rod to turn the wheel
D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)

Made to Fits Case/International Harvester:
Tractor Models: 3220, 3230, 385, 4210, 4230, 4240, 485, 585, 595, 695, 895, 995, C100, C50, C60, C70, C80, C90, CX100, CX50, CX60, CX70, CX80, CX90, 2400A, 248, 2500A, 258, 454, 484, 574, 584, 674
Replaces Part Number(s): 4317312R91, 67535C91

Models This Part Fits:

CX100, 4230, 258, 4240, 674, 484, CX70, 2500A, 584, 585, CX60, 385, C60, 454, CX90, 2400A, 574, C80, C100, 3220, C90, 695, CX50, 248, 595, 3230, CX80, 4210, C70, 995, 895, 485, C50

Additional Information:

Spindle:Low (LH/RH) Heavy Duty (Shaft Length - 12 1/8'' - 308mm) Adjustable Front Axle - Straight (52-82 Tread Width) A: Spindle Shaft (Vertical Spindle) The long vertical shaft that goes up into the axle support Allows the wheel hub to pivot for steering B: Spindle Diameter / Bearing Surface The machined area where bushings or bearings ride inside the axle Critical for smooth steering rotation C: Steering Arm / Spindle Arm Area The section where the steering arm is integrated or attaches Transfers motion from the tie rod to turn the wheel D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)
