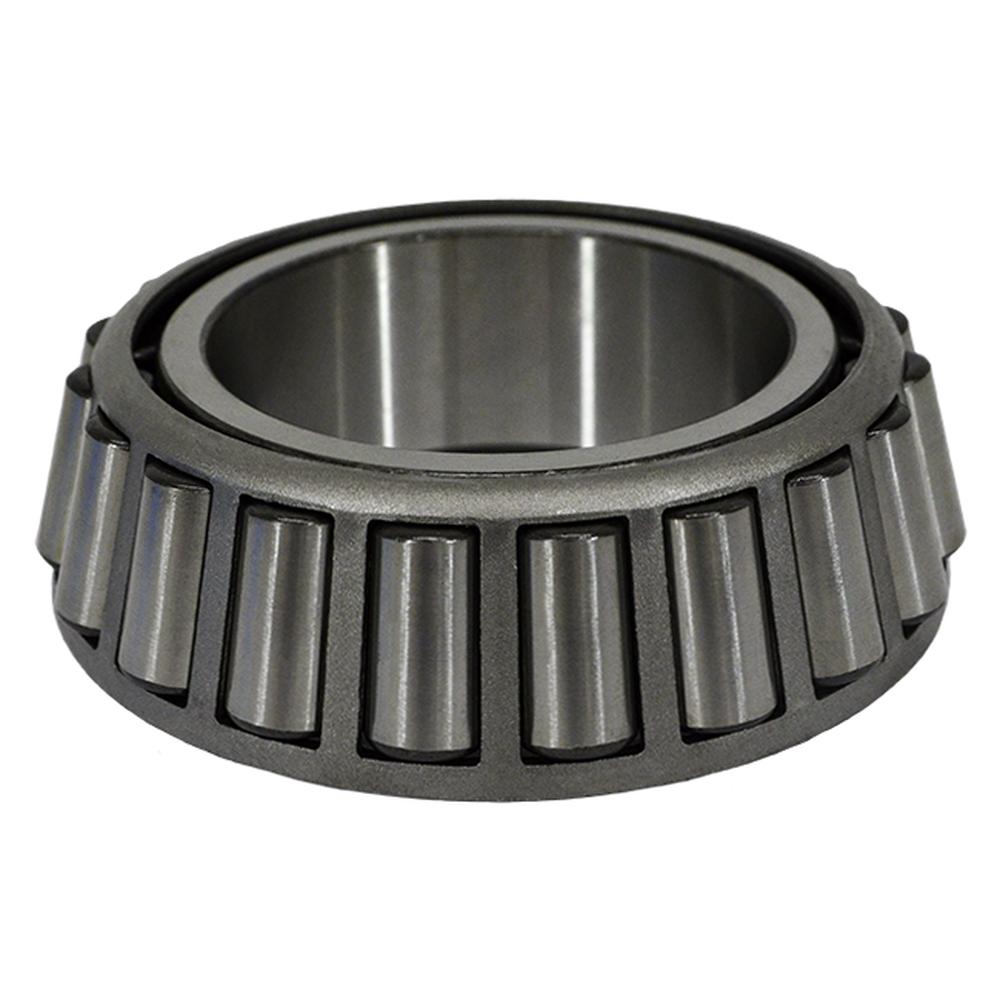

663 Bearing Cone Fits NTN

663 Bearing Cone Fits NTN

$185.33 USD
$185.33 USD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement 663 Bearing Cone for NTN Tapered Roller Bearing Applications

This aftermarket replacement 663 bearing cone is a single-row tapered roller bearing cone designed for use in J Series and inch-series tapered roller bearing assemblies. The 663 cone handles both radial and axial (thrust) loads and is paired with a mating cup (sold separately) in heavy-duty drivetrain, axle, differential, and wheel end applications across construction, agricultural, and industrial equipment.

Specifications

  • Type: Tapered Roller Bearing Cone, Single Row
  • Bore Diameter: 3.2500 in (82.55 mm)
  • Cone Width: 1.6250 in (41.275 mm)
  • Max Shaft Fillet Radius: 3.6 mm
  • Material: Fits Case Carburized Steel
  • Static Load Rating: 335,000 N
  • Dynamic Load Rating: 227,000 N
  • Operating Temperature Range: -40 to 120 deg C
  • Series: J Series / Inch Series Single Row Tapered Roller Bearing

Replaces Part Number(s):

663, NTN663, 663NTN, 663-PVE

Aftermarket Interchange Numbers

Timken 663, SKF K663, BR663, K663, IM663, 531-IM663, IMX663, TM663, TI663, BT663, TB663, BW663, TRB663, HD207, 9A663, F663, G922, HBG7520, HTY663, 1B4040, 35T316

New aftermarket replacement part - not remanufactured, not used.
