Deck Rebuild Kit for 38 MTD "F" Deck 918-0138C 954-0329A 942-0610A 954-0433"

Deck Rebuild Kit for 38 MTD "F" Deck 918-0138C 954-0329A 942-0610A 954-0433"

$149.99 USD
$149.99 USD
Sale Sold out
Shipping calculated at checkout.
New Aftermarket Deck Rebuild Kit for MTD Mowers with 38" and 42" Deck

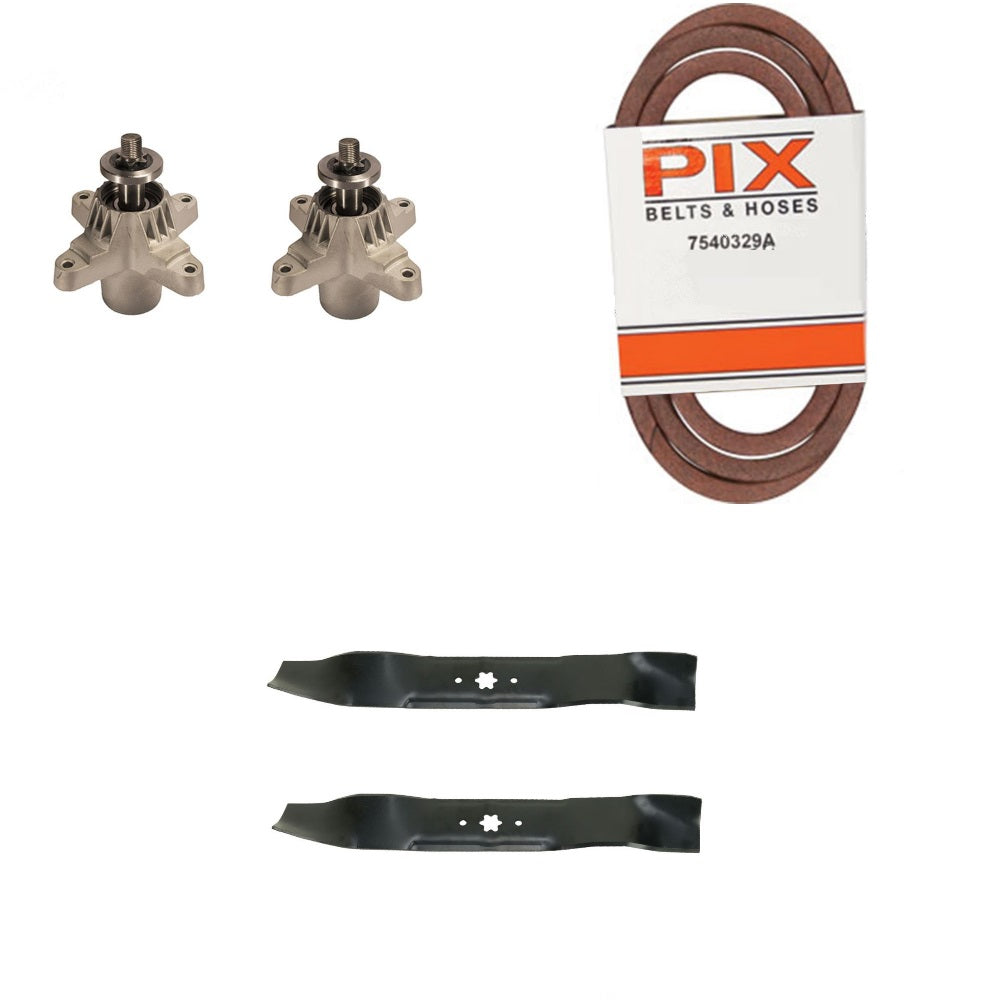

Kit Includes: (2) Spindles (2) Blades (1) Belt


Spindle Replaces OEM#
Fits Kubota: K5645-97520
MTD: 615-0142A, 618-0138, 618-0138A, 618-0142, 618-0142C, 918-0138, 918-0138A, 918-0138C, 918-0142, 918-0142A, 918-0142C

Spindle Fits Models:
MTD: 38" and 42" decks, 600 series, 1997 and up

Spindle Specifications:
Height: 6" OVERALL

Blade Replaces OEM#
MTD: 742-0610, 742-0610A, 942-0610A

Blades Specifications:
LENGTH 19-5/16"
WIDTH 3"
THICKNESS 0.1500"
DIAMETER OF OUTSIDE HOLES 5/16"
CENTER TO CENTER (OUTSIDE HOLES) 2-1/2"
CUT DIRECTION RIGHT
C. H. DIA 6 Point Star

Belt Replaces OEM#
Fits Cub Cadet: 754-0329A, 754-0433, 954-0329A, 954-0433
MTD: 754-0329, 754-0329A, 754-0433, 954-0329, 954-0329A, 954-0433

Belt Speci Fits CATions:
LENGTH 69-9/32" WIDTH 5/8"

Models This Part Fits:

13AM660F205, 13AM660G752, 13AM660F131, 13AN682G731, 13AM660F062, 600 SERIES, 13AN673G131, 13AM660G302, 13AF675G062, 13A2683G790, 13BH670F062, 13AF698G131, TMO-3104204, 13AM660F000, 13A5673F190, 13AN475F000, 13AM660F352, 13BM660F131, 13AP698G731, 13AM660G353, TMO-3204205, 136A694F401, 13AM660G700

Additional Information:

(2) Mulching Blades Cut Direction: Right Center Hole Diameter: 6-Point Star Length: 19-5/16" Center to Center (Outside Holes): 2-1/2" Width: 3" Diameter of Outside Hole: 5/16" Thickness: 0.1500" Replaces Part Numbers: 4720610, 490-110-M114, 742-0610, 742-0610A, 742-0654, OEM-742-0610, 942-0654, 942-0610A, 942-0610, 7420610A, 742-0610A-0637, 7420610A0637, 9420610, 9420610A, GW7420610, GW-7420610 (1) Blade Drive Belt Width: 5/8" Length: 69.28" Thickness 0.51" Wrapped Made with Aramid Cord Material Replaces Part Numbers: 706-VB-301, 75400329, 754-0329, 754-0329A, 754-0433, 7540329, 954-0329A, 9540329, 9540329A (2) Spindle Assemblys Height: 6" Mounting Hole Distance: 4.84" For 6-Point Star Center Hole Blades Replaces Part Numbers: 615-0142A, 6150142A, 618-0112, 618-0117, 618-0117A, 618-0117B, 618-0138, 618-0138A, 618-0138C, 618-0138P, 618-0142, 618-0142A, 618-0142C, 618-0142P, 6180112, 6180138, 6180138A, 6180138C, 6180142, 6180142A, 6180142C, 725-0142, 7250142, 918-0117, 918-0117A, 918-0117B, 918-0138, 918-0138A, 918-0138C, 918-0142, 918-0142A, 918-0142C, 9180117B, 9180138, 9180138A, 9180138C, 9180142, 9180142A, 9180142C

Reference Numbers:

4720610, 490-110-M114, 742-0610, 742-0610A, 742-0654, OEM-742-0610, 942-0654, 942-0610A, 942-0610, 7420610A, 742-0610A-0637, 7420610A0637, 9420610, 9420610A, GW7420610, GW-7420610, 706-VB-301, 75400329, 754-0329, 754-0329A, 754-0433, 7540329, 954-0329A, 9540329, 9540329A, 615-0142A, 6150142A, 618-0112, 618-0117, 618-0117A, 618-0117B, 618-0138, 618-0138A, 618-0138C, 618-0138P, 618-0142, 618-0142A, 618-0142C, 618-0142P, 6180112, 6180138, 6180138A, 6180138C, 6180142, 6180142A, 6180142C, 725-0142, 7250142, 918-0117, 918-0117A, 918-0117B, 918-0138, 918-0138A, 918-0138C, 918-0142, 918-0142A, 918-0142C, 9180117B, 9180138, 9180138A, 9180138C, 9180142, 9180142A, 9180142C
