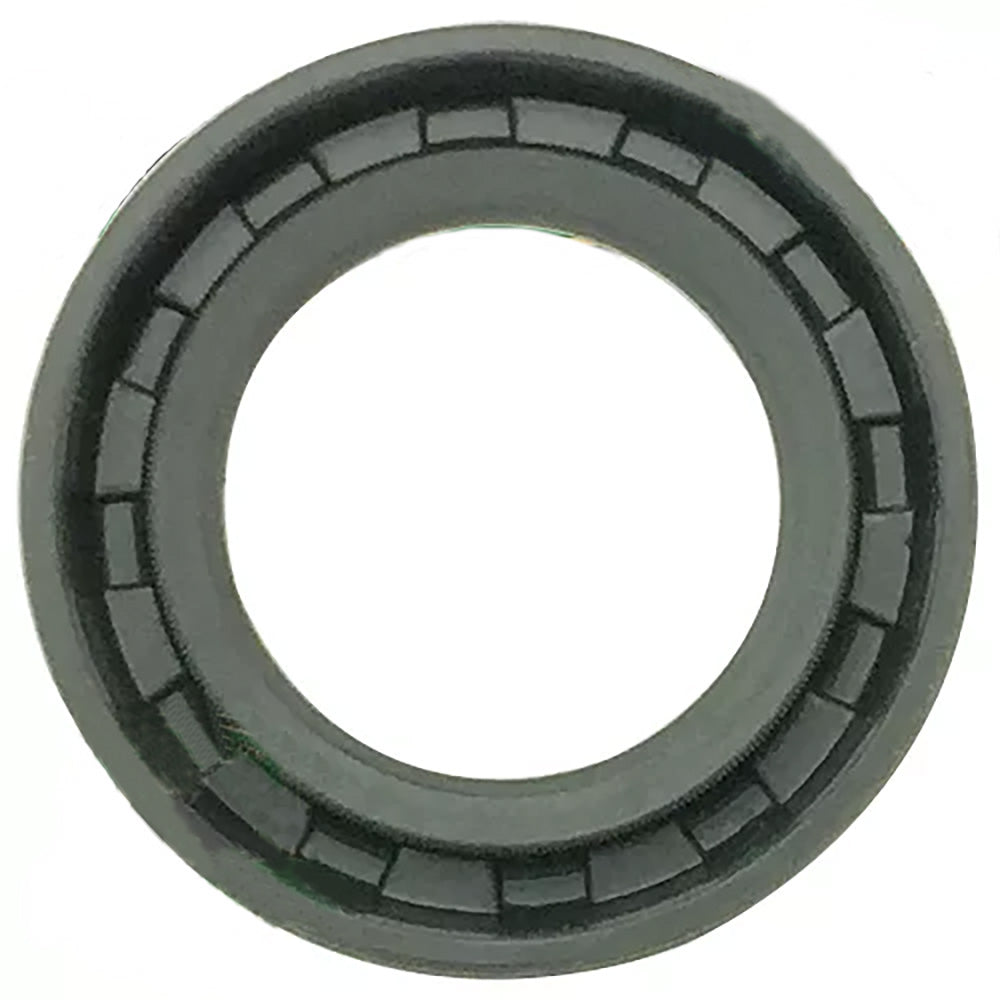

5393-252R Seal
5393-252R Seal
Couldn't load pickup availability
One New Aftermarket Replacement Injection Pump Drive Seal for Fiat and Long Tractors
This aftermarket injection pump drive seal (CAV/Lucas DPA style) seals the drive shaft on CAV/Lucas/Delphi DPA series distributor-type diesel injection pumps equipped with a keyed drive shaft. It is a direct replacement for Fiat and Long tractor applications fitted with Lucas/CAV DPA injection pumps. Dimensions: 22 x 35 x 7 mm. Note: Does not fit pump model 3342F260 or MF383 tractors. Fits DPA pumps 3269F110 and 3249F680 with keyed drive shaft. Most pumps with model numbers starting with U304 also use this seal -- verify your complete pump number before ordering.
Specifications
- Seal Dimensions: 22 mm x 35 mm x 7 mm
- Material: NBR (nitrile rubber)
- Application: CAV/Lucas DPA injection pump drive shaft (keyed shaft only)
- Compatible DPA Pump Models: 3269F110, 3249F680; most U304-series pumps
Compatible Models
Fiat: Most Fiat tractors equipped with Lucas/CAV DPA injection pumps
Long: Most Long tractors equipped with Lucas/CAV DPA injection pumps
Replaces Part Number(s):
26430510, 26431852, 3114992R1, 5393-252R, 6259-33, 7167-399, TX11595, TX15771
Aftermarket Interchange Numbers
7133-114, 5393-252U, LDFF1728, FSH10-0056
New aftermarket replacement part - not remanufactured, not used.
