4757882, 504090936 Fuel Pump Fits Ford/New Holland
4757882, 504090936 Fuel Pump Fits Ford/New Holland
Couldn't load pickup availability

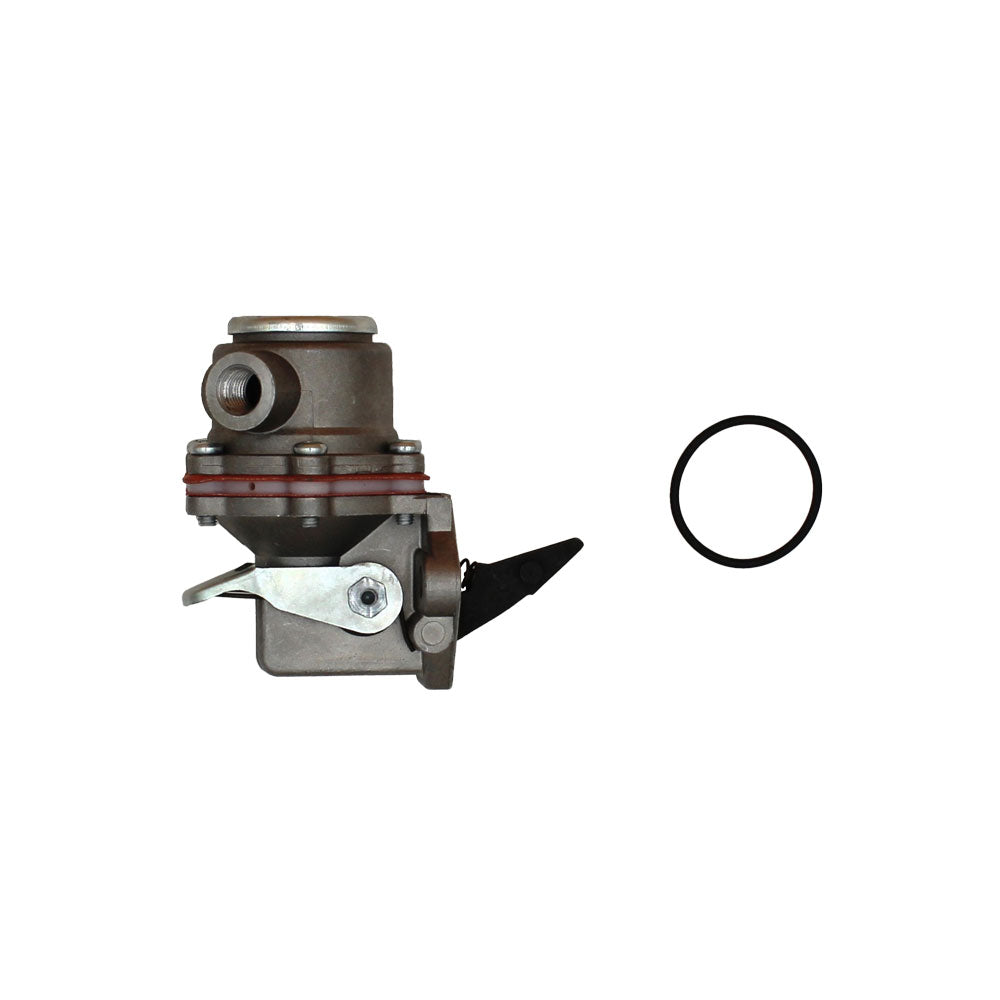

One New Aftermarket Replacement Fuel Lift Pump for Ford/New Holland, Fiat, and Case IH Tractors
This mechanical fuel lift pump draws diesel fuel from the tank and delivers it to the injection pump at the correct pressure, ensuring reliable engine starting and steady power under load. It features a 2-bolt mounting flange with an M12x1.5 mm thread size and uses an O-ring style seal for a leak-free connection. Designed as a direct-fit replacement for Ford (New Holland), Fiat, Case IH, and Farmall diesel tractors across multiple series including the TL, TN, TD, TK, TT, JX, and classic numeric series.
Specifications
- Mounting: 2-bolt flange
- Thread Size: M12x1.5 mm
- Seal Type: O-ring (included)
- Pump Type: Mechanical fuel lift pump (cam-actuated)
Compatible Models
New Holland TL Series: TL70, TL80, TL90, TL100
New Holland TN Series: TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA
New Holland TD Series: TD3.50, TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110, TD55D, TD60, TD60D, TD65B, TD65D, TD65F, TD70, TD70D, TD75D, TD75F, TD80, TD80D, TD85D, TD85F, TD90, TD90D, TD95, TD95D, TD95D HC PLUS
New Holland TK Series: TK65, TK65F, TK65V, TK70, TK70FA, TK70VA, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK76M, TK80, TK80A, TK80MA, TK85, TK85M, TK90, TK90A, TK90MA, TK95, TK95M, TK100A
New Holland TT Series: TT35, TT39, TT40, TT50, TT55, TT60A, TT65, TT65D, TT75, TT75A, TT4.55, TT4.75, TT4.80, TT4.90
New Holland JX/JXM Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100, JX100U, JX110, JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX1095C, 55JXM, 65JXM, 75JXM, 80JXM, 90JXM
New Holland T-Series: T3.50F, T3.55F, T3.65F, T3.75F, T4.65S, T5.100
New Holland Numeric Series: 4835, 5635, 6635, 7635, 3830, 75A, 65A, L65
Ford Numeric Series: 3830, 4010S, 4030, 4230, 4330, 4330V, 4430, 4635, 4835, 5010S, 5500, 5530, 5635, 6530, 6610S, 7610S, 7635
Case IH / Farmall JX Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, MX100C, CX100
Fiat Numeric Series: 45-46, 45-46DT, 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 55-46, 55-46DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-46, 65-46DT, 65-56, 65-56DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 65A, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66S, 70-66SDT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-93, 72-93DT, 72-94, 72-94DT, 75A, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT
Replaces Part Number(s):
4757882, 504090936, 84550751, 84550742, 84281012, 84281011, 84280977, 5803087486, 5802322849, 5801833326, 5097152, 48076416, 47750097, 4740718, 4709283, 4667510
Aftermarket Interchange Numbers
Also interchanges with: FSG60-0092 (item number). Cross-references with applications for Allis Chalmers 5040/5045/5050 (72093848), Hesston (4740717, 504090935), Long Tractor (TX10289), and Oliver (31-2900044, 31-2905019) -- verify fitment for those applications before ordering.
New aftermarket replacement part - not remanufactured, not used.
