Brake Plate and Seal Kit Fits JCB Replaces 450-10224

Brake Plate and Seal Kit Fits JCB Replaces 450-10224

$149.99 USD
$149.99 USD
Sale Sold out
Shipping calculated at checkout.

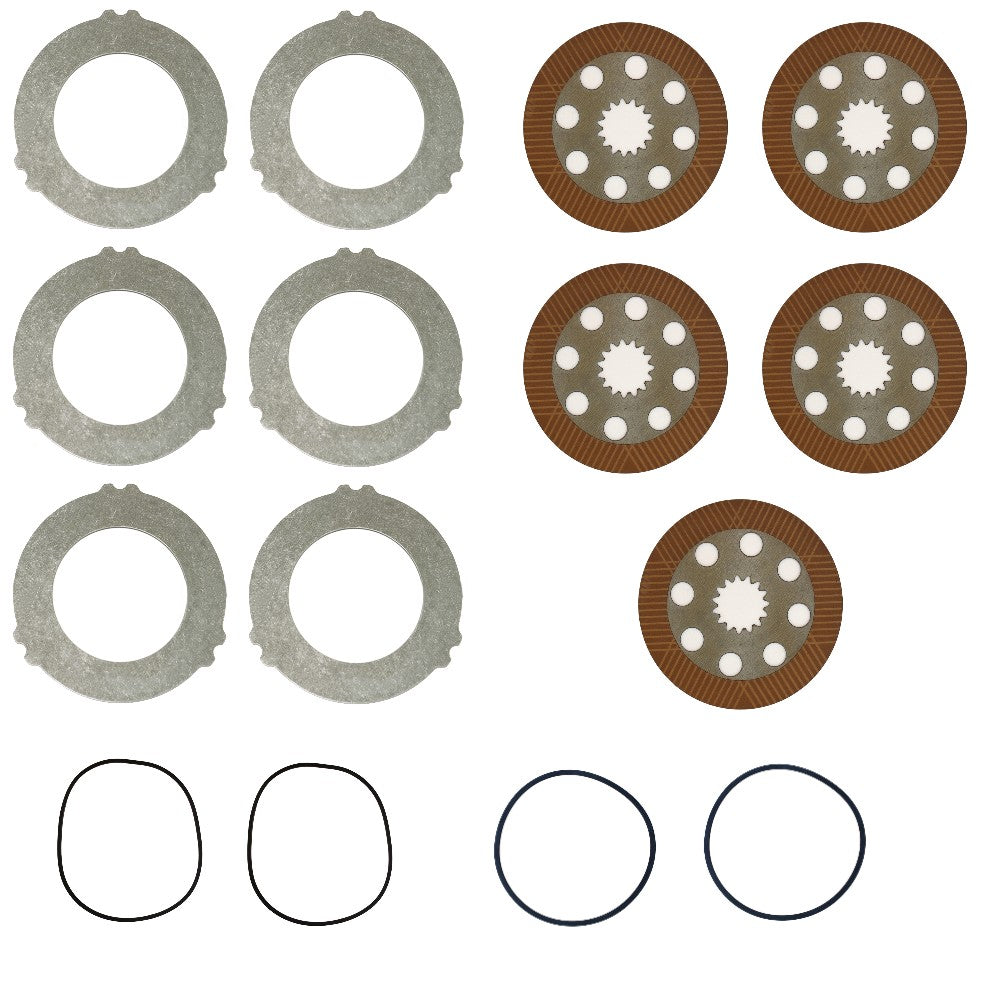

One New Aftermarket Brake Plate and Seal Kit

Tech Info:
 -Kit Contains:
 -
 -(5) Brake Friction Plate:
 -Number of Teeth: 15
 -Number of Holes: 8
 -Outer Diameter: 8.738" (221.95 mm)
 -Inner Diameter: 1.953" (49.61 mm)
 -Thickness: .153" (3.89 mm)
 -Replaces Part Numbers:
 -450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353
 -
 -(6) Steel Brake Counter Plate:
 -Number of Teeth: 3 External
 -Outer Diameter: 9.371" (238.02 mm)
 -Inner Diameter: 5.515" (140.8 mm)
 -Thickness: .153" (3.89 mm)
 -Replaces Part Numbers:
 -458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226
 -
 -(2) Brake Piston Seal:
 -Material: Nitrile
 -Replaces Part Numbers:
 -813/50012, 813-50012, 81350012
 -
 -(2) Brake Piston Seal:
 -Material: Nitrile
 -Replaces Part Numbers:
 -813/50026, 813-50026, 81350026

Made to Fits JCB:
 Backhoe Models: 1400B, 1550B, 1600B, 1700B, 214, 214E, 215, 217, 3CX, 3CX SITEMASTER, 3CX SUPER, 3CX SUPER BSII, 3CXE, 3DX, 410, 411, 411B, 412S, 413K, 413S, 416, 416B, 417, 419S, 4C, 4CN, 4CX, 506C, 520-55, 520-55FS, 520LE, 520S, 520SLE, 525-58, 525-67, 525-67FS, 526SLE, 527-67FS, 528S, 530, 530-110, 530-67, 531-70, 5CX, 926, 930, 940, 945, 950, TM270, TM300, TM320W
 Model Breaks: 530 & 531-70 (SWAY)
 Replaces Part Number(s): 450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353, 458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226, 813/50012, 813-50012, 81350012, 813/50026, 813-50026, 81350026

Models This Part Fits:

525-58, 215, 4C, 930, 528S, 530, TM300, 214E, 4CX, 5CX, 1600B, 527-67FS, 940, TM270, 3CX SUPER BSII, 506C, 520-55, 1700B, 412S, 526SLE, 531-70, 4CN, 416, 3DX, 3CX, 520-55FS, 520LE, 217, 3CX SITEMASTER, 520SLE, 525-67, 3CX SUPER, 1550B, 950, TM320W, 411, 214, 520S, 417, 413S, 413K, 419S, 410, 416B, 926, 945, 411B, 525-67FS, 3CXE, 530-110, 530-67, 1400B

Additional Information:

(5) Brake Friction Plate: Number of Teeth: 15 Number of Holes: 8 Outer Diameter: 8.738" (221.95 mm) Inner Diameter: 1.953" (49.61 mm) Thickness: .153" (3.89 mm) Replaces Part Numbers: 450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353 (6) Steel Brake Counter Plate: Number of Teeth: 3 External Outer Diameter: 9.371" (238.02 mm) Inner Diameter: 5.515" (140.8 mm) Thickness: .153" (3.89 mm) Replaces Part Numbers: 458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226 (2) Brake Piston Seal: Material: Nitrile Replaces Part Numbers: 813/50012, 813-50012, 81350012 (2) Brake Piston Seal: Material: Nitrile Replaces Part Numbers: 813/50026, 813-50026, 81350026

Reference Numbers:

450/10224, 458/20353, 450-10224, 458-20353, 45010224, 45820353, 458/20285, 450/10226, 458-20285, 450-10226, 45820285, 45010226, 813/50012, 813-50012, 81350012, 813/50026, 813-50026, 81350026
