4050-16 New Universal Tractor Coupler Female Body 7/8"-14 ORB 730405016

One New Aftermarket Replacement Female Hydraulic Quick Coupler Body Fits Case/International Harvester Tractors and Agricultural Equipment

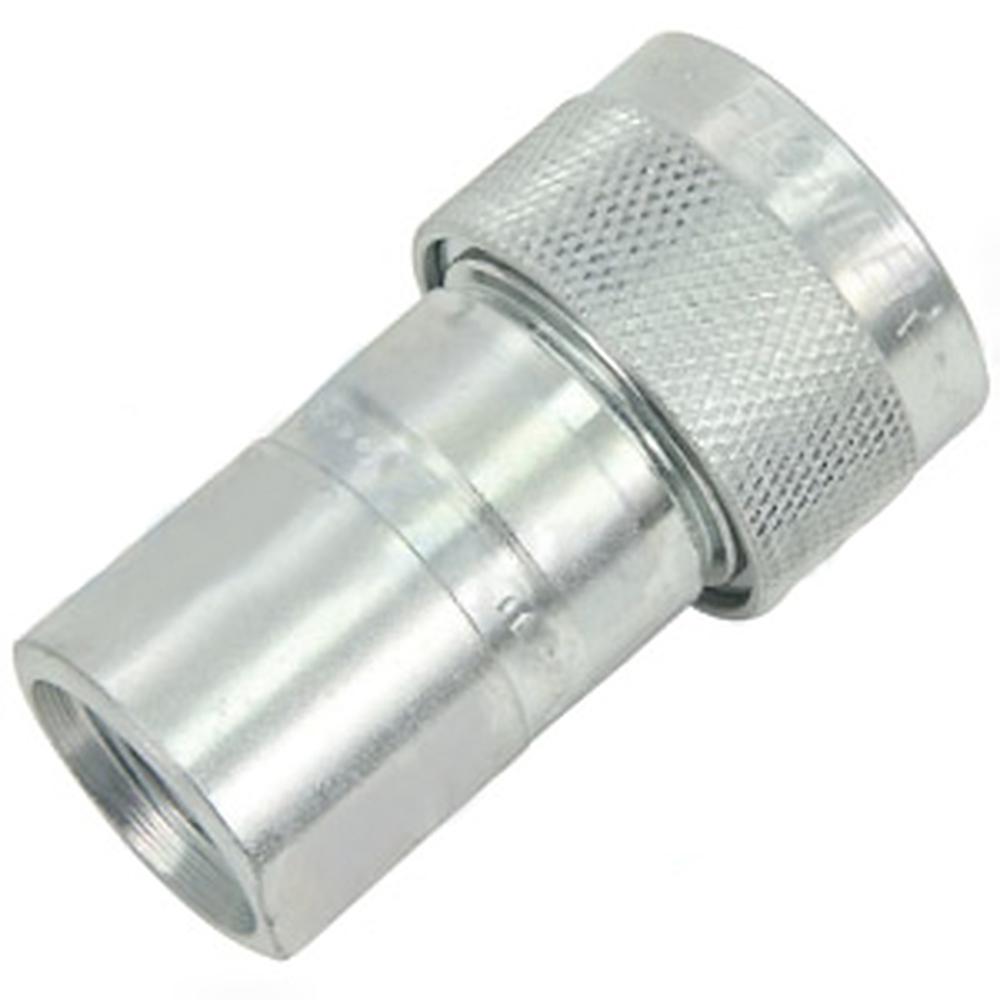

This Parker 4000 Series female coupler body (body only, no nipple/tip included) provides a fast, reliable hydraulic connection point on tractors, combines, planters, and other agricultural and construction equipment. The 7/8"-14 ORB (O-Ring Fits Boss, -10 SAE) port thread delivers a leak-free seal without thread sealant tape, and the manual sleeve operation makes field connections straightforward. The 1/2" body size is ISO 5675 compliant and mates with standard Pioneer-style male tips found across a wide range of Fits Case IH, Fits International Harvester, and other brand equipment.

Specifications

• Body Size: 1/2"
• Style: Ball Valve
• Thread Size: 7/8"-14 ORB (SAE -10 O-Ring Fits Boss)
• Rated Flow: 12 GPM
• Max Pressure: 3000 PSI
• Largest Diameter: 1.50"
• Sleeve Operation: Manual Connect
• Material: Steel
• ISO 5675 Agricultural Standard

Compatible Equipment

Fits Case/International Harvester Combines: 1420, 1440, 1460, 1466, 1468, 1470, 1480, 1620, 1640, 1644, 1660, 1666, 1680, 1682, 1688, 2042, 2052, 2062, 2142, 2144, 2152, 2162, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 5088, 6088, 7088

Fits Case/International Harvester Tractors: 303, 315, 403, 503, 715, 766, 810, 815, 915, 966, 1042, 1052, 1400, 1466 Series, 66 Series

Fits Case/International Harvester Cotton Pickers and Other Equipment: Compatible with a wide range of Fits Case IH (Fits Case/International Harvester) tractors, combines, planters, cutting platforms, and forage harvesters requiring a 1/2" ISO 5675 female coupler body with 7/8"-14 ORB porting.

Universal Fitment: Also fits hydraulic loaders, add-on hydraulic circuits, and other agricultural machinery and rugged applications requiring a Parker 4000 Series female coupler body.

Replaces Part Number(s):

4050-16, 730405016, X4050-16, 1282338C91, 1314987, 1346857C1, 1963560C1, 1992703C1, 395147R91, 395150R1, 395150R91, 99046C1, 99082C1, 31-0197, 4796-47796

Aftermarket Interchange Numbers

Parker 4000 Series female coupler; ISO 5675 agricultural standard. Mates with 4000 Series and 8010 Series nipples (male tips). Fits Case IH OEM reference: 1282338C91.

New aftermarket replacement part - not remanufactured, not used.
