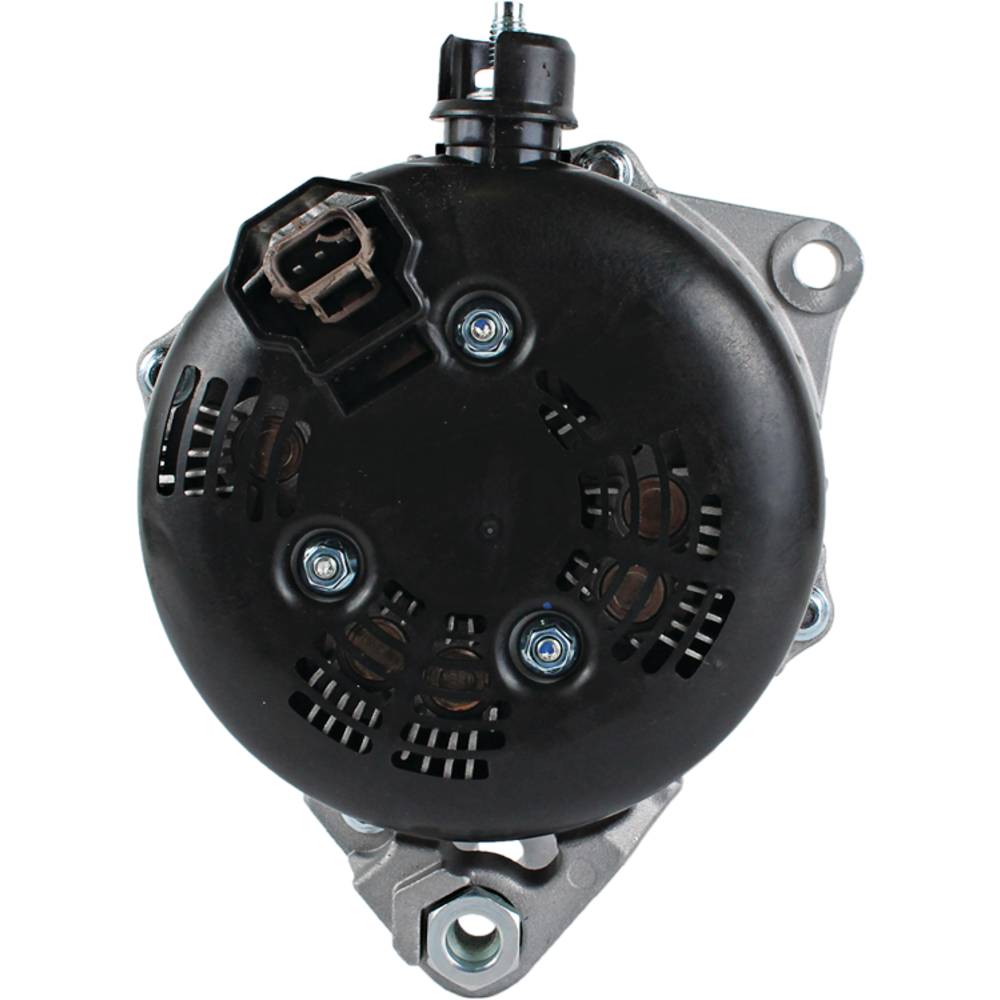

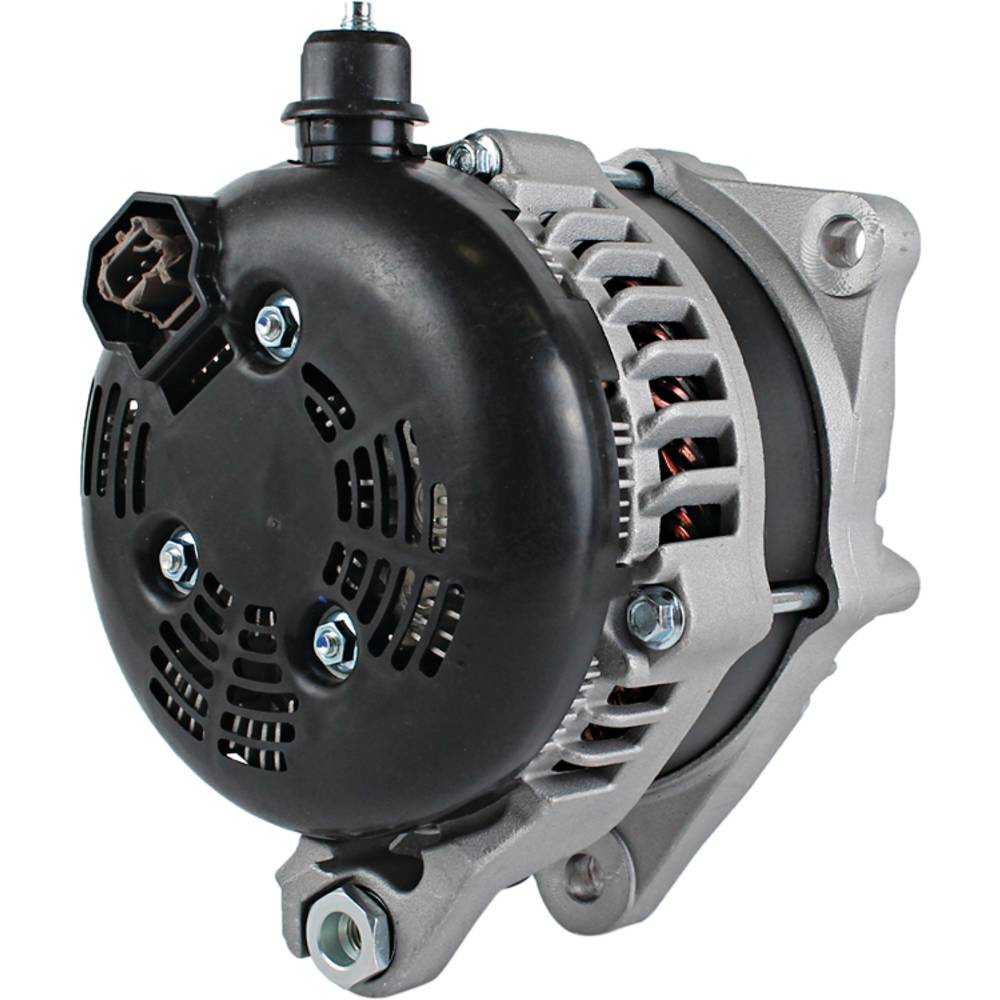

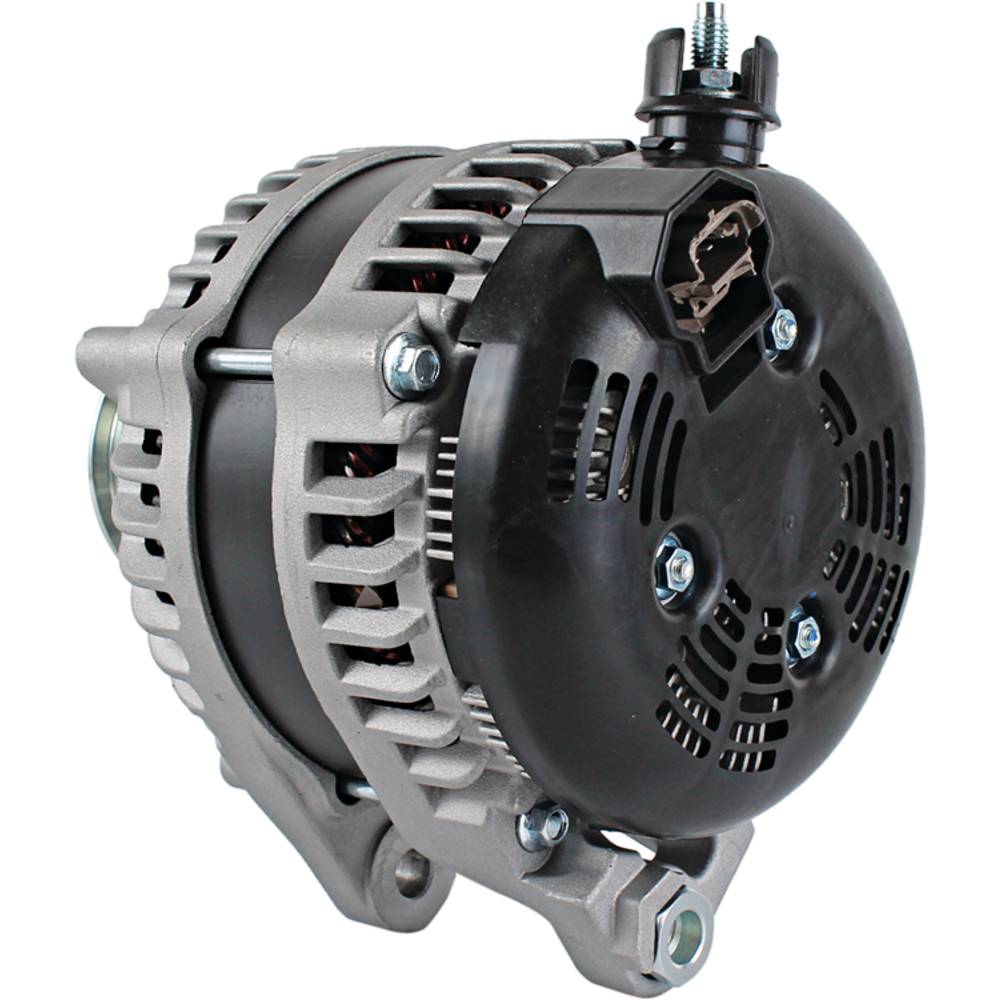

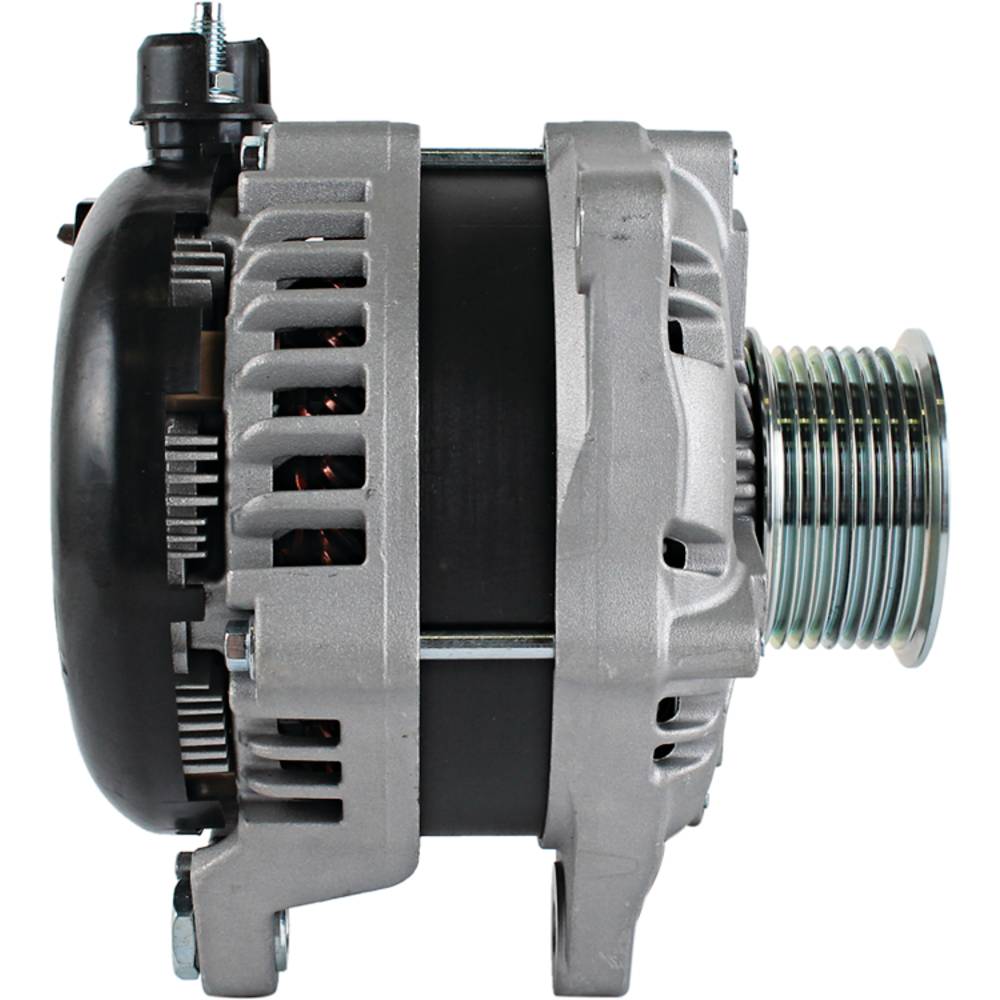

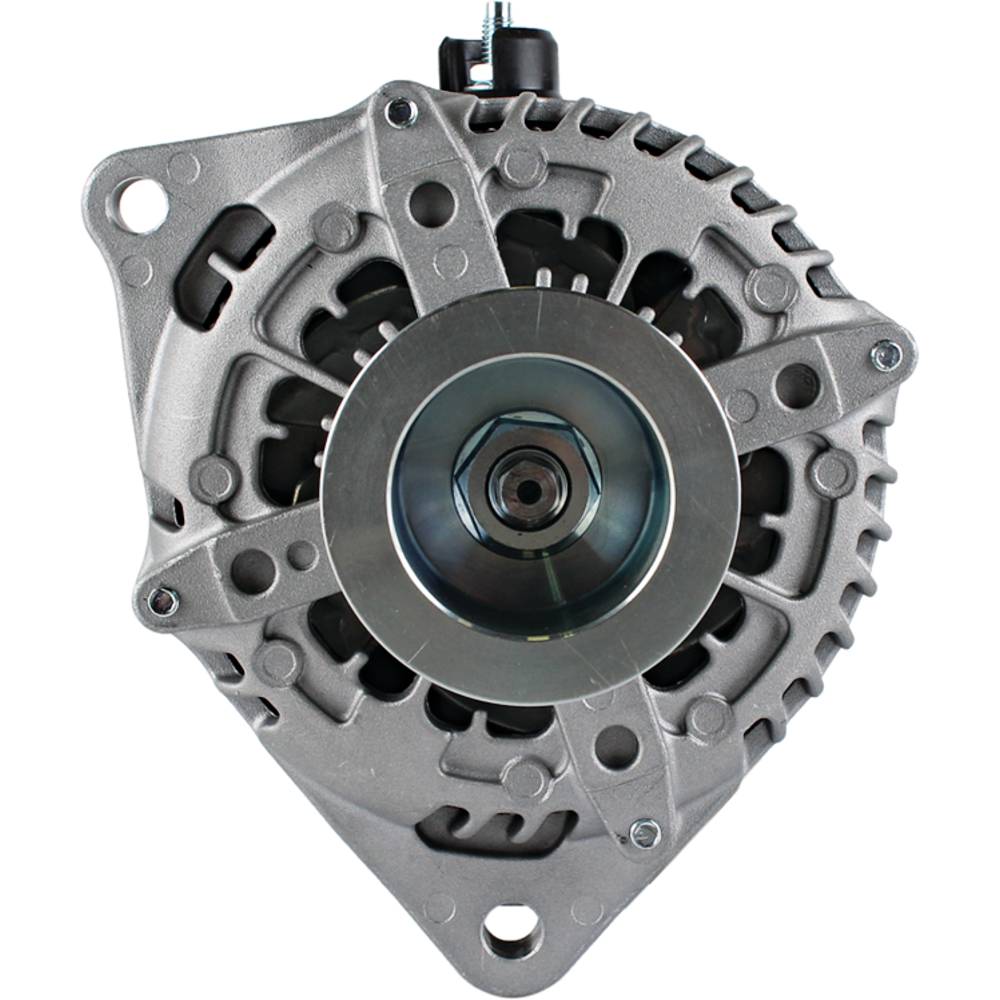

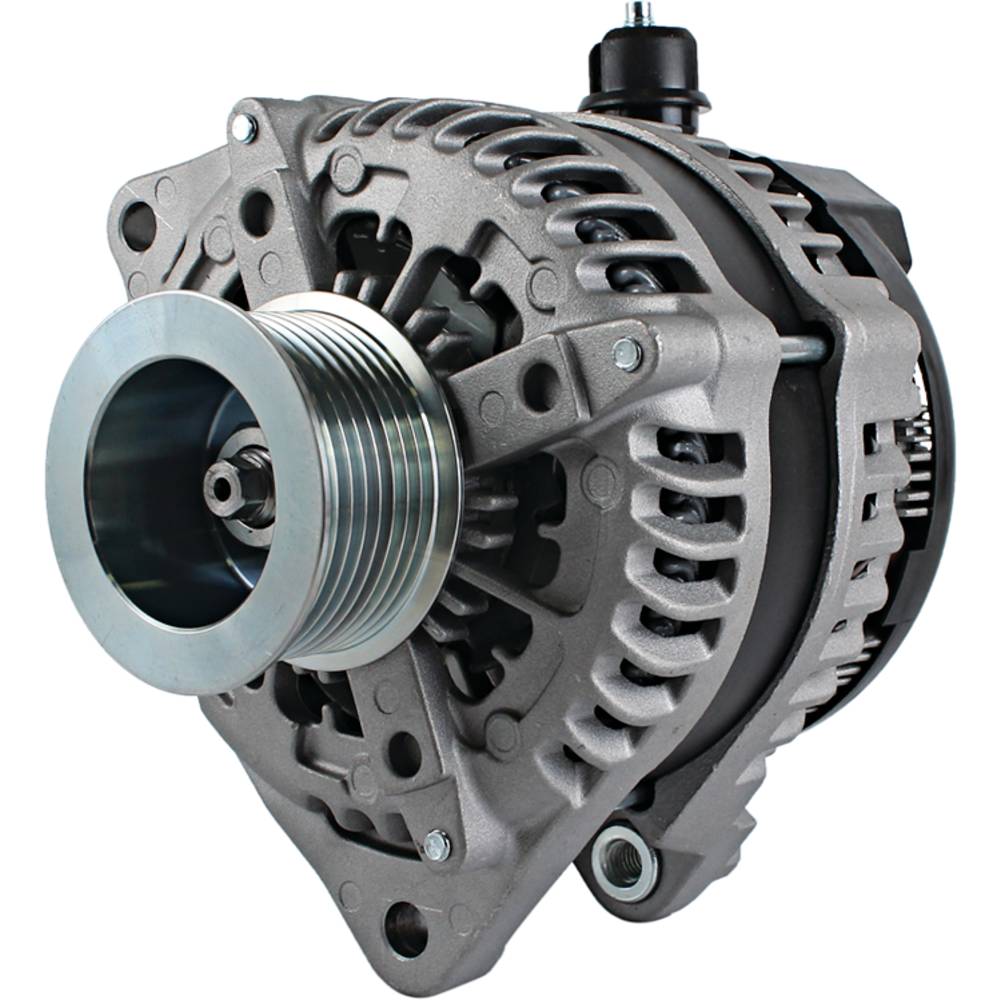

400-52403R-JN J&N Electrical Products Alternator

400-52403R-JN J&N Electrical Products Alternator

$385.86 USD
$385.86 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-LESTER: 11627, FAMILY: Fits Denso SC (Hairpin), VOLT: 12, AMPS: 215, CONDITION: Remanufactured, REGULATOR CLOCK: 10:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.400mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M10x1.50, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 11.400mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.598", MOUNTING EAR THICKNESS: 15.200mm, MOUNTING EAR 2 THICKNESS: 0.909", MOUNTING EAR 2 THICKNESS: 23.100mm, MOUNTING EAR 3 THICKNESS: 0.598", MOUNTING EAR 3 THICKNESS: 15.200mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: LI, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: RC, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: AS, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 8, GROOVE OD: 2.457", GROOVE OD: 62.400mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.744", PULLEY OUTER DIAMETER: 69.700mm, WARRANTY: 1 Year
-Arrowhead: AND0568; Fits Denso: 104210-6220, 104210-6221, 210-0830, ND210-0830; Fits Ford: BC3T10300BA, BC3T10300DA, BC3Z10346A, BC3Z10346D, GL8754, GL992; J&N Electrical Products: 400-52403; JANNCO: 400-52469R; Lester: 11627

Replaces Part Number(s): 400-52403R

Additional Information:

LESTER: 11627, FAMILY: Denso SC (Hairpin), VOLT: 12, AMPS: 215, CONDITION: Remanufactured, REGULATOR CLOCK: 10:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.400mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M10x1.50, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 11.400mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.598", MOUNTING EAR THICKNESS: 15.200mm, MOUNTING EAR 2 THICKNESS: 0.909", MOUNTING EAR 2 THICKNESS: 23.100mm, MOUNTING EAR 3 THICKNESS: 0.598", MOUNTING EAR 3 THICKNESS: 15.200mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: LI, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: RC, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: AS, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 8, GROOVE OD: 2.457", GROOVE OD: 62.400mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.744", PULLEY OUTER DIAMETER: 69.700mm, WARRANTY: 1 Year, Arrowhead: AND0568; Denso: 104210-6220, 104210-6221, 210-0830, ND

Reference Numbers:

400-52403R
