Reliable Aftermarket Parts, Inc®


400-52375-JN J&N Electrical Products Alternator

400-52375-JN J&N Electrical Products Alternator

$228.99 USD
$228.99 USD
Sale Sold out
Shipping calculated at checkout.

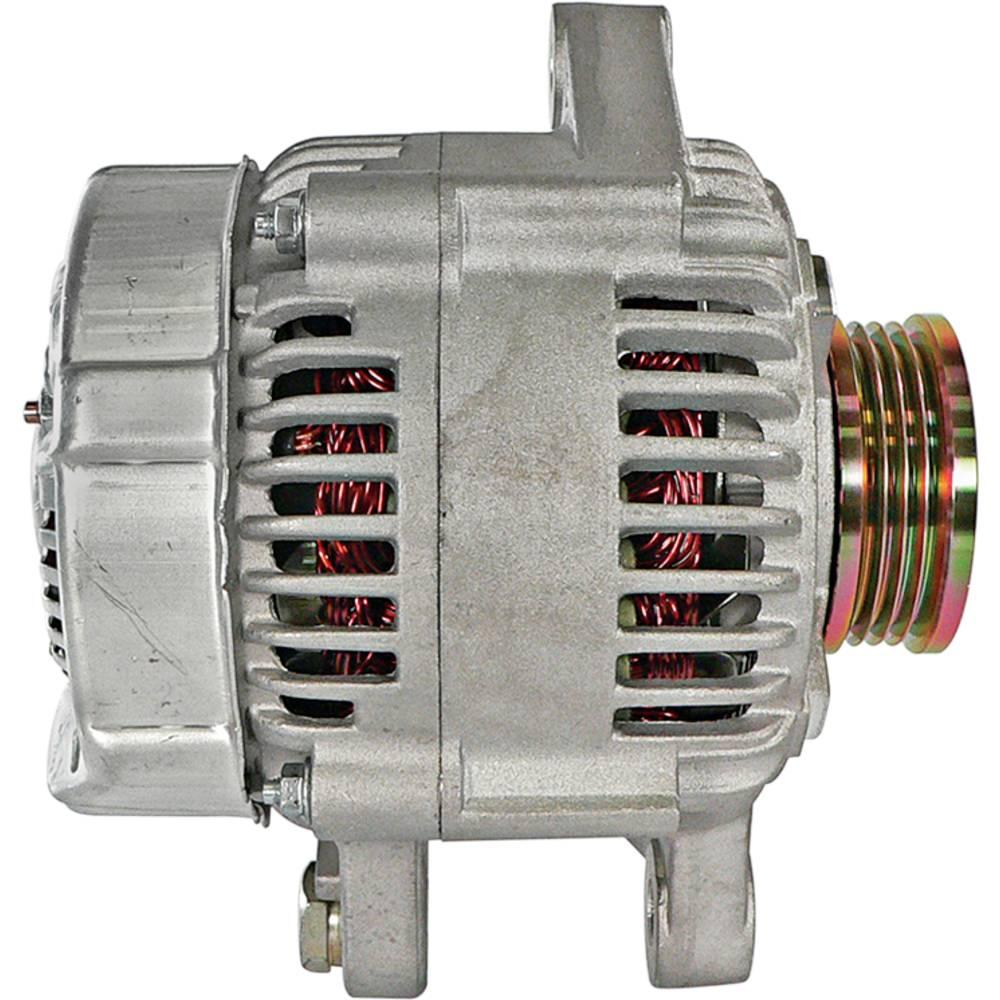

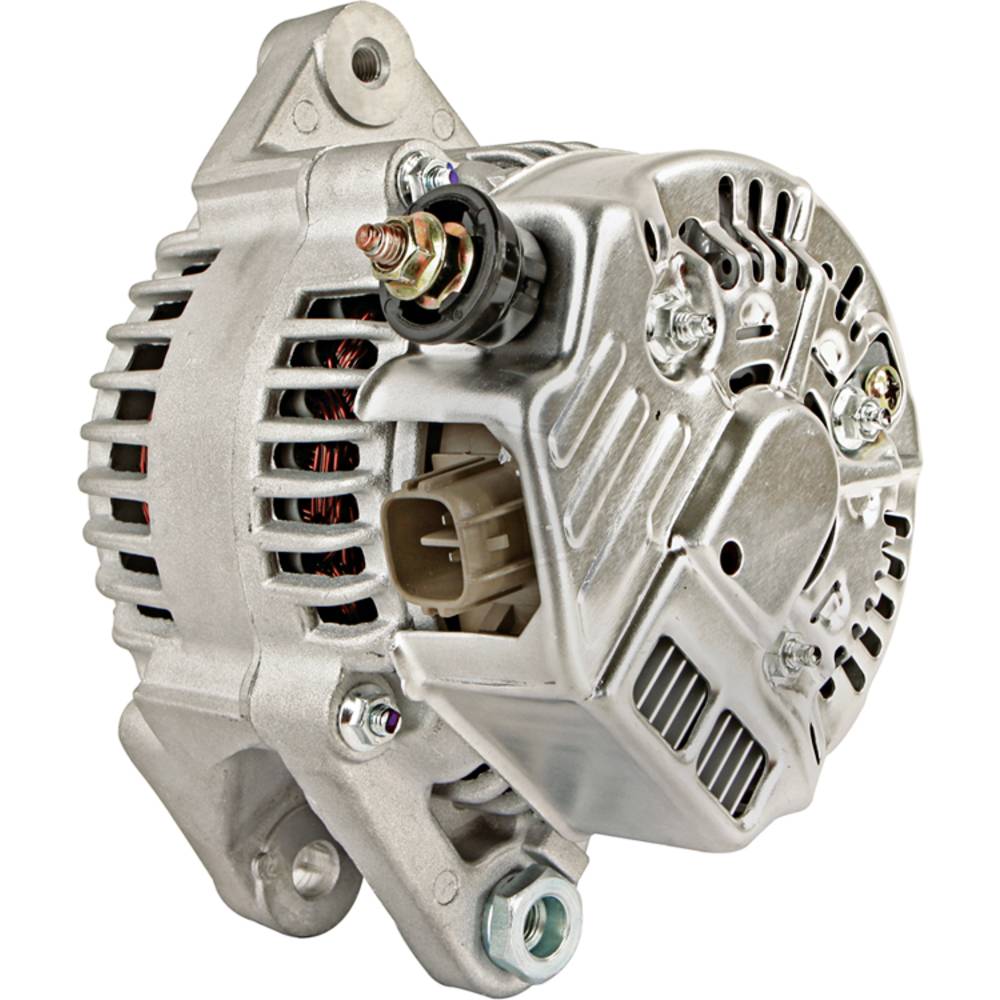

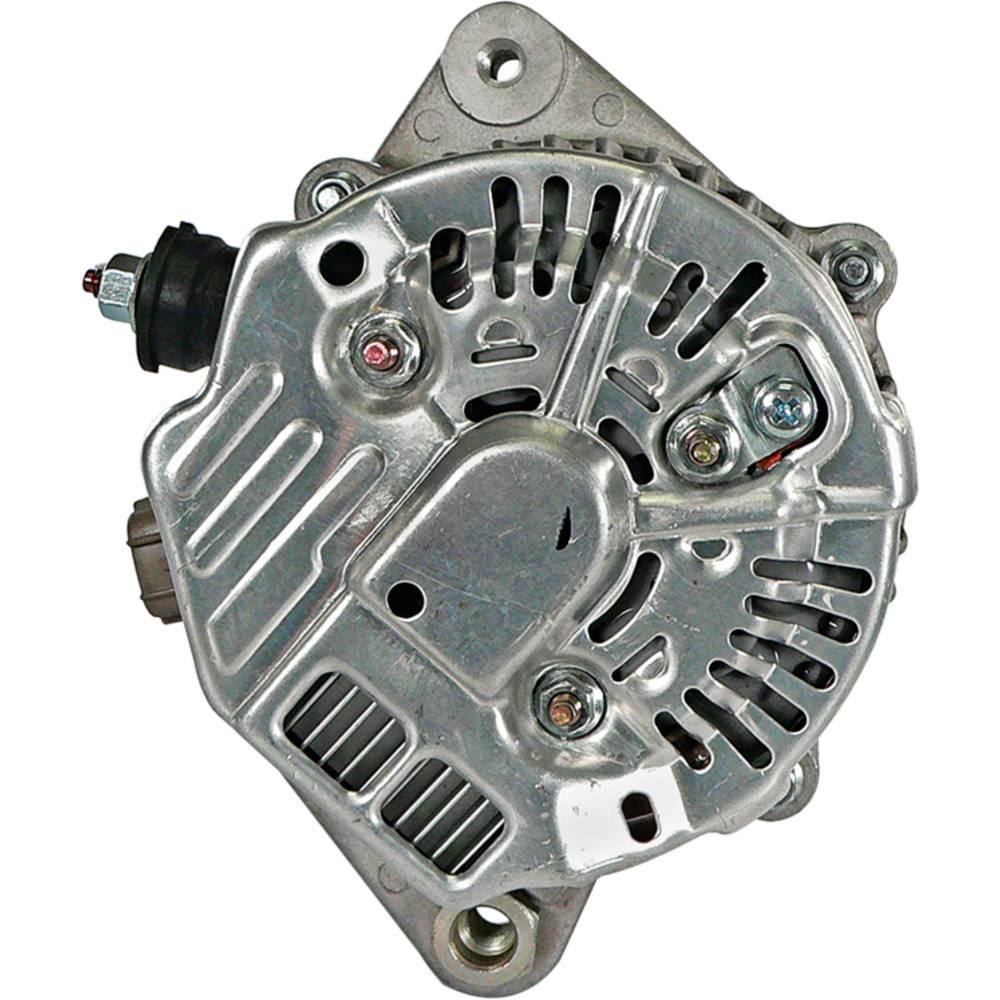

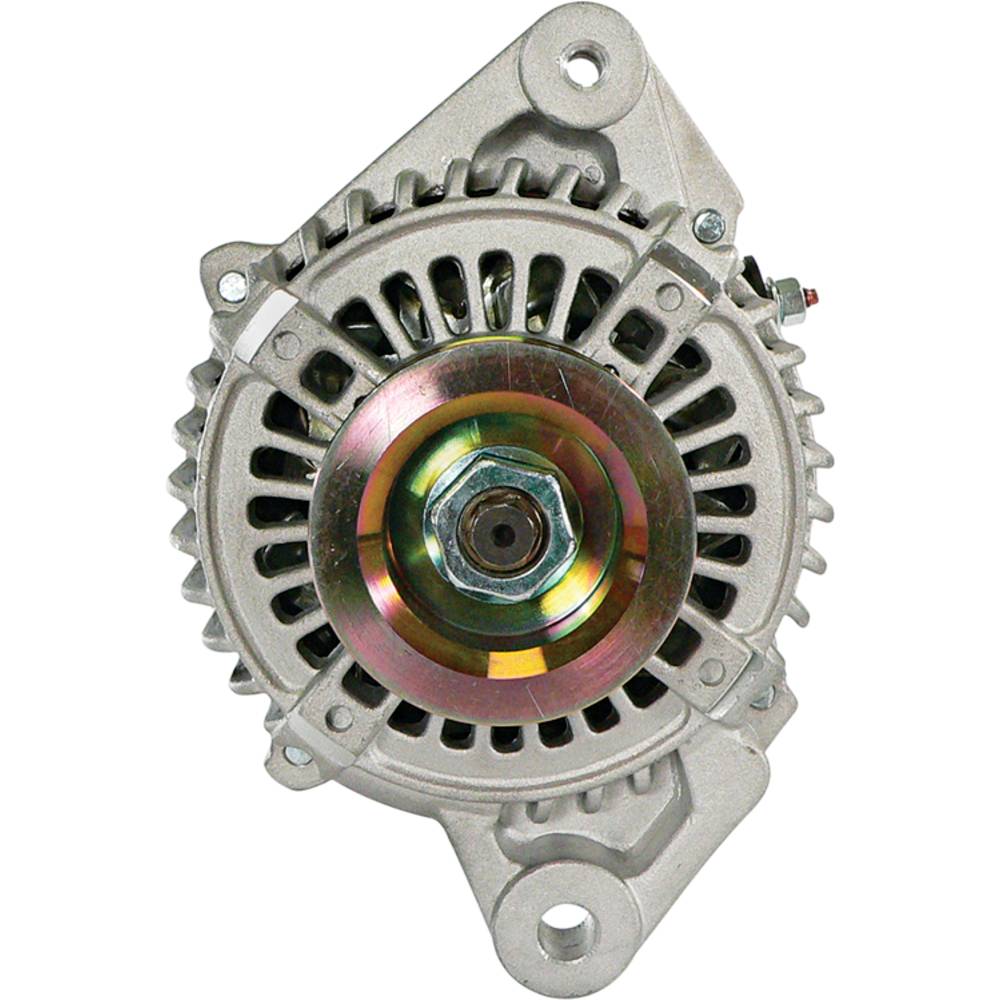

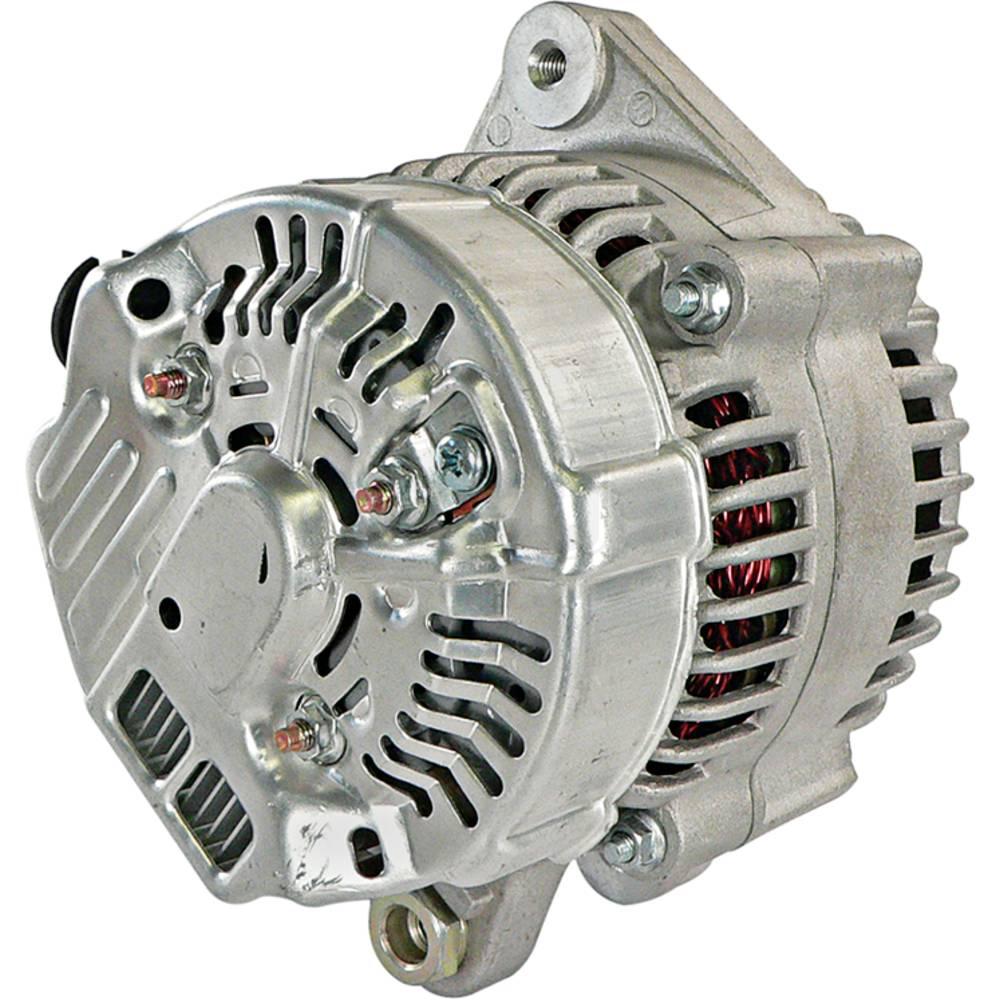

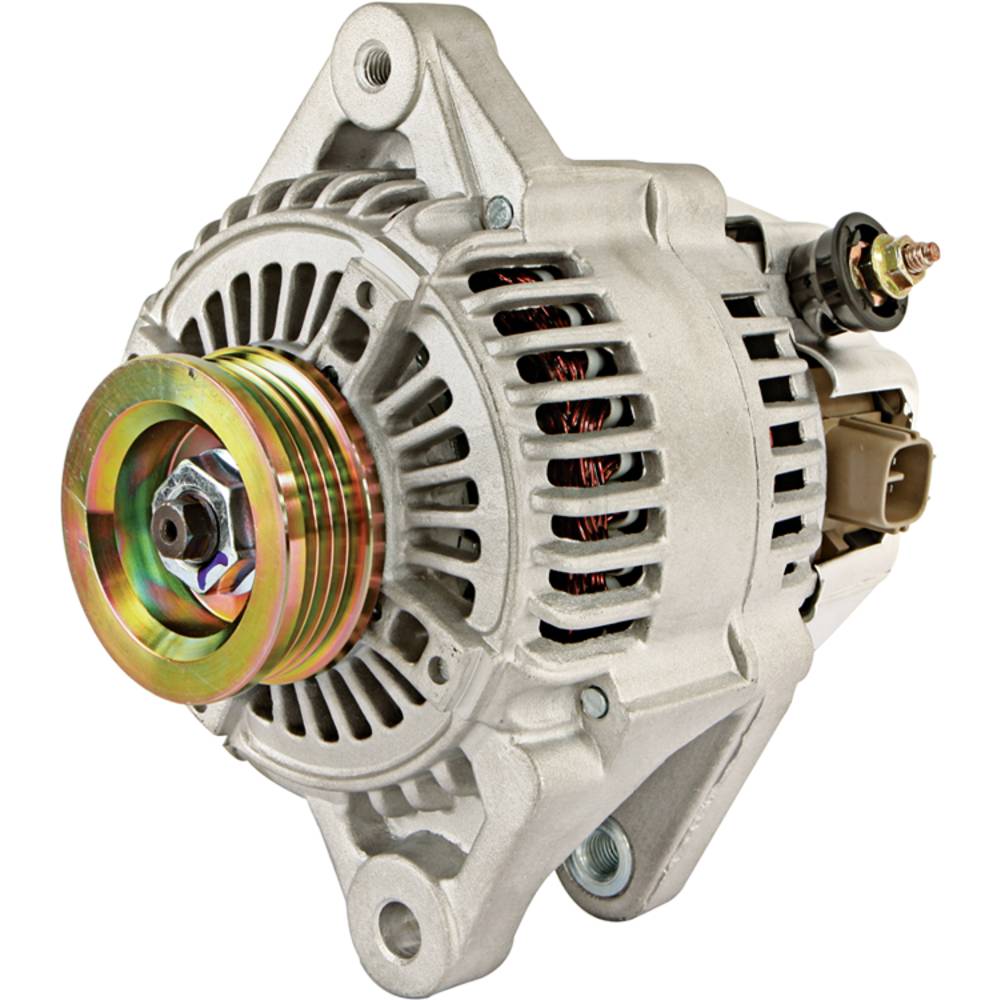

One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-LESTER: 11203, 11505, CRITICAL NOTE: This Unit is a Standard Wound Stator Design, NOT a Hairpin Type like the OE., VOLT: 12, AMPS: 80, CONDITION: New, REGULATOR CLOCK: 8:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: M10x1.25, MOUNT HOLE 3 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.882", MOUNTING EAR THICKNESS: 22.400mm, MOUNTING EAR 2 THICKNESS: 0.709", MOUNTING EAR 2 THICKNESS: 18mm, MOUNTING EAR 3 THICKNESS: 0.909", MOUNTING EAR 3 THICKNESS: 23.100mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: IG, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: S, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, TERMINAL ID 6: FR, TERMINAL 6 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 4, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.441", PULLEY OUTER DIAMETER: 62mm
-Arrowhead: AND0426, VND0426; Fits Bosch: AL3325X; Fits Denso: 104210-818, 104210-8180, 104210-840, 104210-8400, 210-0619; J&N Electrical Products: 400-52375; JANNCO: 400-52375R; Lester: 11203, 11505; Toyota: 27060-21150, 27060-21151

Replaces Part Number(s): 400-52375

Additional Information:

LESTER: 11203, 11505, CRITICAL NOTE: This Unit is a Standard Wound Stator Design, NOT a Hairpin Type like the OE., VOLT: 12, AMPS: 80, CONDITION: New, REGULATOR CLOCK: 8:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: M10x1.25, MOUNT HOLE 3 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.882", MOUNTING EAR THICKNESS: 22.400mm, MOUNTING EAR 2 THICKNESS: 0.709", MOUNTING EAR 2 THICKNESS: 18mm, MOUNTING EAR 3 THICKNESS: 0.909", MOUNTING EAR 3 THICKNESS: 23.100mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: IG, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: S, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, TERMINAL ID 6: FR, TERMINAL 6 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 4, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.441", PULLEY OUTER DIAMETER: 62mm, Arrowhead: AND0426, VND0426; Bosch: AL3325X; Denso: 104210-81

Reference Numbers:

400-52375
