400-52268-JN J&N Electrical Products Alternator

400-52268-JN J&N Electrical Products Alternator

$301.99 USD
$301.99 USD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket J&N Electrical Products Alternator

Tech Info:
LESTER: 13144
VOLT: 24
AMPS: 35
REGULATOR CLOCK: 6:00
ROTATION DIRECTION: Clockwise
MOUNT HOLE ID 1: M8x1.25
MOUNT HOLE 1 TYPE: Threaded
MOUNT HOLE 2 TYPE: Unthreaded
MOUNTING EAR THICKNESS: 0.795"
MOUNTING EAR THICKNESS: 20.200mm
MOUNTING EAR 2 THICKNESS: 2.276"
MOUNTING EAR 2 THICKNESS: 57.800mm
FAN LOCATION: Internal
REGULATOR LOCATION: Internal
TERMINAL ID 2: B+
TERMINAL 2 SIZE: M6x1.00
POLARITY: Negative
NUMBER OF GROOVES: 8
PULLEY TYPE: Solid
PULLEY OUTER DIAMETER: 3.311"
PULLEY OUTER DIAMETER: 84.100mm

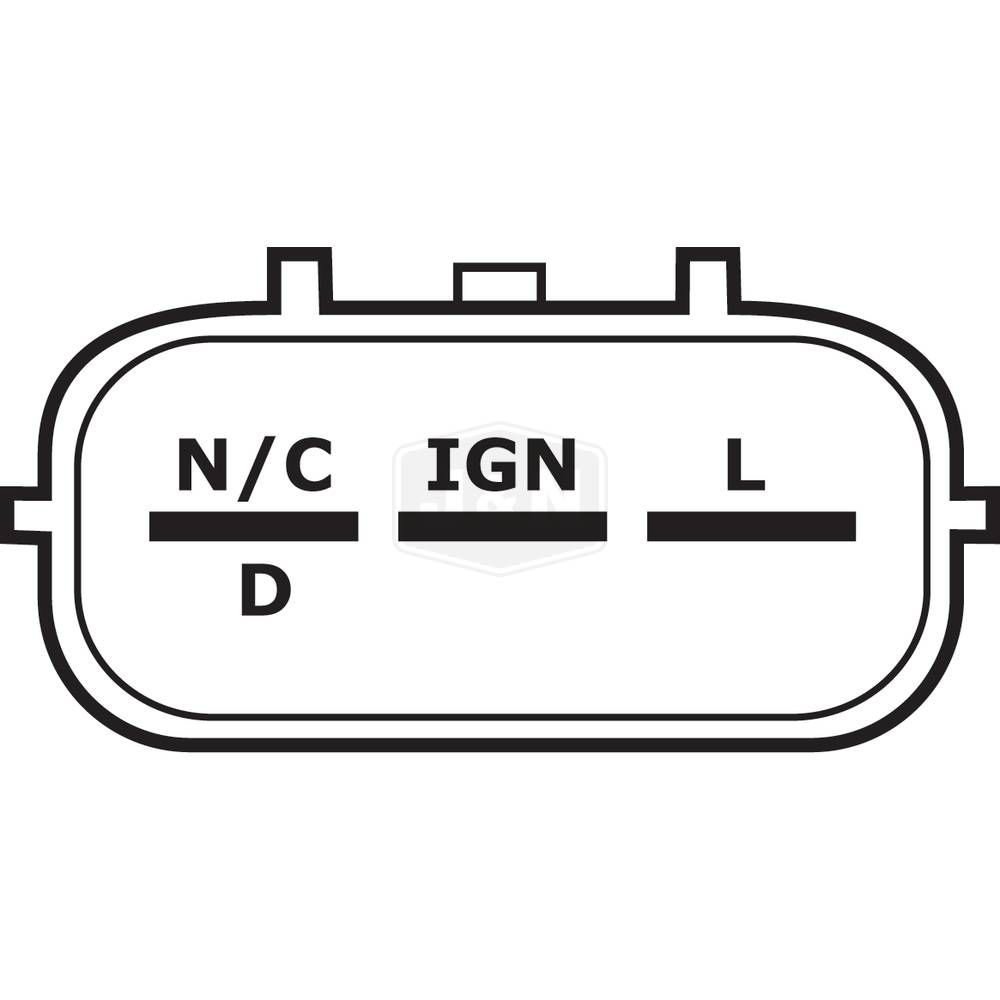

Includes Three Wire to Two Wire Conversion Harness

Replaces Part Number(s): 400-52268, 400-52268, 102211-2820, 102211-2821, 600-861-3411, 13144

Additional Information:

Arrowhead: 400-52268; Denso: 102211-2820, 102211-2821; Komatsu: 600-861-3411; Lester: 13144, LESTER: 13144, VOLT: 24, AMPS: 35, CONDITION: New, REGULATOR CLOCK: 6:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.795", MOUNTING EAR THICKNESS: 20.200mm, MOUNTING EAR 2 THICKNESS: 2.276", MOUNTING EAR 2 THICKNESS: 57.800mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, POLARITY: Negative, NUMBER OF GROOVES: 8, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 3.311", PULLEY OUTER DIAMETER: 84.100mm, : Includes Three Wire to Two Wire Conversion Harness

Reference Numbers:

400-52268
