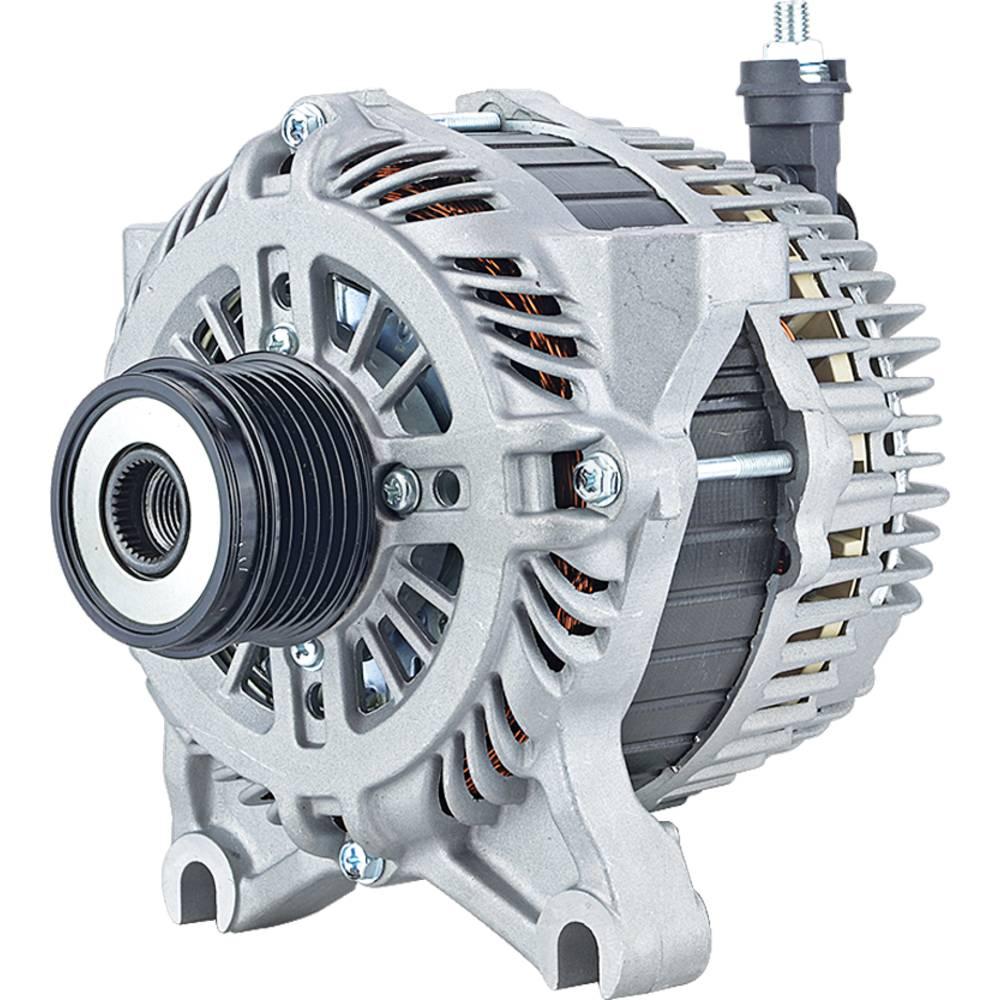

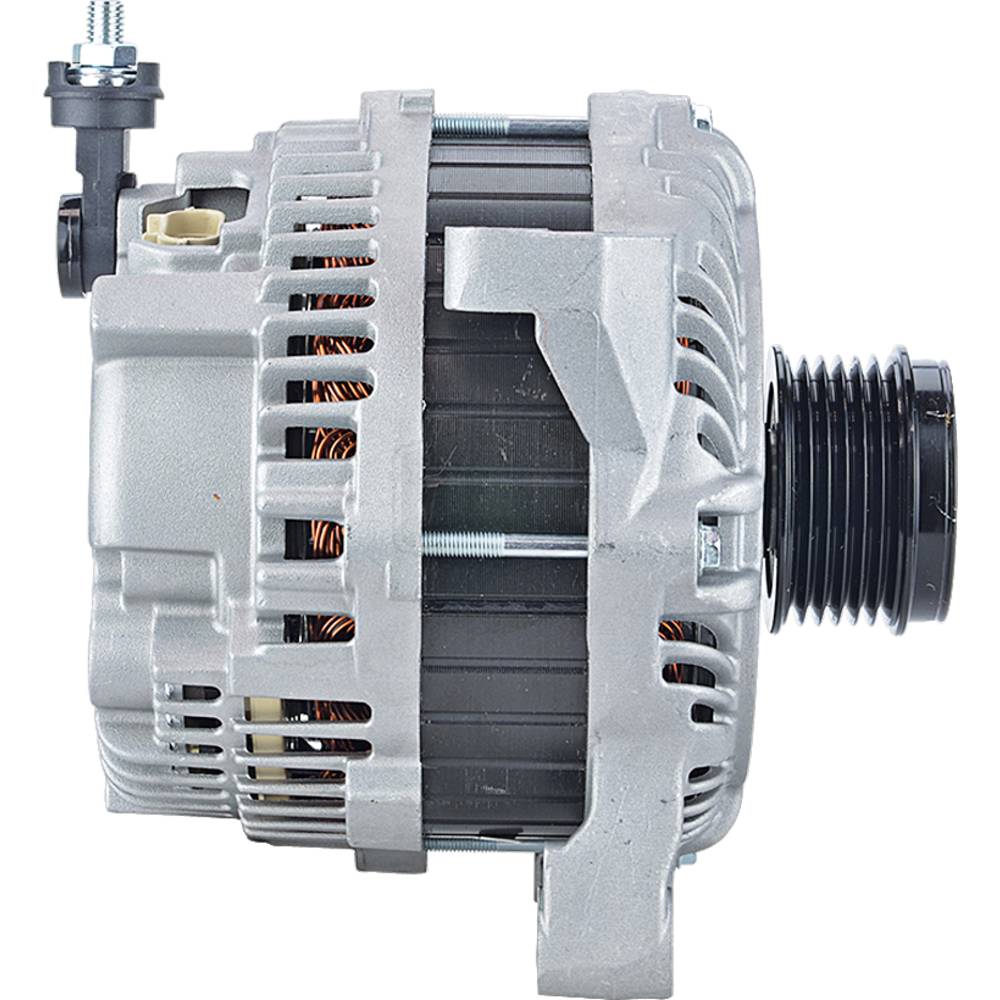

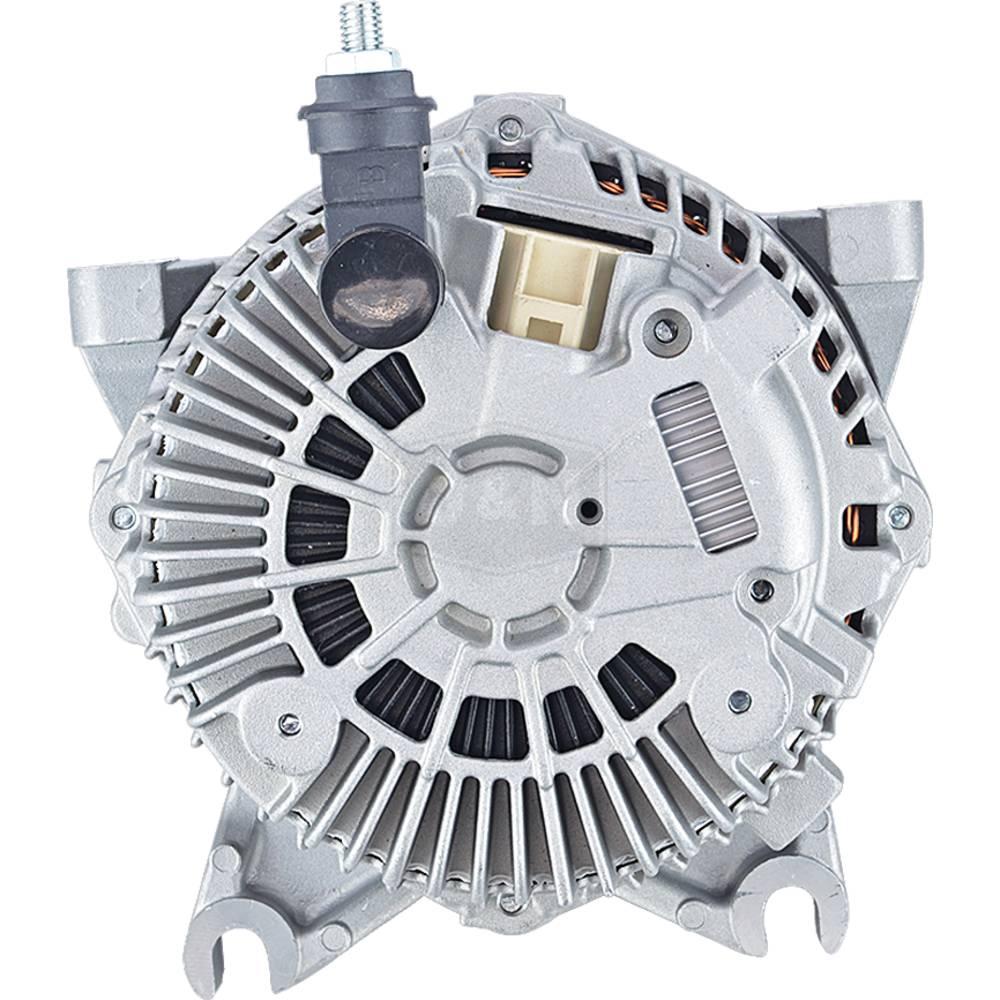

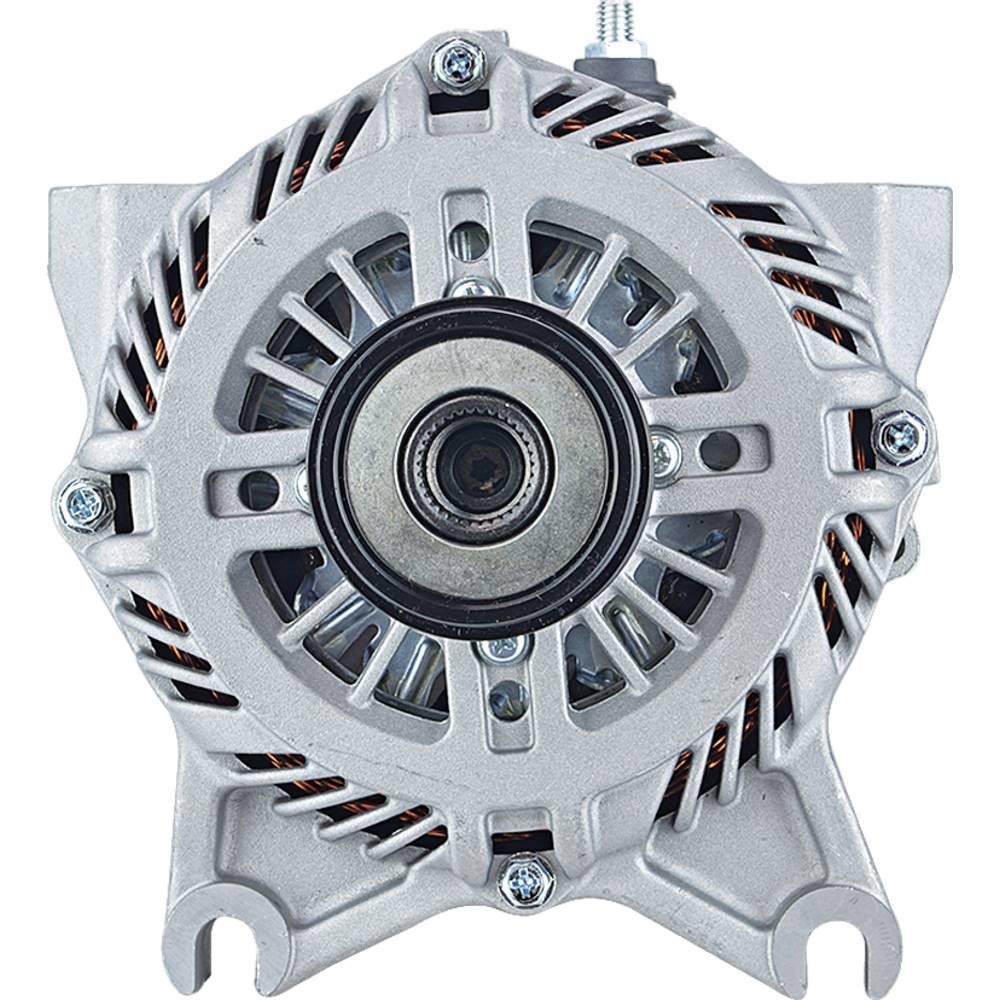

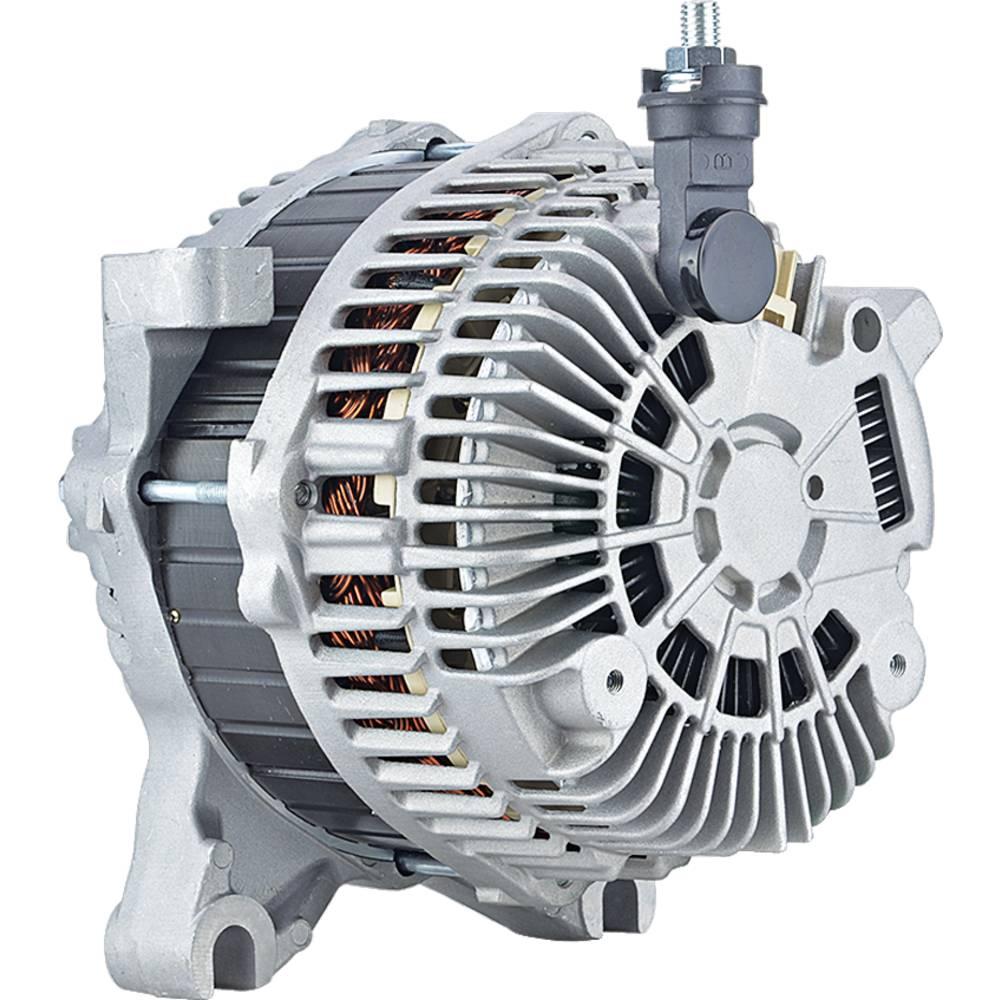

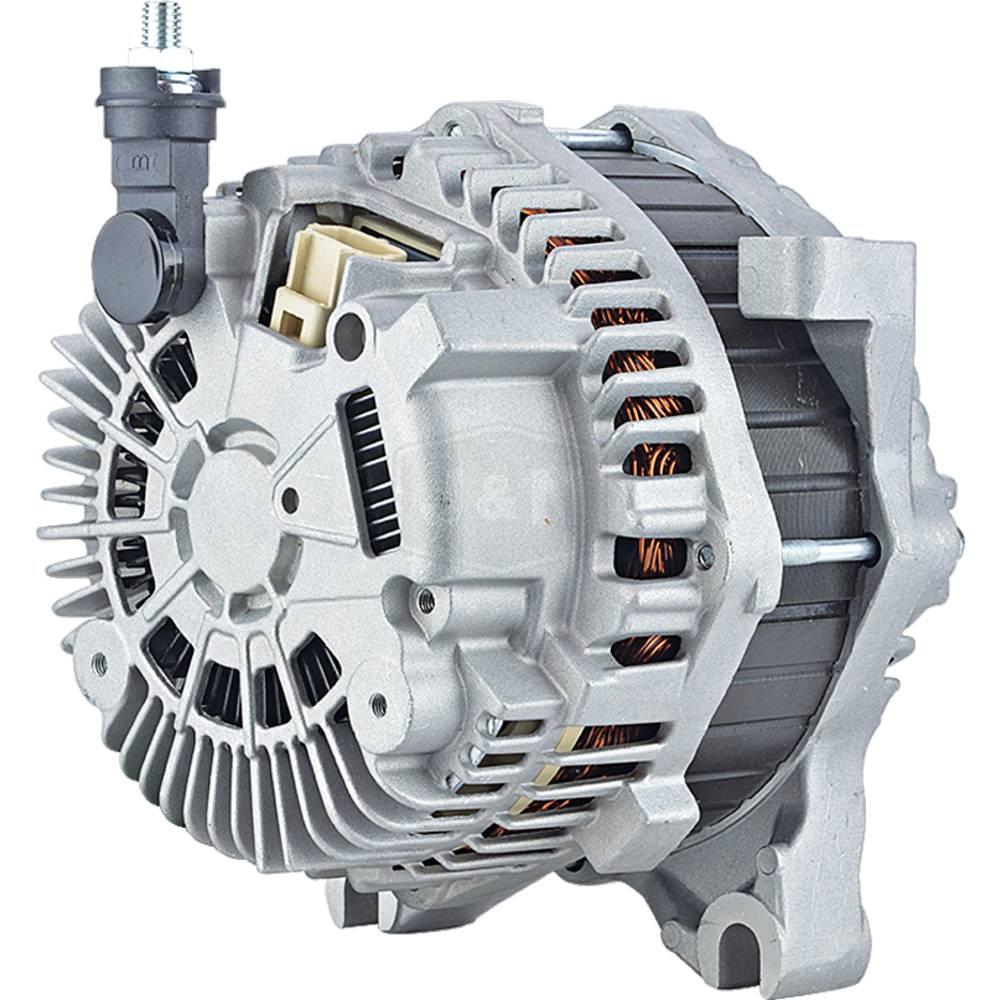

400-48110-JN J&N Electrical Products Alternator

400-48110-JN J&N Electrical Products Alternator

$491.99 USD
$491.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:

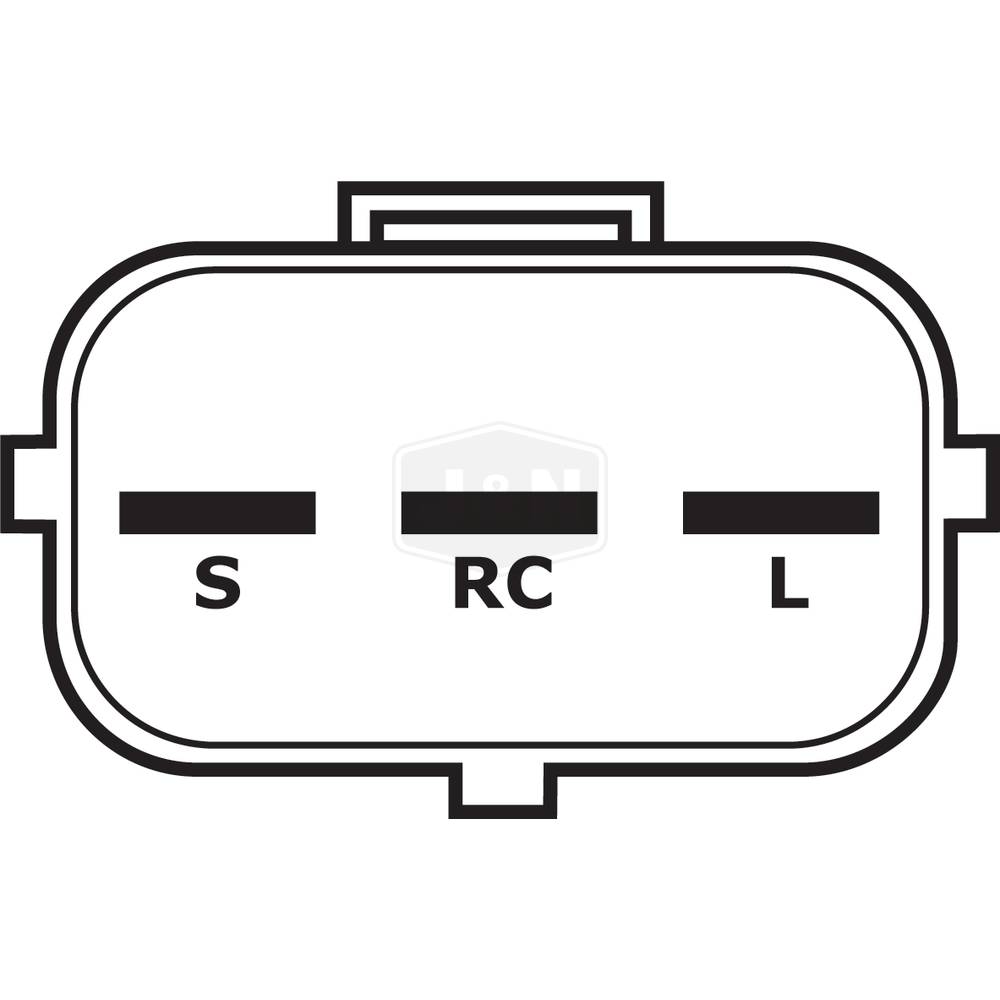

-LESTER: 11026, 11543, VOLT: 12, AMPS: 200, CONDITION: New, REGULATOR CLOCK: 12:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M6x1.00, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE ID 2: M6x1.00, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 10.600mm, MOUNT HOLE 3 TYPE: Slotted, MOUNT HOLE ID 4: 10.600mm, MOUNT HOLE 4 TYPE: Slotted, MOUNTING EAR THICKNESS: 0.606", MOUNTING EAR THICKNESS: 15.400mm, MOUNTING EAR 2 THICKNESS: 0.606", MOUNTING EAR 2 THICKNESS: 15.400mm, MOUNTING EAR 3 THICKNESS: 1.024", MOUNTING EAR 3 THICKNESS: 26mm, MOUNTING EAR 4 THICKNESS: 1.024", MOUNTING EAR 4 THICKNESS: 26mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: AS, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: RC, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: LI, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.323", PULLEY OUTER DIAMETER: 59mm
-Arrowhead: A4TJ0181, AMT0126; Fits Bosch: AL7601N, AL7601X; Fits Ford: 4W73-10300AC, 4W73-10300-AC, 4W73-AC, 4W7Z10346AC, 4W7Z-10346-AC, 6W7T-10300-AB, 6W7T-AB, 6W7Z-10346-AA, FW73-10346AC, FW73-10346-AC, GL598, GL671; J&N Electrical Products: 400-48110; Lester: 11026, 11543; Fits Mitsubishi: A004TJ0181, A004TJ0181ZC, A4TJ0181, A4TJ0181ZC, A4TJ0182, A4TJ0182ZC

Replaces Part Number(s): 400-48110

Additional Information:

LESTER: 11026, 11543, VOLT: 12, AMPS: 200, CONDITION: New, REGULATOR CLOCK: 12:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M6x1.00, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE ID 2: M6x1.00, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 10.600mm, MOUNT HOLE 3 TYPE: Slotted, MOUNT HOLE ID 4: 10.600mm, MOUNT HOLE 4 TYPE: Slotted, MOUNTING EAR THICKNESS: 0.606", MOUNTING EAR THICKNESS: 15.400mm, MOUNTING EAR 2 THICKNESS: 0.606", MOUNTING EAR 2 THICKNESS: 15.400mm, MOUNTING EAR 3 THICKNESS: 1.024", MOUNTING EAR 3 THICKNESS: 26mm, MOUNTING EAR 4 THICKNESS: 1.024", MOUNTING EAR 4 THICKNESS: 26mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: AS, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: RC, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: LI, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.323", PULLEY OUTER DIAMETER: 59mm, Arrowhead: A4TJ0181, AMT0126; Bosch: AL7601N, AL

Reference Numbers:

400-48110
