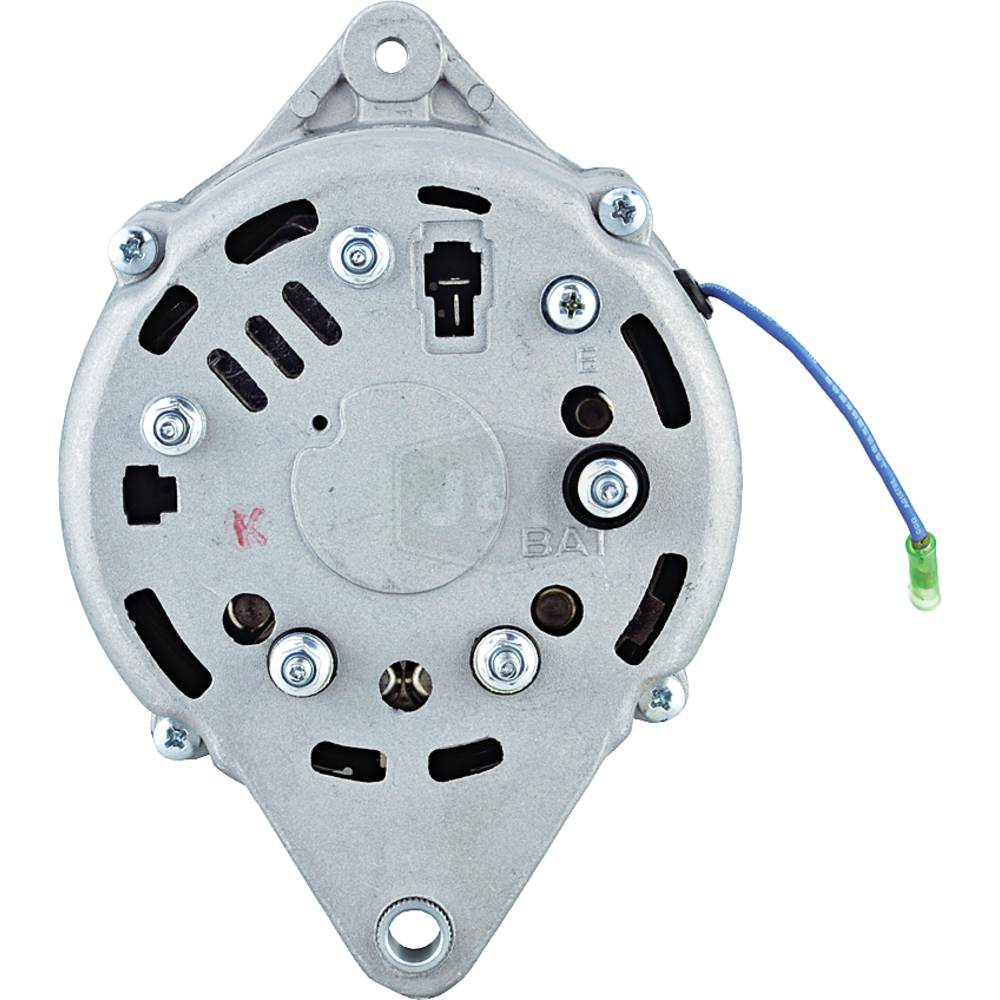

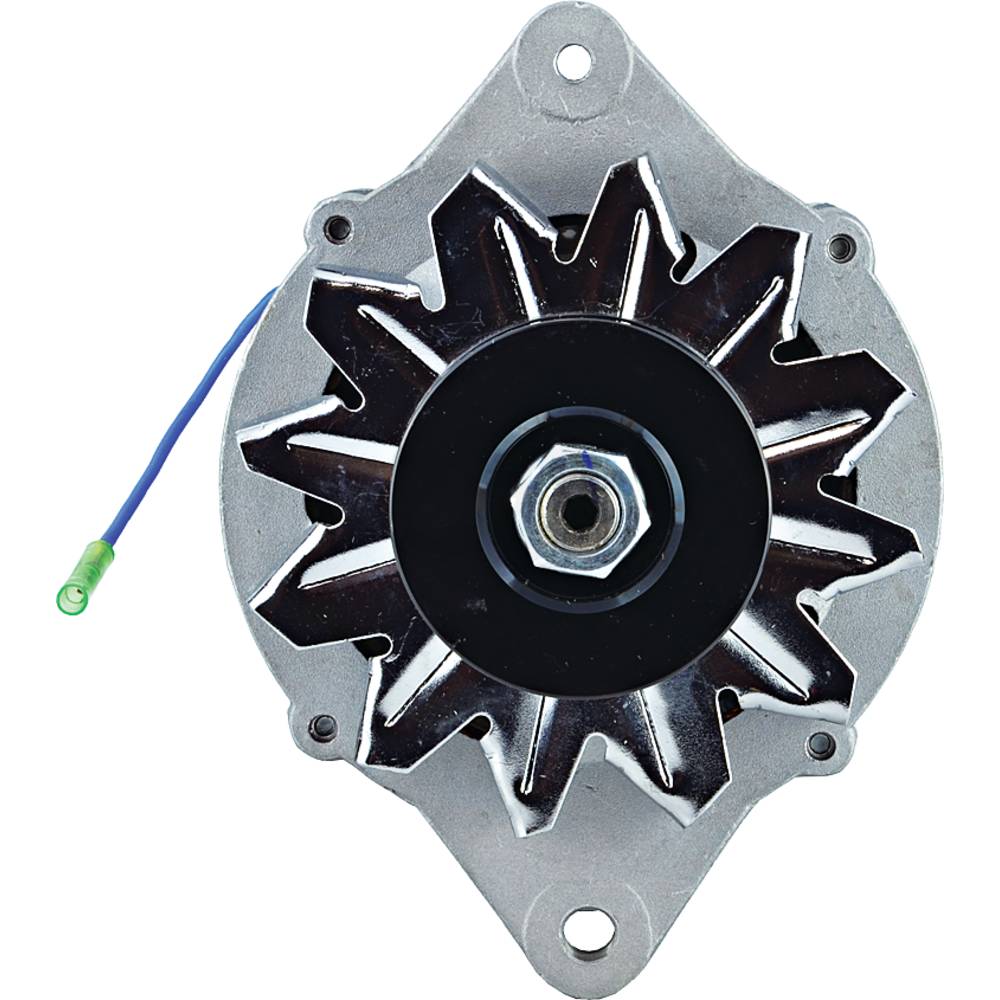

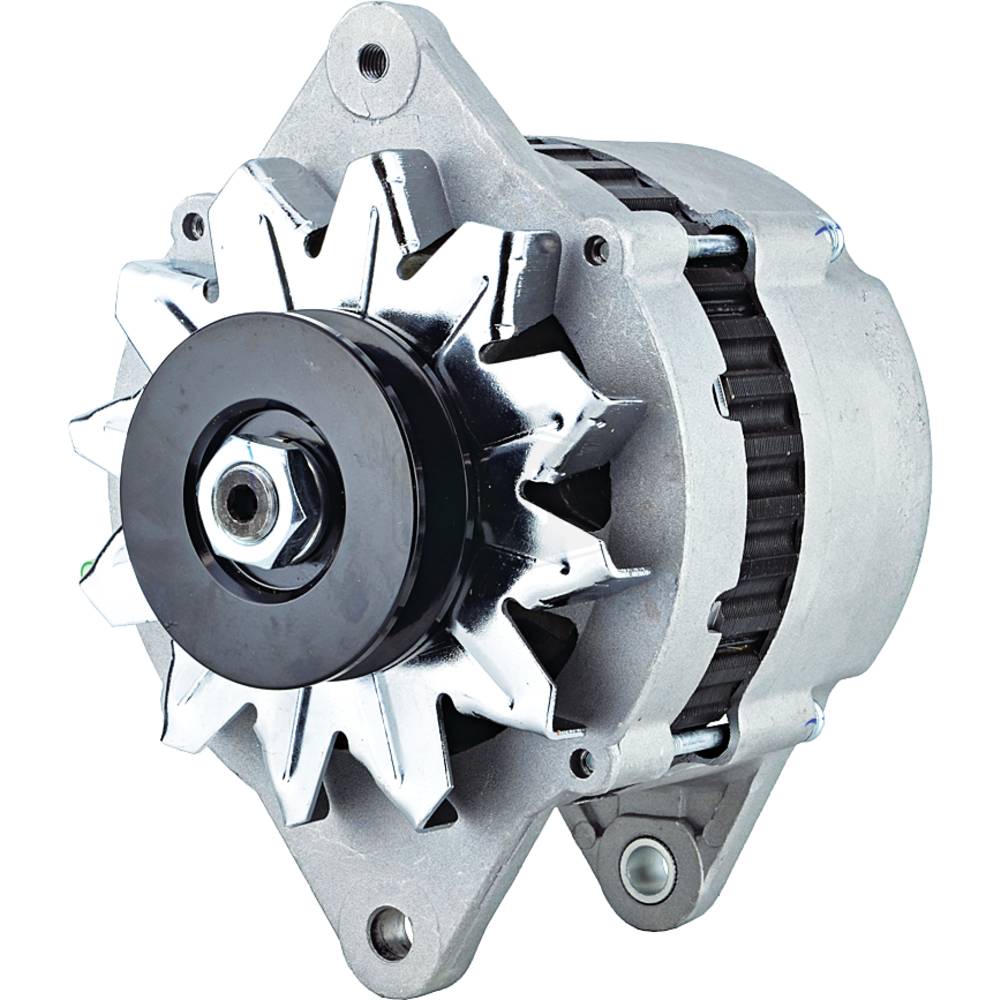

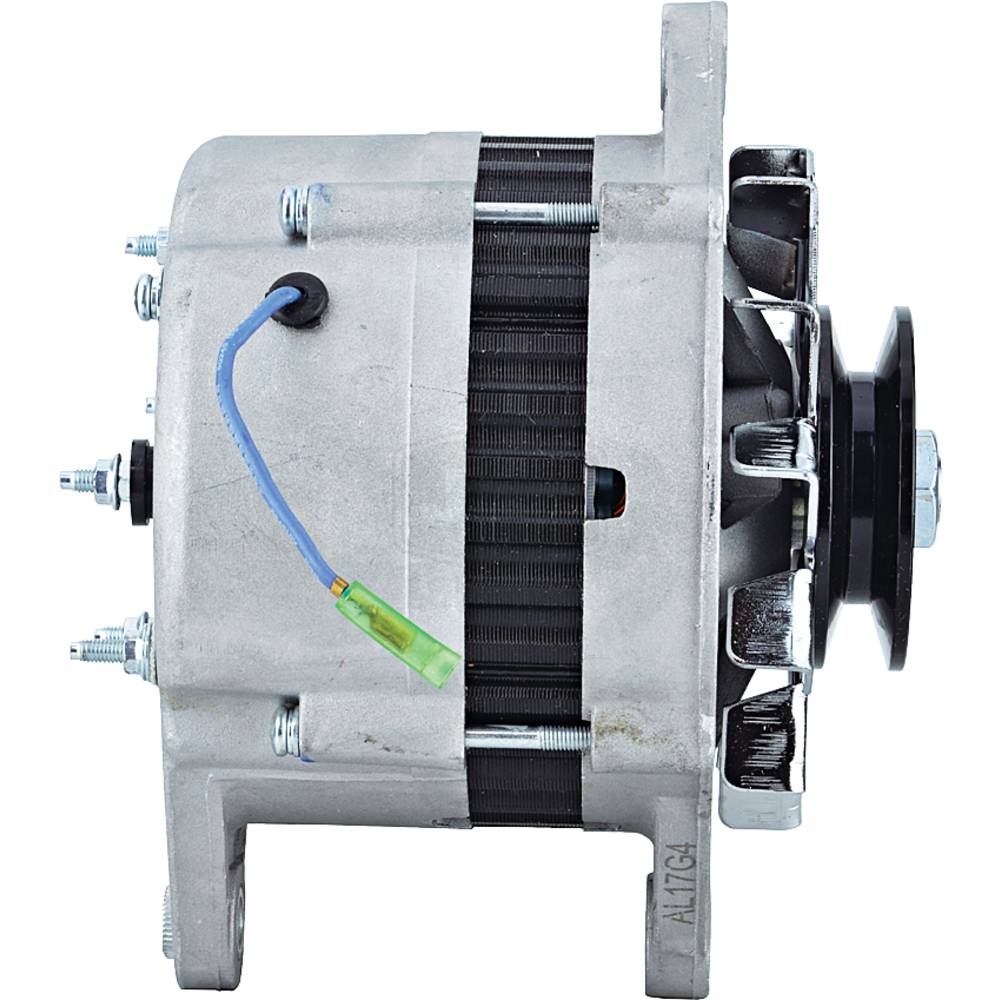

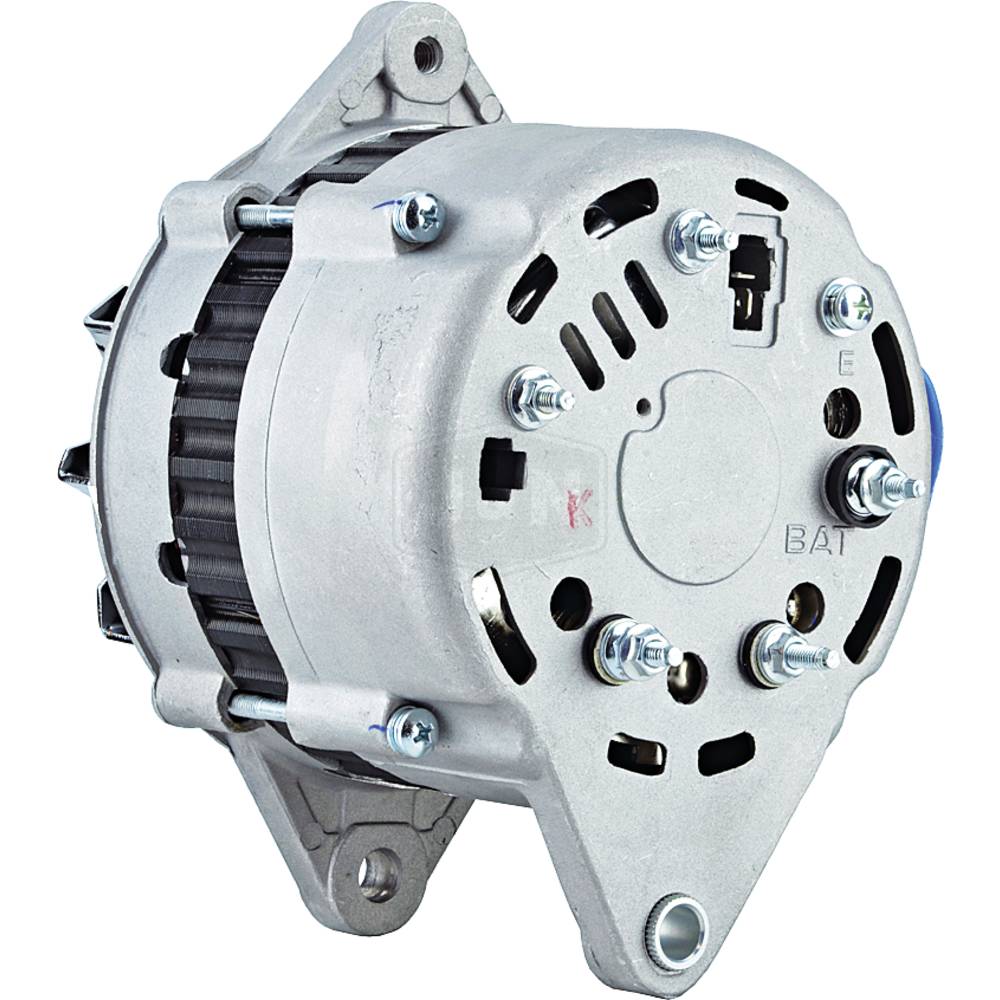

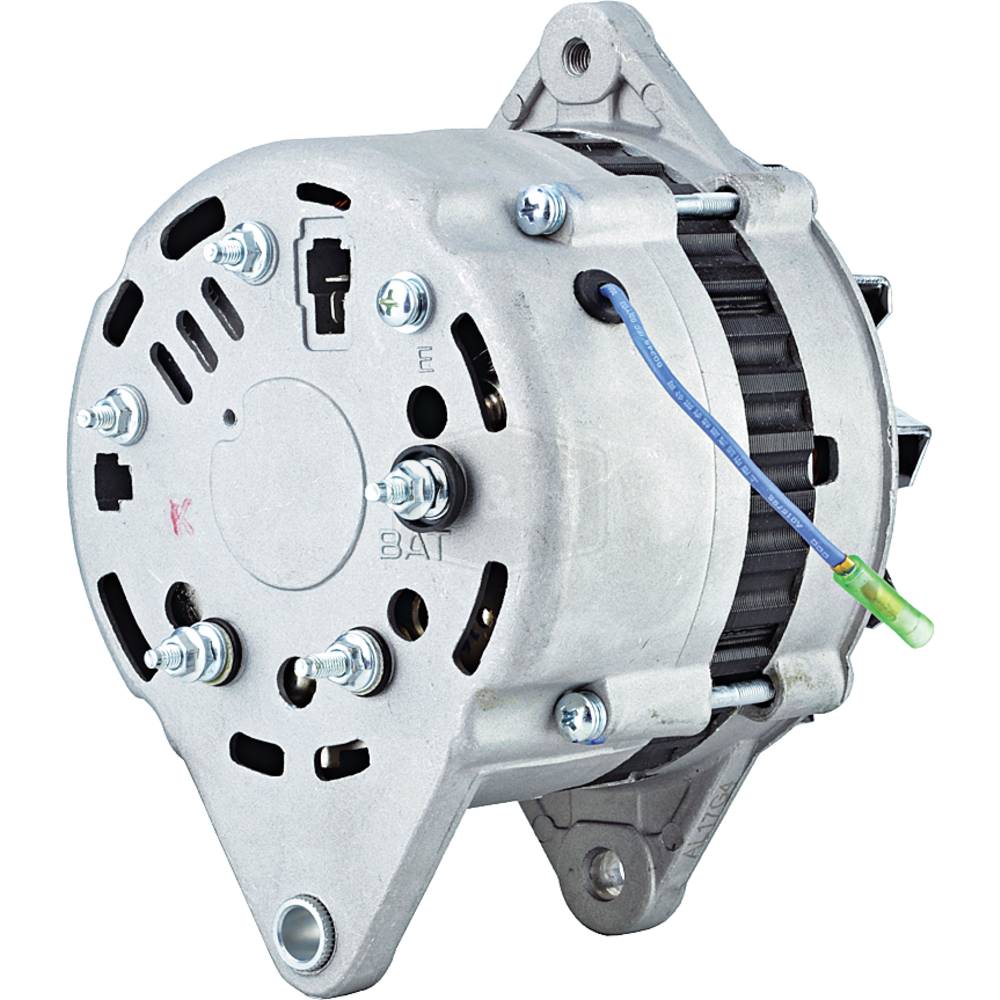

400-44130-JN J&N Electrical Products Alternator
400-44130-JN J&N Electrical Products Alternator
Regular price
$225.19 USD
Regular price
Sale price
$225.19 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket J&N Electrical Products Alternator
Tech Info:
-Arrowhead: 400-44130; J&N Electrical Products: 400-44046; Lester: 12272; Sierra Marine: 18-6278, 18-6297, 18-6929; Yanmar: 119573-77200, 119573-77201, 129470-77200
-LESTER: 12272, CRITICAL NOTE: Fully Insulated@ Terminal ID: Light / Relay@ The Relay Terminal Voltage is 1.25V Static and Battery Voltage When Running@ Blue Wire is Stator Voltage, VOLT: 12, AMPS: 80, CONDITION: New, REGULATOR CLOCK: 12:30, QUALITY TYPE: Standard, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 10.400mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.551", MOUNTING EAR THICKNESS: 14mm, MOUNTING EAR 2 THICKNESS: 0.551", MOUNTING EAR 2 THICKNESS: 14mm, MOUNTING EAR 3 THICKNESS: 0.591", MOUNTING EAR 3 THICKNESS: 15mm, FAN LOCATION: External, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M5x0.8, POLARITY: Insulated, NUMBER OF GROOVES: 1, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.913", PULLEY OUTER DIAMETER: 74mm, WARRANTY: 1 Year, : 1/2" Belt Width Pulley
Replaces Part Number(s): 400-44130
