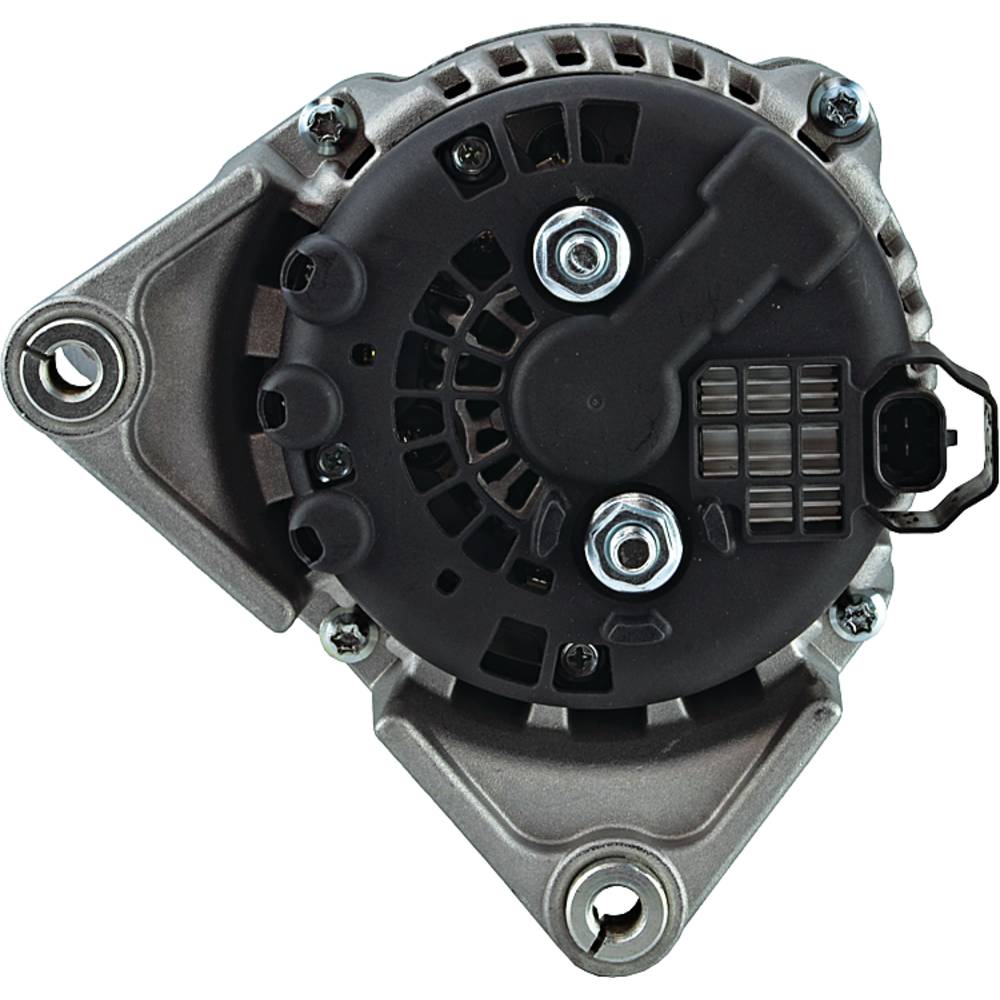

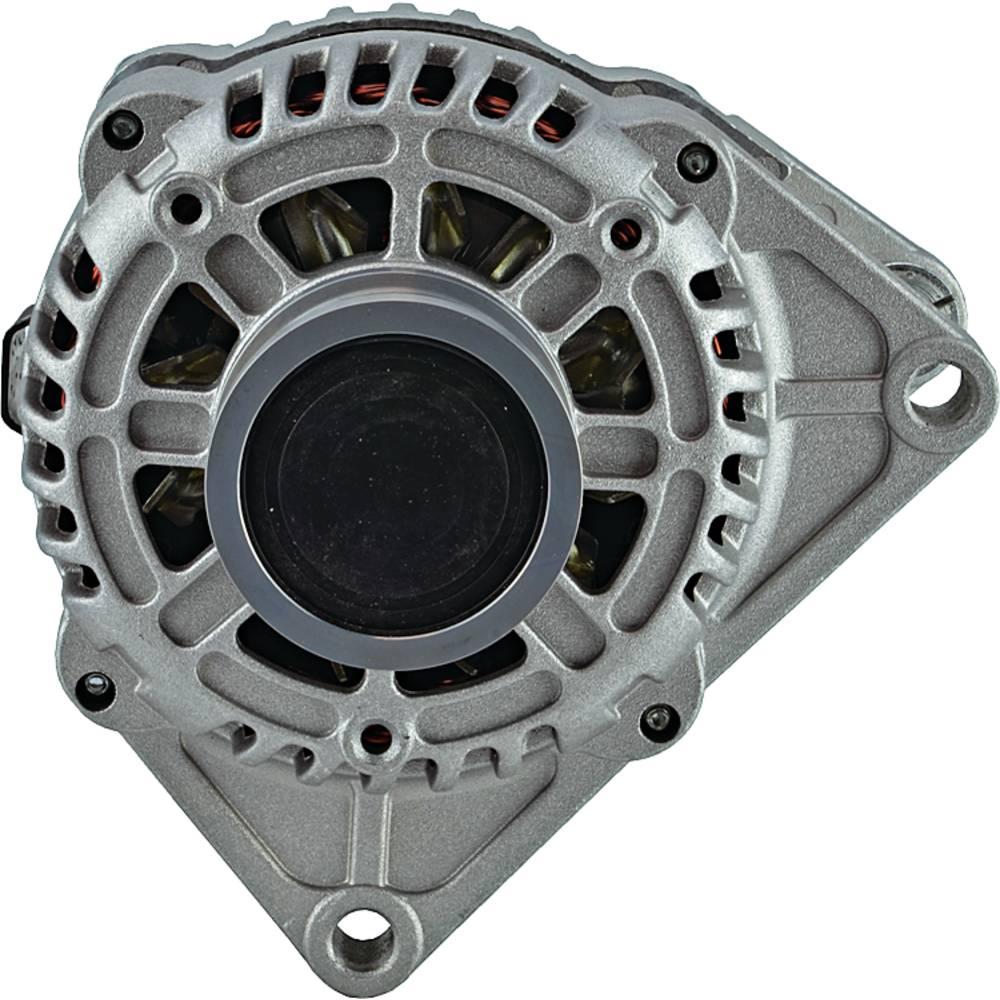

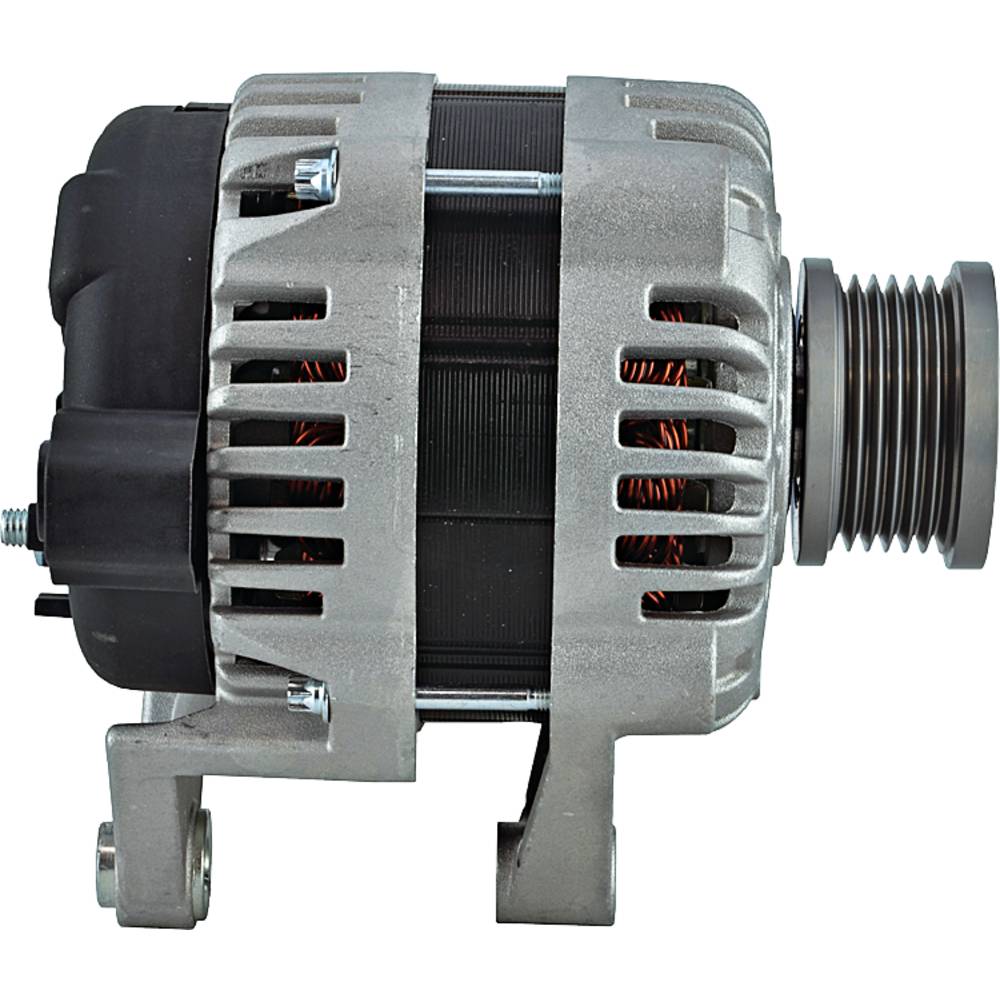

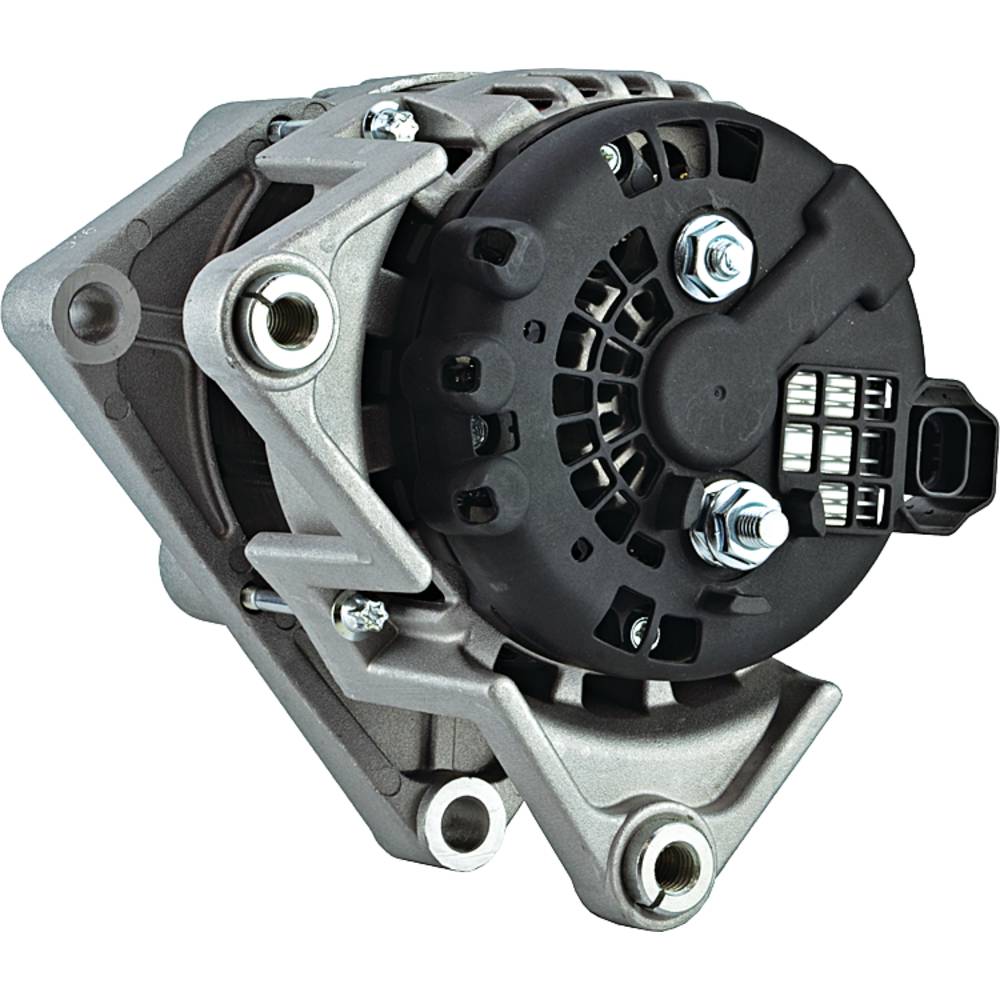

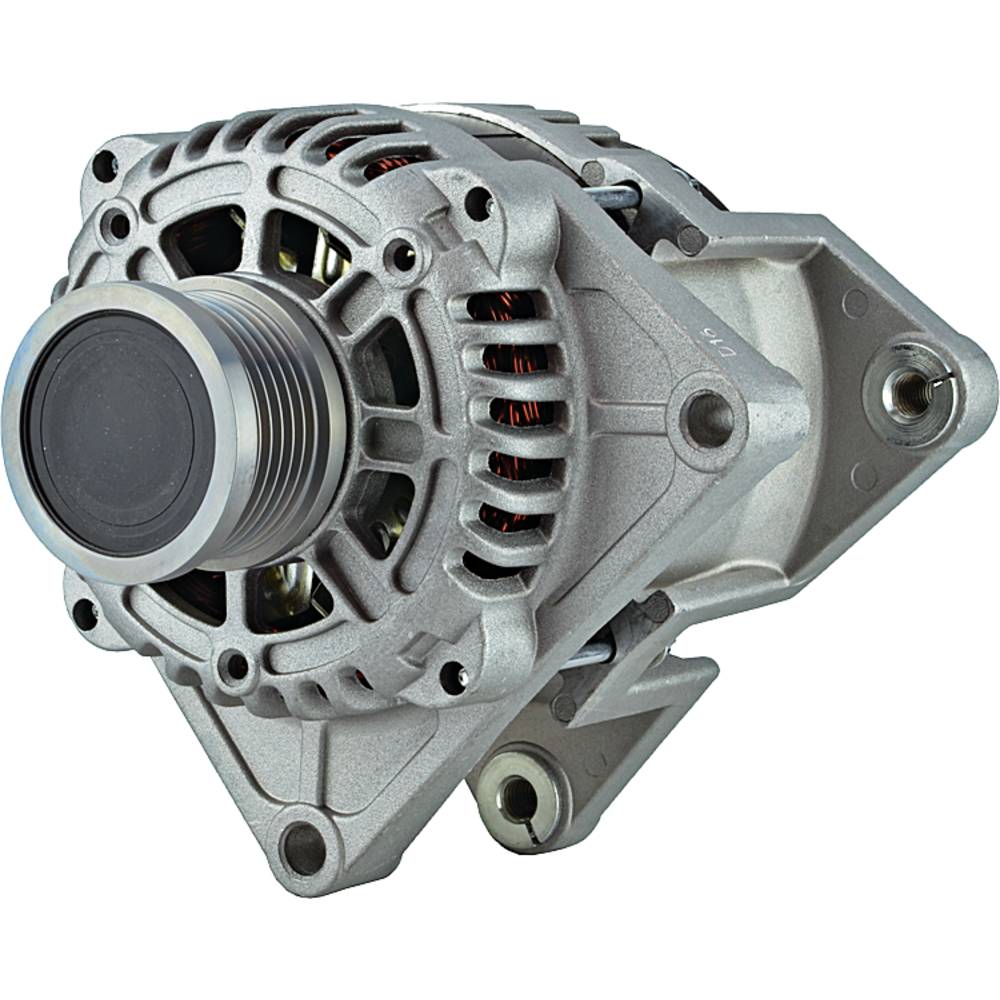

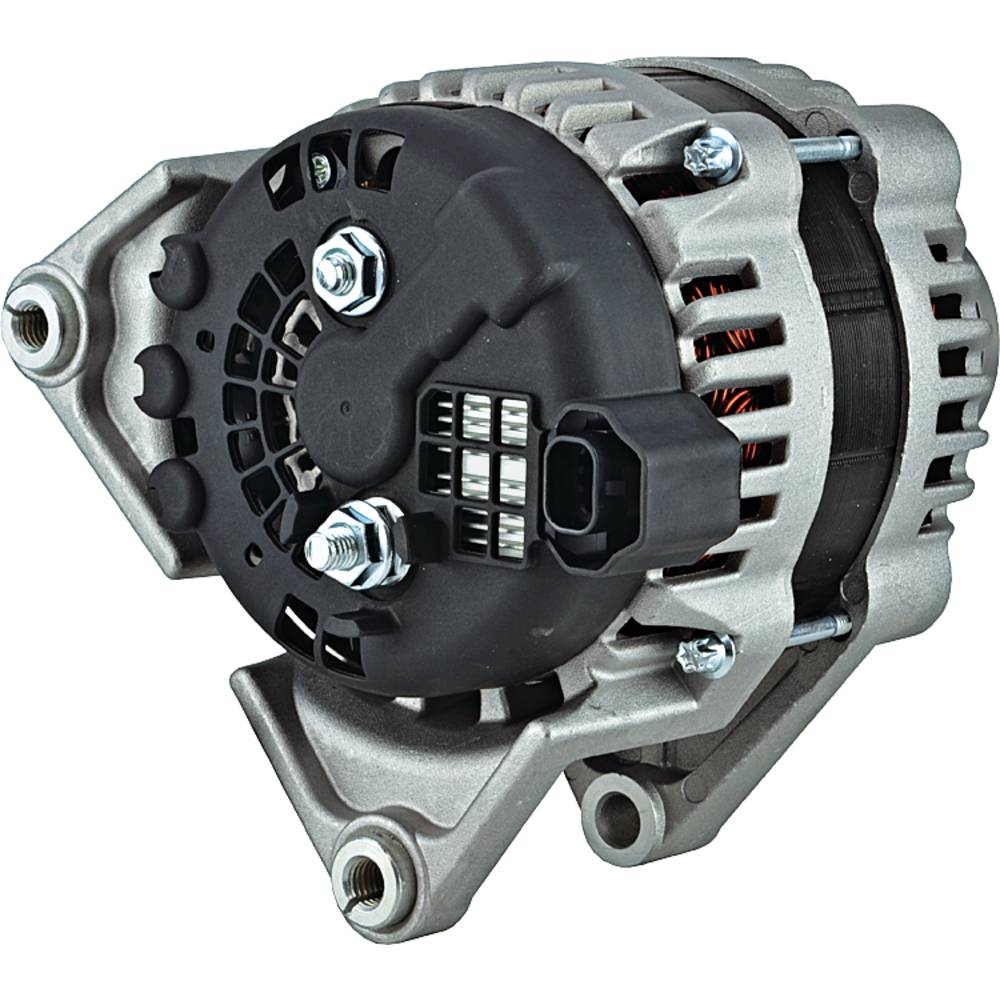

400-12512-JN J&N Electrical Products Alternator

400-12512-JN J&N Electrical Products Alternator

$352.42 USD
$352.42 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-LESTER: 21514, VOLT: 12, AMPS: 100, CONDITION: New, REGULATOR CLOCK: 3:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.400mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M10x1.50, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 10.400mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M10x1.50, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.913", MOUNTING EAR THICKNESS: 23.200mm, MOUNTING EAR 2 THICKNESS: 0.827", MOUNTING EAR 2 THICKNESS: 21mm, MOUNTING EAR 3 THICKNESS: 0.913", MOUNTING EAR 3 THICKNESS: 23.200mm, MOUNTING EAR 4 THICKNESS: 0.827", MOUNTING EAR 4 THICKNESS: 21mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: F, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.098", GROOVE OD: 53.300mm, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.323", PULLEY OUTER DIAMETER: 59mm
-Arrowhead: ADR0460; General Motors: 13500577, 13579666, 13595628; Lester: 21514

Replaces Part Number(s): 400-12512

Additional Information:

LESTER: 21514, VOLT: 12, AMPS: 100, CONDITION: New, REGULATOR CLOCK: 3:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.400mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M10x1.50, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 10.400mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M10x1.50, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.913", MOUNTING EAR THICKNESS: 23.200mm, MOUNTING EAR 2 THICKNESS: 0.827", MOUNTING EAR 2 THICKNESS: 21mm, MOUNTING EAR 3 THICKNESS: 0.913", MOUNTING EAR 3 THICKNESS: 23.200mm, MOUNTING EAR 4 THICKNESS: 0.827", MOUNTING EAR 4 THICKNESS: 21mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: F, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.098", GROOVE OD: 53.300mm, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.323", PULLEY OUTER DIAMETER: 59mm, Arrowhead: ADR0460; General Motors: 13500577, 1357966

Reference Numbers:

400-12512
