2W1744 Turbo G Fits Caterpillar Models

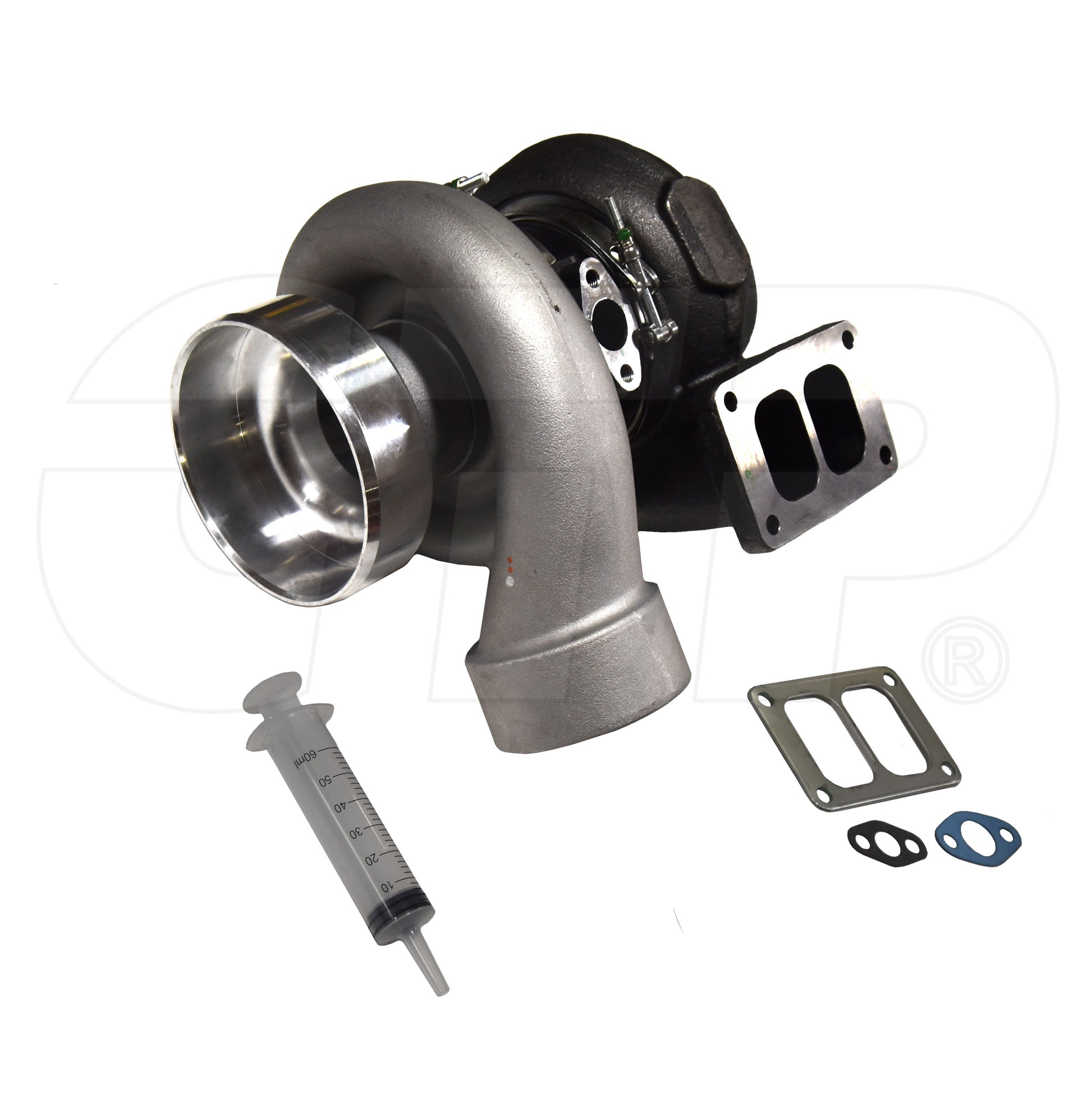

One New Aftermarket Replacement Turbocharger Group for Caterpillar (Cat) 3306 / 3306B Engine

This aftermarket replacement Turbocharger Group (Turbo G) fits Caterpillar equipment powered by the 3306 and 3306B diesel engines. The Garrett TV6135 turbocharger mounts to the engine's exhaust manifold to boost air intake, improving combustion efficiency and power output. The cartridge assembly uses part number 1W6865. Before installation, verify the oil supply and return lines are clean and free of restriction to prevent premature turbo failure.

Specifications

• Turbocharger Model: Garrett TV6135
• Turbine Housing A/R: 1.34
• Compressor Housing Angle: 160 degrees
• Weight: 51 lbs
• Length: 12.4 in (315 mm)
• Width: 11.9 in (302.3 mm)
• Height: 14.8 in
• Cartridge (CHRA) Part No.: 1W6865 / 0R5869
• Cat Reman Reference: 0R-5792

Compatible Models

Caterpillar Articulated Dump Trucks: D25C, D25D, D30C, D30D, D300B, D35C, D350C, D350D

Caterpillar Track-Type Tractors: D6D, 140, 141, 143

Caterpillar Industrial / Generator Engines: 3306, 3306B, SR4

Note: Serial number restriction applies to D6D Track-Type Tractor: S/N 64Z843-1982 and 64Z2143-UP, engine S/N to 13Z14218. Verify serial number before ordering.

Replaces Part Number(s):

2W1744, 2W-1744, 0R-5792, 0R5792

Aftermarket Interchange Numbers

465984-5003S, 465984-0003, 465984-0005, 465984-0007, 465840-0005, 465984-9003, 4659845003S, 4659840003, CA2W1744, CA0R5792, M-2W1744 (Interstate-McBee)

New aftermarket replacement part - not remanufactured, not used.
