Spindle Bearings, Bushings, & Seals Fits Ford/New Holland Replaces 2N2109

Spindle Bearings, Bushings, & Seals Fits Ford/New Holland Replaces 2N2109

$41.99 USD
$41.99 USD
Sale Sold out
Shipping calculated at checkout.

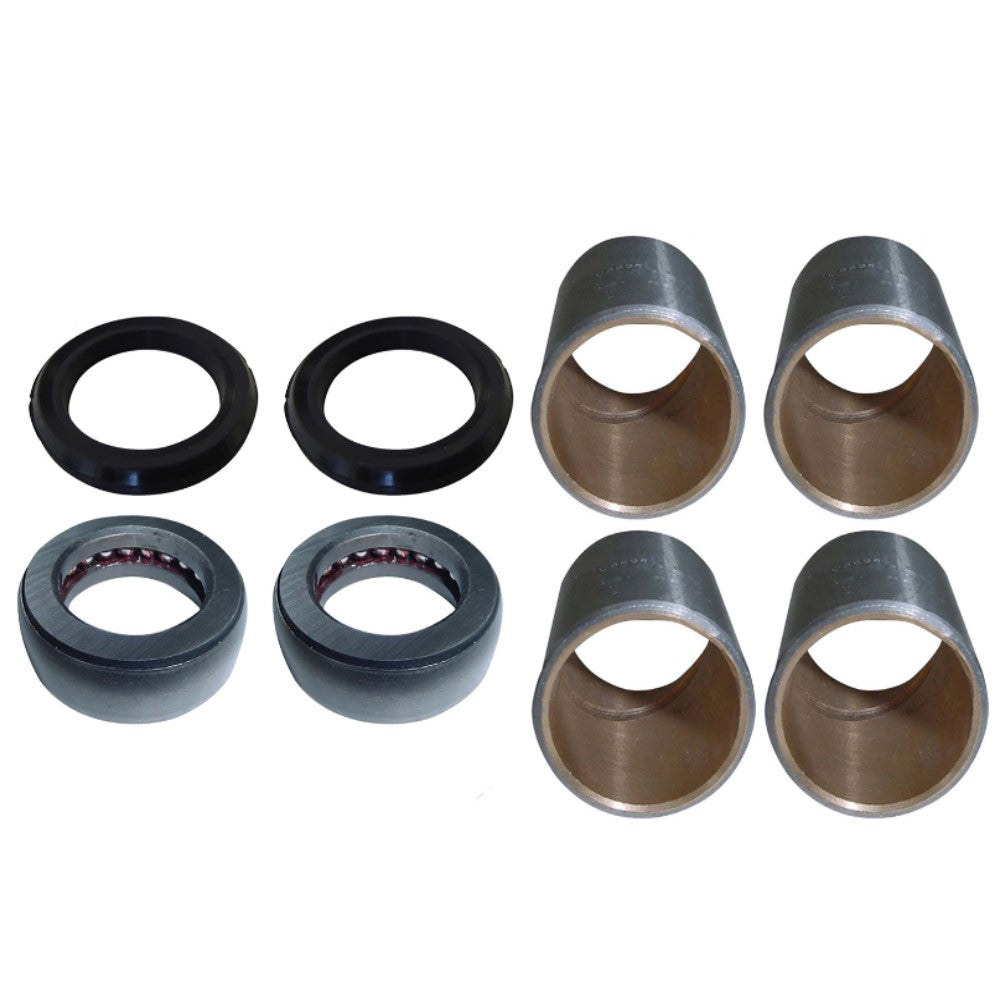

One New Aftermarket Spindle Bearings, Bushings, & Seals

Tech Info:

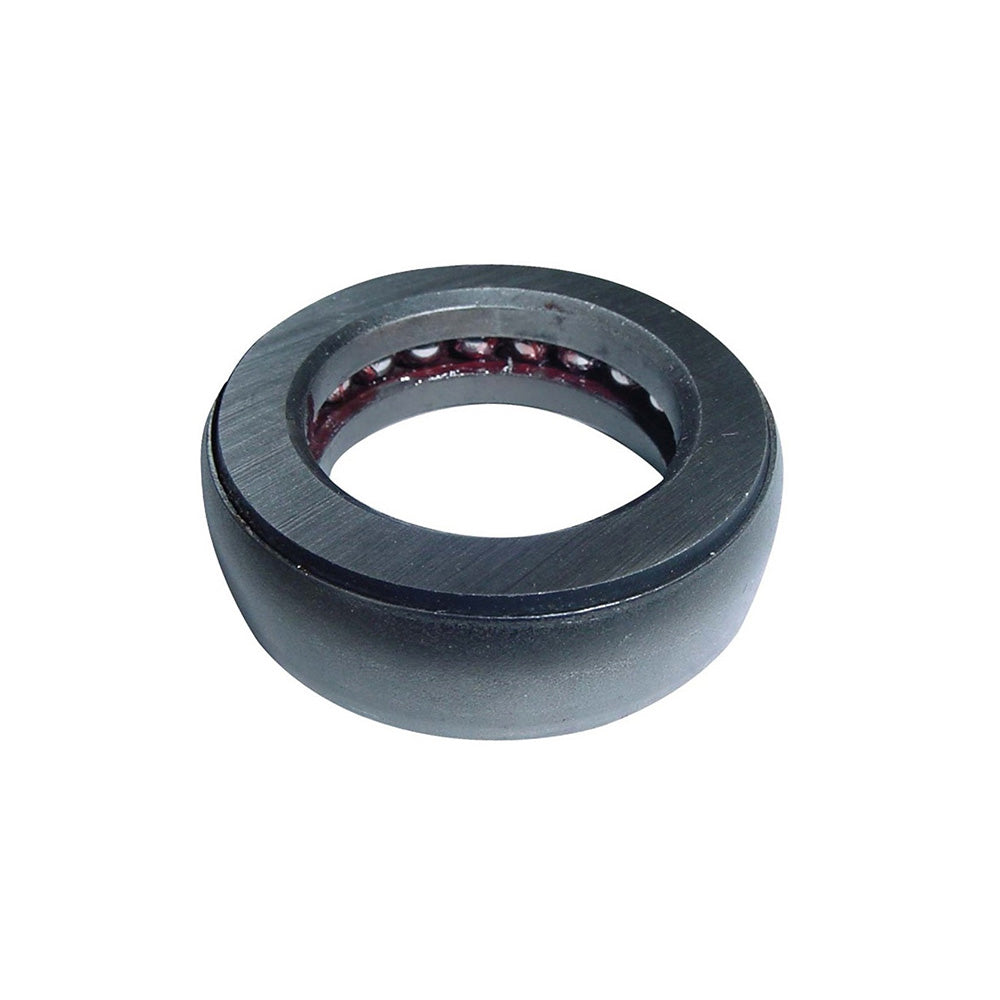

 -(2) Thrust Bearing
 -Tech Info:
 -Bearing Type Spindle Bearing
 -Grease Greaseable
 -ID 1.350"
 -ID Type Round
 -OD 2.200"
 -Sourced Import
 -Width Overall 0.620"
 -Replaces Part Number: 957E3123A
 -

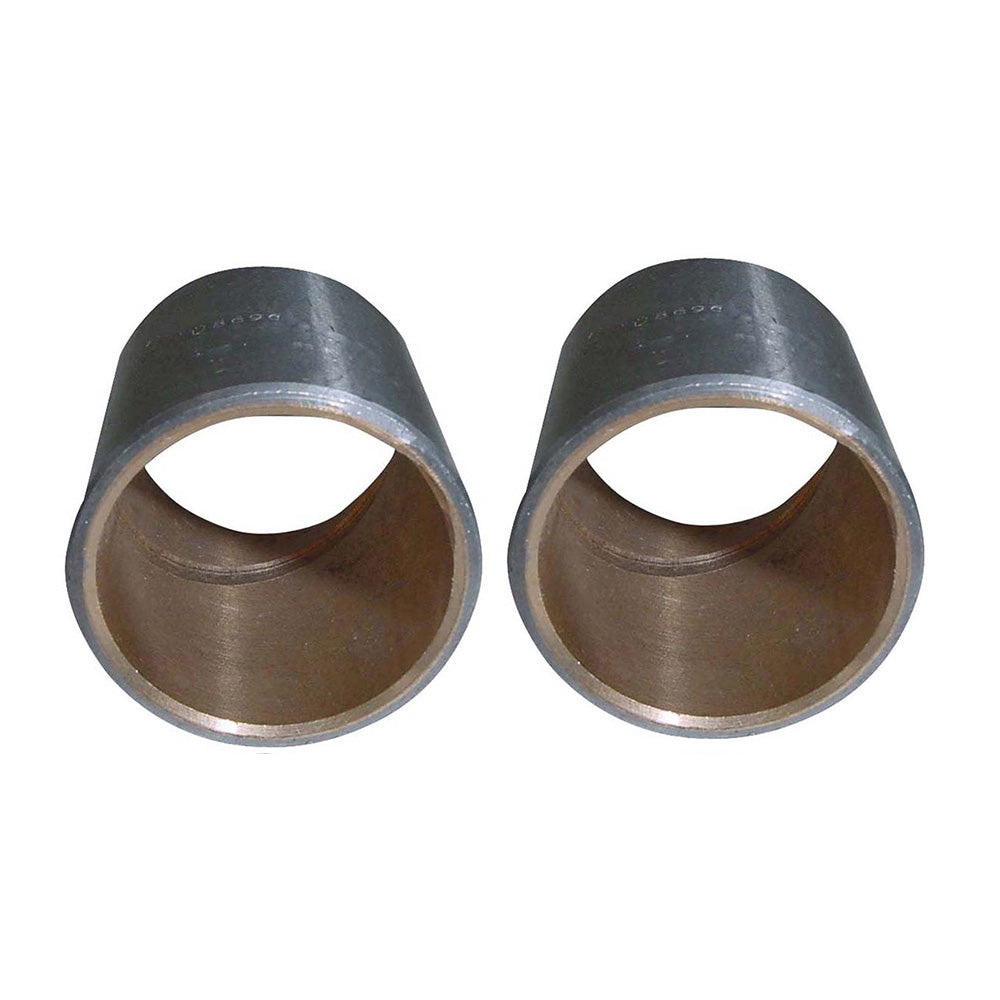

 -(4) Front Spindle Bushing
 -Tech Info:
 -4 used per tractor,
 -1.255" inside diameter,
 -1.378" outside diameter,
 -1.498" long,
 -Must be honed or reamed to size when installed
 -Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940
 -

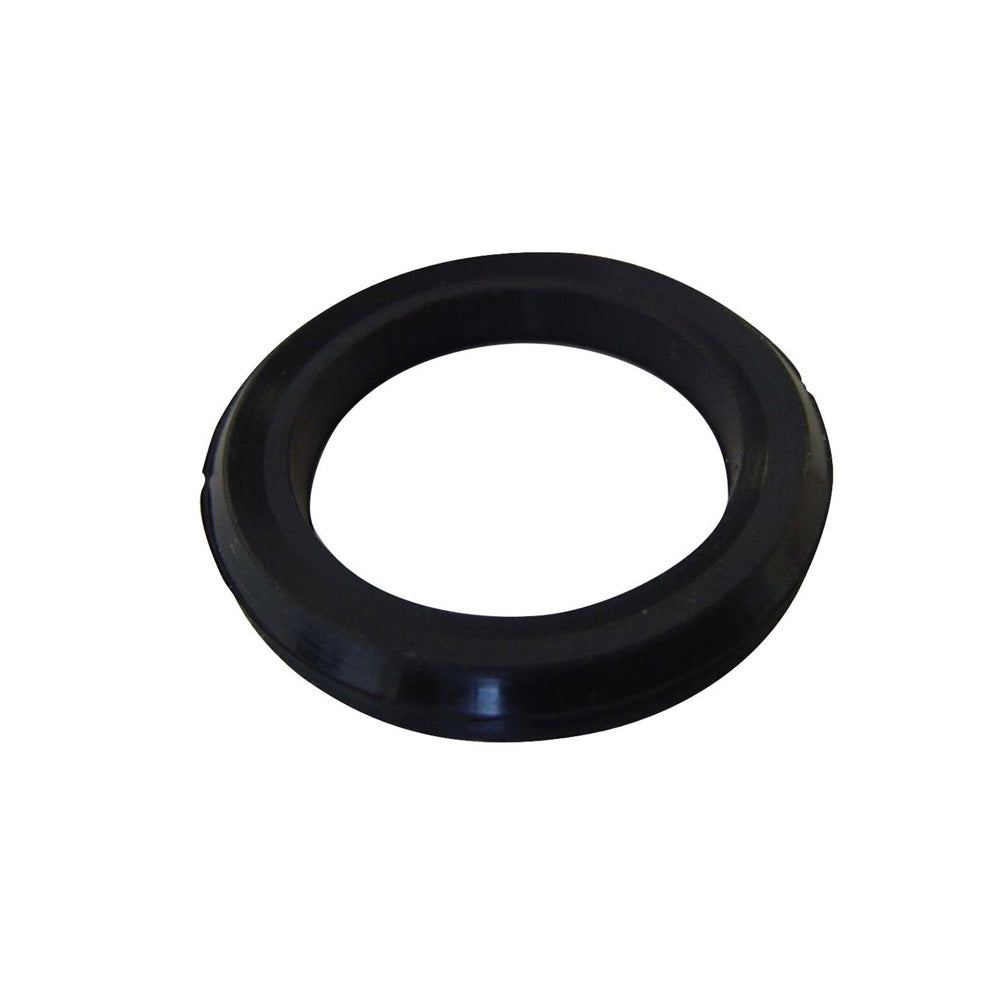

 -(2) Spindle Seal
 -Tech Info:
 -33mm id, 44mm od
 -Replaces Part Number: 8N3528,ESL10547

Made to Fits Ford/New Holland:
 Models: 2600, 2310, 4600, 4000, 700, 3600, 4600SU, 2910, 601, 701, 2N, NAA, 2610, 901, 8N, 3910, 3610, 2810, 4000SU, 2000, 900, 801, 800, 600, 9N, 4610
 Replaces Part Number(s): 957E3123A

 Tractor Models: 9N, 2N, 8N, Jubilee, NAA
 Model Breaks: Fits Upper & Lower
 Replaces Part Number(s): 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109

 Tractor Models: 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 3 cylinder, 2000 4 cylinder, 2031, 2100, 2111, 2121, 2131, 2150, 2300, 2310, 2600, 2600V, 2610, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3600, 3600V, 3610, 3900, 3910, 4000 3 cylinder, 4000 4 cylinder, 4000SU, 4031, 4100, 4110, 4120, 4131, 4600, 4600SU, 4610, 6000
 Model Breaks: Upper only, With Standard adjustable wide front, not for heavy duty or industrial axle
 Replaces Part Number(s): 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109

 Replaces Part Number(s): 8N3528,ESL10547

Models This Part Fits:

961, 960, 3900, 811, 2000, 651, 4000 3 cylinder, 2111, 640, 4000, 4031, 700, 661, 2150, 971, 741, 3610, 3000, 2N, 3330, 650, 881, 3600, 800, Jubilee, 941, 9N, 2121, 8N, 820, 541, 630, 4600SU, 660, 981, 3120, 641, 601, 2000 4 cylinder, 620, 2300, 600, 2600, 701, 681, 621, 631, 6000, 4120, 4000 4 cylinder, 3910, 4610, 871, 2810, 3300, 2310, 4600, 850, NAA, 2610, 3055, 901, 4100, 2000 3 cylinder, 740, 3310, 841, 2031, 860, 2910, 2131, 851, 2600V, 3100, 801, 671, 951, 950, 3110, 4000SU, 840, 4131, 3600V, 501, 861, 2100, 3150, 4110, 900, 771, 611, 821

Additional Information:

(2) Thrust Bearing Tech Info: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123A (4) Front Spindle Bushing Tech Info: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940 (2) Spindle Seal Tech Info: 33mm id, 44mm od Replaces Part Number: 8N3528,ESL10547

Reference Numbers:

2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109, 957E3123A, 8N3528,ESL10547

Product Sub Group:

Other Steering Components
