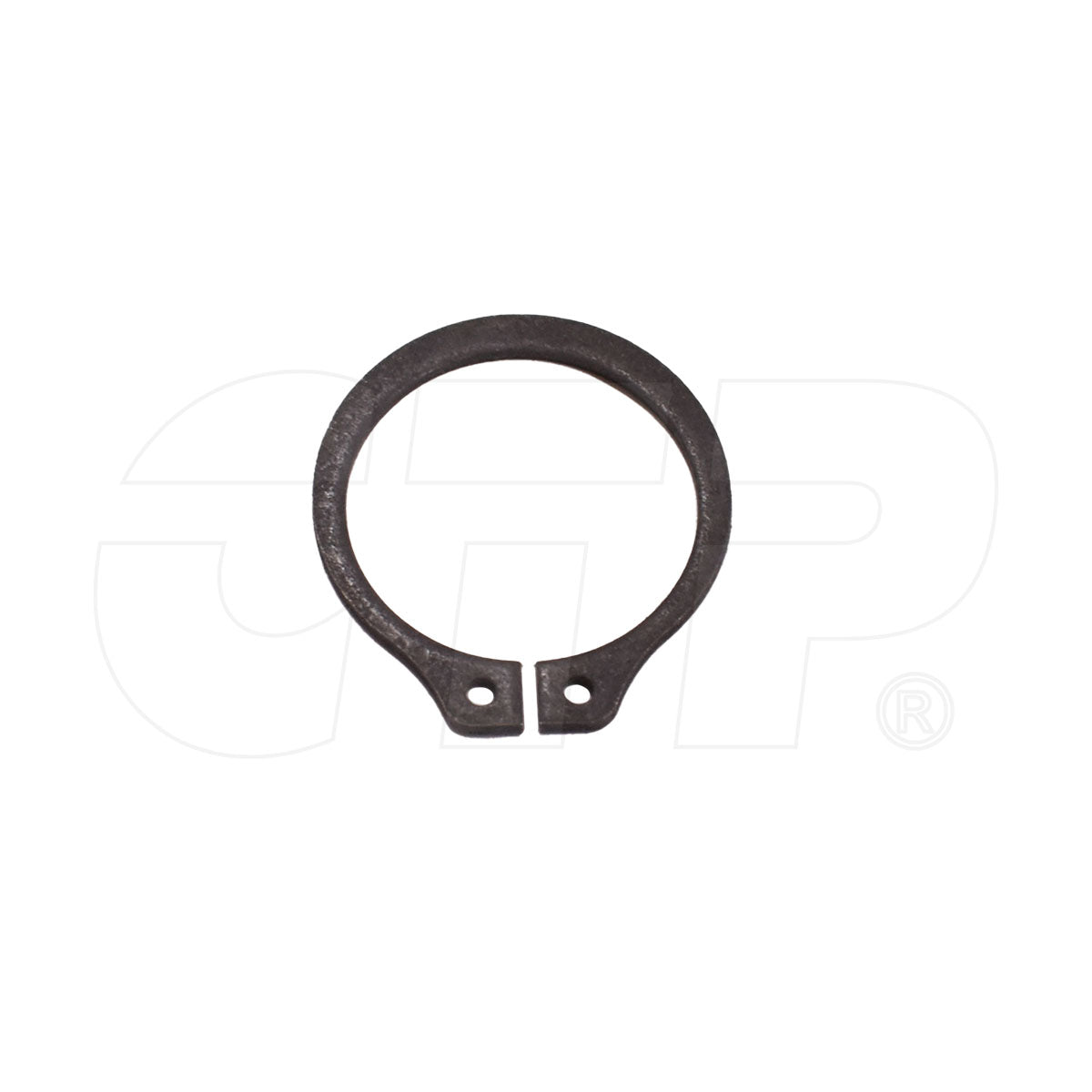

2J6356 Ring-Lock Fits Caterpillar Models
2J6356 Ring-Lock Fits Caterpillar Models
Couldn't load pickup availability
One New Aftermarket Replacement Ring-Lock Fits Caterpillar (Fits CAT) Construction and Forestry Equipment
This external retaining ring (spring ring type) is used on Fits Caterpillar gear pump assemblies to secure components on shafts and prevent lateral movement. Made of carbon steel, it is a precision fastener found across a wide range of Fits CAT scrapers, log skidders, underground trucks, and forestry machines.
Specifications
- Ring Type: External (Spring Ring)
- Material: Carbon Steel
- Bore Diameter: 0.75 in
- Free Diameter (A): 0.69 in
- Thickness (B): 0.042 in (1.07 mm)
- Cross Holes: Yes
- Free Diameter (mm): 17.6 | Radial Wall: 2.34 mm | Lug Height: 3.45 mm | Groove Width: 1.21 mm | Groove Diameter: 17.88 mm | Shaft Diameter: 19 mm
Compatible Models
Fits Caterpillar Chain Log Skidders: 517, 528, 53, 54, 54H, 55, 57H, 58, 58L, 59, 59L, 59N, D4HTSK II, D4HTSK III
Fits Caterpillar Underground Articulated Trucks: AD40, AD45, AE40, AE40 II
Fits Caterpillar Forestry: 227
Fits Caterpillar Motor Scrapers / Elevating Scrapers: 611, 613, 613C II, 613G, 615, 615C II, 627, 627B, 627E, 627F, 627G, 627H, 627K, 627K LRC, 633B, 633C, 637, 637B, 637D, 637E, 637G, 637K, 639D, 650B, 657B, 657E, 657G, 660B, 666, 666B
Replaces Part Number(s):
2J6356, 2J-6356
New aftermarket replacement part - not remanufactured, not used.
