24781 bearing cone Fits Timken

One New Aftermarket Replacement 24781 Tapered Roller Bearing Cone for Timken 24700 Series

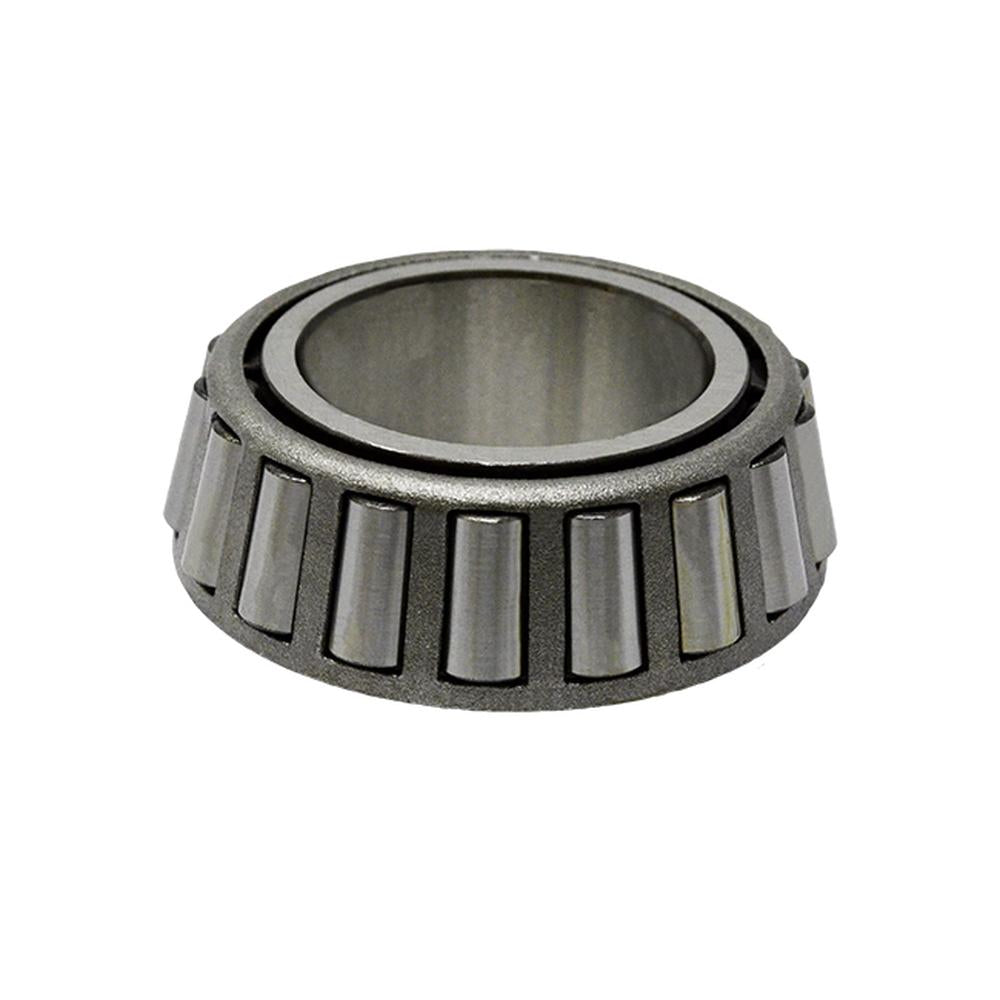

This single tapered roller bearing cone (inner ring assembly) is a direct aftermarket replacement for Timken part number 24781. It serves as the inner race of a TS-type single-row tapered roller bearing, handling both radial and axial loads in demanding applications across construction, agricultural, and industrial equipment. The cone pairs with compatible cups (outer rings) -- most commonly the 24720 or 24721 -- to form a complete tapered roller bearing assembly. It is typically mounted in opposing pairs on a shaft for balanced load distribution.

Specifications

• Series: Timken 24700
• Bearing Type: Single Tapered Roller Bearing Cone (TS Type)
• Bore Diameter: 1.625 in (1-5/8 in)
• Cone Width: 0.9063 in
• Operating Temperature Range: -65 to +250 degrees F (-54 to +120 degrees C)
• Cage Material: Stamped Steel
• Ring/Roller Material: 52100 Chrome Steel
• Finish: Uncoated
• Load Rating: 17,000 lb Dynamic / 20,100 lb Static
• ABMA Precision Rating: Class 2
• Configuration: Open (lubricate in place)
• Compatible Cups: 24720, 24721

Compatible Applications

Construction and Industrial Equipment: Gearboxes, wheel hubs, final drives, conveyor systems, loaders, and other high-load machinery.

Agricultural Equipment: Tractors, harvesters, and other farm machinery drivetrain and axle applications.

Additional Applications: Automotive axle systems, transmissions, differentials, mining equipment, and industrial gearboxes.

Replaces Part Number(s):

24781, 24781-20024

New aftermarket replacement part - not remanufactured, not used.
