2382716 Skirt-Piston Fits Caterpillar Models

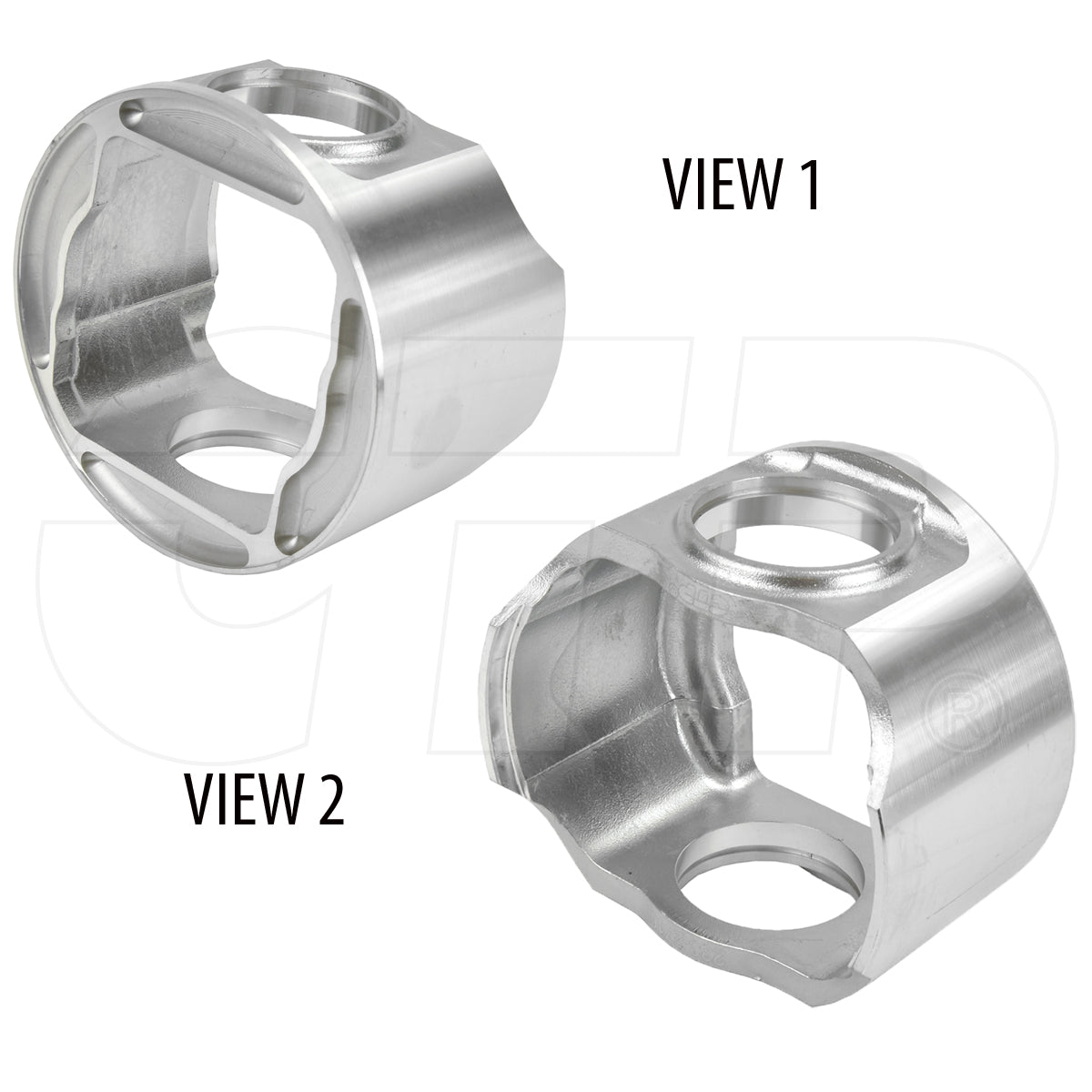

One New Aftermarket Replacement Piston Skirt for Caterpillar (Cat) 3114 / 3116 Engines

This aftermarket replacement piston skirt fits Caterpillar 3114 and 3116 inline six-cylinder diesel engines. The piston skirt guides the piston within the cylinder bore and reduces friction during engine operation. It is a standard (STD) bore size part used in engine rebuilds -- both in-frame and out-of-frame overhaul applications -- across a wide range of Caterpillar construction, asphalt paving, compaction, and wheel loader equipment.

Specifications

• Length: 4.3 in (109.22 mm)
• Width: 4.3 in (109.22 mm)
• Height: 3.2 in (81.28 mm)
• Weight: 0.64 lbs (0.29 kg)
• Standard (STD) bore
• Application: Caterpillar 3114 / 3116 inline 6-cylinder diesel engine

Compatible Models

Caterpillar Excavators: 320B, 322B L, 322B LN, 325B L, M325B

Caterpillar Challengers: 35, 45

Caterpillar Asphalt Pavers: AP-900B, AP-1000, AP-1000B, AP-1055B, BG-245C, BG-2455C

Caterpillar Vibratory Compactors: CS-563D, CS-573D, CS-583D

Caterpillar Track Loaders: 963B, 963C

Caterpillar Wheel Loaders: 950F, 950F II

Caterpillar Wheel Tractors: 613C II

Caterpillar Pipelayers: 561M

Caterpillar Track-Type Tractors: D5M, D6M

Caterpillar Engines: 3114, 3116

Replaces Part Number(s):

2382716, 238-2716, 107-7791, 1077791, 4P1549, 4P1546, 7E9512

New aftermarket replacement part - not remanufactured, not used.
