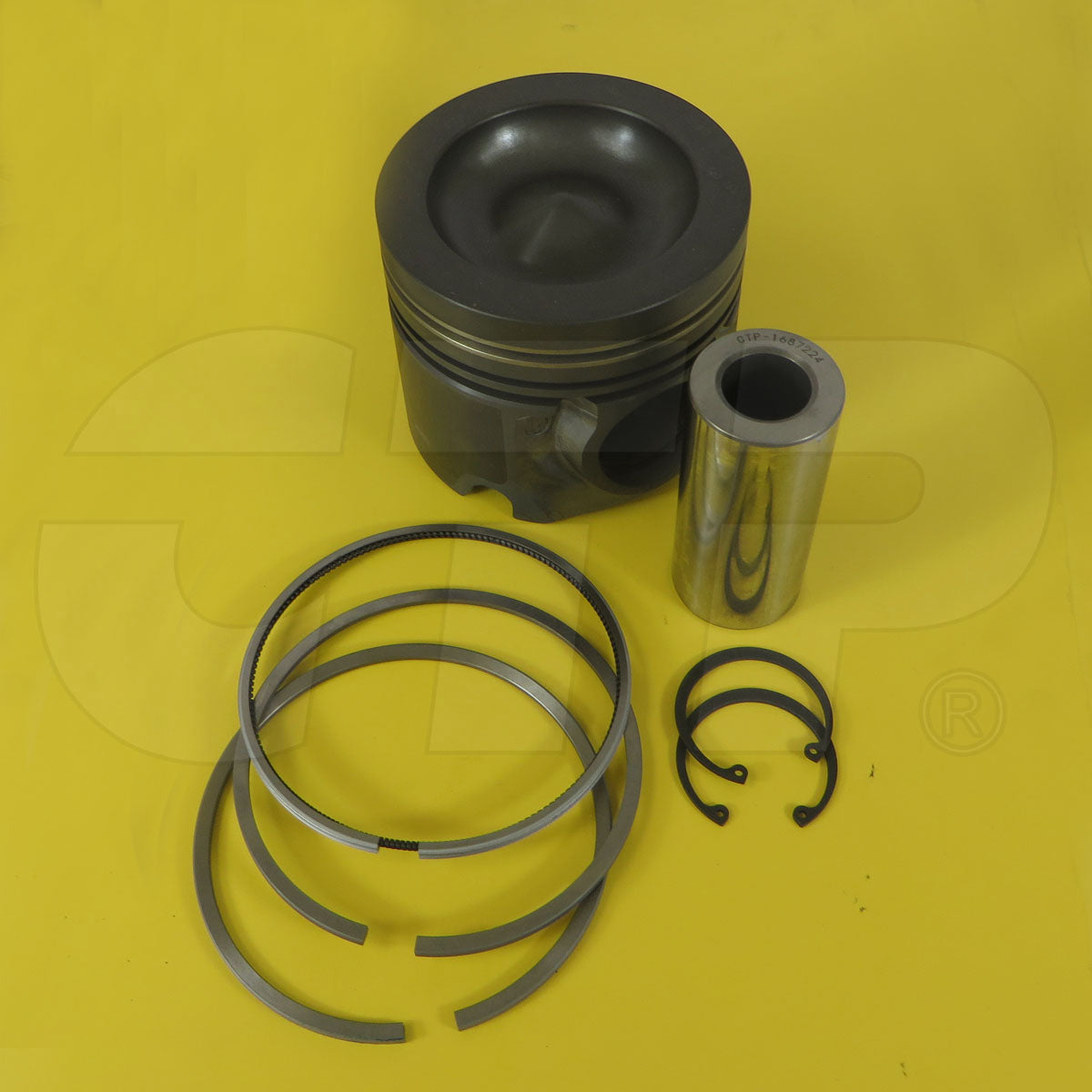

2382698PK Piston Kit Fits Caterpillar Models

One New Aftermarket Replacement Piston Kit for Caterpillar (Cat) C7 Engine

This piston kit fits the Caterpillar (Cat) C7 diesel engine and is used in a wide range of Cat excavators, motor graders, asphalt pavers, and wheel excavators. The kit includes the piston body, pin, and retaining clips. The C7 engine piston features a keystone top groove design and is precision-machined to OEM specifications for proper fit and function during engine rebuild or overhaul.

Specifications

• Piston Diameter: 110.0mm
• Skirt Diameter: 109.81mm
• Compression Height: 59.12mm
• Total Length: 93.0mm
• Pin Diameter: 40.0 x 74.0mm
• Combustion Chamber: 77.0mm
• Ring Grooves: 3.0 x 3.0 x 4.0mm
• Top Groove Type: Keystone
• Kit Includes: Piston body, piston pin, pin retaining clips

Compatible Models

Caterpillar C7 Engine (Industrial / On-Highway / Truck): C7 (Serial Prefixes: KAL, JTF, NPH, LBM)

Caterpillar Excavators: 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 324D FM GF, 324D FM LGP, 325D, 325D L, 325D LN, 326D L, 328D LCR, 329D, 329D L, 329D LN

Caterpillar Wheel Excavators: M325D L MH, M325D MH

Caterpillar Motor Graders: 12K (Serial Prefixes: JJA, SZP), 120K (Serial Prefixes: SZN, JAP), 120K 2 (Serial Prefix: SZS)

Caterpillar Asphalt Pavers: AP-755 (Serial Prefix: B3T)

Replaces Part Number(s):

2382698, 238-2698, 2382698PK, CA2382698

Related Part Numbers

Piston Pin: 1687224 | Top Piston Ring: 1979386 | Intermediate Piston Ring: 1979353 | Oil Ring: 1979354 | Piston Ring Set: RS2382698

New aftermarket replacement part - not remanufactured, not used.
