Spindle Shaft Assembly w/ Hardware Fits Ford/New Holland Replaces 210040

Spindle Shaft Assembly w/ Hardware Fits Ford/New Holland Replaces 210040

$33.99 USD
$33.99 USD
Sale Sold out
Shipping calculated at checkout.

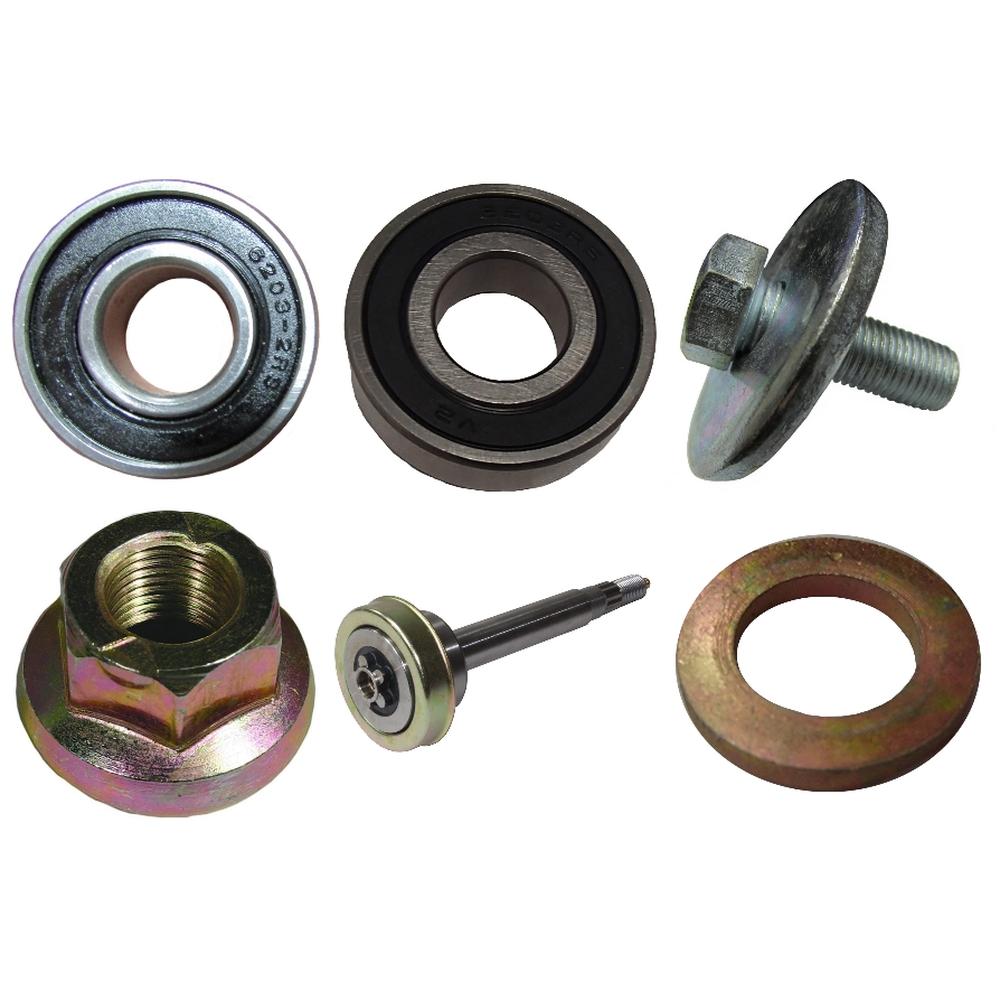

One New Aftermarket Spindle Shaft Assembly w/ Hardware

Tech Info:
 -(1) Spindle Shaft
 -Approx. Length: 7-1/2" Long, with 5 Point Star Center Hole.
 -Fits 38" & 42" Decks
 -Replaces Part Numbers: 532187291,532192870-SHAFT,532192872
 -
 -(1) Blade Bolt w/ Flat Washer
 -Comes with washer.
 -Threads: 20,
 -Length: 1-¼",
 -Thread Size: 7/16"
 -Replaces Part Number: 532 19 30-03
 -
 -(1) Pulley Lock Nut
 -Thread Length: 9/16"-18,
 -OD: 1-1/4",
 -Thickness: 3/4",
 -Type: Flange,
 -Hex: 7/8"
 -Replaces Part Number: 532 13 72-66, 532 13 72-66, 532139729
 -
 -(1) Spacer Washer
 -ID: 11/16",
 -OD: 1-1/8",
 -Thickness: 5/32"
 -Replaces Part Number: 532187690
 -
 -(1) Sealed Ball Bearing (Econ Version)
 -ID: 0.669" (17mm),
 -OD: 1.575" (40mm),
 -Width: 0.472" (12mm),
 -Bearing Type: Double Sealed
 -Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
 -
 -(1) Pilot Bearing
 -Has rubber seals on both sides of bearing,
 -ID: 21/32",
 -Height: 15/32",
 -OD: 1-9/16"
 -Replaces Part Numbers: C5NN7600A, 210040, B7600A3,

Made to Fits Ford/New Holland:
 Tractor Models: 2000, 2000 US BUILT, 2100, 2110, 2110LCG, 2120, 2150, 230, 2300, 230A, 230A US BUILT, 231, 231 US BUILT, 2310, 233, 234, 250C, 2600, 2600 US BUILT, 2600N, 2600V, 260C, 2610, 2610 US BUILT, 2610V, 2810, 2910, 2N, 3000, 3000 US BUILT, 3055, 3100, 3110, 3120, 3150, 3230, 3300, 3310, 333, 3330, 334, 335, 335 US BUILT, 340, 3400, 3400 US BUILT, 340A, 340B, 3430, 345, 345C, 345D, 3500, 3500 US BUILT, 3550, 3550 US BUILT, 3600, 3600 US BUILT, 3600N, 3600V, 3610, 3610 US BUILT, 3610V, 3900, 3910, 3910N, 3910V, 3930, 4000, 4000 US BUILT, 4100, 4110, 4110 US BUILT, 4110LCG, 4110N, 4110V, 4130, 4130N, 4140, 420, 420 US BUILT, 4200, 4330, 4340, 4400, 4400 US BUILT, 4410, 445, 445 US BUILT, 445A, 445C, 4500, 4500 US BUILT, 4600, 4600 US BUILT, 4600SU, 4610, 4610 US BUILT, 4610N, 4610SU, 4610V, 4630, 4630N, 4830, 4830N, 5000, 5030, 5100, 515, 515 US BUILT, 5200, 530, 530A, 531, 531 US BUILT, 532, 532 US BUILT, 5340, 535, 535 US BUILT, 540, 540A, 540B, 545, 545 US BUILT, 545A, 545C, 545D, 550, 555, 555A, 600, 601, 700, 701, 7630, 800, 801, 8N, 900, 901, 9N, DEXTA, JUBILEE, NAA, SUPER DEXTA
 Replaces Part Number(s): C5NN7600A, 210040, B7600A3, 81805417, 87302841, 87554550

Models This Part Fits:

445C, 3900, 2000, 420 US BUILT, 4200, 4600 US BUILT, 4610 US BUILT, JUBILEE, 4000, 5100, 4500 US BUILT, 535 US BUILT, 700, 2150, 4110V, 445A, 3600 US BUILT, 4340, 5200, 3610, 3000, 2N, 3330, 540, 550, 260C, 3400 US BUILT, 4140, 3550 US BUILT, 3600, 4110N, 800, 3610V, 7630, 2000 US BUILT, 545C, 3430, 250C, 4830, 2610V, 535, 3910V, 545D, 3930, 4110 US BUILT, 9N, 230, 4500, 8N, 4830N, 540B, 4600SU, 230A US BUILT, 3120, 601, 555A, 555, 2300, 600, 2600, 3910N, 530, 515 US BUILT, 701, 2600N, 4400, 340, 4610SU, 3910, 4000 US BUILT, 4610, 231 US BUILT, 4610N, 3500 US BUILT, 3230, 531 US BUILT, 2810, 3300, 2600 US BUILT, 5030, 2310, 2110, 340B, 4600, 540A, NAA, 230A, DEXTA, 445 US BUILT, 4130N, 2610, 3055, 335 US BUILT, 901, 4100, 345C, 231, 3500, 4610V, 3600N, 3310, 545A, 3550, 4130, 4330, 4400 US BUILT, 4410, SUPER DEXTA, 2910, 515, 531, 340A, 233, 334, 2610 US BUILT, 545, 234, 2600V, 3100, 5340, 3000 US BUILT, 5000, 801, 4110LCG, 2110LCG, 4630N, 530A, 3110, 532, 3600V, 3610 US BUILT, 545 US BUILT, 2100, 333, 3150, 4110, 2120, 900, 335, 445, 3400, 345, 345D, 532 US BUILT, 4630, 420

Additional Information:

(1) Spindle Shaft Approx. Length: 7-1/2" Long, with 5 Point Star Center Hole. Fits 38" & 42" Decks Replaces Part Numbers: 532187291,532192870-SHAFT,532192872 (1) Blade Bolt w/ Flat Washer Comes with washer. Threads: 20, Length: 1-¼", Thread Size: 7/16" Replaces Part Number: 532 19 30-03 (1) Pulley Lock Nut Thread Length: 9/16"-18, OD: 1-1/4", Thickness: 3/4", Type: Flange, Hex: 7/8" Replaces Part Number: 532 13 72-66, 532 13 72-66, 532139729 (1) Spacer Washer ID: 11/16", OD: 1-1/8", Thickness: 5/32" Replaces Part Number: 532187690 (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm), OD: 1.575" (40mm), Width: 0.472" (12mm), Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581 (1) Pilot Bearing Has rubber seals on both sides of bearing, ID: 21/32", Height: 15/32", OD: 1-9/16" Replaces Part Numbers: C5NN7600A, 210040, B7600A3,

Reference Numbers:

C5NN7600A, 210040, B7600A3, 81805417, 87302841, 87554550

Product Sub Group:

Deck Components
