20Y-810-1260 Compressor A Fits Komatsu Models

One New Aftermarket Replacement A/C Compressor for Komatsu Excavators and Dump Trucks

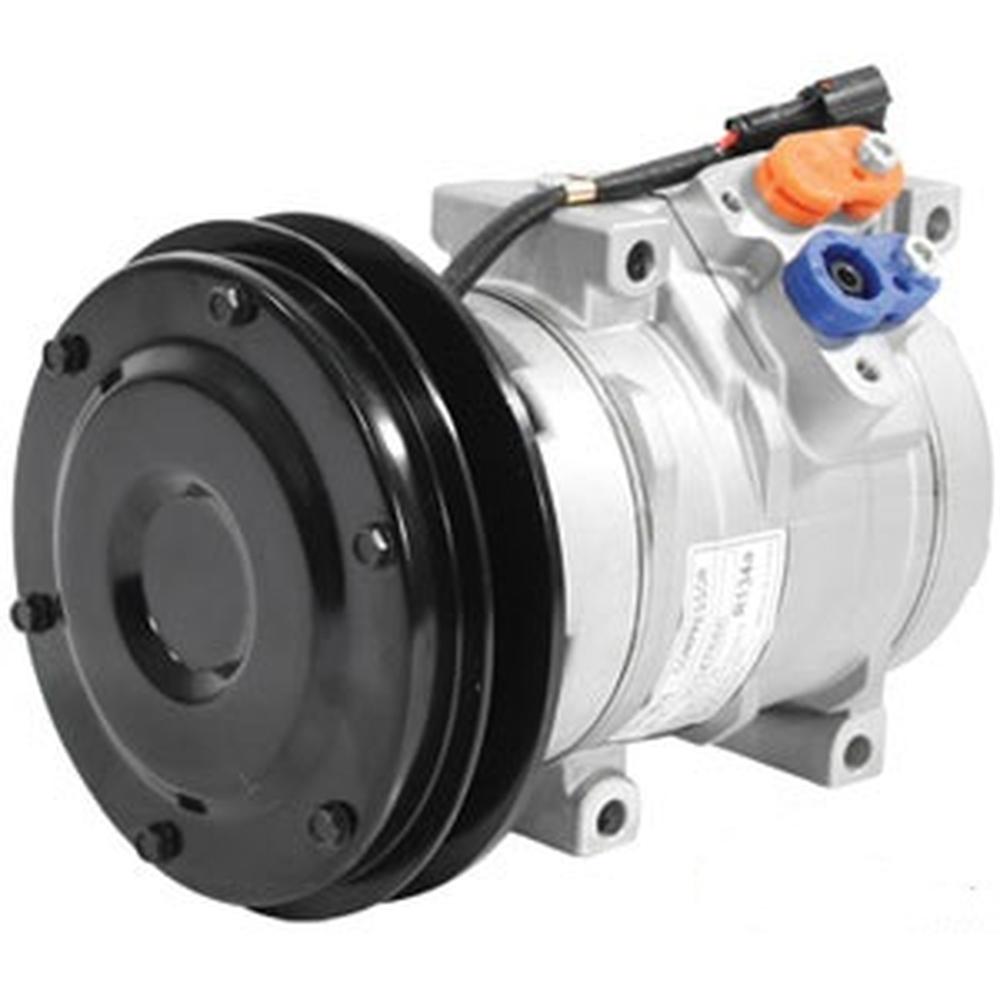

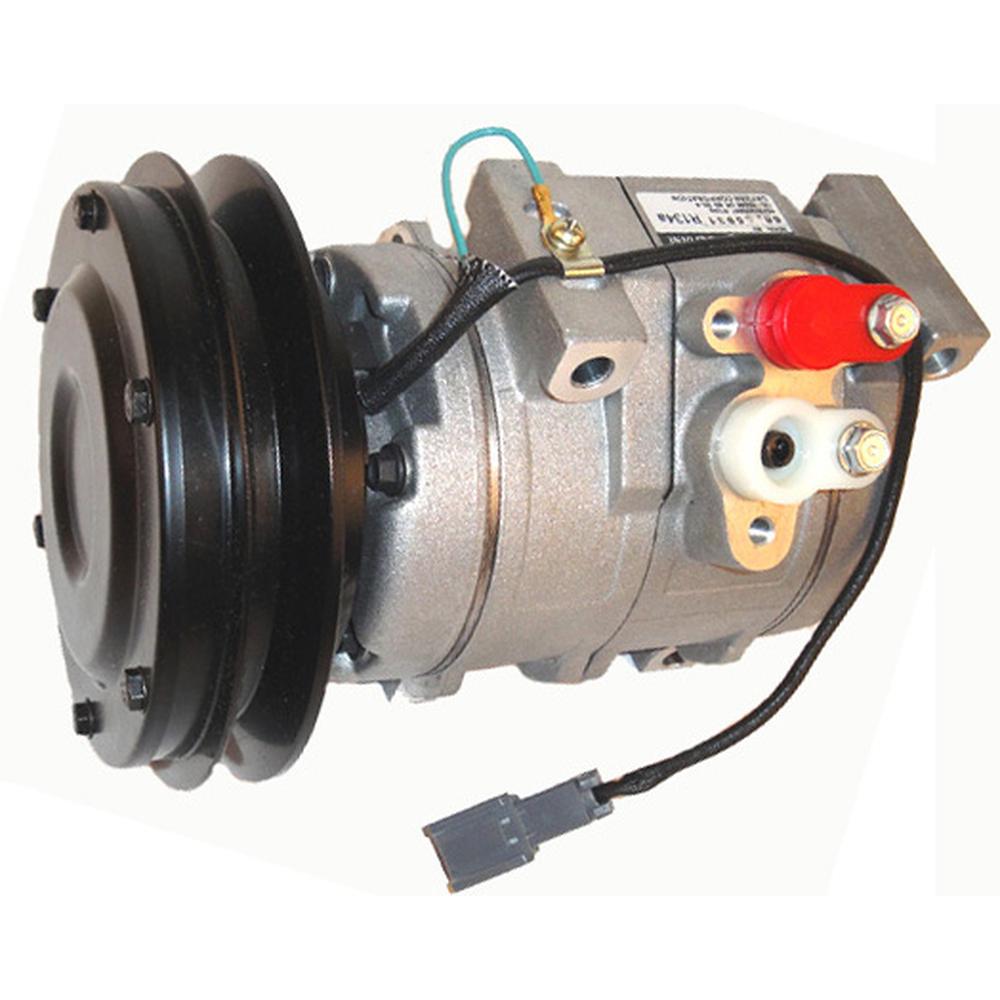

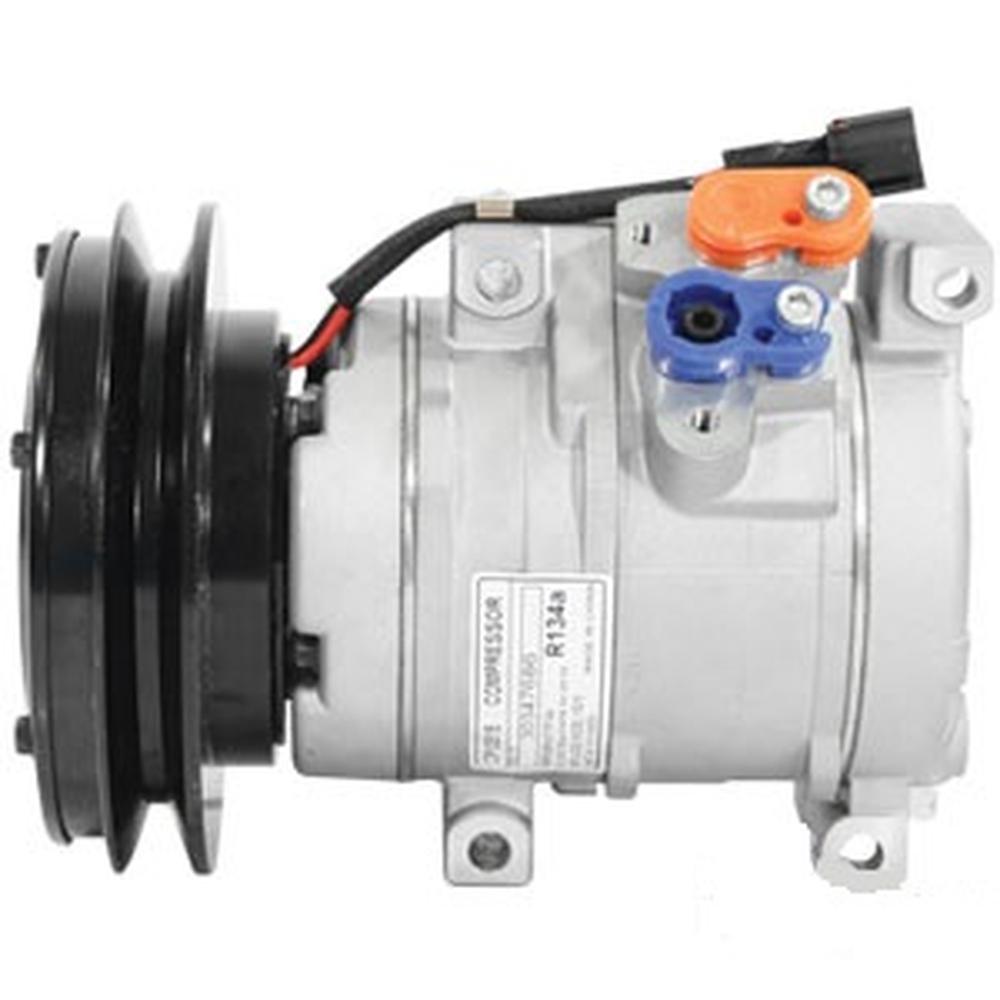

This air conditioning (A/C) compressor replaces Komatsu OEM part number 20Y-810-1260 and is used in the cab climate control system of a wide range of Komatsu PC-series hydraulic excavators, wheel excavators, hybrid excavators, and HM-series dump trucks. The compressor uses the Denso 10S15C scroll design and operates on a 24V electrical system with a single-wire harness and electromagnetic clutch.

Specifications

• Compressor Model: 10S15C
• Voltage: 24V
• Clutch Diameter: 152mm
• Belt Grooves: 1 groove
• Belt Type: 5/8" V-belt
• Cylinders: 10
• Fitting Port Position: Body
• Wire Type: 1-wire harness
• Weight: Approx. 17 lbs.

Compatible Models

Komatsu PC-Series Excavators (Tier 3 / -8 / -10 / -11 generations): PC78US-8, PC78UU-8, PC88MR-8, PC110-8M0, PC118MR-8, PC128USI-10, PC130-8, PC138US-8, PC138US-10, PC138USLC-8, PC138USLC-10, PC160LC-8, PC180NLC-7-E0, PC190LC-8, PC190NLC-8, PC200-7, PC200-8, PC200-8M0, PC200LC-8, PC200LC-8E0, PC200LL-8, PC210-8K, PC210-10, PC210-10M0, PC210-11, PC210I-10, PC210LC-8K, PC210LC-10, PC210LC-10M0, PC210LC-11, PC210LCI-10, PC210LCI-11, PC210LL-10, PC210NLC-8K, PC210NLC-11, PC220-8, PC220-8M0, PC220LC-8, PC220LC-8M0, PC228US-8, PC228USLC-8, PC240-8K, PC240LC-10, PC270-8, PC270LC-8, PC290-8K, PC290LC-10, PC300-8, PC300LC-8, PC350-8, PC350LC-8, PC360LC-10, PC400-8, PC400-8R, PC400LC-8, PC400LC-8R, PC450-8, PC450-8R, PC450LC-8, PC490-10, PC490LC-10, PC600-8E0, PC600-8R1, PC600LC-8E0, PC600LC-8R1, PC650LC-8E0, PC700LC-8E0, PC800-8E0, PC800-8R1, PC800LC-8E0, PC800LC-8R1, PC800SE-8E0, PC800SE-8R1, PC850-8E0, PC850-8R1, PC850SE-8R1, PC2000-8

Komatsu Wheel Excavators: PW98MR-8, PW118MR-8, PW140-7, PW148-8, PW148-10, PW148-11, PW160-7E0, PW160-8, PW160-10, PW160-11, PW180-7, PW180-7E0, PW180-10, PW180-11

Komatsu Hybrid Excavators: HB205-1, HB205-1M0, HB215LC-1, HB215LC-1M0, HB215LC-2, HB215LC-3, HB335-1, HB335LC-1, HB365-1, HB365LC-1, HB365LC-3, HB365LC-3E0, HB365NLC-3, HB365NLC-3E0

Komatsu HM-Series Dump Trucks: HM300-3, HM300-5, HM300-5E0, HM400-3M0, HM400-3R

Replaces Part Number(s):

20Y-810-1260, 20Y8101260, 20Y 810 1260, 205-979-4241, 205 979 4241, 2059794241, 20Y-979-6121

New aftermarket replacement part - not remanufactured, not used.
