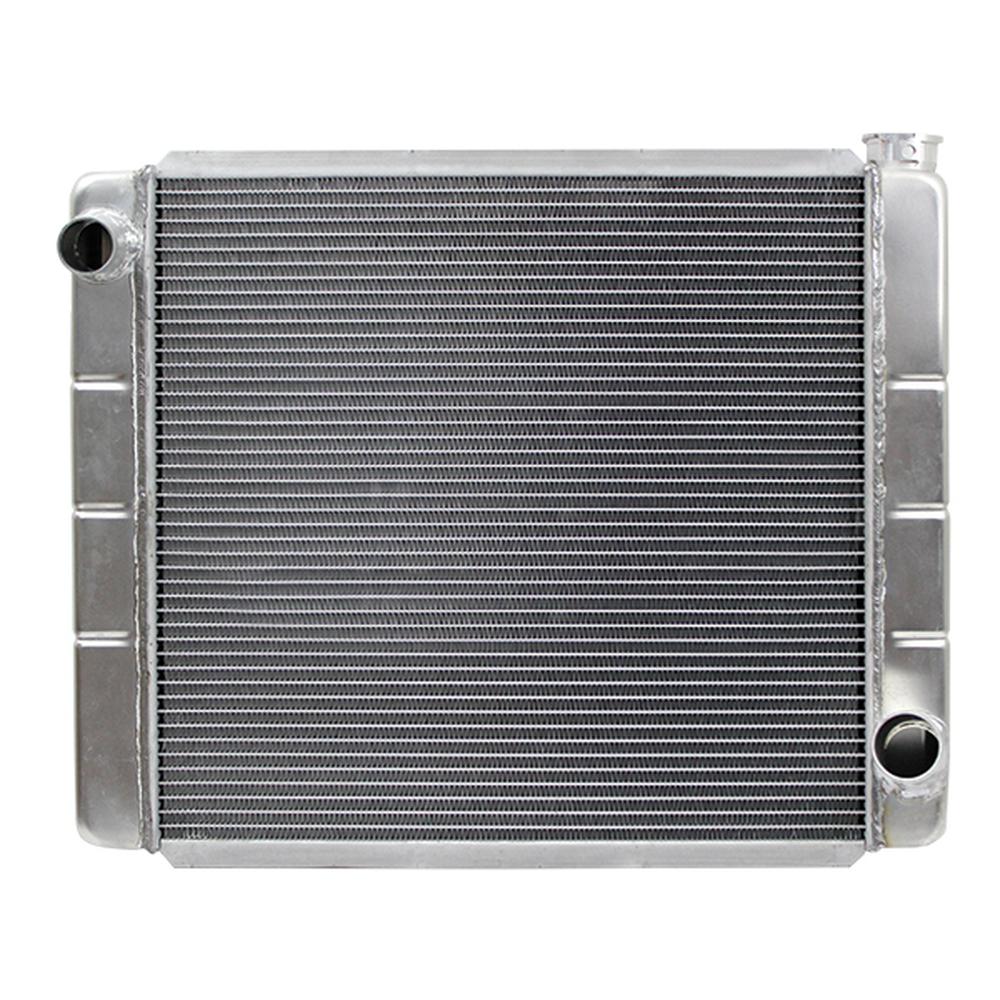

209689 Race Pro Radiators - 24 x 19 x 3 1/8 GM Triple Pass
209689 Race Pro Radiators - 24 x 19 x 3 1/8 GM Triple Pass
Regular price
$390.43 USD
Regular price
Sale price
$390.43 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Race Pro Radiators - 24 x 19 x 3 1/8 GM Triple Pass
Tech Info:
-RECOMMENDED ELECTRIC FAN SHROUD: Z41035, Z40098, Z40094
-RECOMMENDED ENGINE DRIVEN FAN SHROUD: Z40024
-INLET: 1 1/2
-OUTLET: 1 3/4
-OVERALL DIMENSIONS: 24 x 19 x 3 1/8
-CORE DIMENSIONS: 19 1/4 x 18 1/8 x 2 1/4
-CORE HAS 2 ROWS OF 1" TUBES
-MACHINED BILLET ALUMINUM SAE COMPLIANT FILLER NECK
-TRIPLE PASS RADIATORS PASS COOLANT THROUGH THE RADIATOR 3 TIMES BEFORE EXITING AND REQUIRE GREATER FLOW THAN STANDARD RADIATORS
-IT IS RECOMMENDED THAT YOU USE 1 TO 1 PULLEYS, A HIGH VOLUME WATER PUMP, AND USE NO RESTRICTORS IN THE SYSTEM
-FOR ULTIMATE PERFORMANCE SEE THESE HIGH PRESSURE RACE RADIATOR CAPS:
-20 LB psiZ19200
-24 LB psiZ19201
-28 LB psiZ19202
View full details
