209-01000-JN J&N Electrical Products Pulley
209-01000-JN J&N Electrical Products Pulley
Regular price
$30.99 USD
Regular price
Sale price
$30.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket J&N Electrical Products Pulley
Tech Info:
-Arrowhead: ADR5024; Detriot Diesel: 5145471; J&N Electrical Products: 209-01000; Other OEMS: 5145471

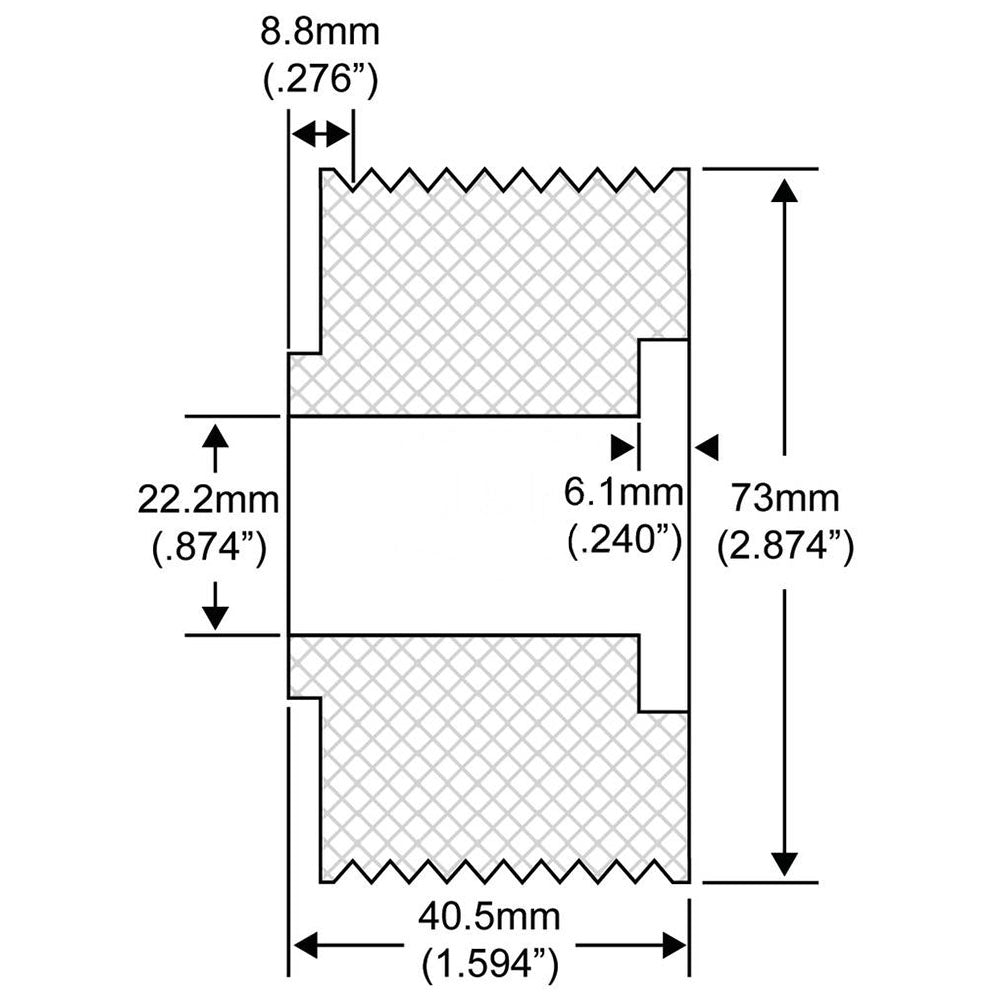

-CENTER OF GROOVE TO REAR: 0.346", CENTER OF GROOVE TO REAR: 8.800mm, GROOVE OD: 2.874", GROOVE OD: 73mm, GROOVE TYPE: Serpentine, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 9, NUT RECESS: 0.240", NUT RECESS: 6.100mm, OD: 2.874", OD: 73 mm, PULLEY TYPE: Solid, THICKNESS: 40.500 mm
Replaces Part Number(s): 209-01000
