2050626 Stator Assembly Fits Caterpillar Models

One New Aftermarket Replacement Alternator Stator Assembly for Caterpillar (Cat) Equipment

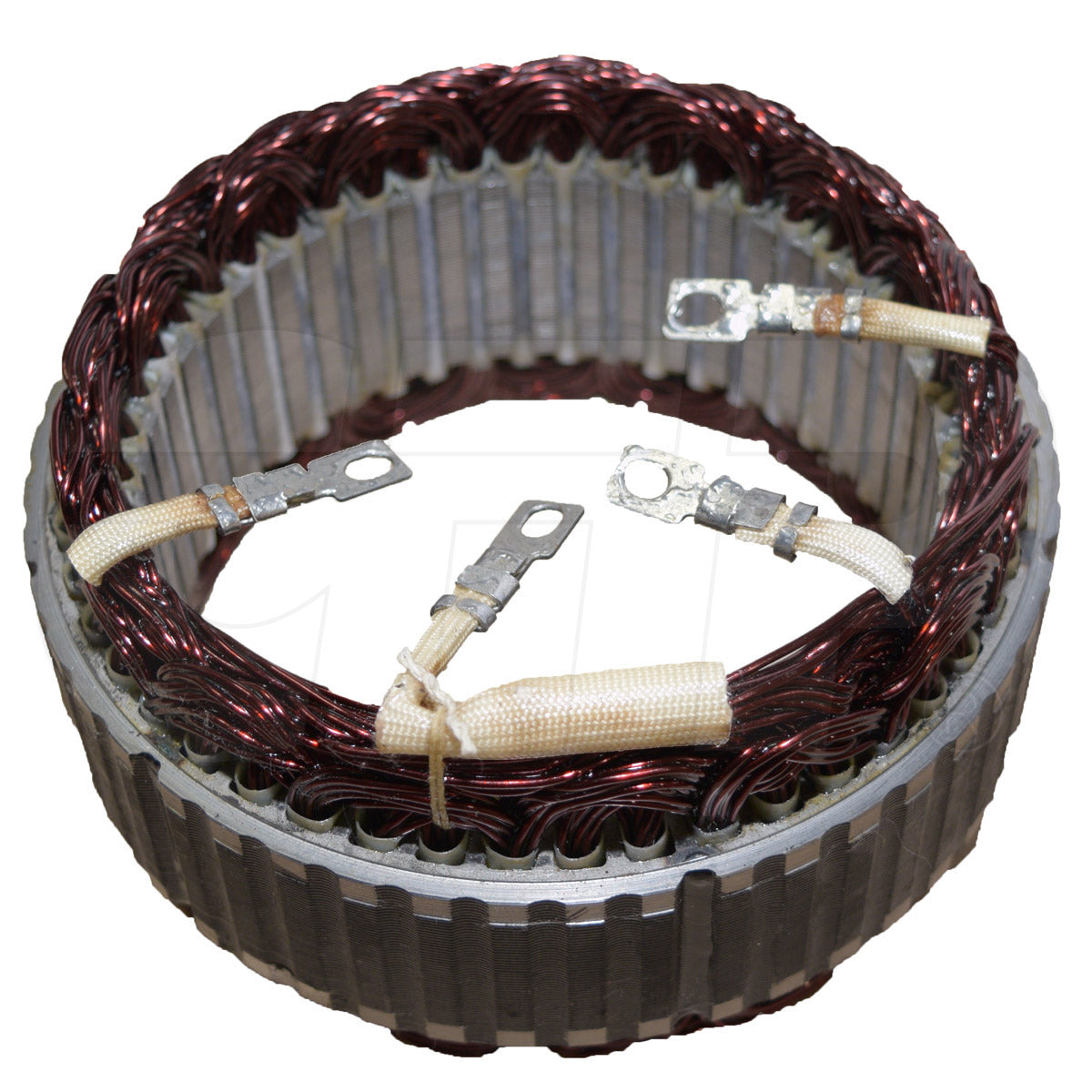

This alternator stator assembly is the stationary winding component inside the Caterpillar 197-8820 Alternator Group, responsible for generating AC current that the alternator converts to DC power for the machine's electrical system and battery charging. Rated at 24 volts and 95 amps, it is a direct-fit replacement for a wide range of Caterpillar motor graders, pipelayers, scrapers, tractors, and industrial engines.

Specifications

• Voltage: 24V
• Amperage: 95A
• Part of Alternator Group: 197-8820
• Weight: approx. 5.1 lbs

Compatible Models

Caterpillar Motor Graders: 120H, 120H ES, 120H NA, 120K, 120K 2, 12H, 12H ES, 12H NA, 12K, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 160K, 16H NA

Caterpillar Industrial Engines: 3126B, 3176C, 3196, 3406B, 3406C, 3406E, 3408, 3408C, 3408E, 3412, 3412C, 3412E, 3456, 3508B, 3512, 3512B, 3516B, C-9, C-10, C-11, C-12, C-13, C-15, C-16, C-18, C-27, C-32, C6.6, C7, C7.1, C9.3

Caterpillar Other Series: 1090, 1190, 1190T, 1290T, 1390

Note: This is an extensive fitment list. Verify compatibility by matching OEM part number 2050626 / 205-0626 to your machine's parts catalog before ordering.

Replaces Part Number(s):

2050626, 205-0626

Aftermarket Interchange Numbers

197-8820 (Alternator Group), 1978820, 2920-01-526-5294, 2920015265294

New aftermarket replacement part - not remanufactured, not used.
