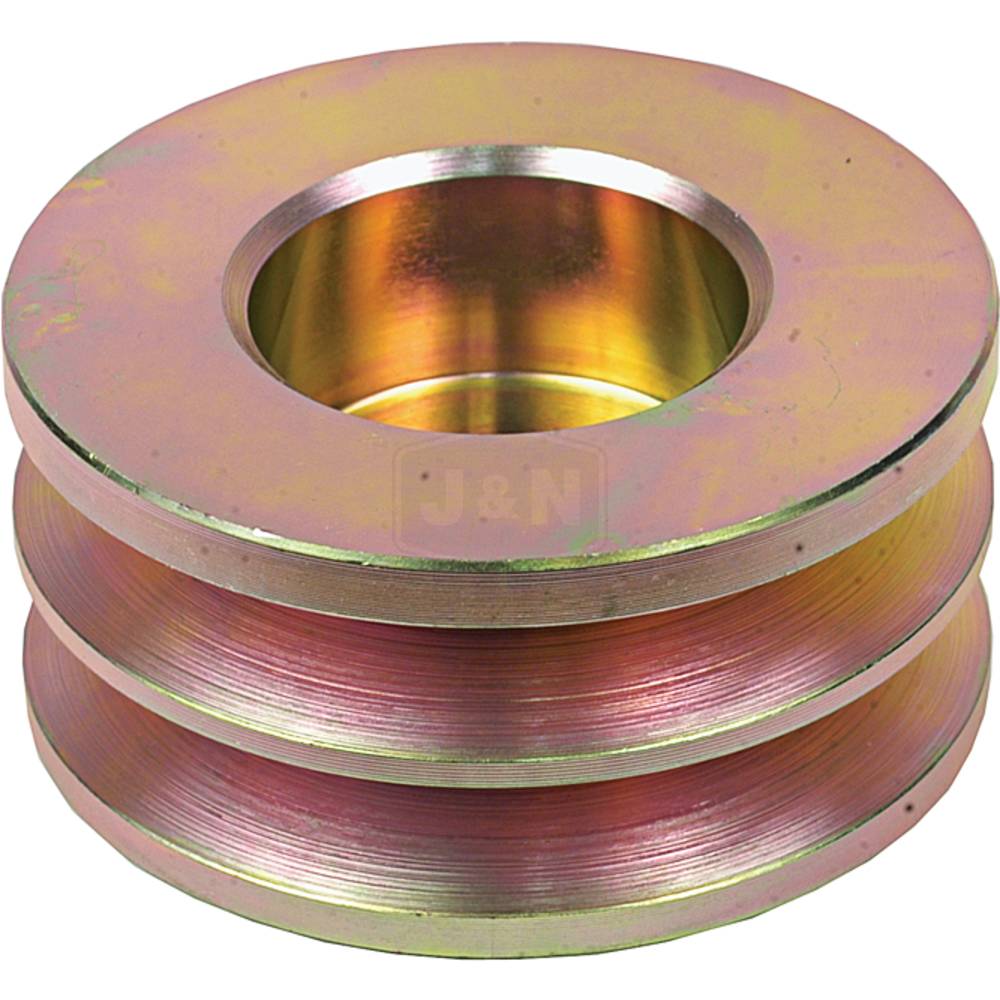

202-48000-JN J&N Electrical Products Pulley

202-48000-JN J&N Electrical Products Pulley

$28.99 USD
$28.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-Arrowhead: 202-48000
-BELT WIDTH: 10, Fits Case OD: 0.488", Fits Case OD: 12.400mm, CENTER OF GROOVE TO REAR: 0.335", CENTER OF GROOVE TO REAR: 8.500mm, CENTER TO CENTER GROOVE: 0.488", CENTER TO CENTER GROOVE: 12.400mm, GROOVE TYPE: V-Groove, ID: 0.591", ID: 15 mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.685", NUT RECESS: 17.400mm, OD: 2.685", OD: 68.200 mm, PULLEY TYPE: Solid, THICKNESS: 30.800 mm

Replaces Part Number(s): 202-48000

Additional Information:

Arrowhead: 202-48000, BELT WIDTH: 10, CASE OD: 0.488", CASE OD: 12.400mm, CENTER OF GROOVE TO REAR: 0.335", CENTER OF GROOVE TO REAR: 8.500mm, CENTER TO CENTER GROOVE: 0.488", CENTER TO CENTER GROOVE: 12.400mm, GROOVE TYPE: V-Groove, ID: 0.591", ID: 15 mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.685", NUT RECESS: 17.400mm, OD: 2.685", OD: 68.200 mm, PULLEY TYPE: Solid, THICKNESS: 30.800 mm

Reference Numbers:

202-48000
