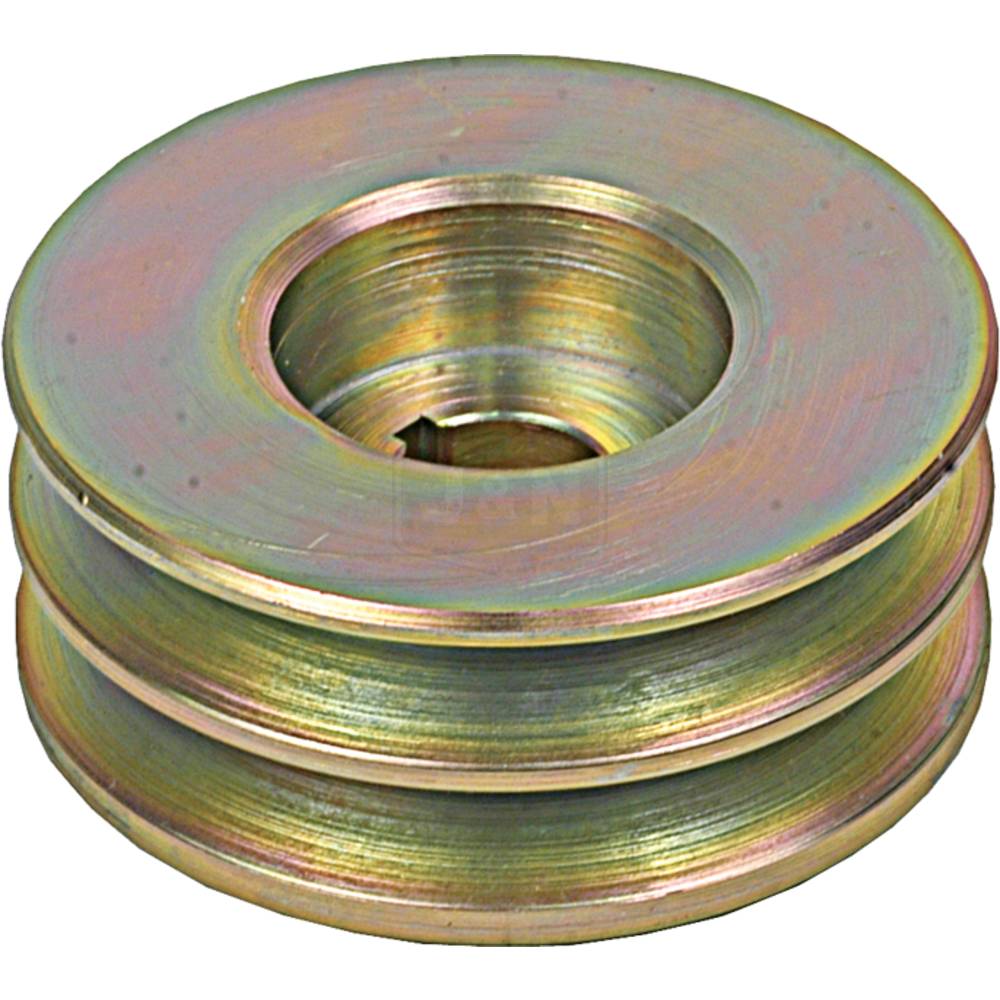

202-16001-JN J&N Electrical Products Pulley

202-16001-JN J&N Electrical Products Pulley

$28.99 USD
$28.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-Arrowhead: AMO5001, PL107-37; J&N Electrical Products: 202-16001, 202-18000; Leece Neville: 107-37, 4941502A21; Fits Motorola: 7-37; Prestolite: 107-37
-BELT WIDTH: 10, Fits Case OD: 0.524", Fits Case OD: 13.300mm, CENTER OF GROOVE TO REAR: 0.368", CENTER OF GROOVE TO REAR: 9.350mm, CENTER TO CENTER GROOVE: 0.524", CENTER TO CENTER GROOVE: 13.300mm, GROOVE TYPE: V-Groove, ID: 0.630", ID: 16 mm, KEYWAY WIDTH: 0.126", KEYWAY WIDTH: 3.200mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.559", NUT RECESS: 14.200mm, OD: 2.874", OD: 73 mm, PULLEY TYPE: Solid, THICKNESS: 29.500 mm

Replaces Part Number(s): 202-16001

Additional Information:

Arrowhead: AMO5001, PL107-37; J&N Electrical Products: 202-16001, 202-18000; Leece Neville: 107-37, 4941502A21; Motorola: 7-37; Prestolite: 107-37, BELT WIDTH: 10, CASE OD: 0.524", CASE OD: 13.300mm, CENTER OF GROOVE TO REAR: 0.368", CENTER OF GROOVE TO REAR: 9.350mm, CENTER TO CENTER GROOVE: 0.524", CENTER TO CENTER GROOVE: 13.300mm, GROOVE TYPE: V-Groove, ID: 0.630", ID: 16 mm, KEYWAY WIDTH: 0.126", KEYWAY WIDTH: 3.200mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.559", NUT RECESS: 14.200mm, OD: 2.874", OD: 73 mm, PULLEY TYPE: Solid, THICKNESS: 29.500 mm

Reference Numbers:

202-16001
