202-01009-JN J&N Electrical Products Pulley

202-01009-JN J&N Electrical Products Pulley

$45.45 USD
$45.45 USD
Sale Sold out
Shipping calculated at checkout.

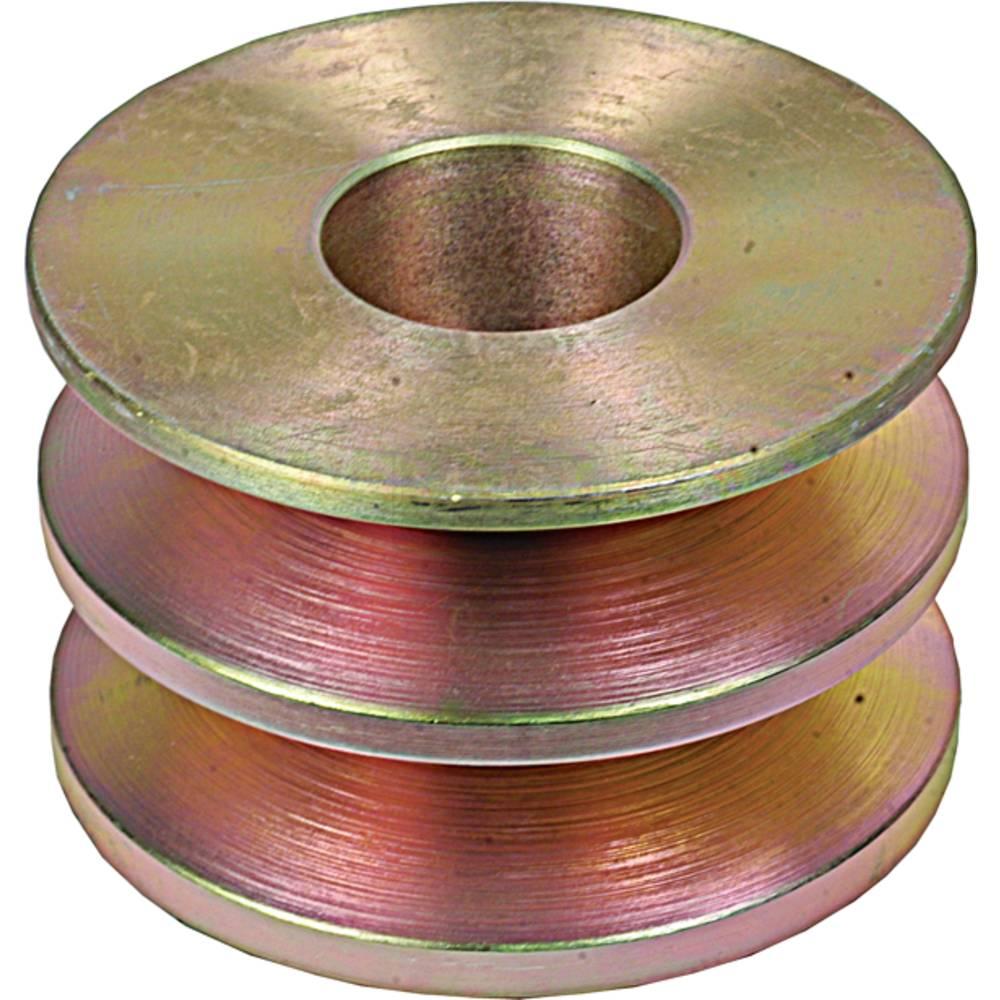

One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-BELT WIDTH: 20, Fits Case OD: 1.071", Fits Case OD: 27.200mm, CENTER OF GROOVE TO REAR: 0.776", CENTER OF GROOVE TO REAR: 19.700mm, CENTER TO CENTER GROOVE: 1.071", CENTER TO CENTER GROOVE: 27.200mm, GROOVE TYPE: V-Groove, ID: 0.866", ID: 22 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 1.110", NUT RECESS: 28.200mm, OD: 3.701", OD: 94 mm, PULLEY TYPE: Solid
-Arrowhead: ADR5059; Fits Caterpillar: 2W8494, 2W8494VVO, 2W8494X, 2W8949; J&N Electrical Products: 202-01009

Replaces Part Number(s): 202-01009

Additional Information:

BELT WIDTH: 20, CASE OD: 1.071", CASE OD: 27.200mm, CENTER OF GROOVE TO REAR: 0.776", CENTER OF GROOVE TO REAR: 19.700mm, CENTER TO CENTER GROOVE: 1.071", CENTER TO CENTER GROOVE: 27.200mm, GROOVE TYPE: V-Groove, ID: 0.866", ID: 22 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 1.110", NUT RECESS: 28.200mm, OD: 3.701", OD: 94 mm, PULLEY TYPE: Solid, Arrowhead: ADR5059; Caterpillar: 2W8494, 2W8494VVO, 2W8494X, 2W8949; J&N Electrical Products: 202-01009

Reference Numbers:

202-01009
