20/912800 -7470 - 4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump
20/912800 -7470 - 4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump
Couldn't load pickup availability

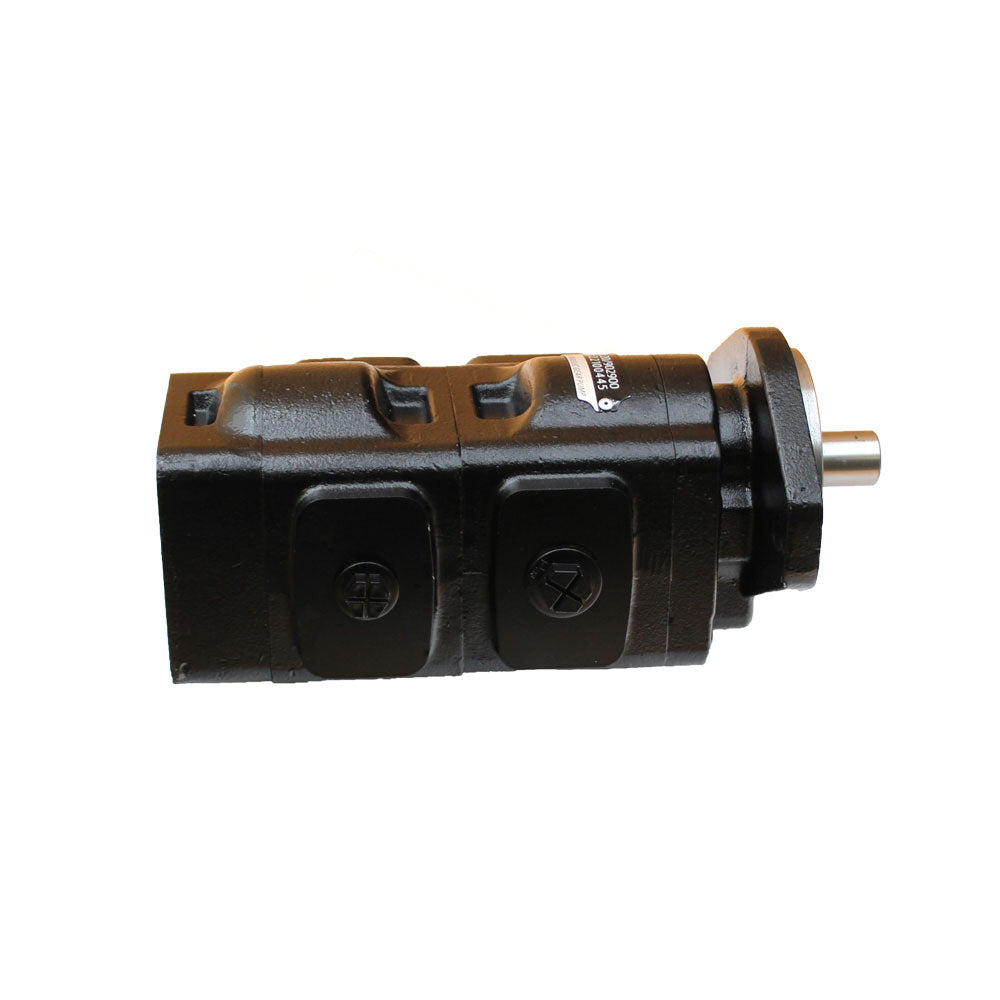

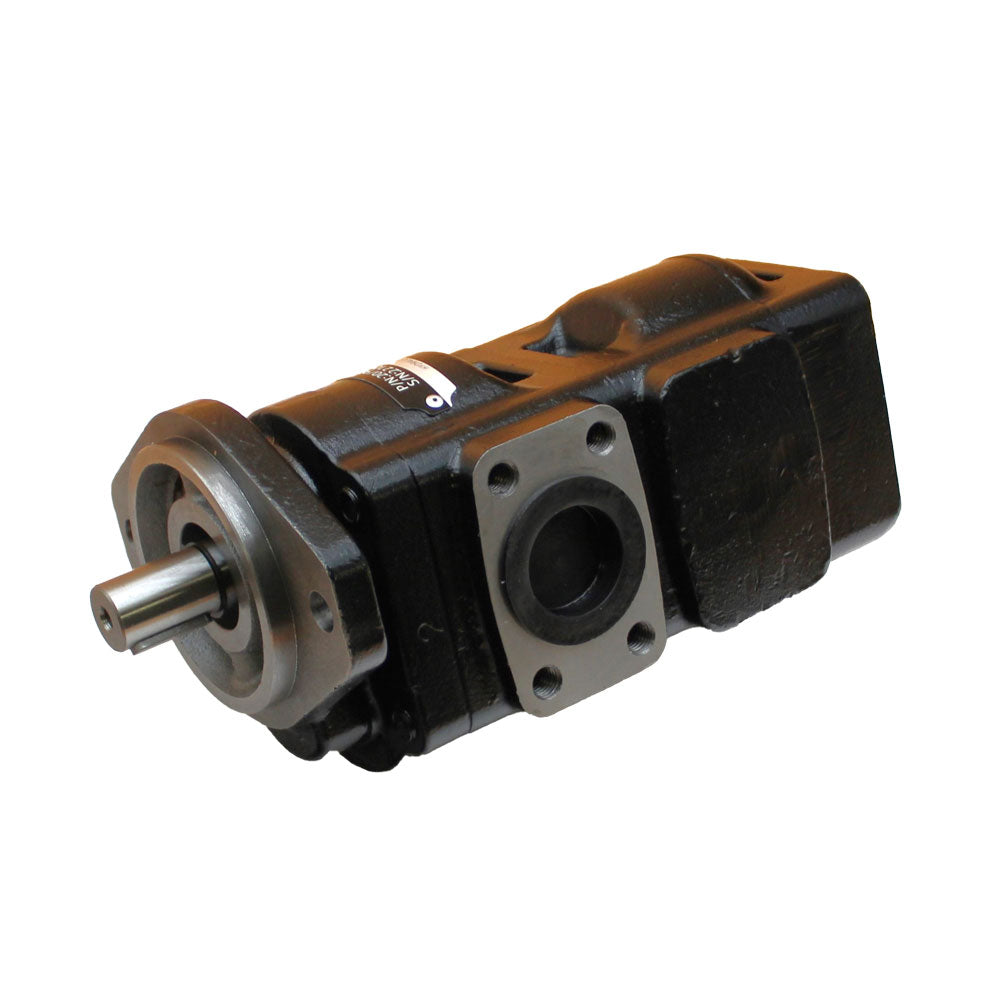

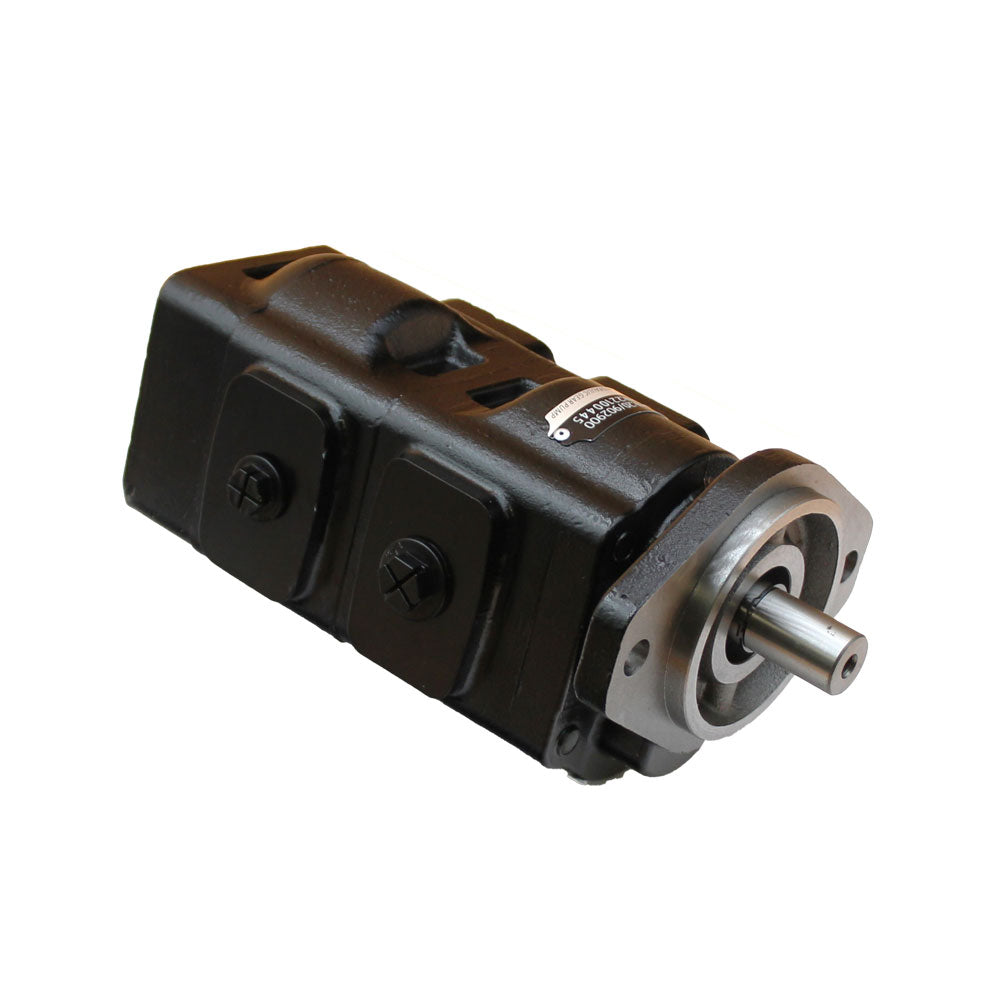

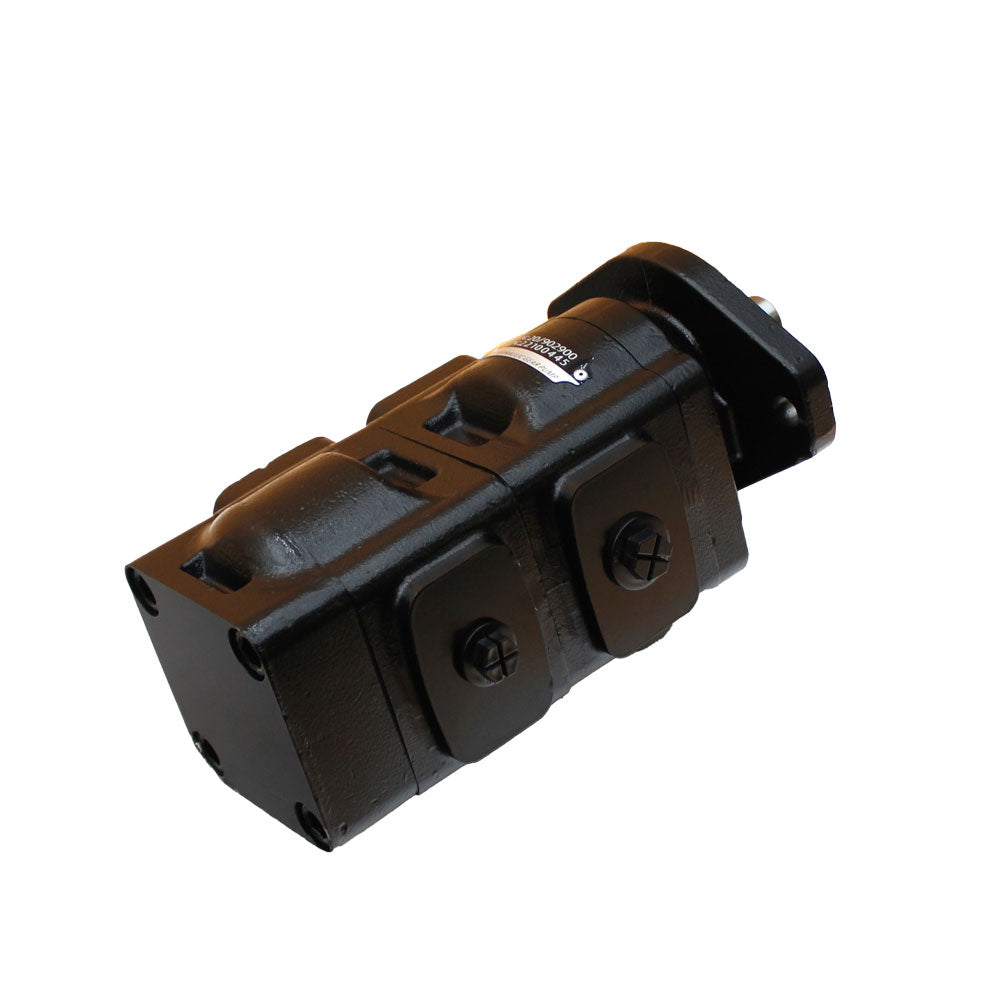

One New Aftermarket Replacement Main Hydraulic Pump
Fits JCB Construction & Industrial Models (M410293 Sideshift 9802/9600):
3CXHM 30, 3CXSM 30, 3CXHM 35, 3CX 20, 3CX 35, 3CX 30, 3CXSM 9802/9700, 3CXT 35, 3CX 9802/9700, 3CXSM 35, 3CXT 20, 3CXT 30
Tech Information:
3CX Twin Hydraulic Pump 33 + 29 CC/REV
Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Combined 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 275 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm
Replaces Part Numbers:
20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072
