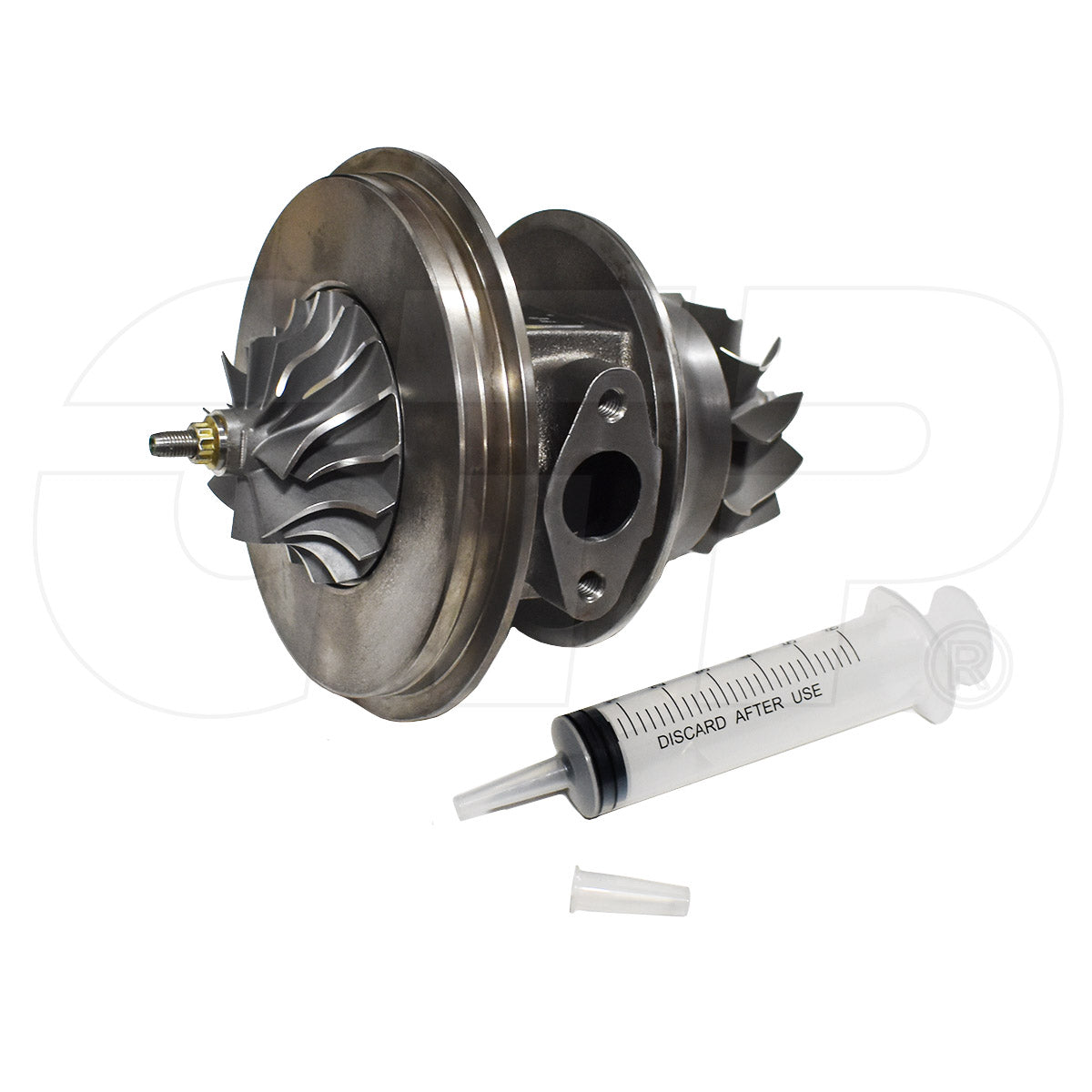

1W6865 Cartridge A Fits Caterpillar Models

One New Aftermarket Replacement Turbocharger Cartridge (CHRA) for Caterpillar (Cat) 3306 / 3306B Engines

This aftermarket replacement turbocharger cartridge -- also known as a CHRA (Center Housing Rotating Assembly) -- is the core rotating assembly of the Garrett TV6135 turbocharger used on Caterpillar 3306 and 3306B diesel engines. The CHRA contains the turbine wheel, compressor wheel, bearings, and seals. When the existing turbine and compressor housings are intact, replacing the cartridge is a cost-effective alternative to full turbocharger replacement. Professional installation by a qualified technician is strongly recommended.

Compatible Models

Caterpillar Industrial Engines: 3306, 3306B

Caterpillar Articulated Dump Trucks: D25C, D25D, D30C, D30D, D35C, D300B, D350C, D350D

Caterpillar Track-Type Tractors: D6D

Caterpillar Motor Graders: 140, 141, 143

Note: Engine serial number restrictions apply. Confirmed fitment for engine S/N 64Z843-1982 and 64Z2143-UP through engine S/N 13Z14218. Verify engine serial number before ordering.

Turbocharger Model

• Garrett TV6135 (Turbine Housing A/R: 1.34)
• Turbine Housing Angle (beta): 0 degrees
• Compressor Housing Angle (alpha): 160 degrees

Replaces Part Number(s):

1W6865, 0R5869

Aftermarket Interchange Numbers

409043-0050, 465984-0001, 465984-0002, 465984-0004, 465984-0006, 465984-0008, 465984-0009, 465984-0010, 465840-0001, 465840-0004, 465840-0005, 6N6865, 6N3477, 0R5800, 0R5792, 2W1744

New aftermarket replacement part - not remanufactured, not used.
