1P4582 Flange-Half Fits Caterpillar Models

One New Aftermarket Replacement Flange-Half for Caterpillar (Cat) Construction Equipment

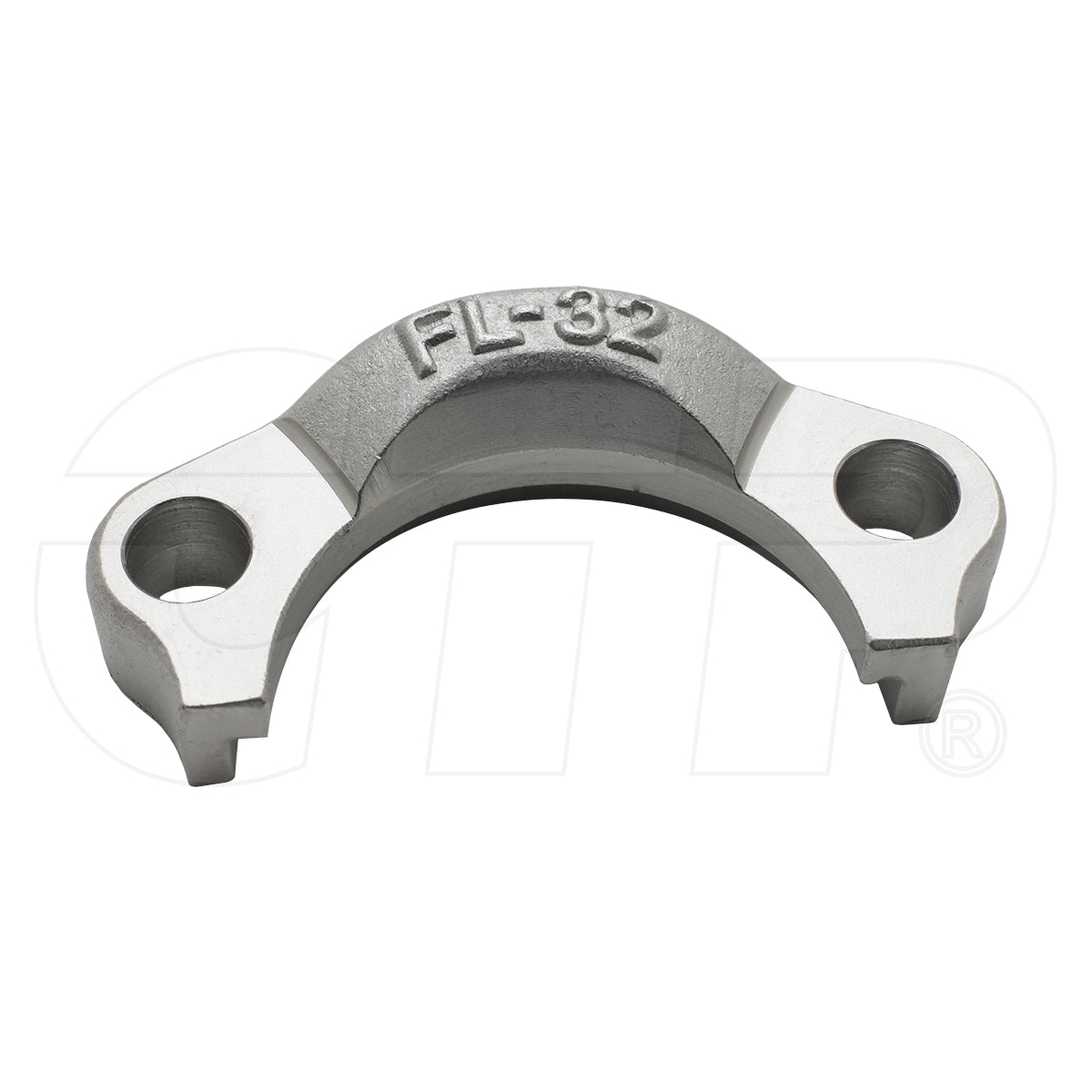

This aftermarket replacement 1P4582 Flange-Half is a SAE Code 61 split hydraulic flange clamp used in the hydraulic systems of Caterpillar (Cat) construction and earthmoving equipment. Split flange halves work in pairs to clamp around a hydraulic hose or tube fitting head, securing it to a port block with four bolts and an O-ring seal. Code 61 flanges are rated for hydraulic system pressures up to 3,000 PSI and conform to SAE J518 specifications. Also referenced as a half-moon flange in some aftermarket catalogs.

Specifications

• Type: SAE Code 61 Split Flange Half
• Pressure Rating: Up to 3,000 PSI
• Standard: SAE J518 Code 61
• Material: Forged steel

Compatible Models

Caterpillar Motor Graders: 12M, 14H, 14M, 16H, 16M, 120M, 140H, 140M, 140M 2, 143H, 160H, 160M, 160M 2, 163H

Caterpillar Excavators / Mining Shovels: 225, 225D, 227, 229, 229D, 231D, 235, 235B, 235C, 235D, 245, 2290, 2390, 2391

Caterpillar Pipelayers / Knuckleboom Loggers: 1090, 1190, 1190T, 1290T, 1390, 2384C

Additional Caterpillar Models: Confirm fitment by serial number range for your specific machine before ordering.

Replaces Part Number(s):

1P4582

New aftermarket replacement part - not remanufactured, not used.
