Steering Gear Hardware Kit Fits John Deere Replaces 14M7396

$23.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

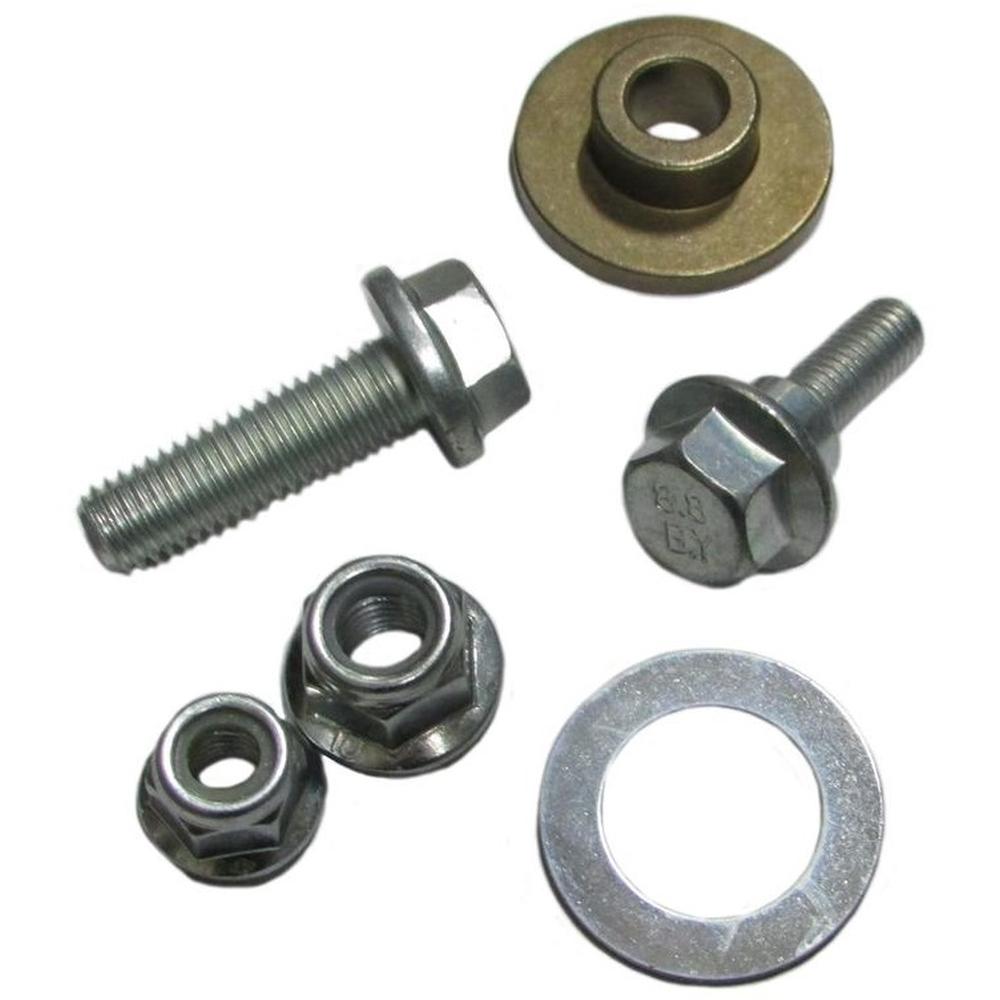

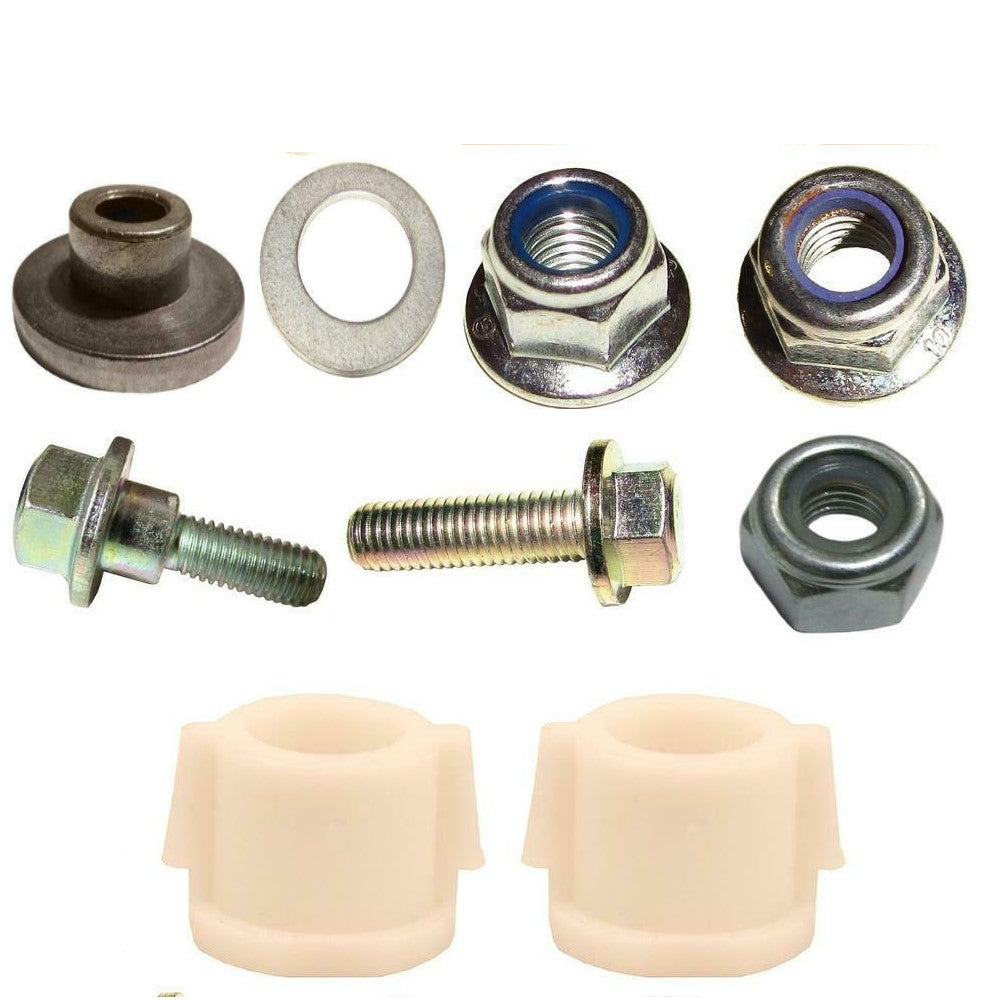

One New Aftermarket Steering Gear Hardware Kit

Tech Info:
-Hardware Kit to mount the Steering Sector Gear
-
-Kit Contains:

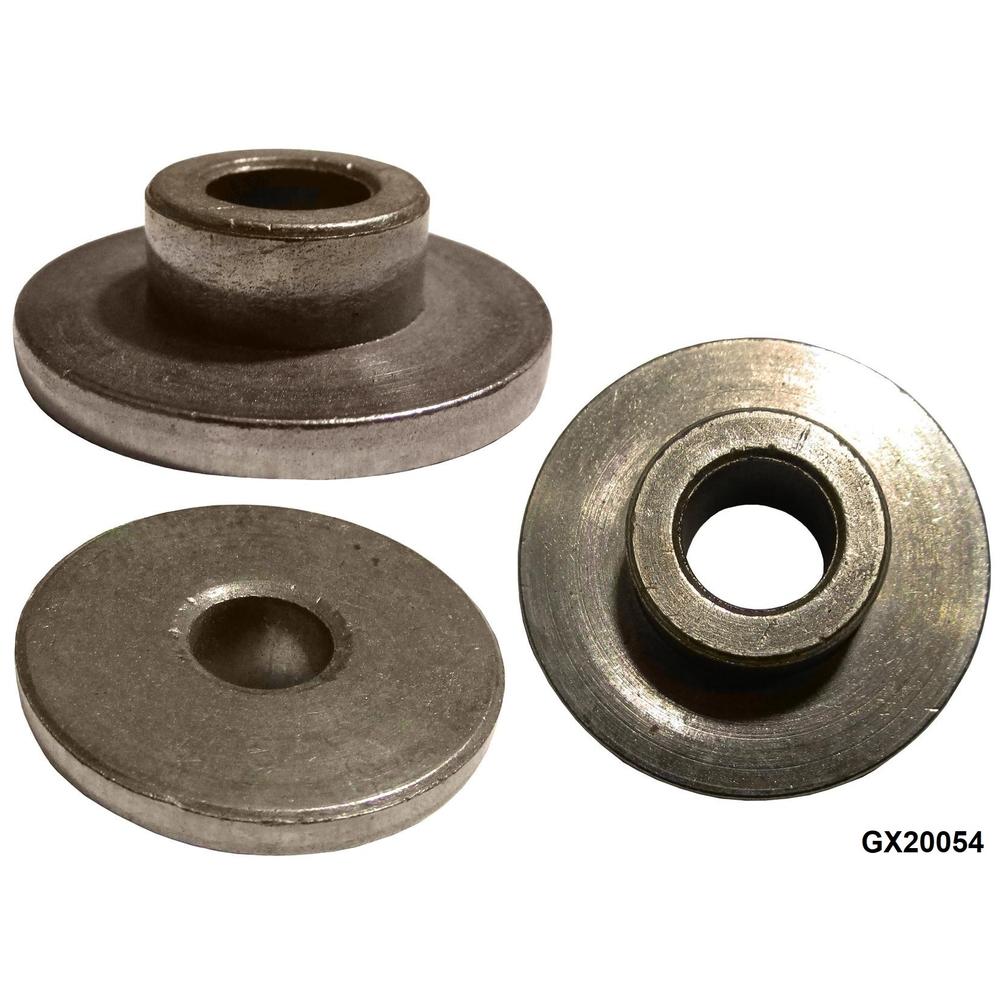

-(1) Sector Pivot Bushing
-Flange Thickness: 0.16"
-Flange Outside Diameter: 1.382"
-Inside Diameter: 0.407"
-Length: 0.45"
-Outside Diameter: 0.710"
-Replaces Part Number(s): UC13360
-

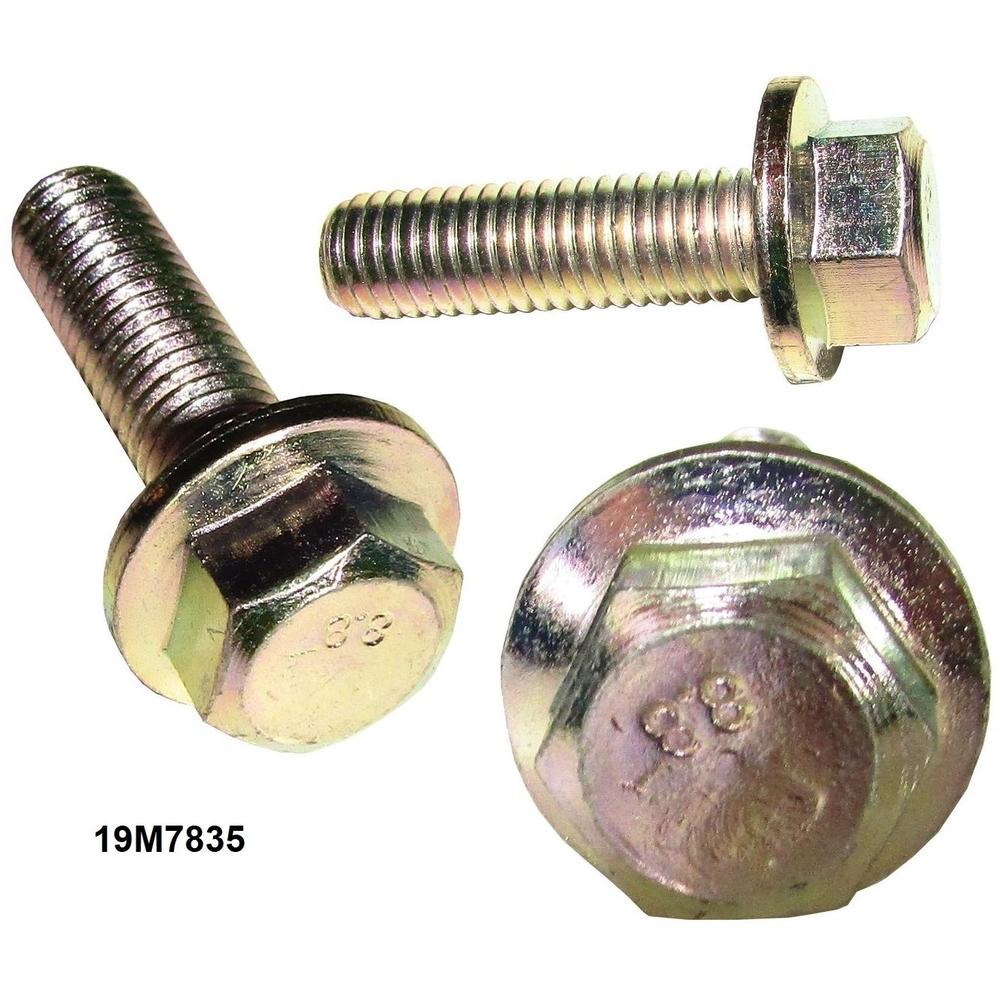

-(1) Hex Flange Bolt
-Thread Size: 0.394"
-Thread Pitch: 0.059"
-Length: 1.378"
-Thread Length: 1.201"
-Flange Diameter: 0.878"
-Head Height: 0.409"
-Material or Grade: 10.9
-Drive Size: 0.591"
-Replaces Part Number(s): 19M7835
-

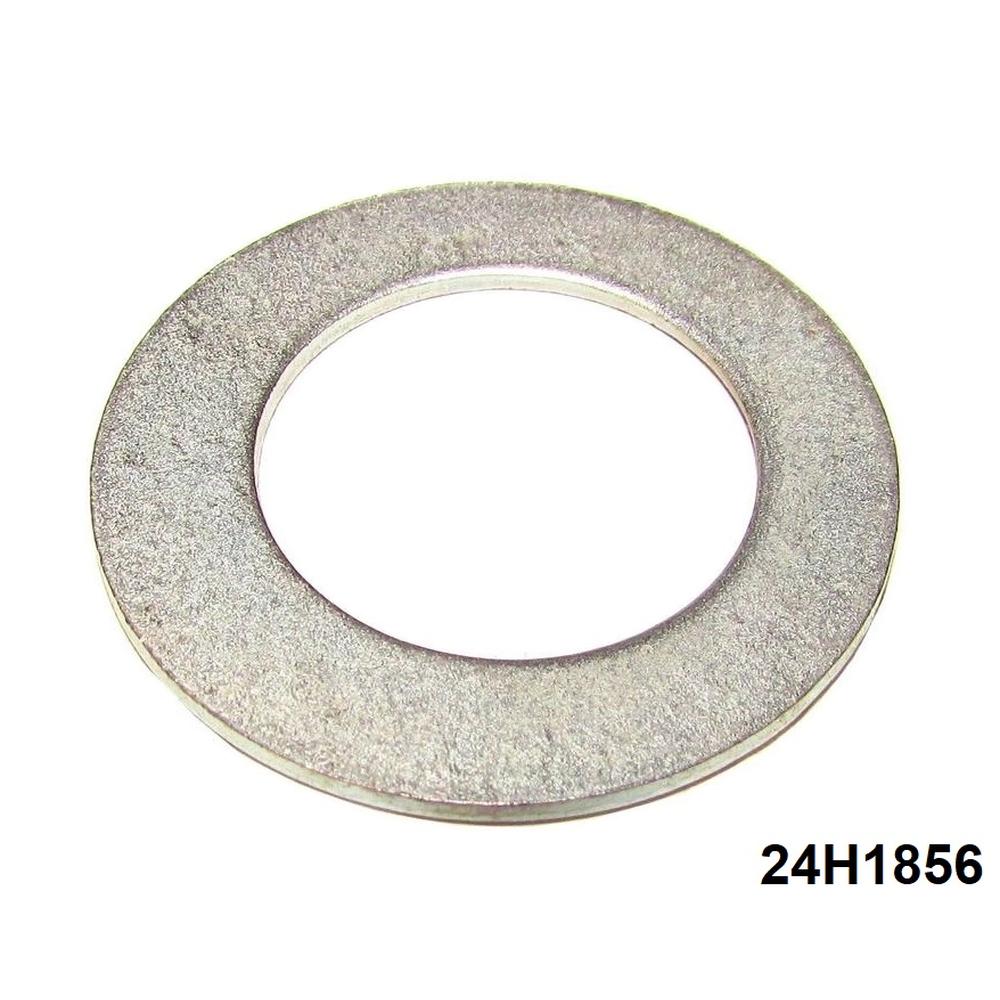

-(1) Flat Washer
-I.D.: .781"
-O.D.: 1.25"
-Thickness: .036"
-Material: Steel
-Replaces Part Number(s): 24M7053
-

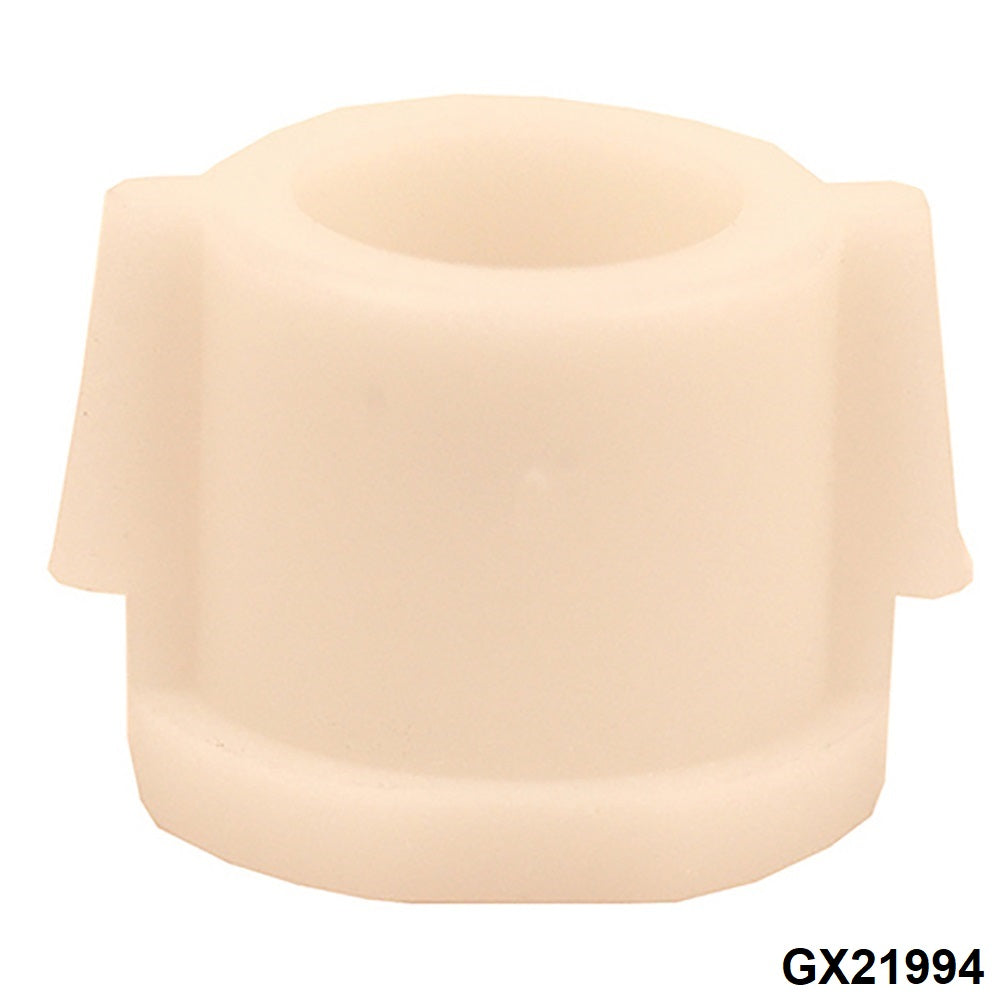

-(2) Steering Shaft Bushing
-Flange Outside Diameter: 1.09"
-Height: 0.886"
-Inside Diameter: 0.632"
-Outside Diameter: 0.928"
-Replaces Part Number(s): GX21994
-

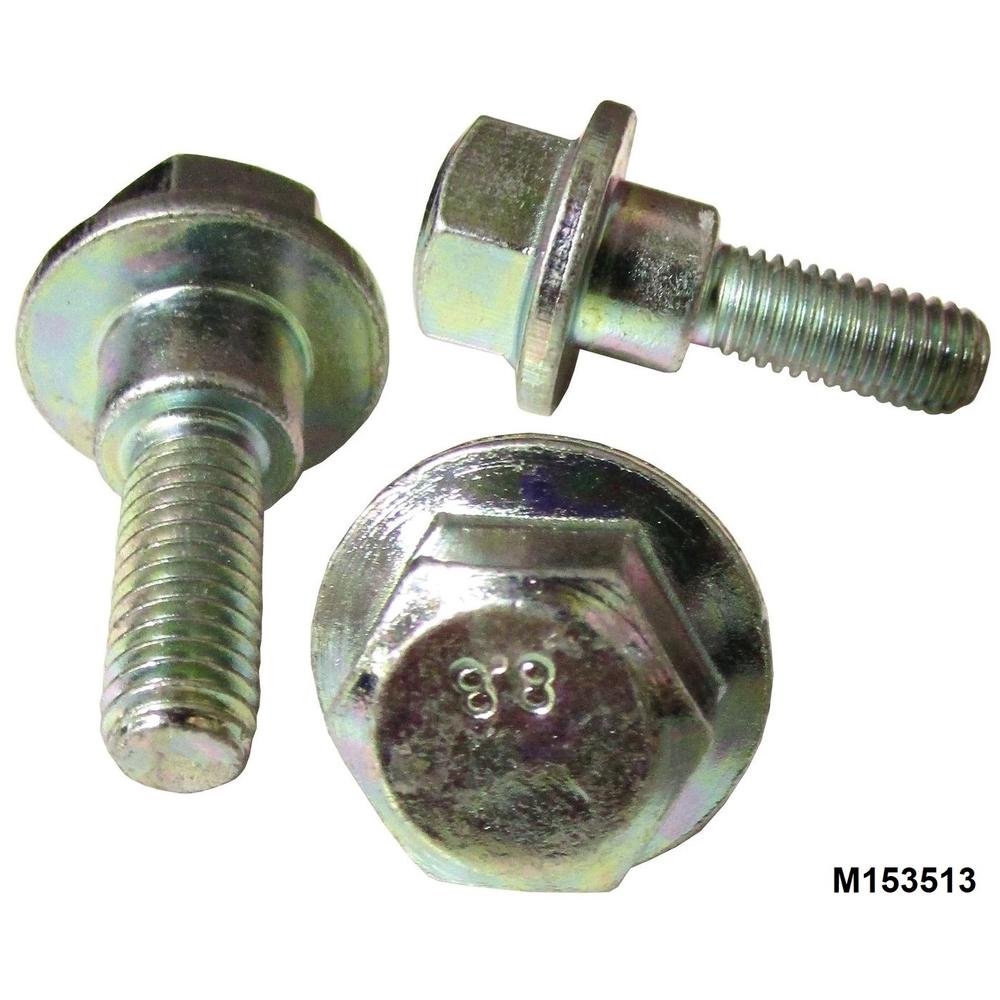

-(1) Shoulder Bolt
-Threads: 8mm
-Overall length: 28mm
-Replaces Part Number(s): M153513
-

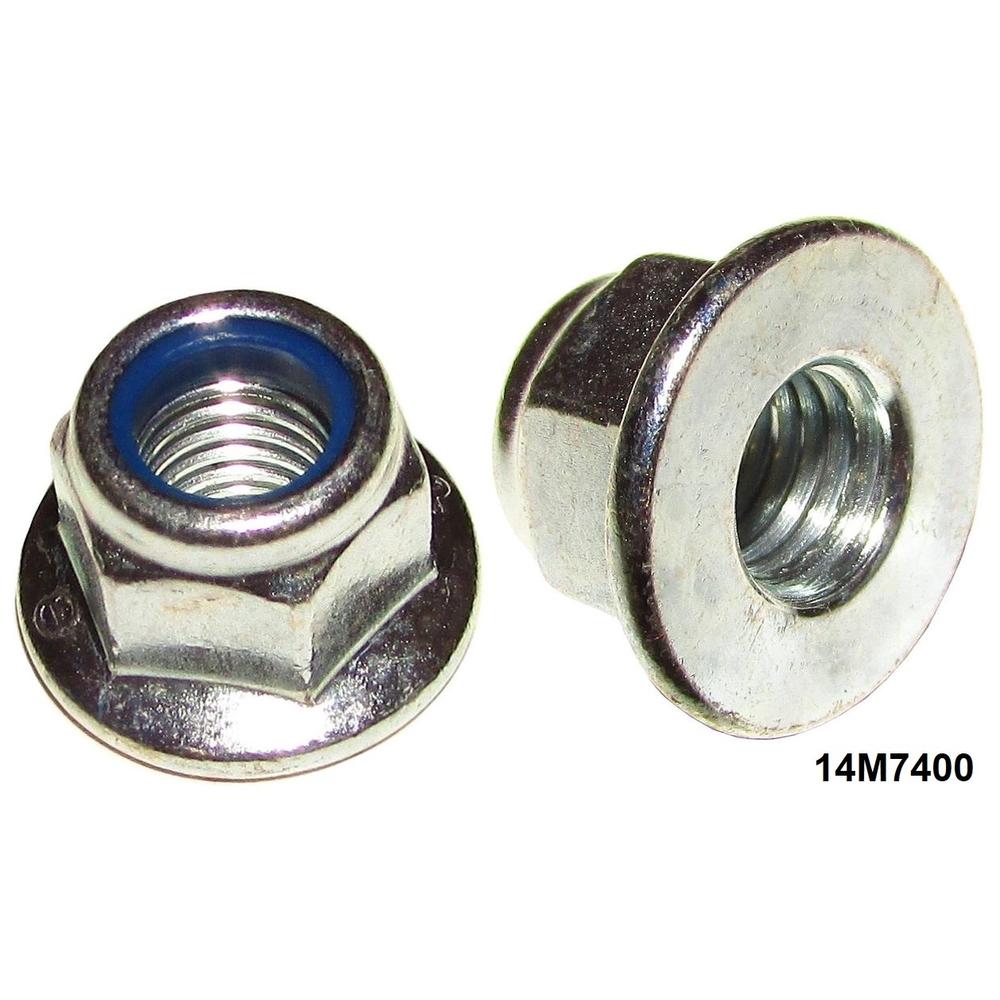

-(1) Lock Nut
-Thread Size: 10mm
-Thread Pitch: 1.5mm
-Thickness: 13.5mm
-Width Across Flats: 15mm
-Flange Diameter: 21.8mm
-Wrenching Height: 5.6mm
-Locking Element Type: B
-Replaces Part Number(s): 14M7400
-

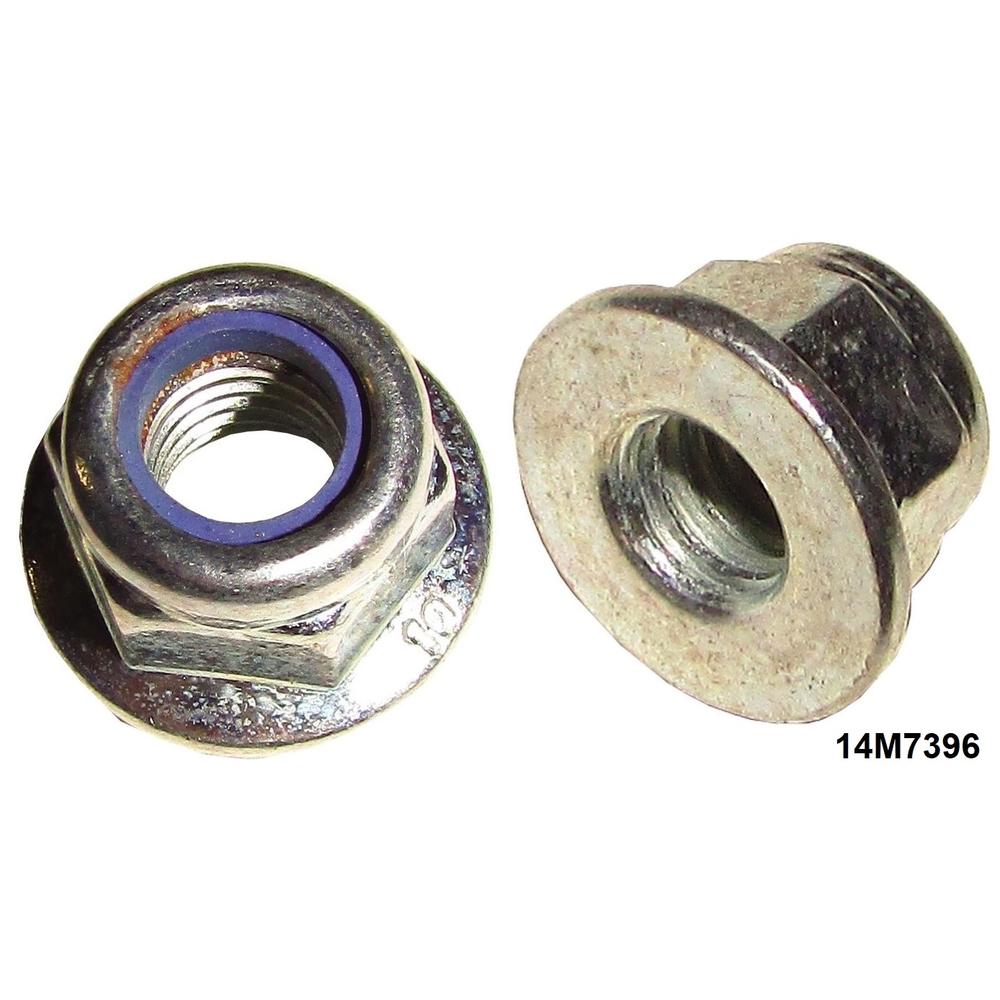

-(1) Lock Nut
-Thread Size: 8mm
-Flange Diameter: 17.9mm
-Wrenching Height: 4.6mm
-Thickness: 11.10mm
-Locking Element Type: B
-Replaces Part Number(s): 14M7396
-

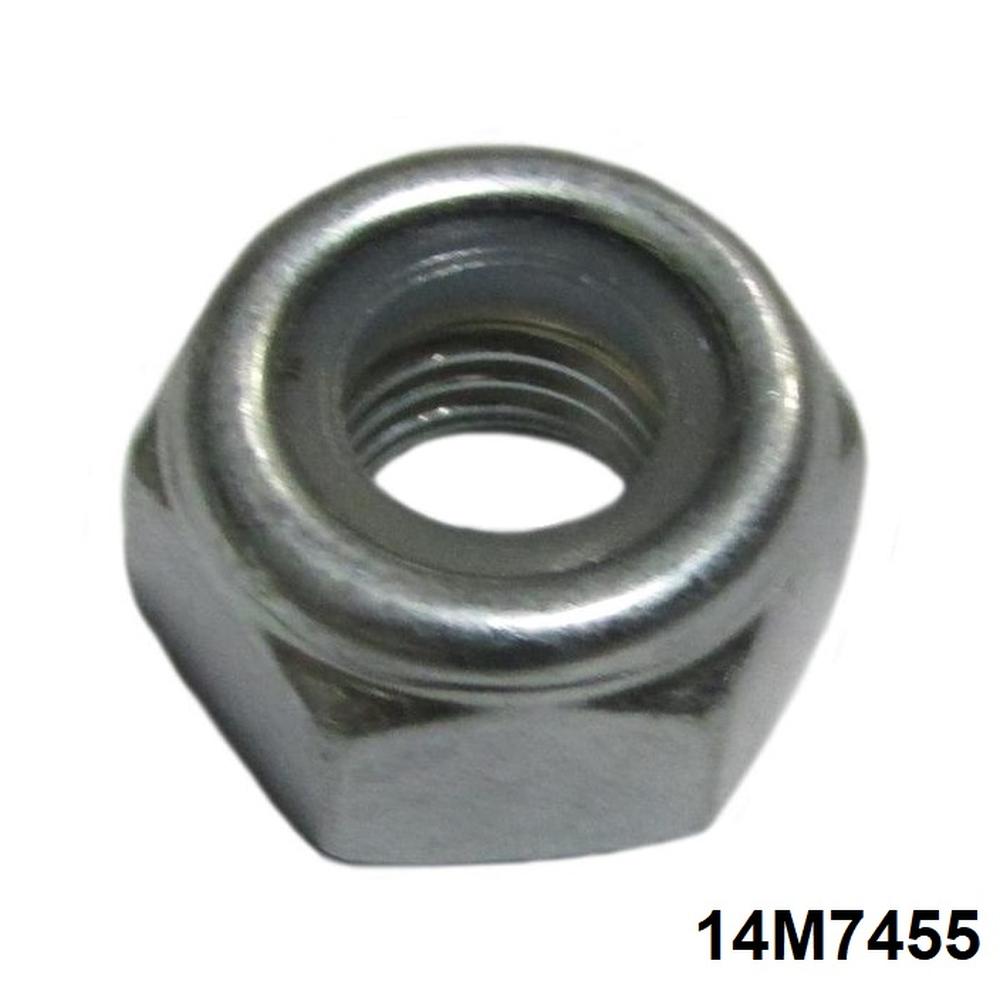

-(1) Lock Nut
-Thread Size: 10mm
-Thread Pitch: 1.25mm
-Thickness: 10mm
-Width Across Flats: 17mm
-Wrenching Height: 7mm
-Locking Element Type: B
-Replaces Part Number(s): 14M7455

Made to Fit John Deere:
Lawn Mower Models: Several
Replaces Part Number(s): 14M7455, 14M7396, 14M7400, M153513, GX21994, 24M7053, 19M7835, UC13360

Models This Part Fits:

Several
