1979372 Retainer-Pin Fits Caterpillar Models

One New Aftermarket Replacement Piston Pin Retainer for Caterpillar (Cat) C7 Engine-Powered Equipment

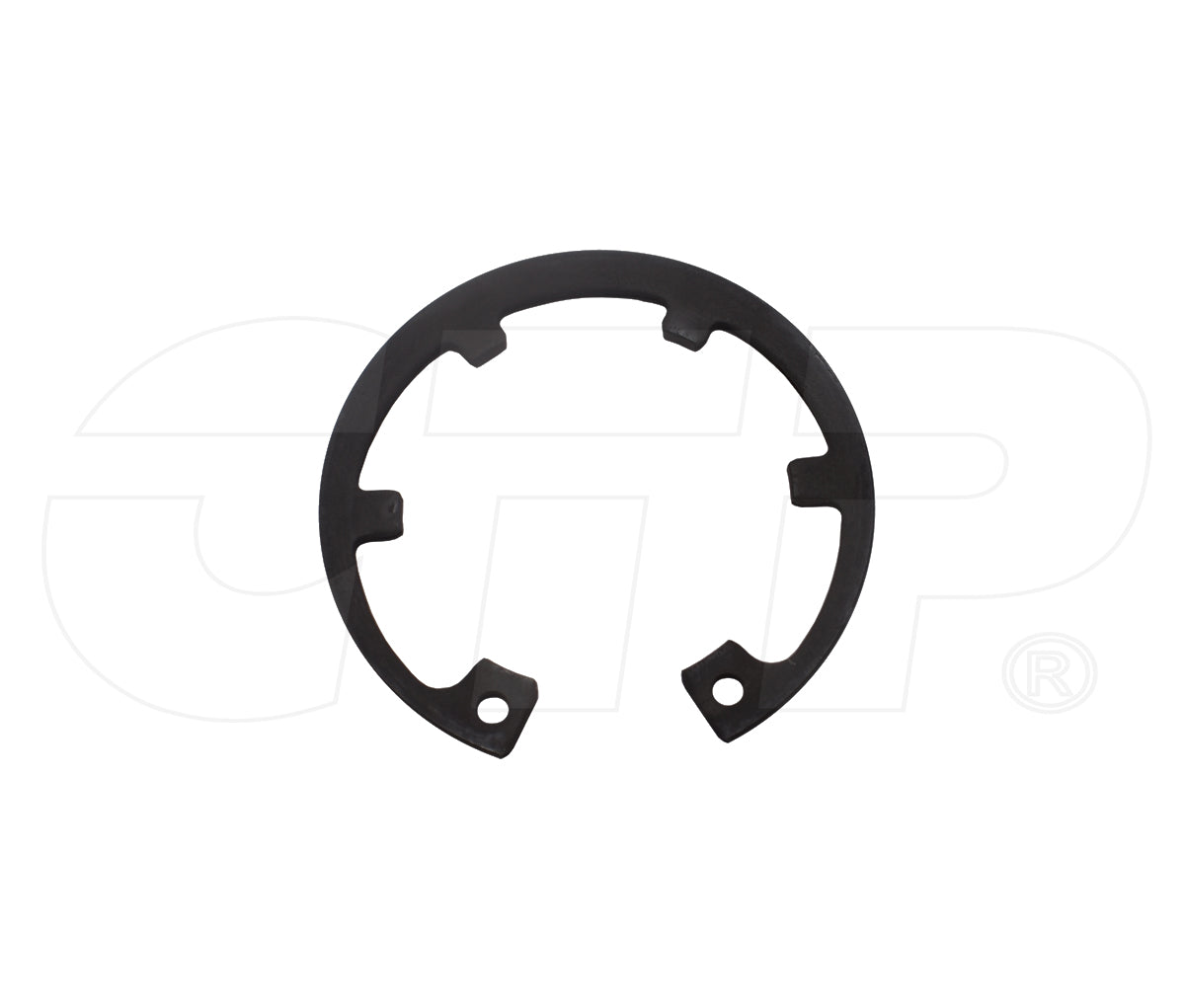

This piston pin retainer (also known as a wrist pin retainer or snap ring) secures the piston pin within the piston bore, preventing lateral movement and keeping the connecting rod assembly properly aligned in the Caterpillar C7 engine. It is an internal-type retainer used in the piston and rod group during engine overhaul and rebuild procedures. Sold individually; two retainers are required per cylinder.

Specifications

• Type: Internal piston pin retainer
• Outer Diameter: 47.5 mm
• Weight: 0.01 lbs

Compatible Models

Caterpillar (Cat) Motor Graders: 12M, 140G, 140K, 140K 2, 140M, 160K

Caterpillar (Cat) Excavators: 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 328D LCR, 329D, 329D L, 329D LN

Caterpillar (Cat) Forestry / Feller Bunchers / Forwarders: 525C, 535C, 545C, 573, 584

Caterpillar (Cat) Compactors / Soil Compactors: 815B

Caterpillar (Cat) Wheel Loaders: 950H, 962H

Caterpillar (Cat) Paving Equipment: AP-1055D, BG-2455D, BG-260D

Caterpillar (Cat) Engines (industrial / machine-powered): C7, C9.3

Caterpillar (Cat) Cold Planers: PM102

Caterpillar (Cat) Vibratory Compactors: CB534D, CB534D XW

Caterpillar (Cat) Integrated Toolcarriers: IT62H

Replaces Part Number(s):

1979372, 197-9372

New aftermarket replacement part - not remanufactured, not used.
