1922V321 Multiple Speed Belt with 1 3/16" x 33" O.C. Length

One New Aftermarket Replacement Multiple Speed Belt (1922V Series) for Agricultural, Industrial, and Lawn & Garden Equipment

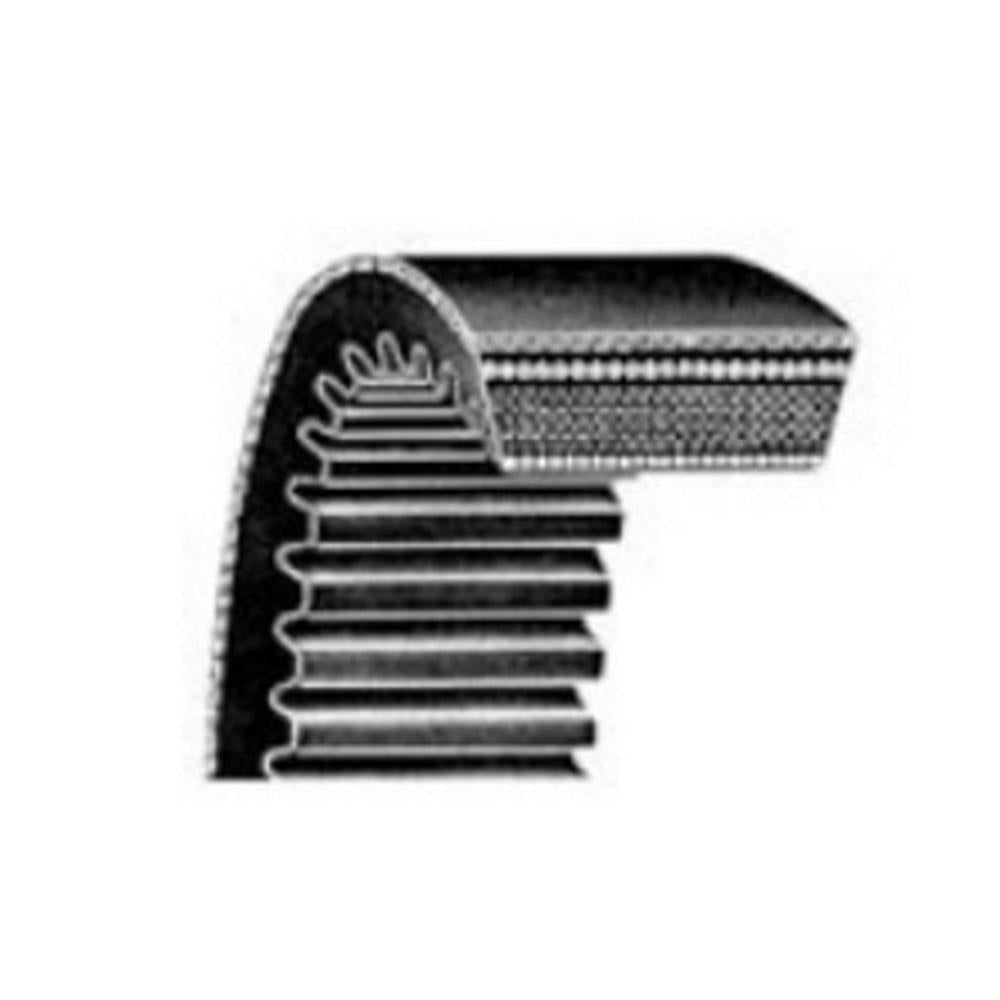

This 1922V321 variable speed (multi-speed) belt is a power transmission belt designed for use with variable speed sheave drives requiring precise speed control across a wide range of driven speeds. The 22V cross-section profile features cogs molded into the underside for maximum lengthwise flexibility, allowing the belt to fit smaller-diameter sheaves without sacrificing gripping action or cross rigidity. Built with high-modulus tension cords, oil-resistant rubber compounds, and raw edge sidewalls, this belt is well-suited for agricultural equipment, recreational equipment, and machine tool drive systems.

Specifications

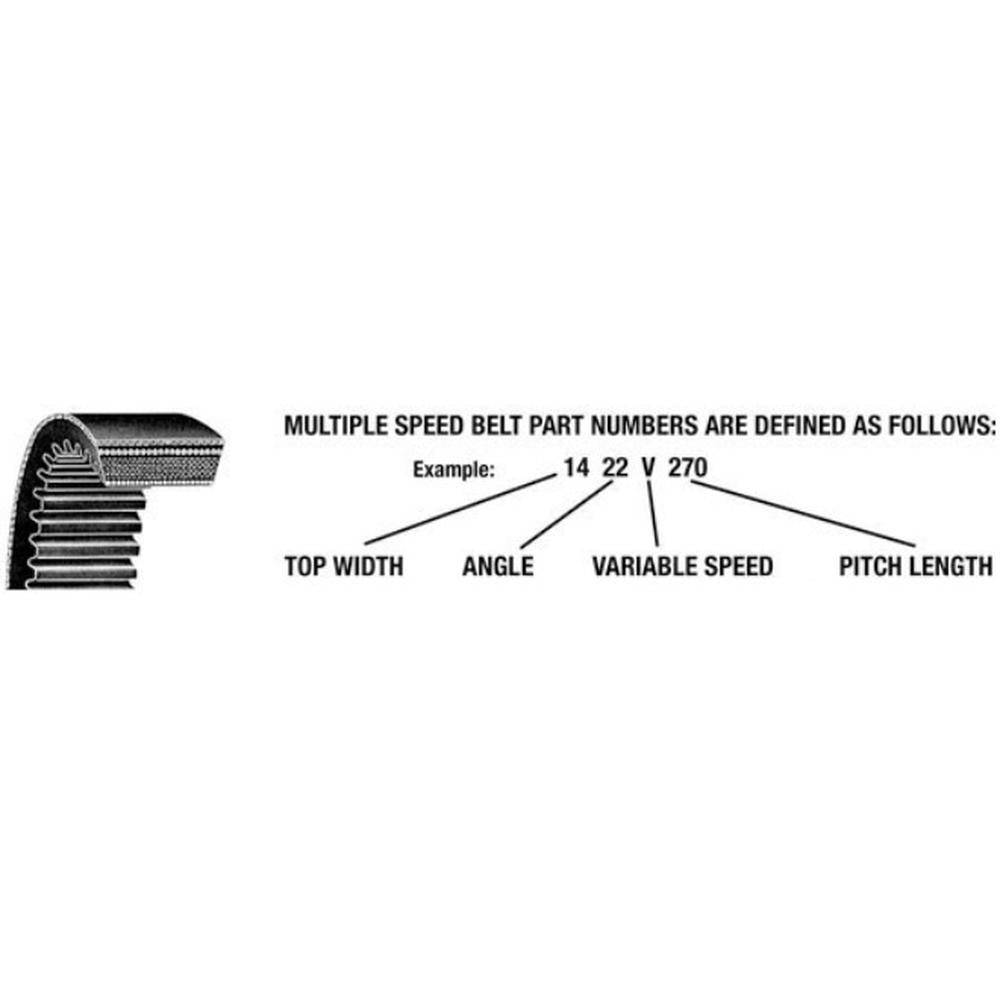

• Belt Number: 1922V321
• Cross Section: 22V (1922V Series)
• Top Width: 1-3/16" (1.1875")
• Outside Circumference (O.C.) Length: 33"
• Pitch Length: 32.1"
• Belt Angle: 22 degrees
• Construction: Bandless, cogged/cog-bottom, variable speed V-belt
• Material: Oil- and heat-resistant rubber (Neoprene or EPDM depending on manufacturer)

Compatible Applications

General Variable Speed Drive Applications: Agricultural equipment, lawn and garden equipment, recreational equipment (treadmills, exercise machines), machine tools, and other industrial variable speed drives requiring exact speed control. This is a universal-fit belt sized to the 1922V321 specification -- verify your current belt number before ordering.

Replaces Part Number(s):

1922V321

Aftermarket Interchange Numbers

Gates 9804-0070 (98040070), Carlisle 1922V321, Continental 1922V321, Goodyear 1922V321, TB Fits Woods 1922V321, Timken Belts (Carlisle) 1922V321, Lovejoy 1922V321

New aftermarket replacement part - not remanufactured, not used.
