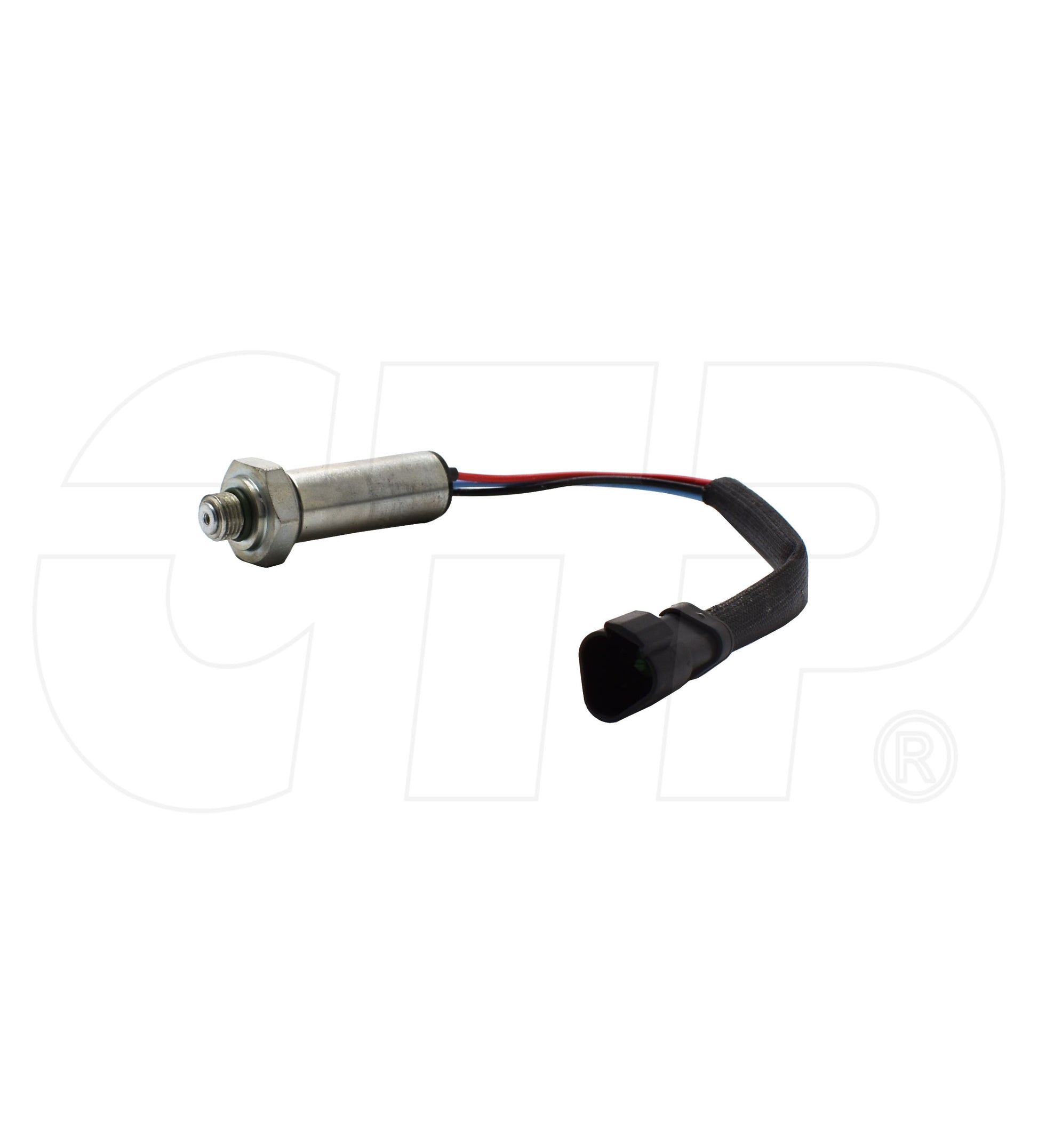

1753244 Switch As-Pressure Fits Caterpillar Models

One New Aftermarket Replacement Pressure Switch Assembly for Caterpillar (Cat) Construction and Agricultural Equipment

This aftermarket replacement Switch As-Pressure (part number 1753244 / 175-3244) is a brake accumulator charge pressure switch used in the hydraulic braking and fluid pressure monitoring systems on a wide range of Caterpillar equipment. The 3-pin DT connector switch monitors oil, fuel, and air pressure and signals the control system when pressure thresholds are met or exceeded.

Specifications

• Thread Size: 0.56-18
• Connector Type: 3-Pin DT
• Actuation Pressure: 10,700 kPa
• Deactuation Pressure: 8,960 kPa
• Contact Pressure Max: 20,700 kPa
• Contact Position: NC-NO
• Supply Voltage: 28V
• Amp (Resistive): 1.5A
• Open Cycle Life: 100,000 cycles
• Sensed Media: Oil, Fuel, Air
• Weight: Approx. 0.41 lbs.

Compatible Models

Caterpillar Asphalt Pavers: AP-1055B, AP-1055D, AP-655C, AP-655D, AP555E, BG-2255C, BG-2455C, BG-2455D, BG-655D, BG555E

Caterpillar Challengers: 65E, 75E, 85E, 95E

Caterpillar Compactors: 814F, 814F II, 815F, 815F II, 816F, 816F II, 824G, 824G II, 824H, 825G, 825G II, 825H, 826G II, 826H, 834G, 834H, 836G, 836H, 854G

Caterpillar Excavators: 325C, 330C, 330C L, 330C LN, 345B II, 365B, 365B II, 365B L, 385B

Caterpillar Forest Products: 533, 543, HA771, HA870, HA871, TK370, TK371, TK380, TK381

Caterpillar Integrated Toolcarriers: IT24F, IT38G, IT38G II, IT62G, IT62G II, IT62H

Caterpillar Wheel Loaders: 924F, 938G, 938G II, 950G, 950G II, 950H, 962G, 962G II, 962H, 966G, 966G II, 966H, 972G, 972G II, 972H, 980G, 980G II, 980H, 988G, 988H, 992G, 992K, 993K

Caterpillar Engines: 3056E, 3114, 3116, 3126, 3126B, 3176C, 3196, 3306, 3406, 3406C, 3406E, 3456, 3456B, 3456E, 3508B, 3516B, C4.4, C6.6, C7, C9, C11, C-12, C13, C15, C18, C32

Replaces Part Number(s):

1753244, 175-3244, CA1753244

New aftermarket replacement part - not remanufactured, not used.
