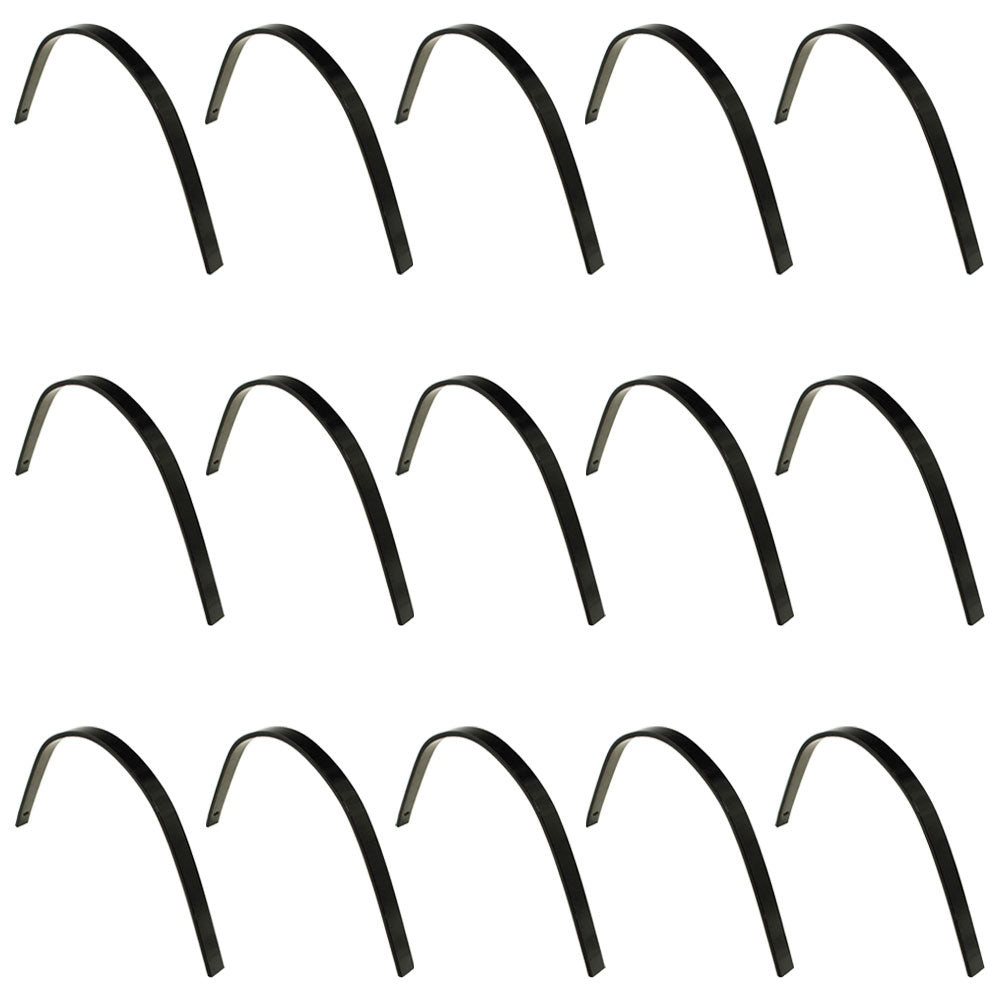

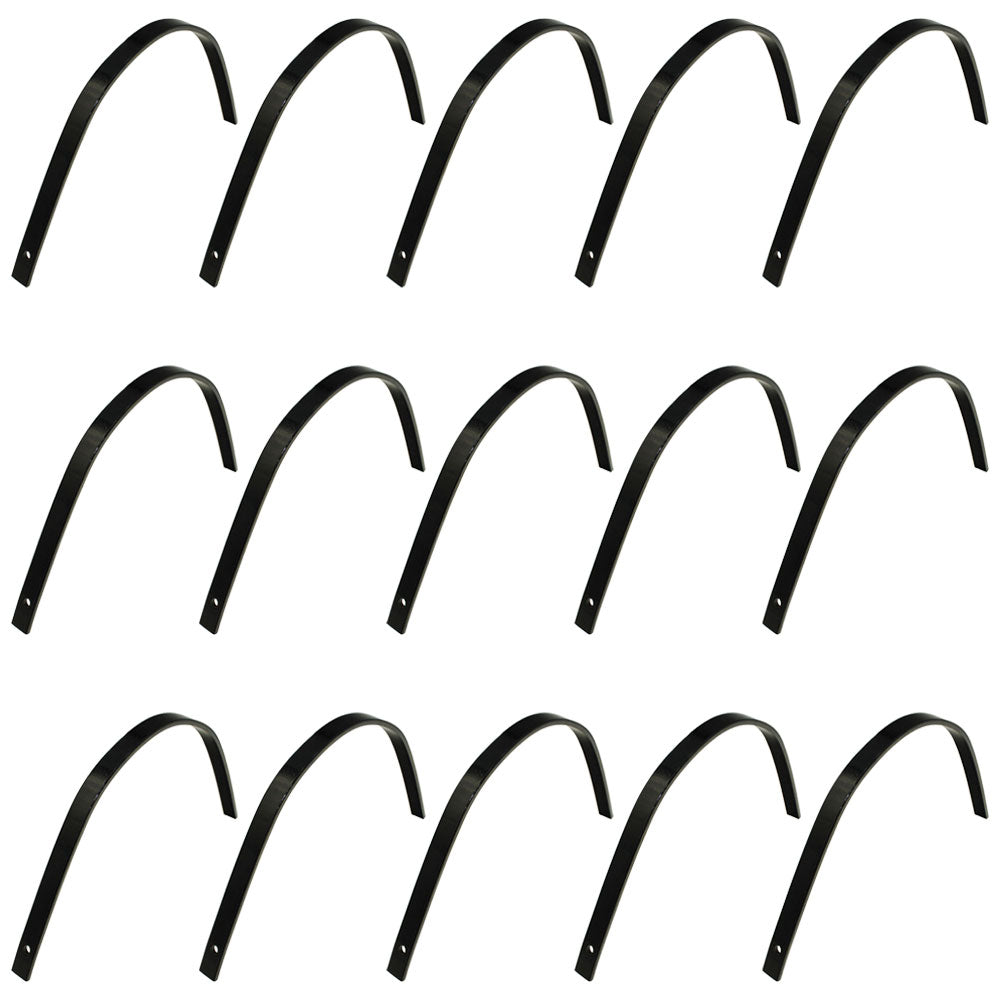

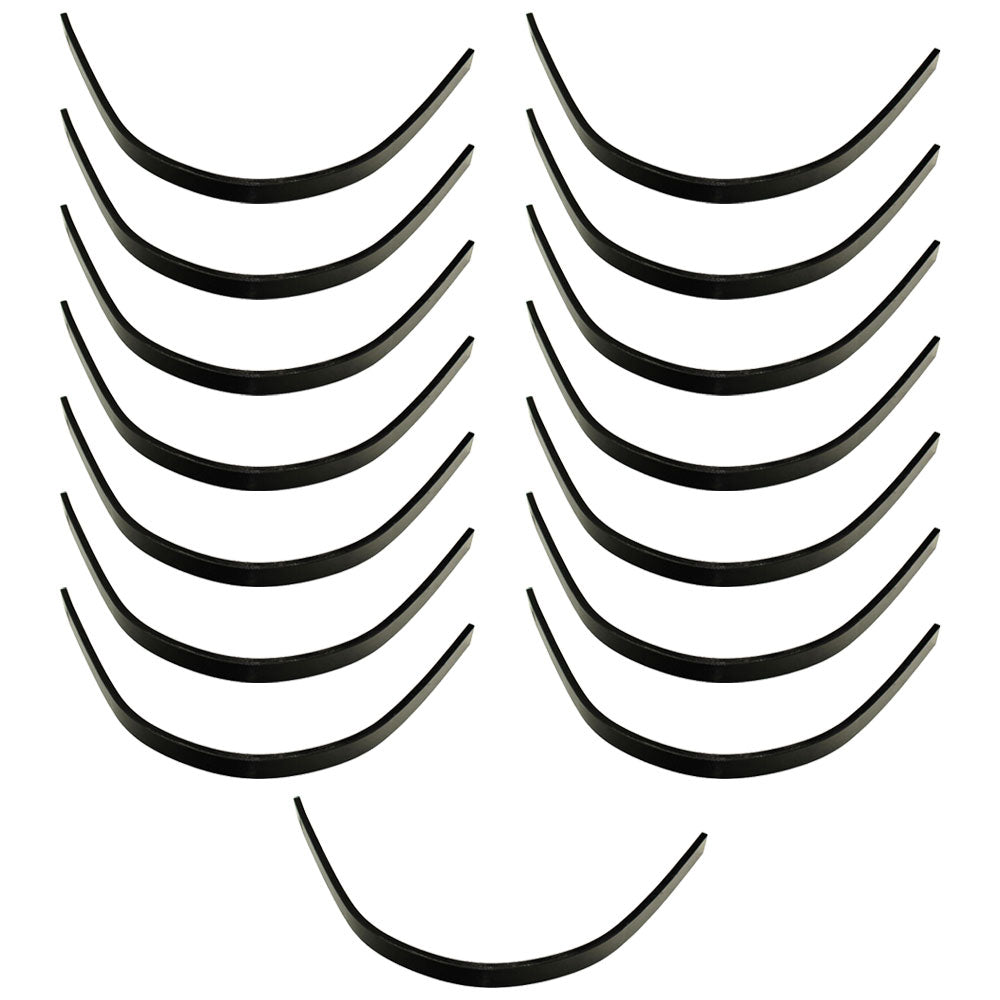

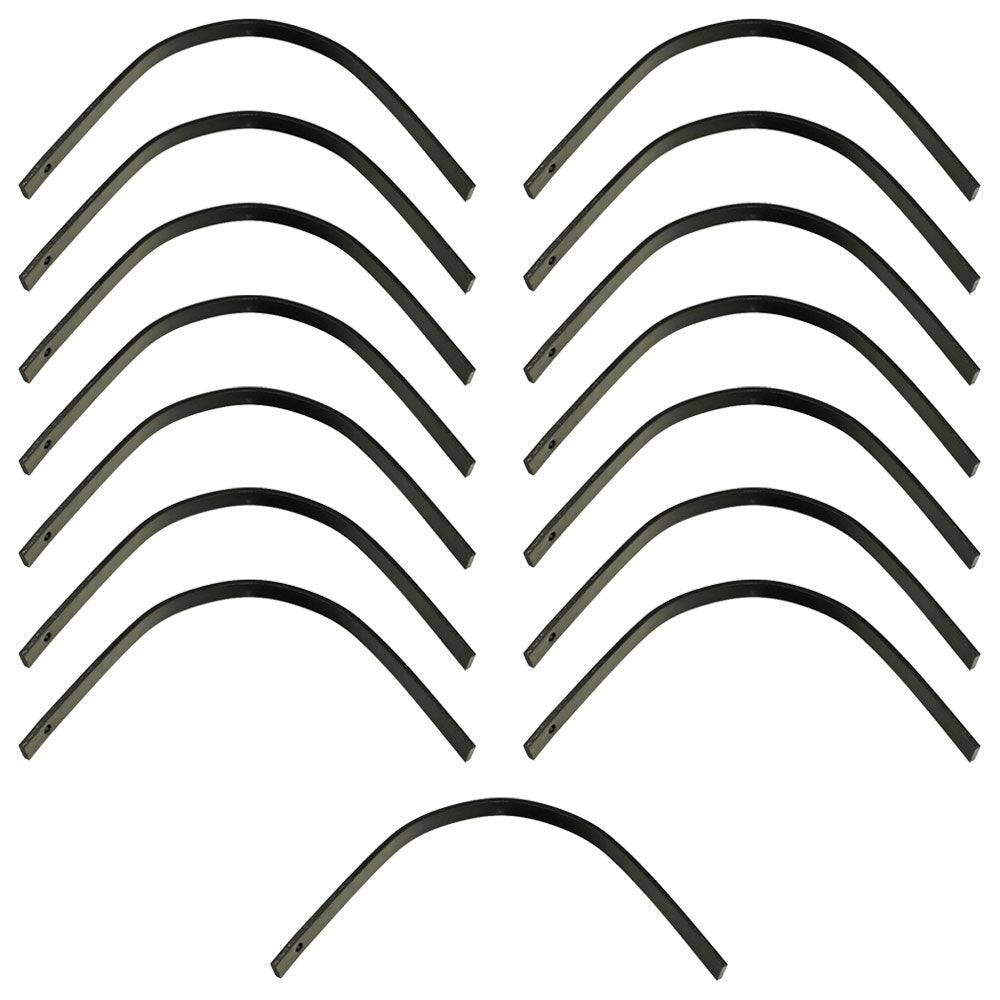

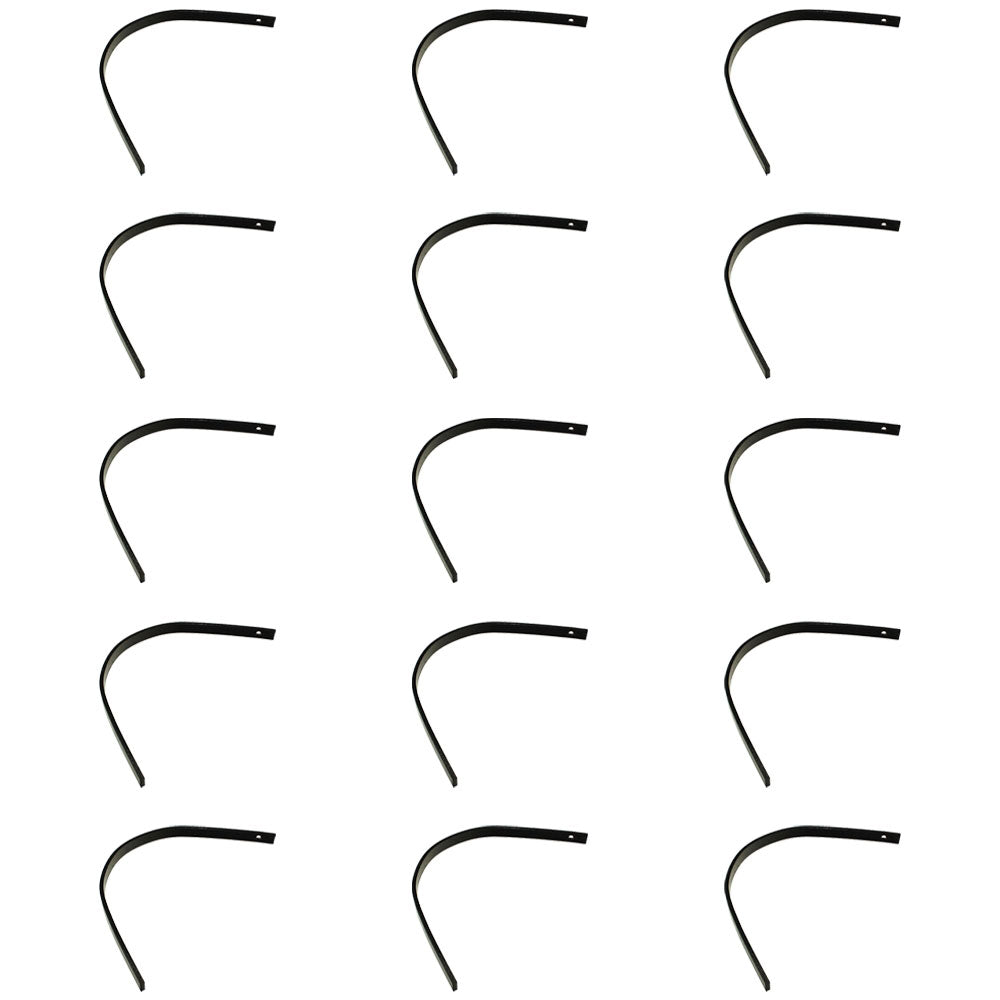

Fifteen New Aftermarket Replacement Landscape Rake Tine - One Hole Mount (1" x 5/16" x 27")
This aftermarket replacement landscape rake tine (also called a rock rake tine) is a universally compatible curved steel tine used on landscape rakes for field preparation, seedbed finishing, and debris management. The tine mounts to the rake frame via a single 3/8" bolt hole and is designed to fit most small implement manufacturers' landscape and rock rakes. Its curved profile moves dirt, spreads residue, and levels ground efficiently before planting season.
Specifications
- Width: 1"
- Thickness: 5/16"
- Curved length: 27"
- Height when mounted to ground: 15-1/4"
- Mounting holes: 1 (single hole)
- Hole size: 3/8"
- Material: High-strength 5160 spring steel, heat treated 38-42 Rockwell
Compatible Equipment
Universal Fit: Fits most small implement manufacturers' landscape rakes and rock rakes, including Farm-Maxx LR Series landscape rakes. Verify bolt hole spacing against your rake frame before ordering.
Replaces Part Number(s):
023-10454, 023-10454-A, 02310454, 2302023-10454, 10454, 127-1286
Aftermarket Interchange Numbers
Kodiak KDK06-0008; SMA 023-10454
New aftermarket replacement part - not remanufactured, not used.
