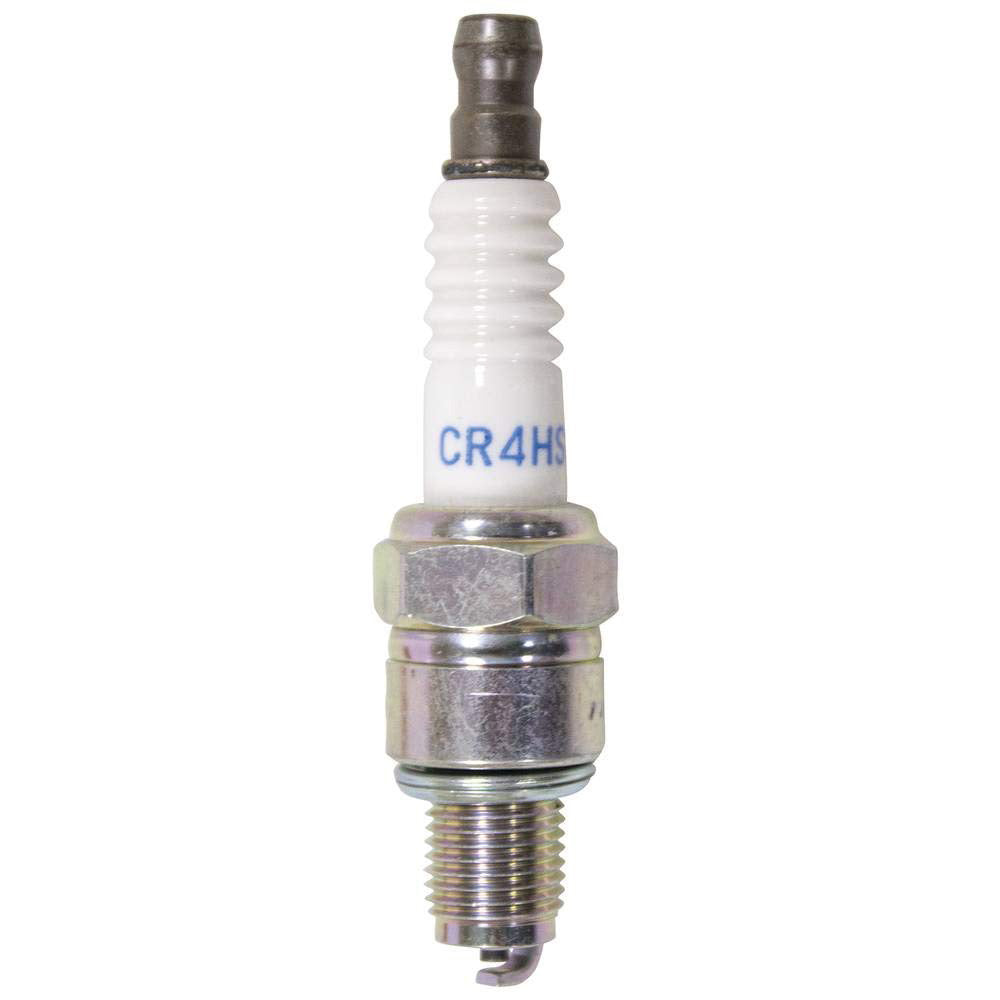

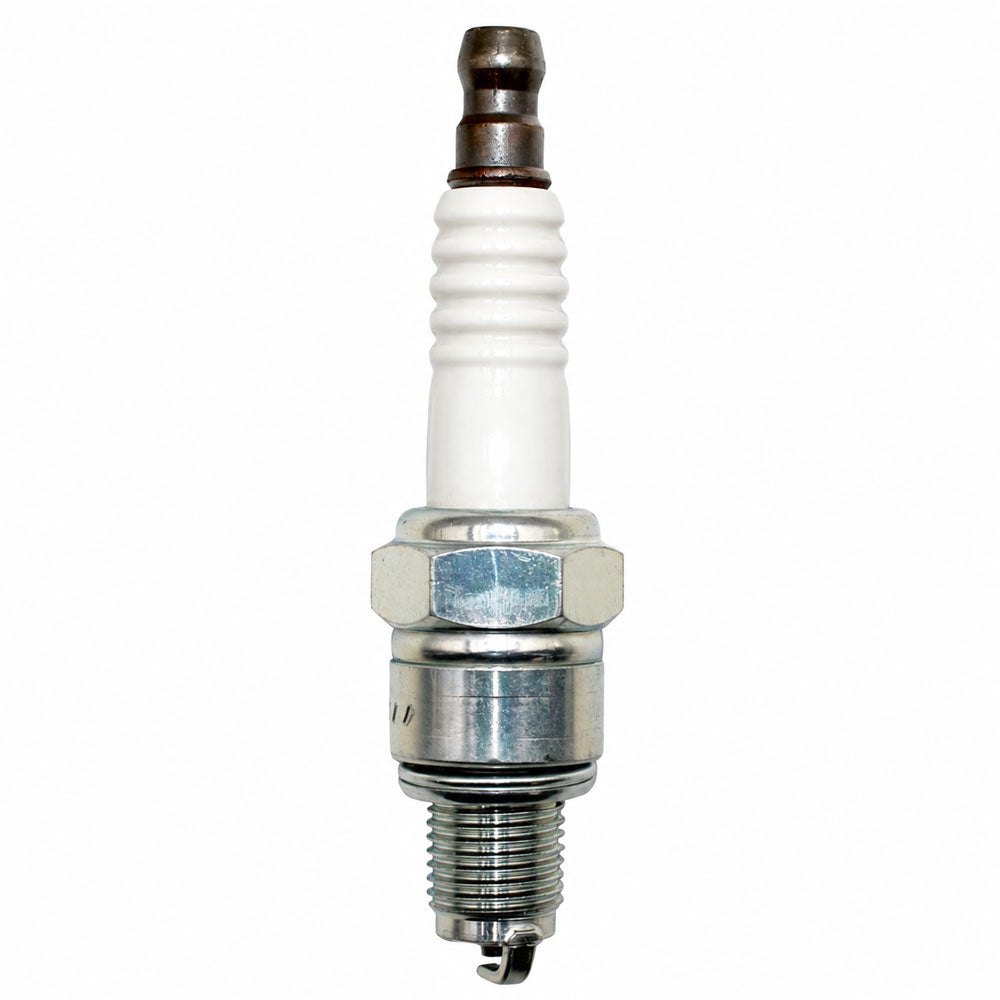

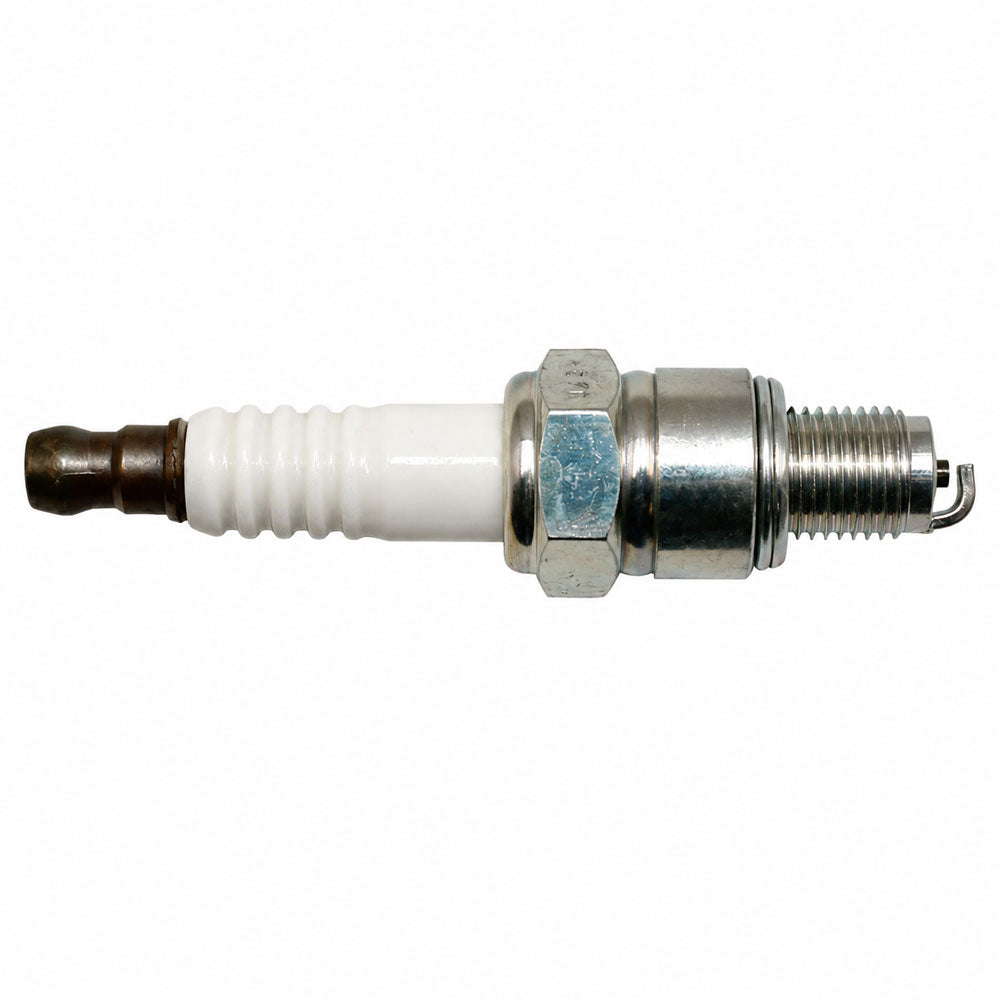

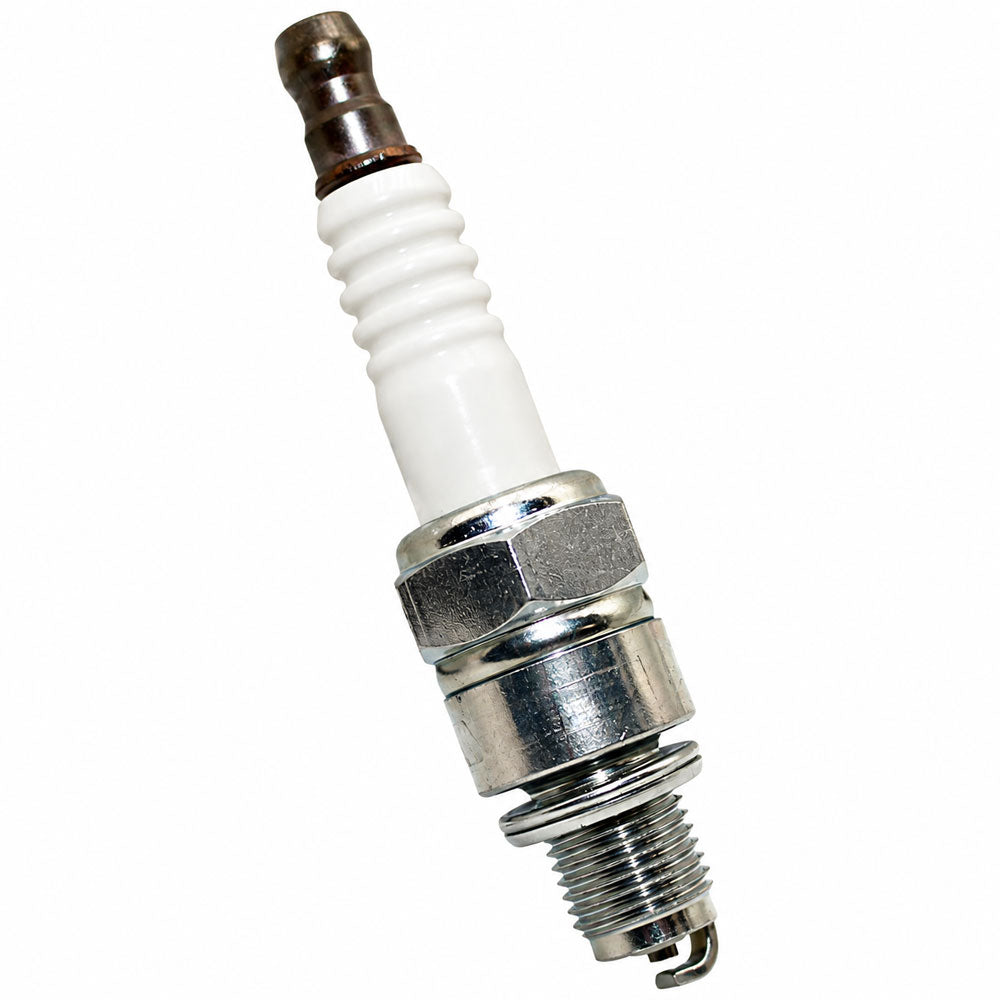

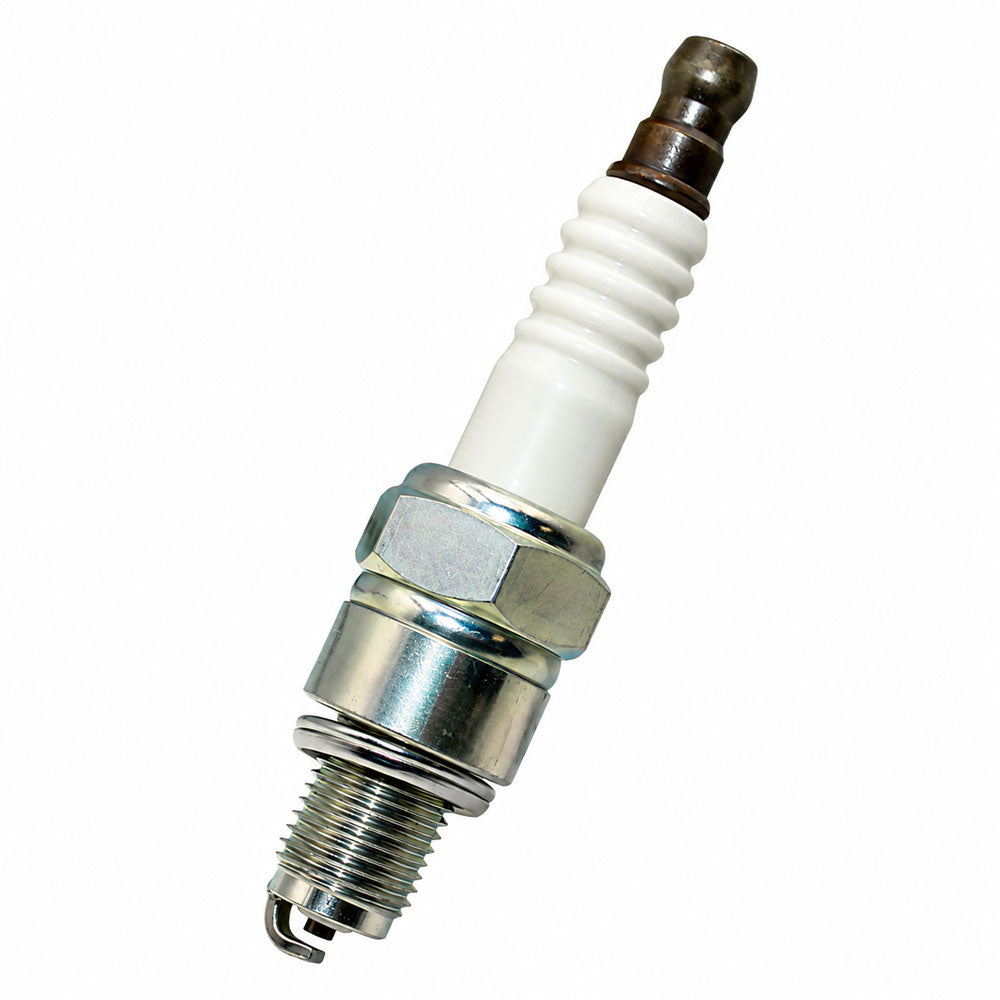

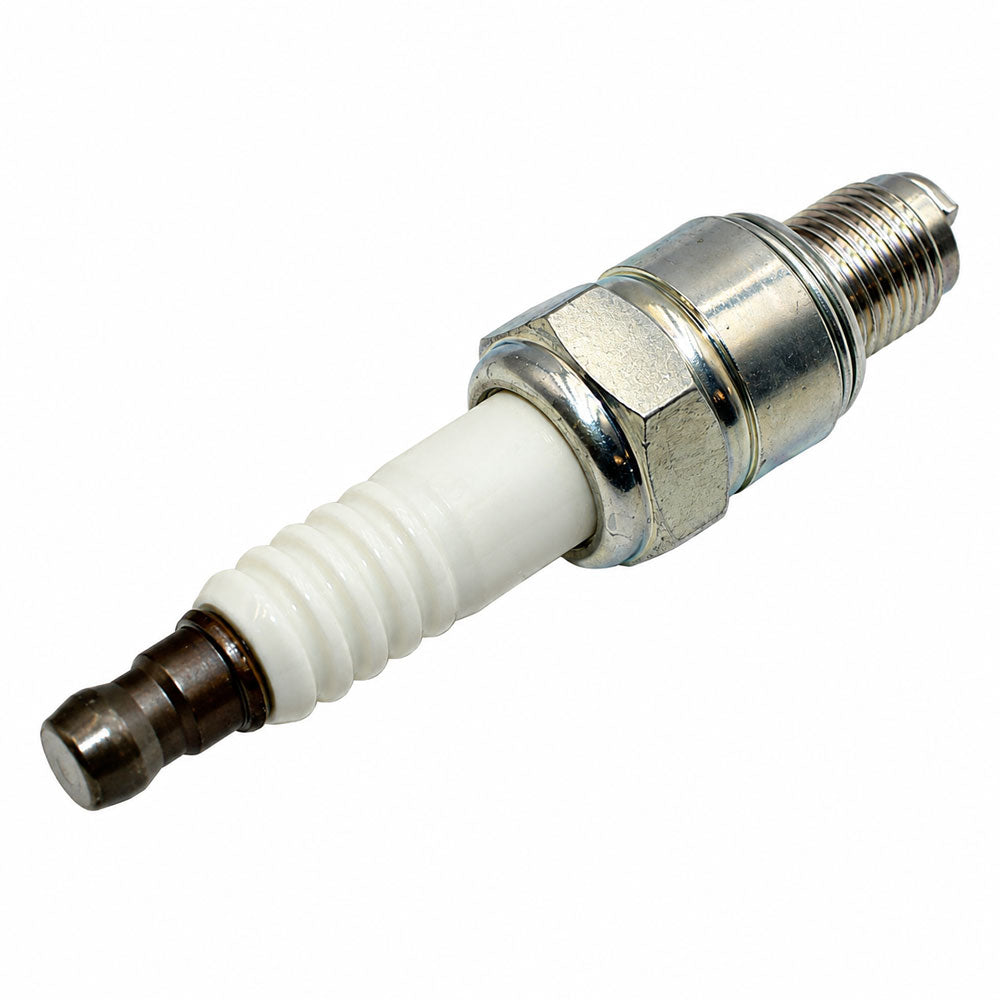

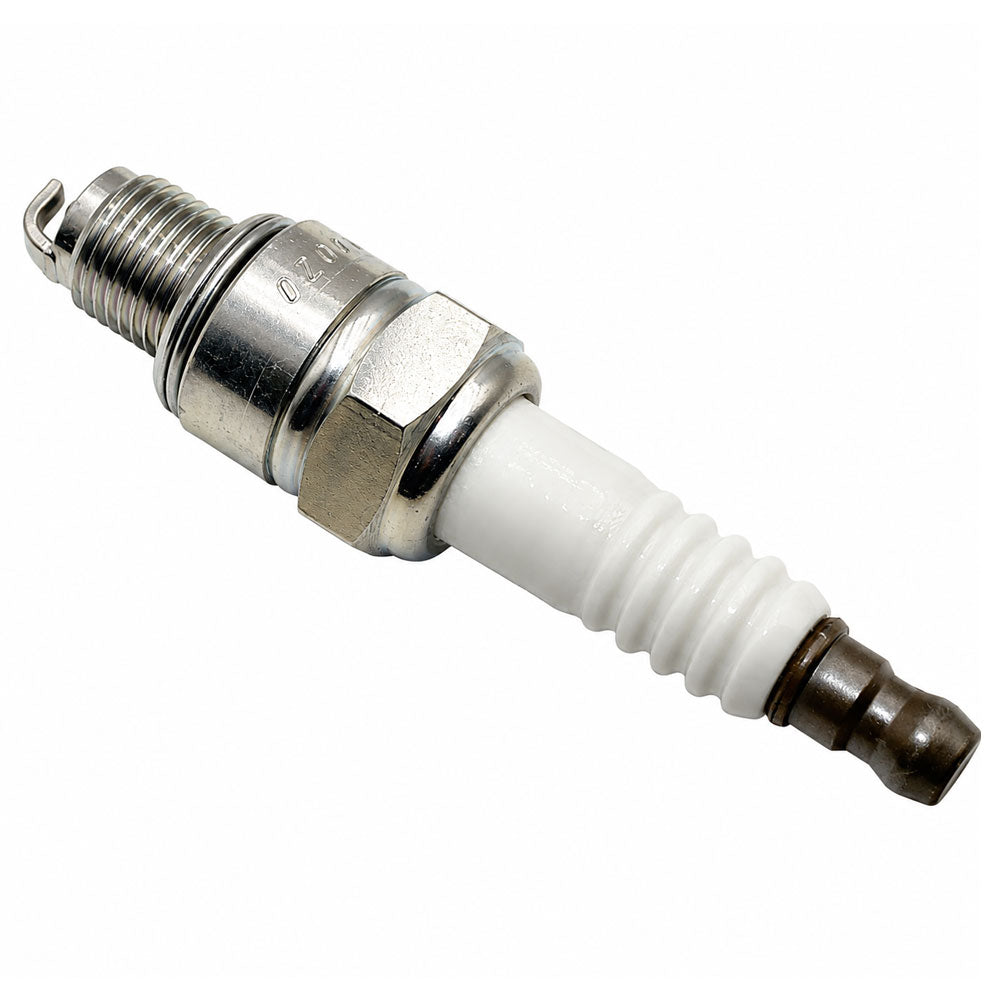

CR4HSB - Spark Plug

One New Aftermarket Replacement Spark Plug for Honda, Yamaha, and Ariens Small Engines

This resistor-type spark plug is a direct replacement for NGK CR4HSB (stock no. 4695), used in Honda portable generators, tillers, and other small equipment as well as Yamaha generators. Featuring a 10mm thread, flat gasket seat, solid terminal, and projected tip configuration, it delivers reliable ignition for small 4-stroke engines commonly found in lawn and garden equipment.

Specifications

• Thread Diameter: 10mm
• Thread Pitch: 1.0mm
• Thread Reach: 12.7mm (1/2 in.)
• Seat Type: Flat/Gasket
• Hex Size: 16mm (5/8 in.)
• Terminal Type: Solid
• Tip Configuration: Projected
• Electrode Gap: 0.028 in. (0.7mm)
• Construction: Standard resistor plug

Compatible Models

Honda Generators: EU1000i (all variants), EU2200i

Honda Equipment: EX7, F200, FG200, F220

Yamaha Generators: EF1000i, EF1000iS

Ariens: Select small engine applications

Always verify compatibility with your owner's manual before ordering. Additional Honda and Yamaha outboard and small engine applications may also be compatible.

Replaces Part Number(s):

NGK CR4HSB, 4695, Champion Z9Y, Denso 6070, Denso IUF14-UB, Denso U14FSR-UB, Denso U14FSRUB, Honda 98056-54757, Honda 98056-54777, Yamaha 94702-00419, Yamaha 94702 00419, Yamaha 9470200419, Yamaha 94709-00419, Rotary 13729-ROT, 4695, CR4HSB

New aftermarket replacement part - not remanufactured, not used.
