1343592 Turbo Gp Fits Caterpillar Models

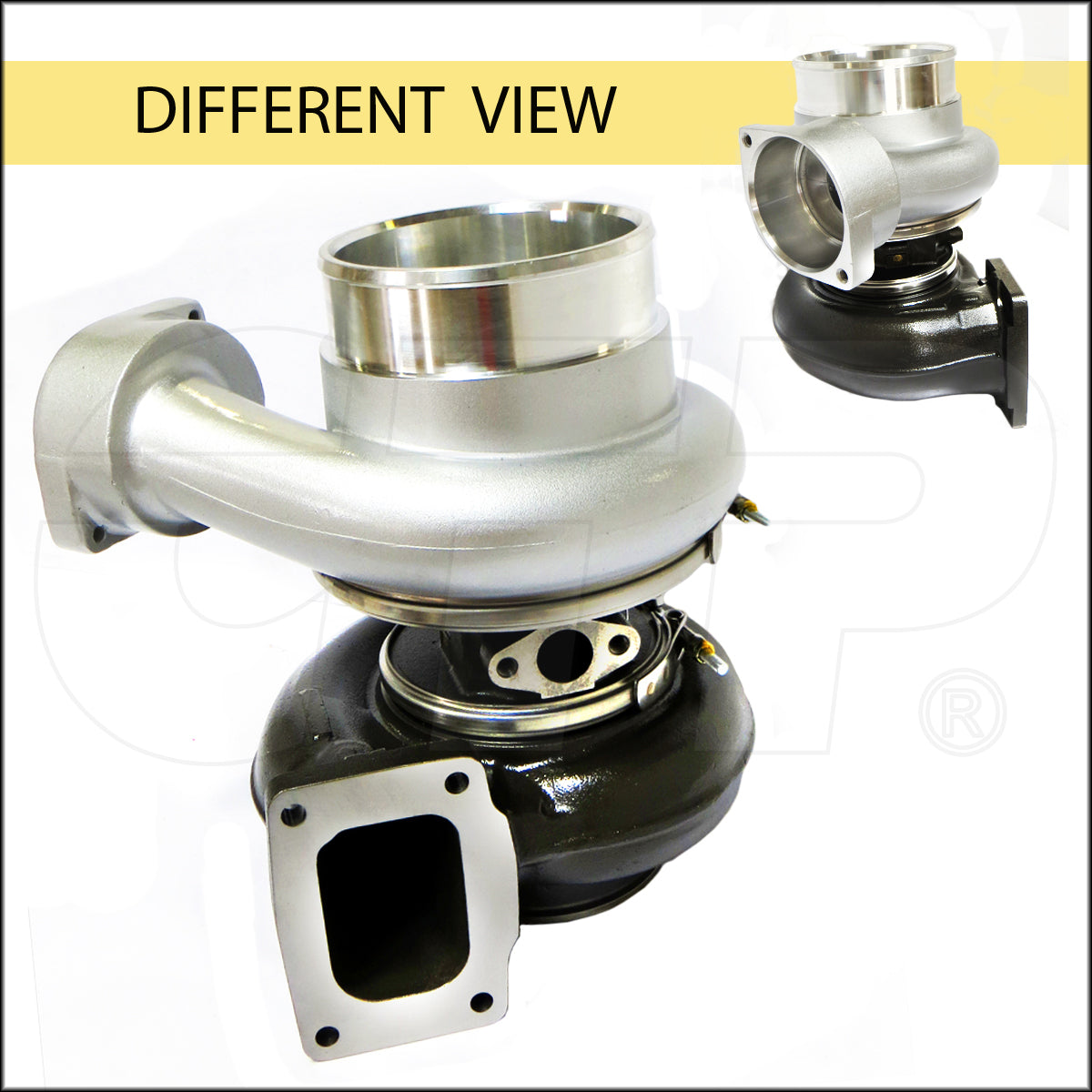

One New Aftermarket Replacement Turbocharger (Turbo GP) for Caterpillar (Cat) 3412 / 3412E Industrial and Marine Engines

This aftermarket replacement turbocharger group (Turbo GP) is designed for use on Caterpillar (Cat) 3412 and 3412E engines. The 3412E is a 27.0-liter, V12 diesel engine producing up to 1,044 kW (1,400 HP), commonly used in large industrial, marine, and construction power applications. The turbocharger is a TV8112-type unit that forces compressed air into the engine to improve combustion efficiency and power output. The Caterpillar Reman equivalent for this unit is 0R-7104.

Specifications

• Turbocharger Type: TV8112
• Length: 13.7 in (348 mm)
• Width: 12.9 in (327.7 mm)
• Height: 14.9 in (378.5 mm)
• Weight: 54.4 lbs (24.68 kg)
• Cartridge Part No.: 134-3668

Compatible Models

Caterpillar Industrial Engine: 3412E (Serial Ranges: 4CR00001-UP, BDT00001-UP)

Caterpillar Marine Engine: 3412E

Note: This turbocharger is cataloged for Caterpillar 3412 and 3412E engines. Verify your engine serial number and configuration before ordering.

Replaces Part Number(s):

1343592, 134-3592

Aftermarket Interchange Numbers

0R-7104, 0R7104, 0R-7219, 0R7219, 144-4568, 1444568, 465332-5011S, 465332-5011, 465332-0011, 465332-5006, 465332-5007, 465332-5012, 465332-0006, 465332-0007, 465332-0012, 465332-9006, 465332-9007, 465332-9011, 465332-9012, CA1343592

New aftermarket replacement part - not remanufactured, not used.
