Starter Repair Kit Fits Arrowhead Replaces 133-12035-10

Starter Repair Kit Fits Arrowhead Replaces 133-12035-10

$22.99 USD
$22.99 USD
Sale Sold out
Shipping calculated at checkout.

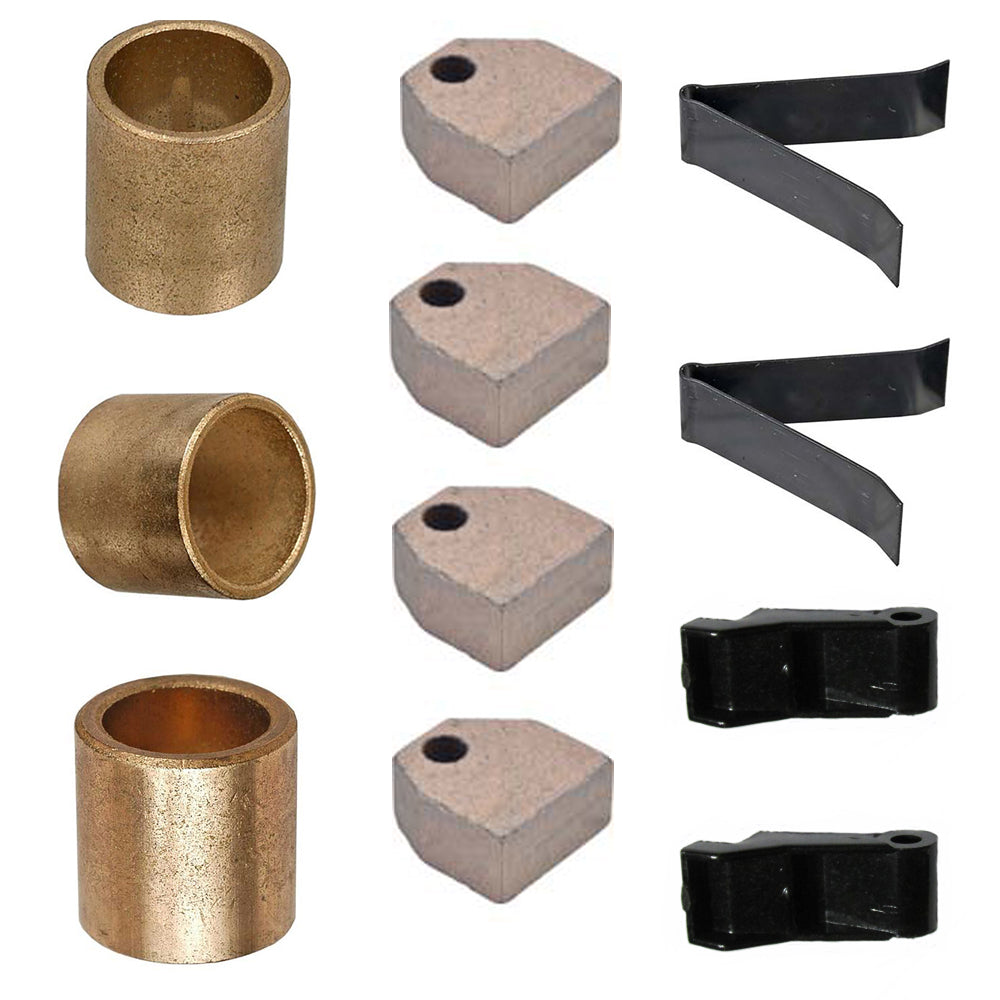

One New Aftermarket Starter Repair Kit

Tech Info:

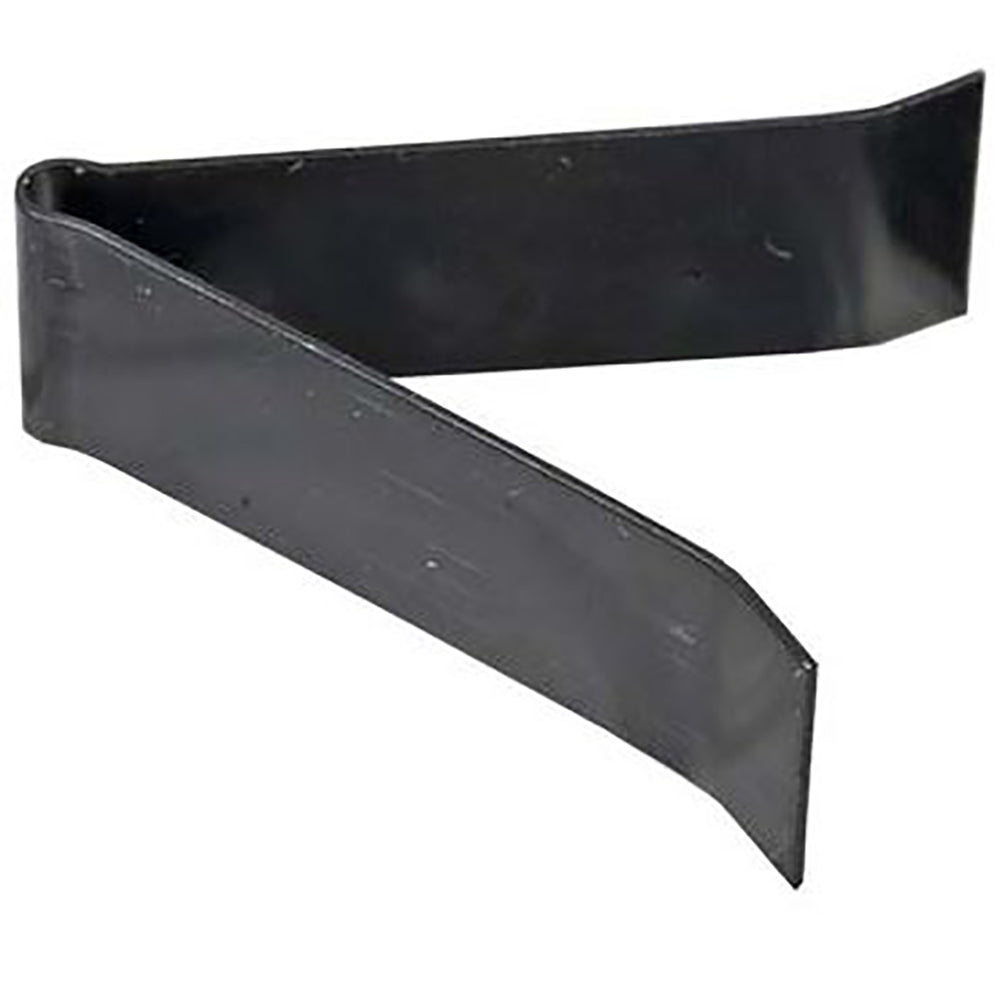

 -(2) Brush Springs
 -Length: 38.63 mm
 -Servicing 30MT
 -Replaces part Numbers: 1986019, 1979994, 1945620, SDR1508, D3984, D4952
 -

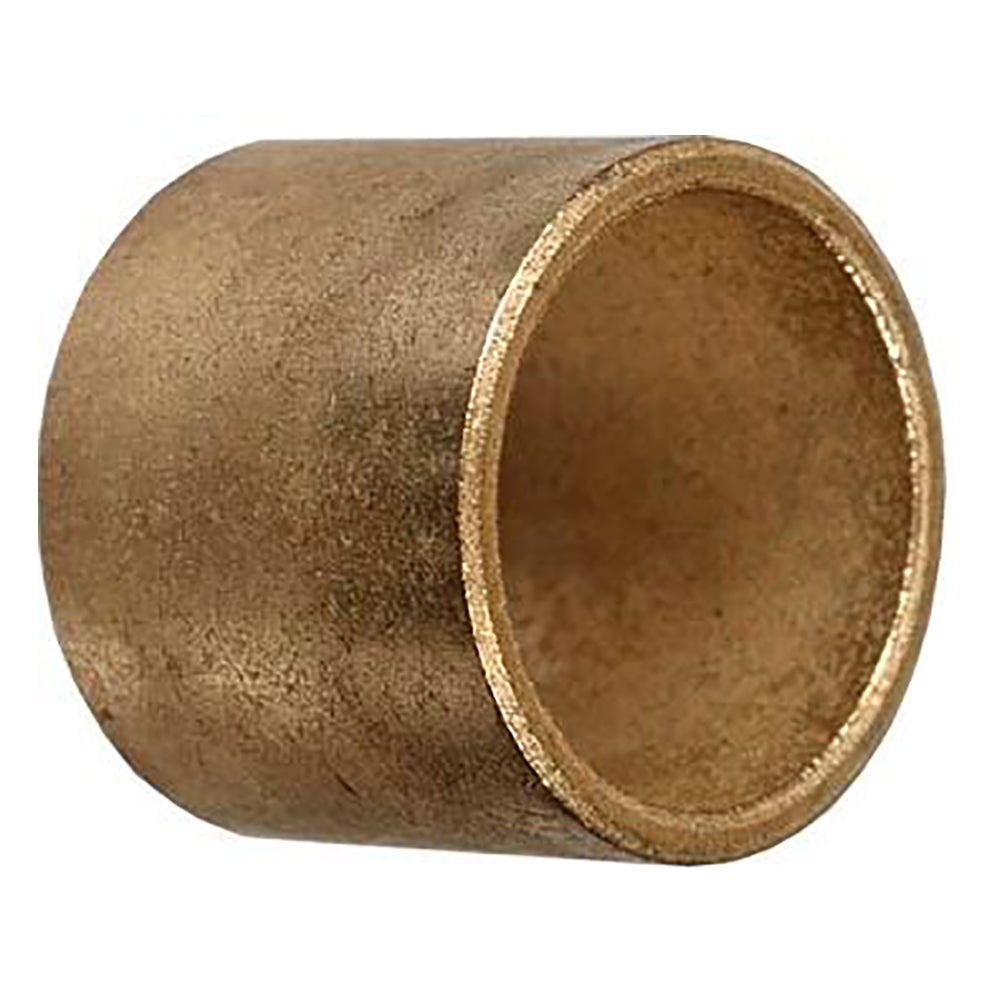

 -(1) Bushing
 -Location Used: CE Housing
 -ID: 0.565" / 14.35mm
 -OD: 0.689" / 17.5mm
 -Width: 0.77" / 19.56mm
 -Bushing Type: Oilit
 -Replaces Part Numbers: 1864532, 1867610, 1872678, 1891927
 -

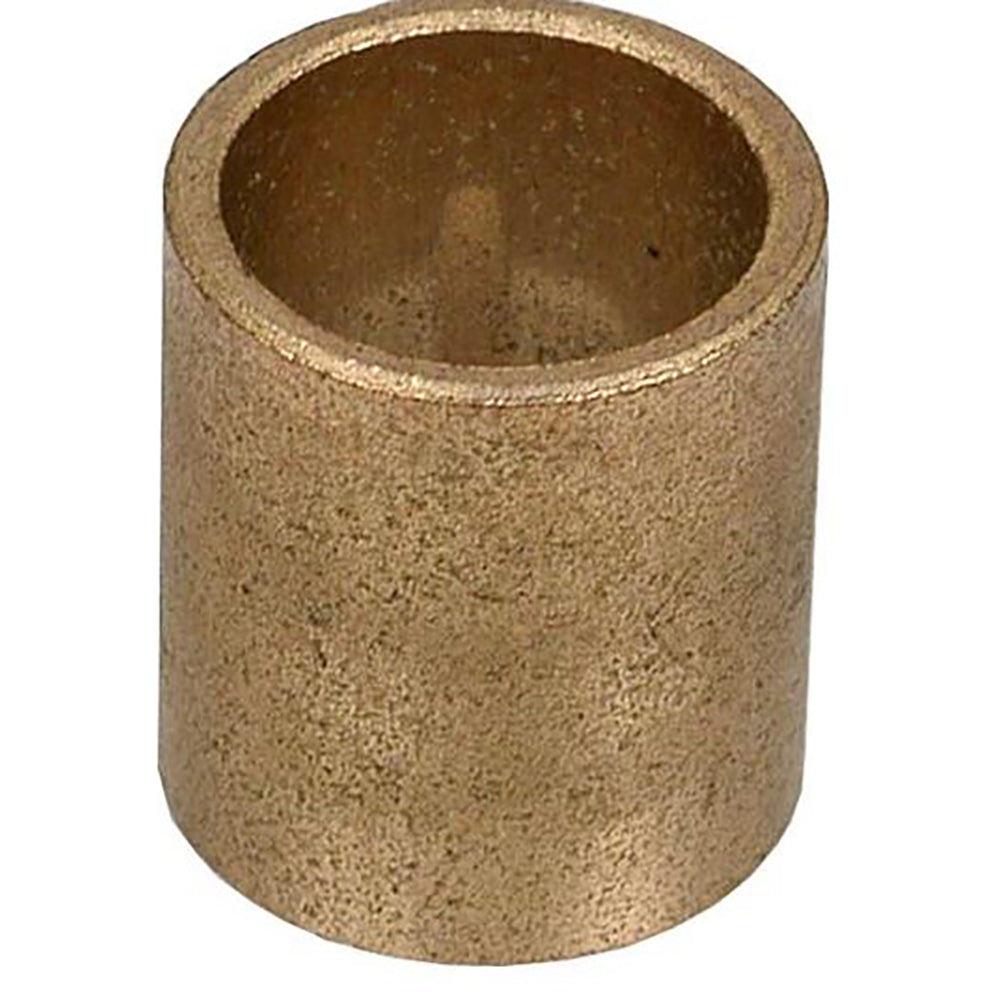

 -(1) Bushing
 -Location Used: Lever Housing
 -ID: 0.757" / 19.23mm
 -OD: 0.89" / 22.61mm
 -Width: 0.75" / 19.05mm
 -Bushing Type: Oilite
 -Replaces part Numbers: 133-12035-10, SDR7141
 -

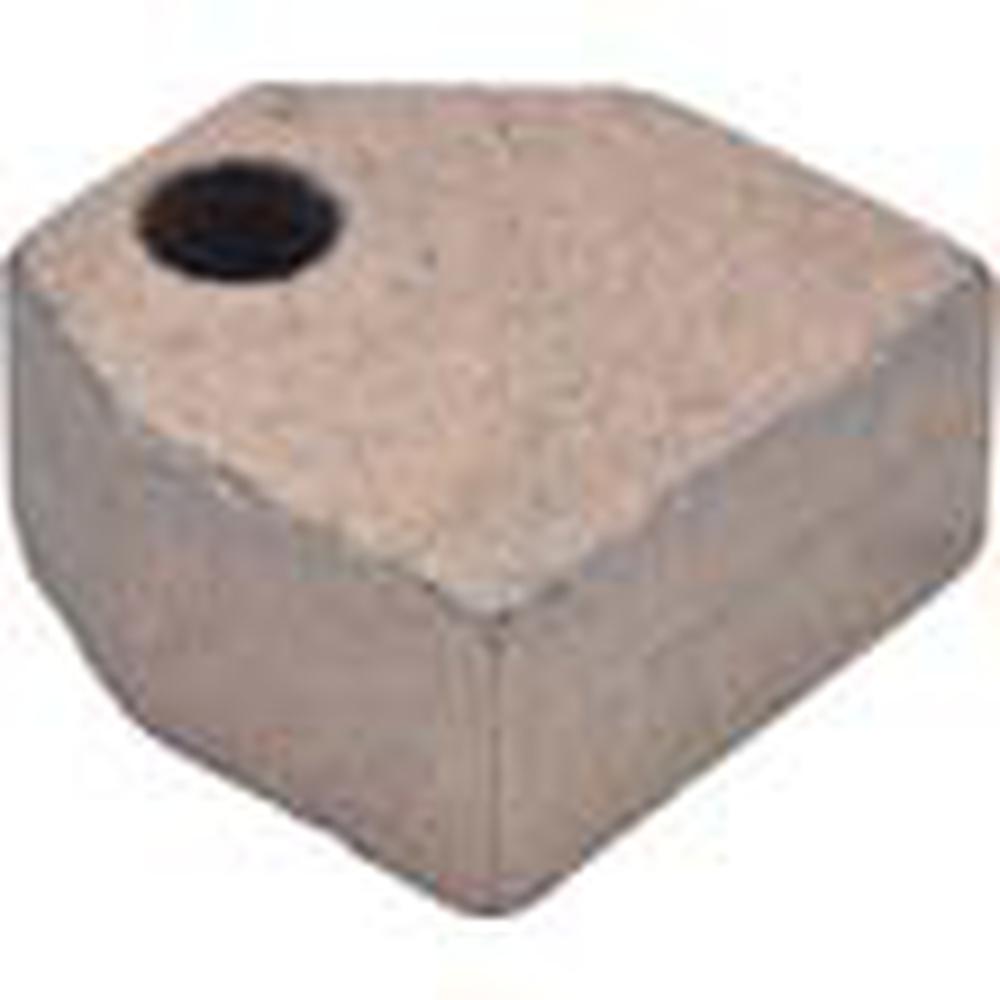

 -(4) Starter Brushes
 -3/8" thick
 -Replaces part Numbers: 141-12084-10, SDR7506
 -

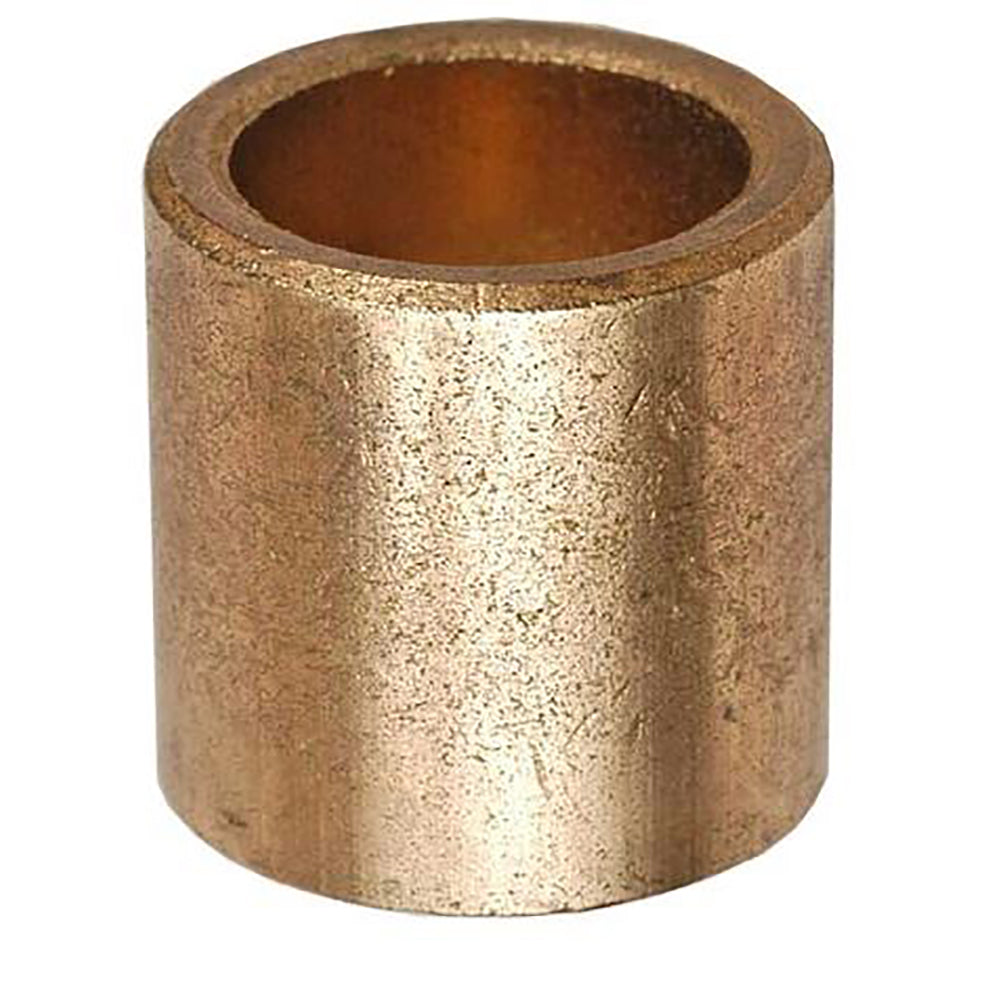

 -(1) Bushing
 -Location Used: CE & DE Housings
 -ID: 0.567" / 14.41mm
 -OD: 0.752" / 19.1mm
 -Width: 0.76" / 19.3mm
 -Bushing Type: Oilite
 -Bushing Size: Standard
 -Replaces Part Numbers: ELS60-0293REPAIRKIT-KIT, D1684, D1674, 1955994, 1943628, 1955991
 -

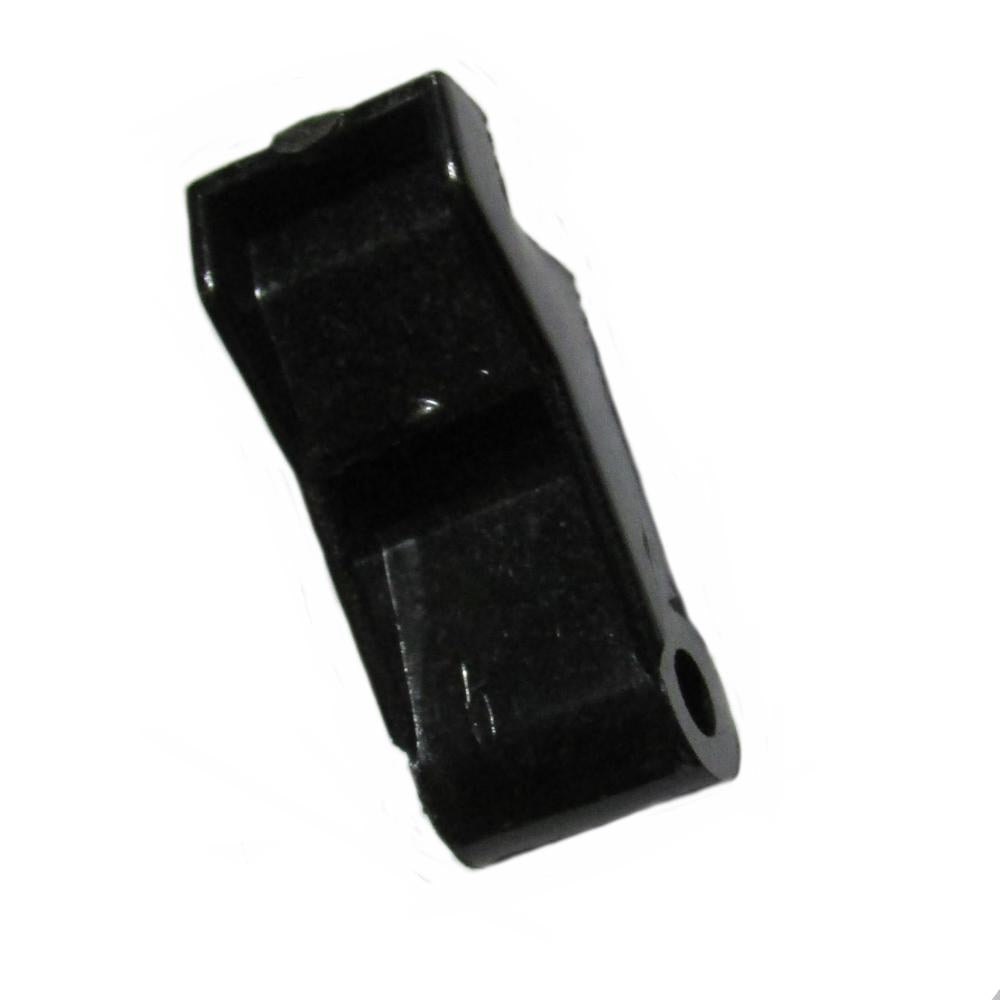

 -(2) Brush Holders
 -For Starters
 -Insulated & Tapped with 8-32 Threads
 -Replaces part Numbers: 1926618, 1950546, 1988414, 1938587, S1851

Fits Arrowhead:
 Replaces Part Number(s): 133-12035-10, SDR7141, 141-12084-10, SDR7506

Models This Part Fits:

35MT, 15MT, 27MT, 30MT, 20MT

Additional Information:

(2) Brush Springs Replaces Part Numbers: 1945620, 1979994, 1986019, D3984, D4952 (1) Bushing Location Used: CE Housing Inner Diameter: 0.565" (14.35mm) Outer Diameter: 0.689" (17.5mm) Width: 0.77" (19.56mm) Bushing Type: Oilit Replaces Part Numbers: 1864532, 1867610, 1872678, 1891927 (1) Bushing Location Used: Lever Housing Inner Diameter: 0.757" (19.23mm) Outer Diameter: 0.89" (22.61mm) Width: 0.75" (19.05mm) Bushing Type: Oilite Replaces Part Numbers: 1933999 (4) Starter Brushes 3/8" Thick Replaces Part Numbers: 1906958, 1906987, 1946484 (1) Bushing Location Used: CE & DE Housings Inner Diameter: 0.567" (14.41mm) Outer Diameter: 0.752" (19.1mm) Width: 0.76" (19.3mm) Bushing Type: Oilite Bushing Size: Standard Replaces Part Numbers:1943628, 1955991, 1955994, D1674, D1684 (2) Brush Holders Insulated & Tapped with 8-32 Replaces Part Number: 1926618, 1938587, 1950546

Reference Numbers:

5M3294, 665545
