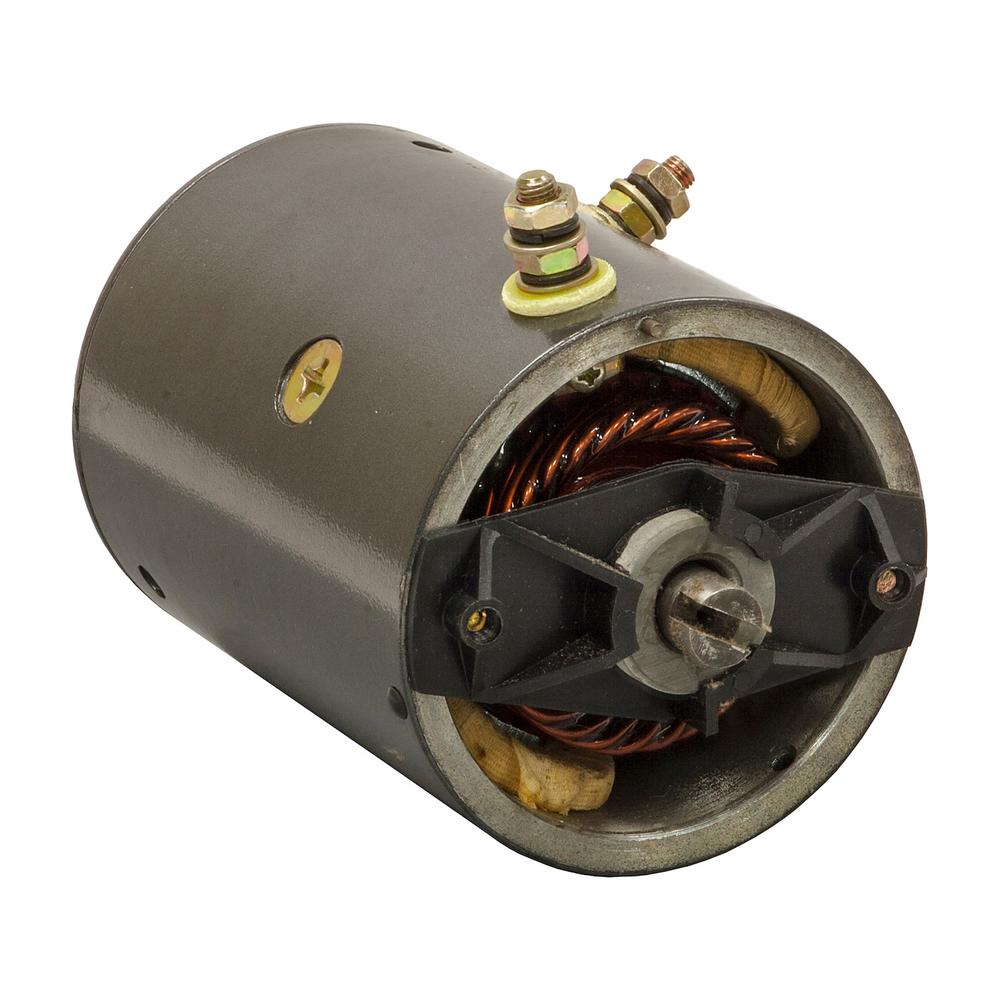

1306415 -4-1/2 INCH MOTOR-REPLACES FISHER #A5819

One New Aftermarket Replacement 4-1/2 Inch Hydraulic Pump Motor for Fisher Snow Plows

This 12-volt DC hydraulic pump motor drives the Insta-Act hydraulic system on Fisher snow plows, providing the power needed to raise, lower, and angle the blade. The 4.5-inch diameter motor features a slotted (tang) shaft, clockwise rotation, and two 5/16-24 terminals, and mounts to the hydraulic pump unit with an included mounting plate.

Specifications

• Voltage: 12V DC
• Power: 1.7 kW / 2.28 HP
• Rotation: Clockwise (CW)
• Field Housing O.D.: 4.5 in. (114.3 mm)
• Overall Length: 8.268 in. (209.3 mm)
• Shaft O.D.: 0.626 in. (16 mm)
• Shaft Style: Slotted / Tang
• Terminal Size: 5/16-24 (x2)
• Weight: 17.3 lbs.
• Includes mounting plate

Compatible Equipment

Fisher Snow Plows (All Models using Insta-Act hydraulic system): Minute Mount, Minute Mount 2, Uni-Mount, and compatible Fisher straight-blade and V-plow applications

Western Snow Plows: Uni-Mount and compatible Western straight-blade and V-plow applications using the same hydraulic pump motor

Replaces Part Number(s):

Fisher: A5819, 21500 | Buyers/SAM: 1306415, 13036325

Aftermarket Interchange Numbers

Johnson Electric: MM18896, MM18996 | Prestolite: 46-2473, 46-2584, 46-3618, 46-3938, MKW-4009, MUE-6103, MUE-6103S, MUE-6111, MUE-6111S, MUE-6206, MUE-6206AS, MUE-7001 | Western: 50133, 54133, 56058, 56062, 56133, 56398, 56410, 58058, 58082 | Lester: 10725, 10757, 160-124, 160-841A

New aftermarket replacement part - not remanufactured, not used.
