1306320 -OLD STYLE 4 AND 4-1/2 INCH MOTOR TO FIT WESTERN SNOW PLOWS
1306320 -OLD STYLE 4 AND 4-1/2 INCH MOTOR TO FIT WESTERN SNOW PLOWS
Couldn't load pickup availability

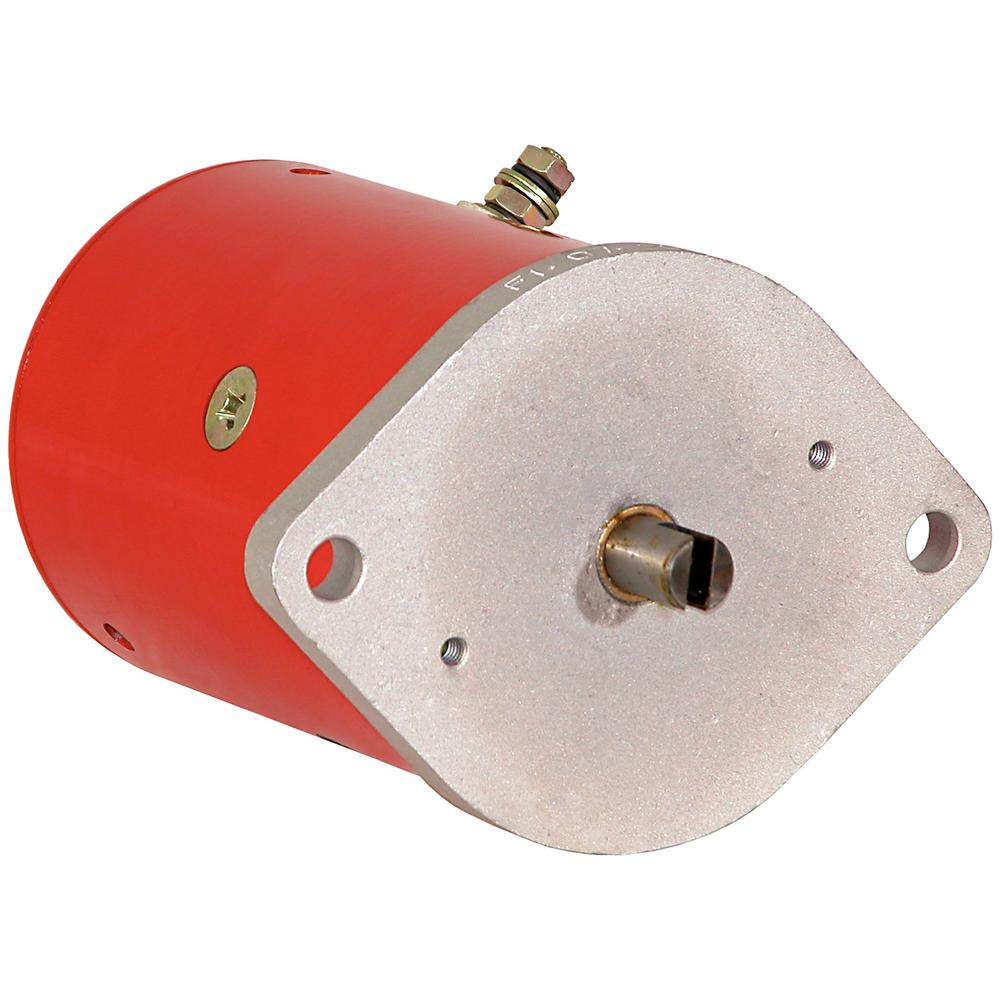

One New Aftermarket Replacement Hydraulic Pump Motor for Western Snow Plows (Old Style 4" and 4-1/2" Units)
This electric motor is a direct replacement for the old-style hydraulic pump motor used on early Western snow plows. It drives the hydraulic pump that raises, lowers, and angles the plow blade. Compatible with both the 4-inch and 4-1/2-inch motor housings found on these earlier-generation Western units. The motor features a slotted shaft, clockwise rotation, dual terminal posts, and sealed construction for corrosion resistance in harsh winter conditions.
Specifications
- Voltage: 12V DC
- Rotation: Clockwise (CW)
- Power: 1.7 kW
- Shaft Type: Slotted
- Shaft Outside Diameter: 0.626 in. (15.9 mm)
- Case Outside Diameter: 4-1/2 in. (114.3 mm)
- Overall Length: 8.268 in.
- Weight: Approx. 17.2 lbs.
- Terminal 1 Size: 5/16-24
Compatible Models
Western Snow Plows: All models equipped with old-style 4" or 4-1/2" cable-operated and early hydraulic pump motors (replaces Western motors W-8940 and 25556/25556A)
Replaces Part Number(s):
Western: 25556, 25556A, W-8940, 56133, 56058, 56062 | Buyers/SAM: 1306320 | Prestolite: 46-806, MEZ7002 | Lester: 6067, 6067N | Arrowhead: LPL0005 | J&N: 430-20001 | Natl Liftgate Parts: AMT0570 | BBB HD: 6077 | WAI: 82-6853, 6067N | Remy: 96753 | Wilson: 94-06-1817 | Barsanco: 540-007 | Worldwide: 96753
New aftermarket replacement part - not remanufactured, not used.
