Mower Deck Rebuild Kit Fits AYP Replaces 127843

Name: Mower Deck Rebuild Kit Fits AYP Replaces 127843
SKU: AYP42REBUILD_03
Price: 85.99 USD
Availability: InStock

Mower Deck Rebuild Kit Fits AYP Replaces 127843

$85.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Mower Deck Rebuild Kit

Tech Info:

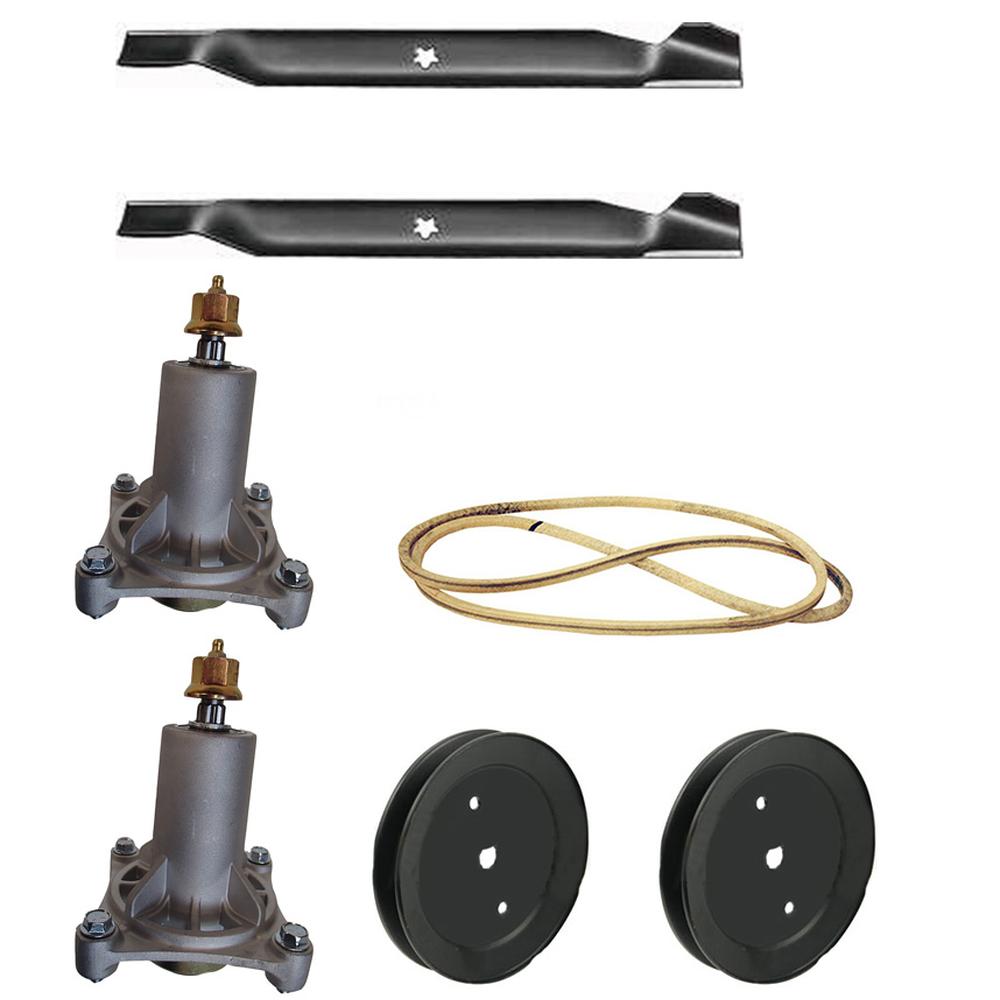

-Kit Contains:

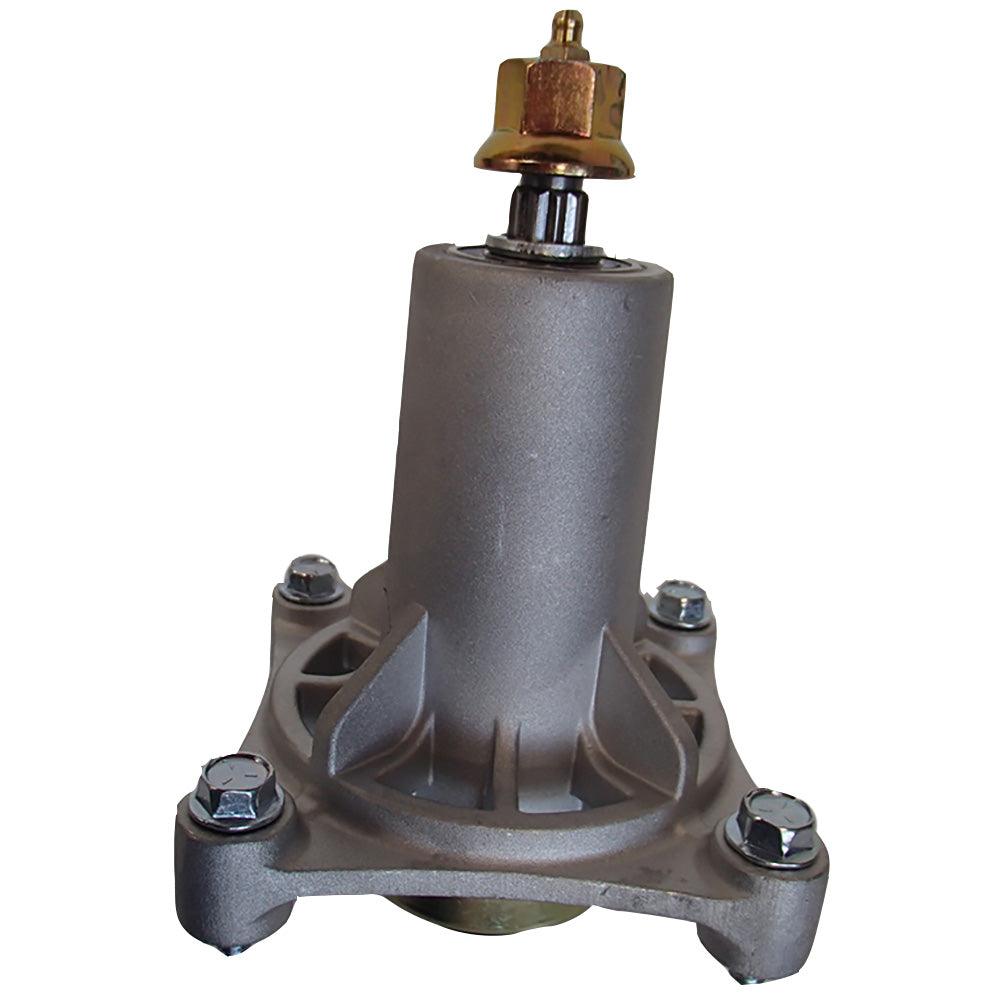

-2 Spindle Assemblies
-4-Bolt Long Housing
-5-Point Star Blade Mount
-Threaded Mounting Holes for Easy Installation
-Shaft is Splined for Spline-Type Pulleys
-
-Includes:
-Pulley Locknut,
-Blade Bolt/Washer,
-Spacer,
-4 Mounting Bolts
-
-Replaces Part Number(s):
-187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 567253301
-
-

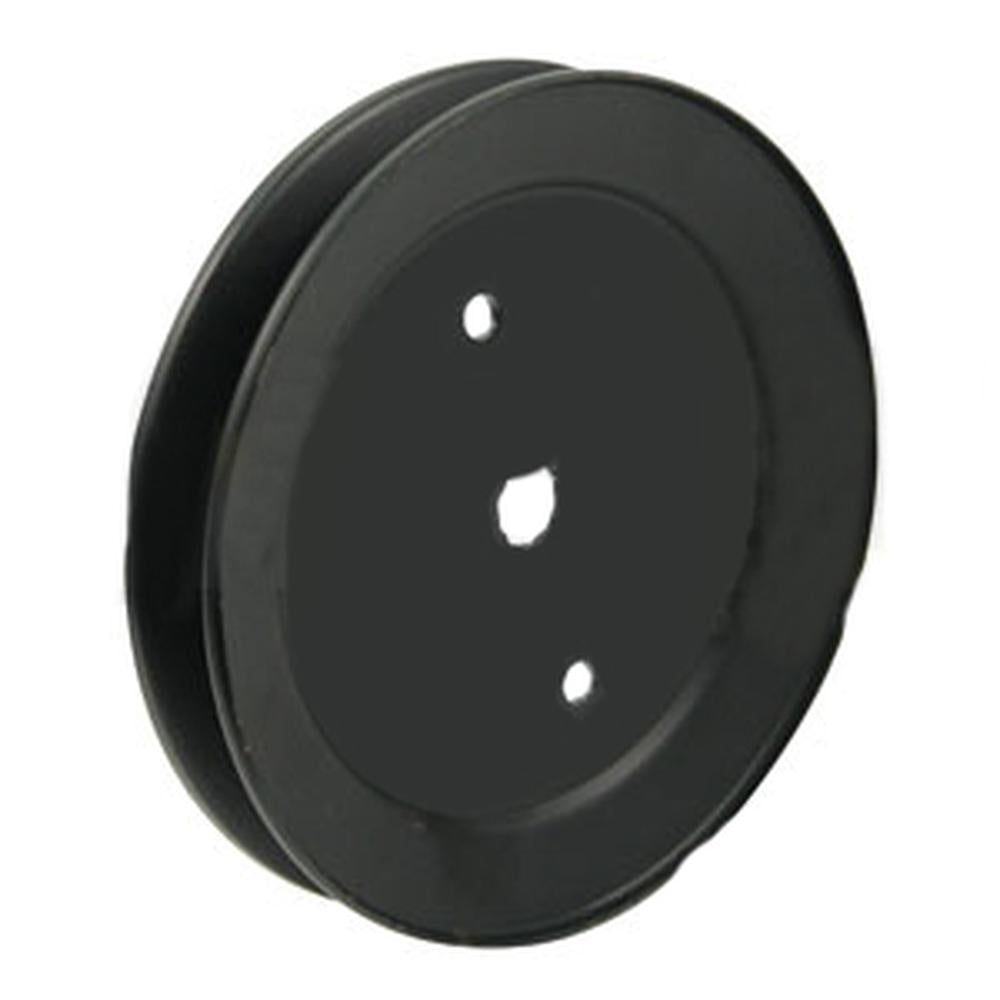

-2 Spindle Pulleys
-Inside Diameter: 5/8" Splined
-Outside Diameter: 6-1/4"
-Width: 7/8"
-Replaces Part Number(s):
-195945, 197473, 532195945, 195945, 197473, 532195945, 532197473
-

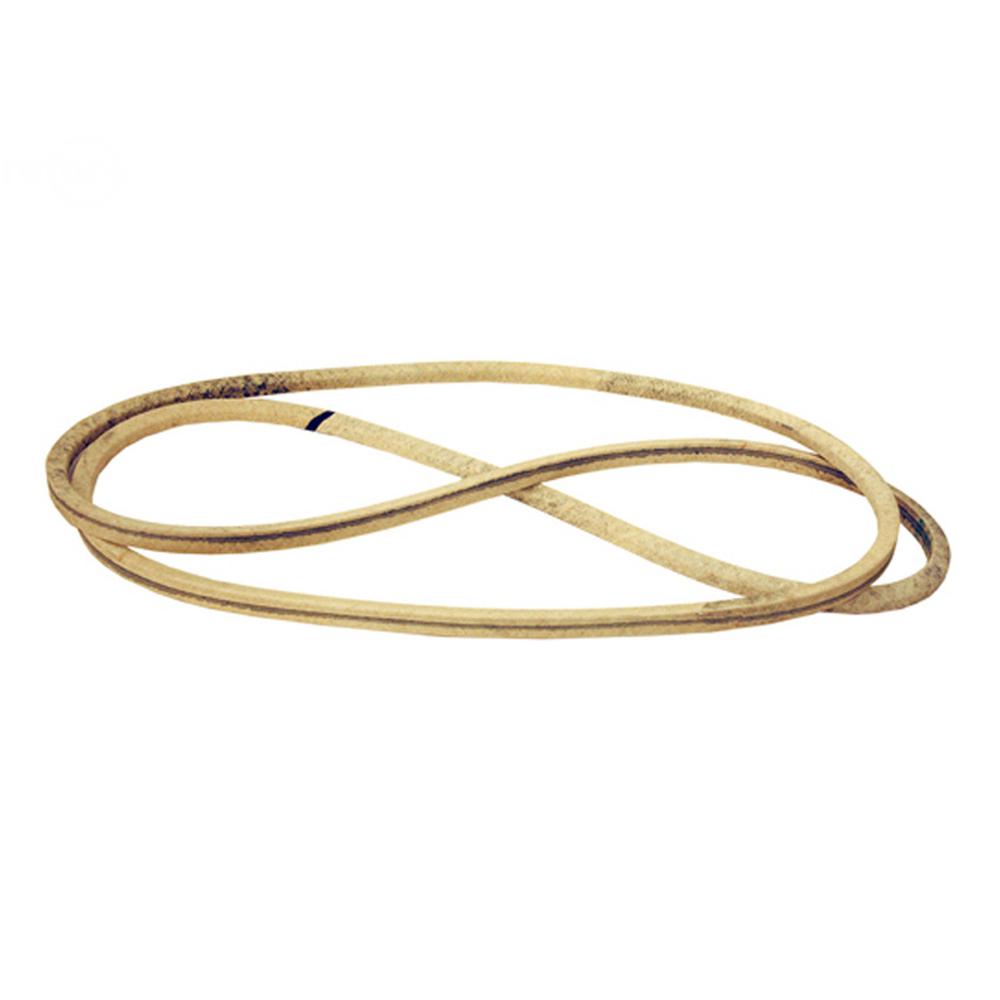

-(1) Deck Belt
-1/2" x 101"
-Made With Aramid Cord
-

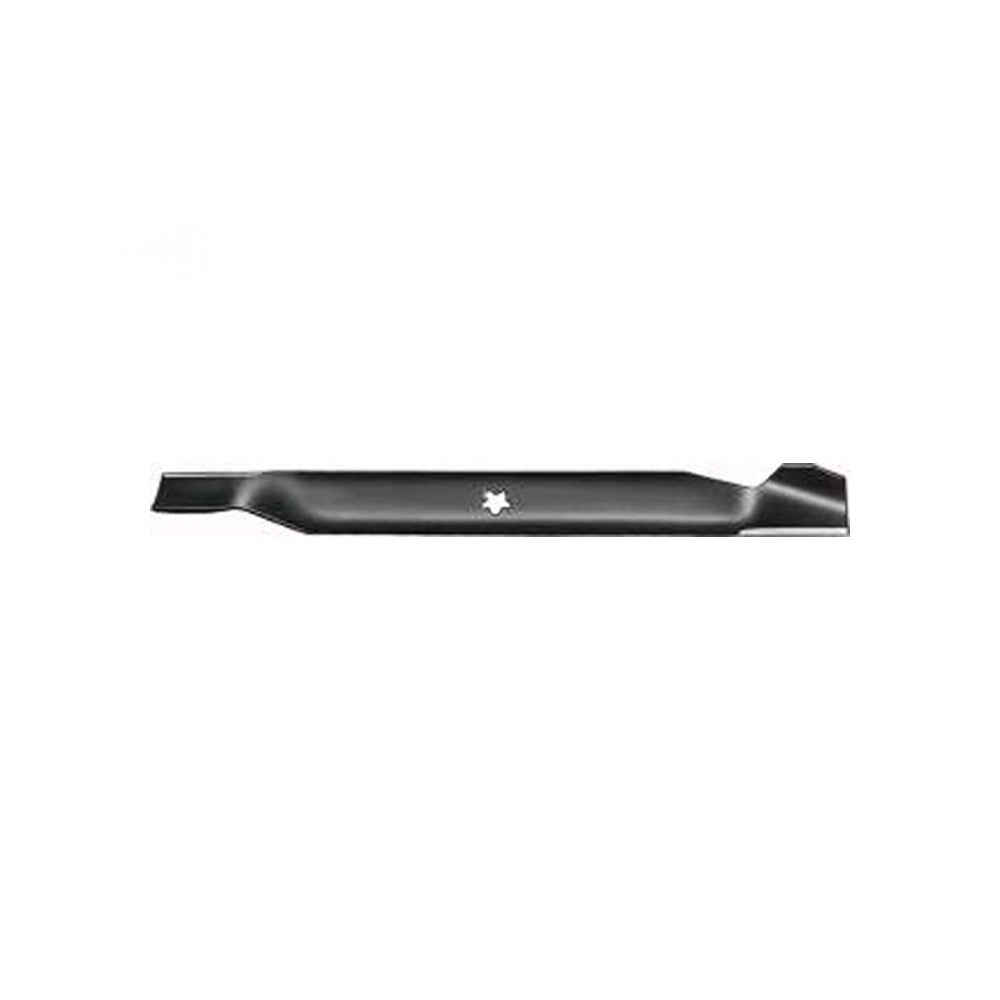

-(2) Lawn Mower Blades
-Type: Notched HI-Lift Blade
-Length: 21"
-Center Hole: 5 Point Star
-Width: 2-1/4"
-Thickness: 0.149"
-Replaces Part Number(s):
-195945, 197473, 532195945, 532197473

Made to Fit AYP:
Lawn/Garden Tractor Models: 42" Mower Decks
Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 195945, 197473, 532195945, 197253, 532197253, 592855001, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498

Models This Part Fits:

42" Mower Decks

Additional Information:

Kit Contains: 2 Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 567253301 2 Spindle Pulleys Inside Diameter: 5/8" Splined Outside Diameter: 6-1/4" Width: 7/8" Replaces Part Number(s): 195945, 197473, 532195945, 195945, 197473, 532195945, 532197473 (1) Deck Belt 1/2" x 101" Made With Aramid Cord (2) Lawn Mower Blades Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Number(s): 195945, 197473, 532195945, 532197473

Reference Numbers:

187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 195945, 197473, 532195945, 197253, 532197253, 592855001, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498
