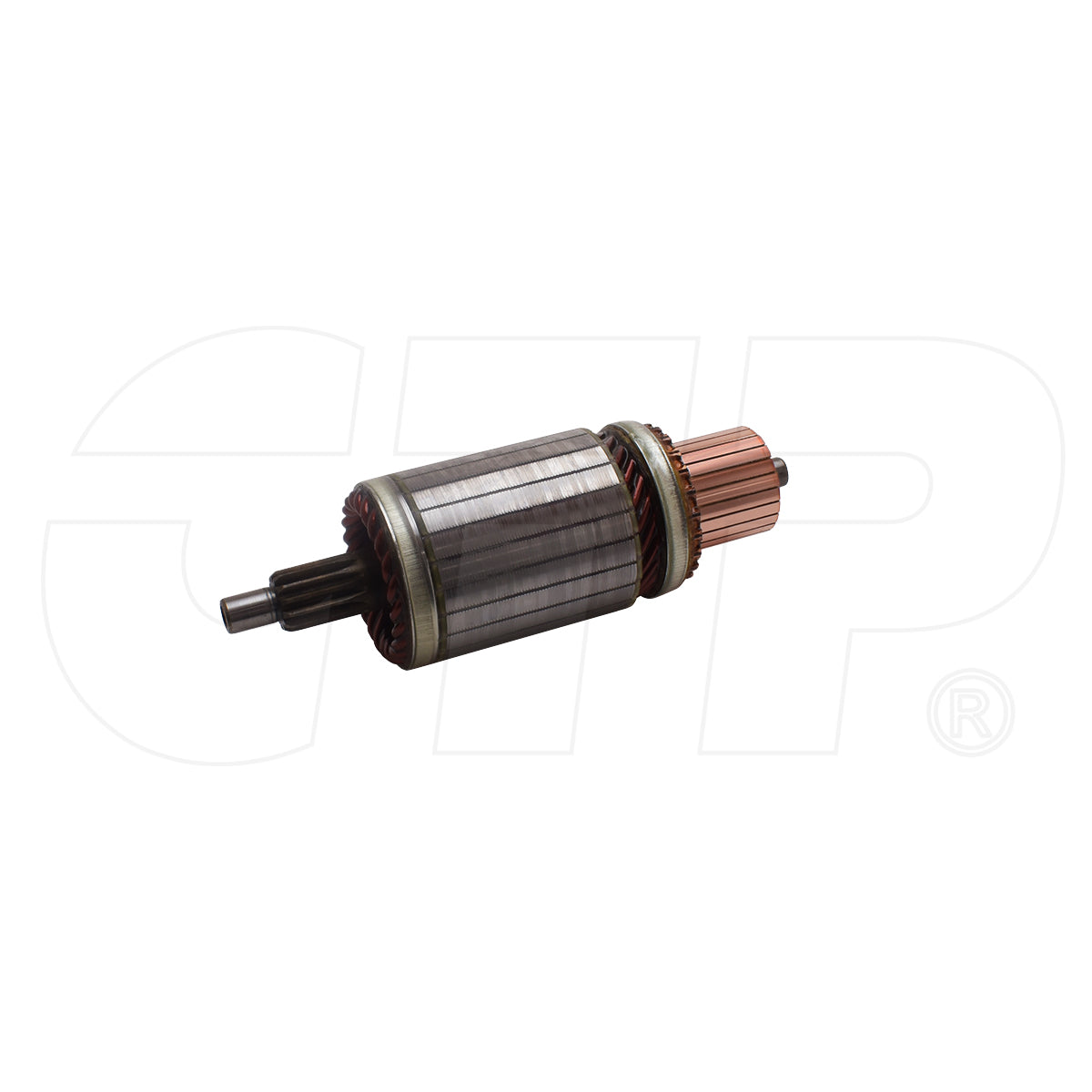

1275950 Armature A Fits Caterpillar Models

One New Aftermarket Replacement Electrical Starting Motor Armature for Caterpillar (Cat) Excavators

This aftermarket replacement armature (part number 1275950, also formatted as 127-5950) is a key internal component of the electrical starting motor assembly on Caterpillar (Cat) compact and mid-size excavators. The armature is the rotating core of the starter motor and is part of the Electrical and Starting Unit system. Dimensions: 200.66 mm (7.90 in) length x 81.28 mm (3.20 in) width x 81.28 mm (3.20 in) height. Weight: approximately 2.93 lbs.

Specifications

• Length: 200.66 mm / 7.90 in
• Width: 81.28 mm / 3.20 in
• Height: 81.28 mm / 3.20 in
• Weight: 2.93 lbs
• Application: Electrical Starting Motor Assembly

Compatible Models

Caterpillar Excavators: 307, 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315, 315B, 315C, 315D L, 317B L, 317B LN, 318B, 318B N, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321B, 321C, 321D LCR, 323D, 323D L, 323D LN, 323D S, 323D SA

Caterpillar Engines and Other Equipment: 3046 (Engine - Machine), 910G (Wheel-Type Loader)

Replaces Part Number(s):

1275950, 127-5950

New aftermarket replacement part - not remanufactured, not used.
