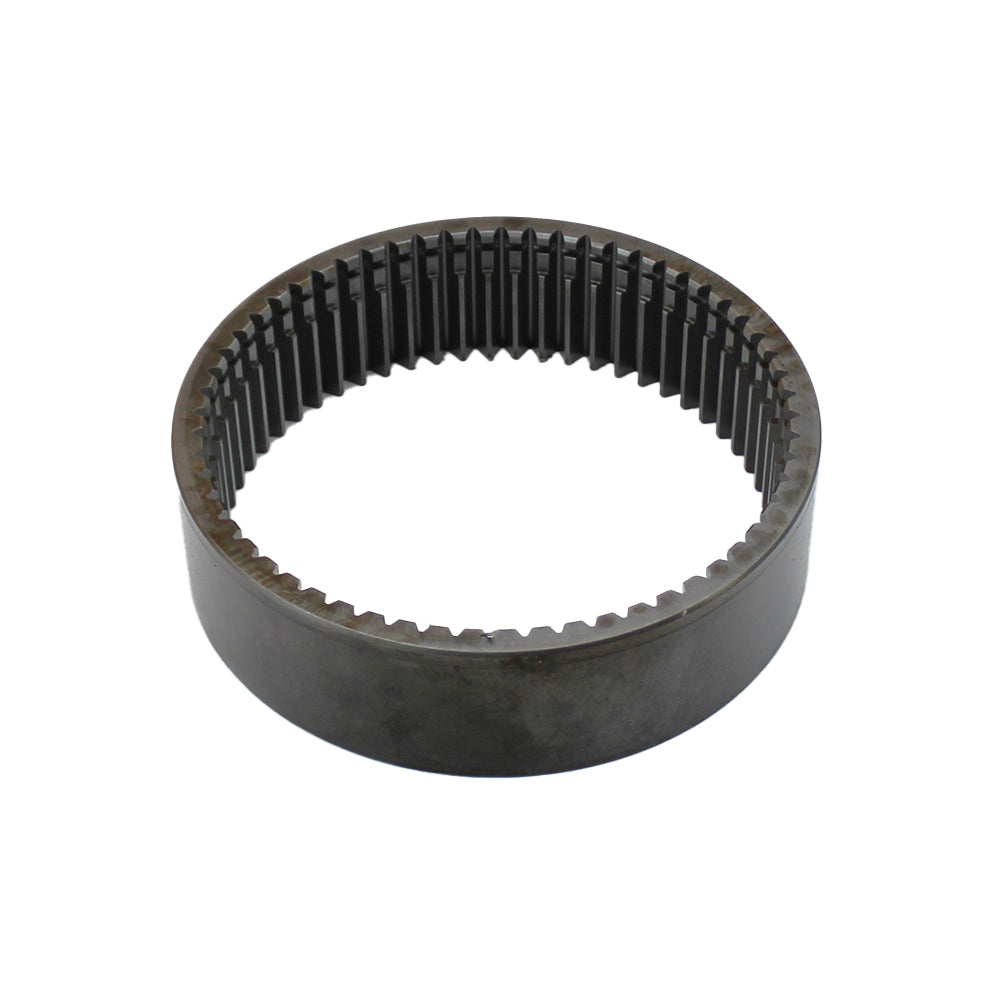

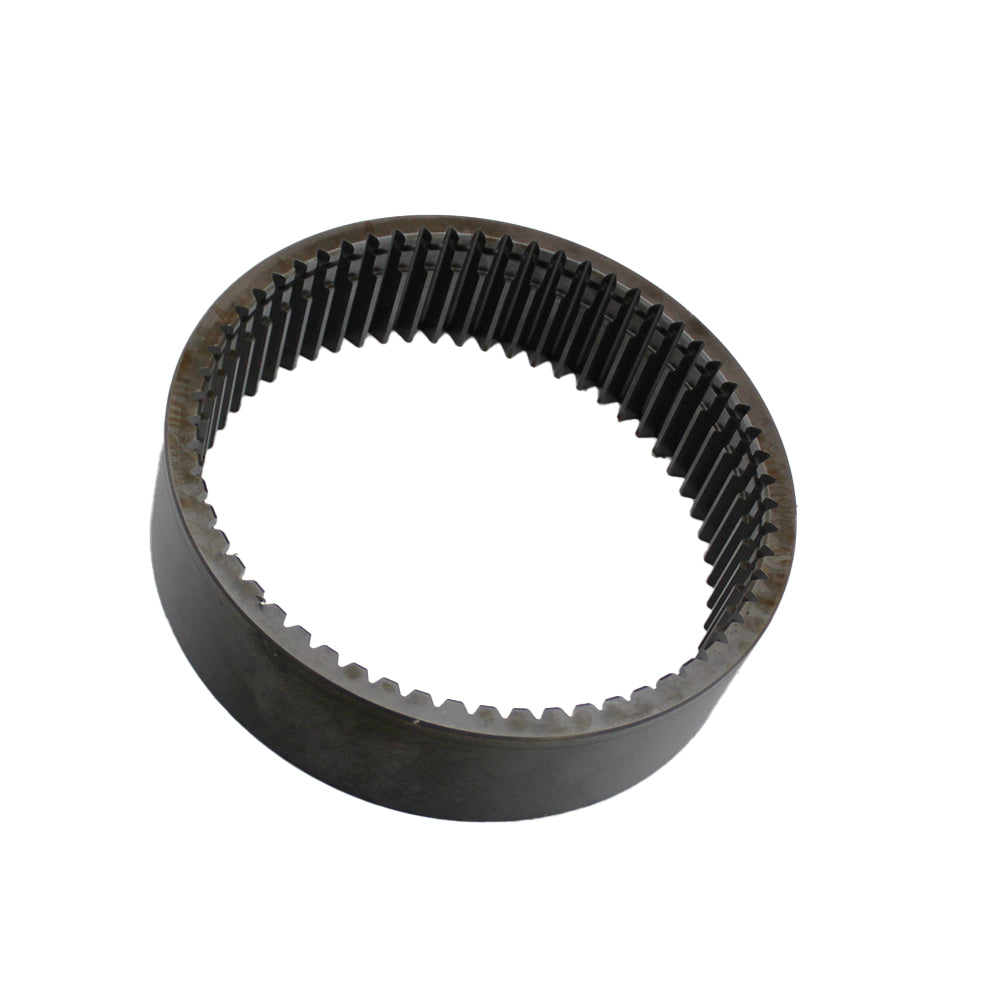

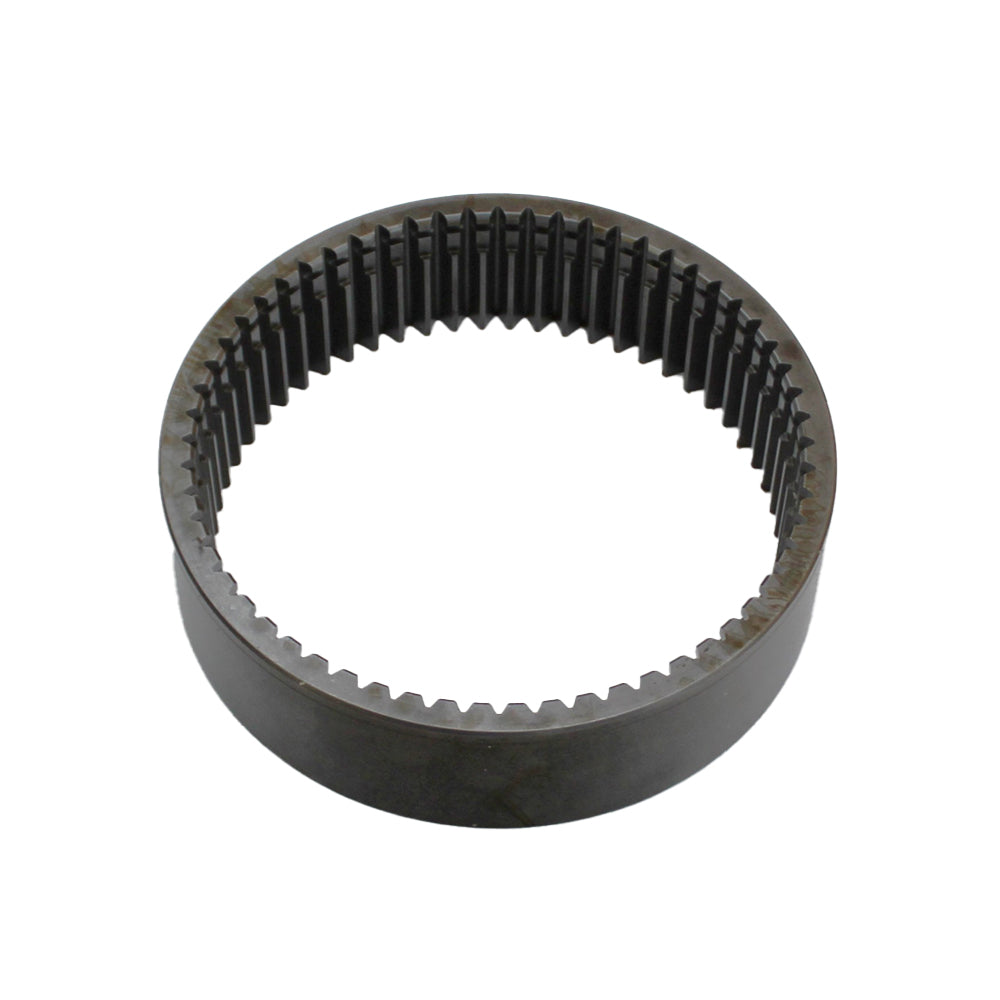

125452 - Ring Gear

One New Aftermarket Replacement Epicyclic Ring Gear for Carraro Front Axle Systems

This epicyclic (annulus/internal) ring gear is a precision drivetrain component used in the planetary reduction hub assembly of Carraro front axles. Designated as a 60-tooth (Z60) annulus ring gear, it is an internal-type crown gear that forms part of the epicyclic gear set in the wheel-end reduction unit on 4x4 MFWD front axle configurations. Carraro axles are widely fitted as original equipment on tractors and off-highway machines from Case IH, New Holland, Caterpillar, Volvo, Terex, John Deere, and other manufacturers.

Specifications

• Type: Annulus / Internal / Crown Ring Gear (Epicycloidal)
• Tooth Count: 60 teeth (Z60)
• Application: Planetary wheel-end reduction, 4x4 MFWD front axle

Compatible Axle Assemblies

Carraro Axle Series: 26.16 M, 28.14

OEM Applications Include: Case IH, New Holland (CNH), Caterpillar, Volvo, Terex equipment equipped with Carraro 4x4 front axles. Verify your axle model number before ordering.

Replaces Part Number(s):

125452, 173.30125452

Aftermarket Interchange Numbers

100561A1 (Case IH), 2097461 / 209-7461 (Caterpillar), 85806008 (New Holland), 11988580 / VOE11988580 (Volvo), 502822 (Terex), ER125452 (John Deere), CA0125452 (Komatsu), 10/906335 (JCB), 602086 (Manitou), VA125452 (AGCO)

New aftermarket replacement part - not remanufactured, not used.
